High Performance

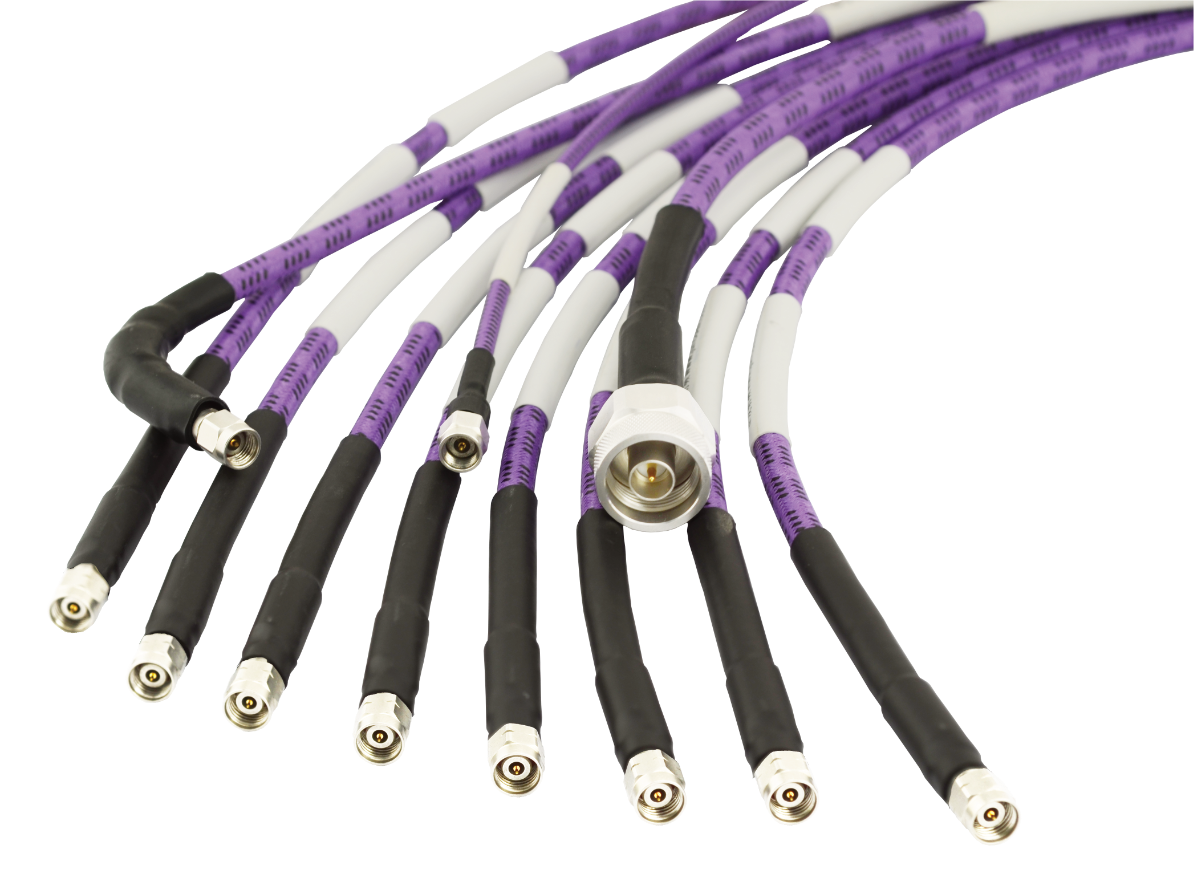

PT Series Precision Test Cable

Frequency

DC - 110 GHz

Structure

10-Layer Armor

Phase

Stable

Precision Test Cable

PT Series
110GHz Test Cable

Engineered for precision measurement up to 110 GHz. Utilizing a robust 10-layer armored construction, the PT Series ensures exceptional electrical repeatability, phase stability, and ultra-low insertion loss for measuring mmWave components and systems.

Key Features

  • Max Frequency: Up to 110 GHz performance.
  • Durability: 10-layer ruggedized armor.
  • Shielding: > -100 dB (up to 67GHz).
  • Stability: Excellent Phase Stability vs Temp.
Datasheet

High-Performance Interconnect Solution

The PT Series test cable (DC-110 GHz) is a high-performance interconnect solution specifically engineered for precision measurement. Utilizing a robust 10-layer armored construction, it ensures exceptional electrical repeatability, phase stability, and ultra-low insertion loss.

Designed for durability, the cable offers superior crush and torque resistance, maintaining performance integrity through rigorous bending cycles. It is the ideal choice for R&D Labs, VNA Calibration, and RF & mmWave Component Verification.

Rugged Construction

10-layer armor provides superior crush resistance (300 kg/cm) and >2,000,000 bending cycles.

Temp Stability

Excellent phase stability vs. temperature range of -55°C to +125°C.

Available Connectors

  • 2.92mm (40 GHz)
  • 2.4mm (50 GHz)
  • 1.85mm (67 GHz)
  • 1.0mm (110 GHz)
