Home Products rf-microwave Spectrum Analyzers YSA-P400
New Release
YSA-P400 Spectrum Analyzer

Frequency

9k - 40GHz

Real-Time BW

100 MHz

Form Factor

Handheld

Handheld / Benchtop Dual-Use

YSA-P400 Series
Real-Time Spectrum Analyzer

XGY's flagship portable RTSA offering laboratory-grade RF performance. Engineered for 5G field testing, interference hunting, and high-precision R&D in a compact 1.5kg form factor. High-precision 40GHz real-time analyzer under A$25,000.

Key Technical Advantages

  • Ultra-low DANL: -161 dBm/Hz (1GHz)
  • Control: 10.1" Multi-touch with Gestures
  • Architecture: Integrated RTSA & IQ Streaming
  • Portability: USB-PD Power Bank Support
Datasheet

Laboratory Performance in the Palm of Your Hand

The YSA-P400 series redefines the capabilities of handheld spectrum analysis. Engineered to bridge the gap between field portability and benchtop precision, it delivers frequency coverage up to 40 GHz with a Displayed Average Noise Level (DANL) of -161 dBm/Hz.

Unlike traditional handhelds, the YSA-P400 features a fully integrated Real-Time Spectrum Analyzer (RTSA) architecture with 100 MHz bandwidth, ensuring 100% probability of intercept for transient signals as short as 15 µs. This makes it an indispensable tool for modern 5G installation, radar pulse analysis, and secure communications monitoring.

Spectrum Monitoring

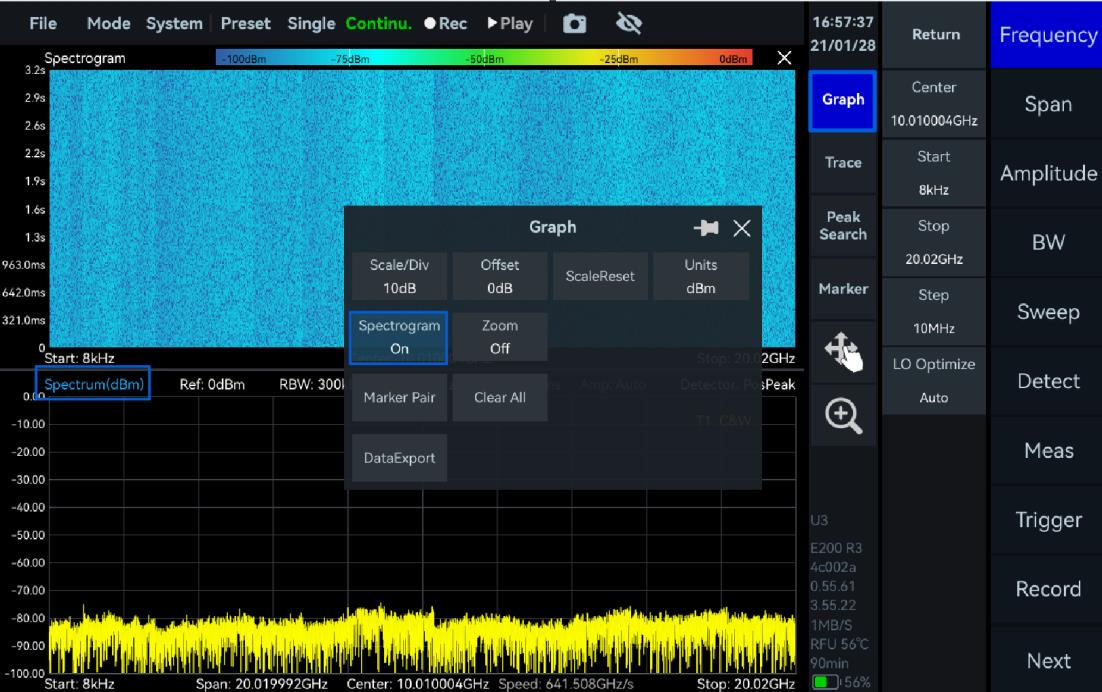

Advanced DPX display technology visualizes signal probability, revealing intermittent interference hidden under the noise floor.

EMC Pre-compliance

Built-in CISPR bandwidths and detectors allow for rapid pass/fail testing on site, reducing lab time.

Primary Applications

  • 5G Installation

    Sub-6G & mmWave verification

  • Interference Hunting

    Direction finding & signal ID

  • Education & Research

    Cost-effective lab performance
