PXIe Single/Dual-Channel Source Measure Unit - Femtoampere SMU for Semiconductor Characterization
XGY XMU Single/Dual Channel Series is a PXIe 3U source measure unit family for semiconductor, optoelectronic, and power device characterization. It combines up to 1.8 MS/s sampling, down to 0.1 fA current sensitivity, up to +/-200 V output, and pulsed current options up to +/-10 A.
Key technical parameters for the XMU Single/Dual Channel Series SMU.
Up to +/-200 V
Down to 0.1 fA
Application fit
Power products are rarely selected from one headline rating. The useful shortlist starts with the electrical envelope, DUT role, control interface and acceptance evidence.
Application fit
XMU Single/Dual Channel Series SMU should be scoped around precision source-measure testing, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
XMU Single/Dual Channel Series SMU should be scoped around semiconductor I-V characterization, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
XMU Single/Dual Channel Series SMU should be scoped around low-current device measurement, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
XMU Single/Dual Channel Series SMU should be scoped around PXIe automated test, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
The XMU Single/Dual Channel Series is a family of high-precision PXIe source measure units built for advanced semiconductor, optoelectronic, and power electronics testing. The series combines four-quadrant source and measure capability, high-speed sampling, ultra-low current sensitivity, and multiple model options for voltage, current, pulse, and channel-count requirements.
Depending on the model, each module integrates up to six functions: voltage source, current source, voltmeter, ammeter, pulse source, and electronic load - making the series suitable for both precision low-leakage measurements and dynamic high-power device characterization.
| Parameter | Value |
|---|---|
| Platform | PXIe 3U SMU modules |
| Channel Options | 1-channel and 2-channel models |
| Sampling Rate | Up to 1.8 MS/s |
| Min Current Resolution | Down to 0.1 fA |
| Min Voltage Resolution | Down to 100 nV |
| Max Voltage Range | Up to +/-200 V |
| Max DC Current | Up to +/-3 A |
| Max Pulsed Current | Up to +/-10 A |
| Operation | 4-quadrant source/measure |
| Host Integration | VISA-based control library (Windows & Linux) |
| Model | Channels | Key Strength | Operating Range | Best Fit |
|---|---|---|---|---|

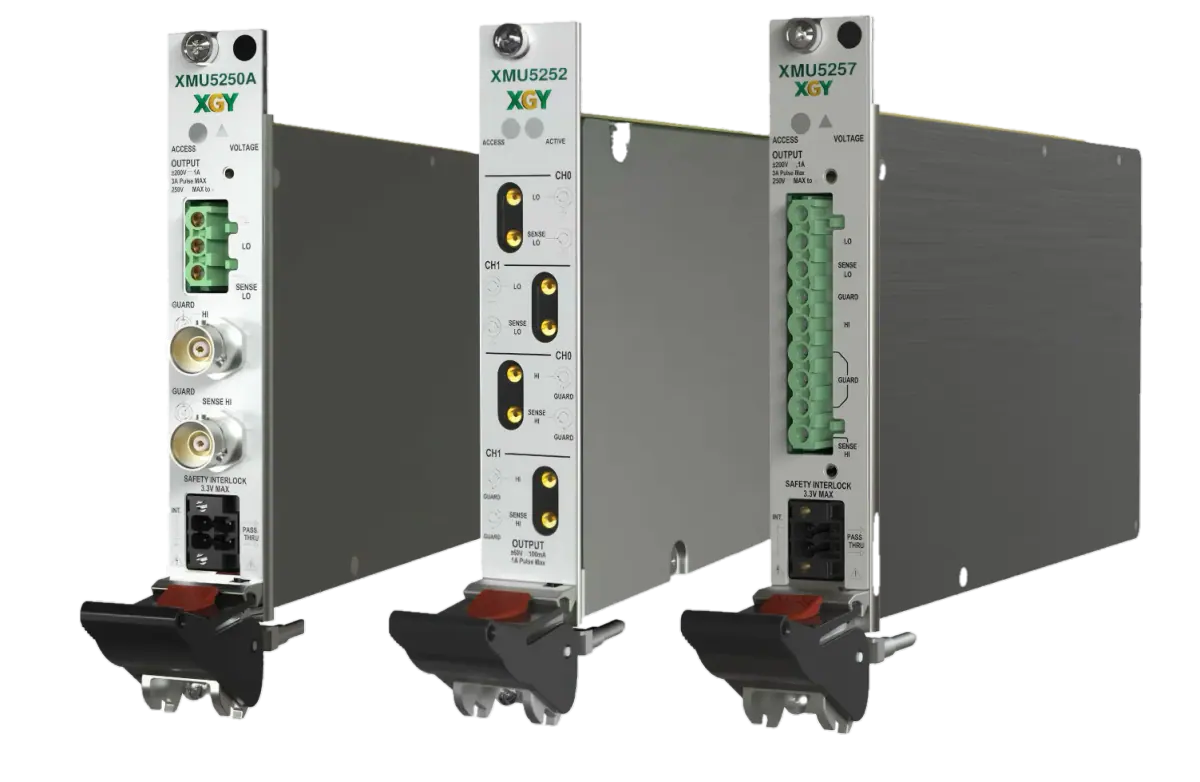

| XMU5250A | 1 | General precision SMU with pulse | +/-200 V, 3 A pulse | Semiconductor & optoelectronic characterization |
| XMU5251 | 1 | Ultra-high current sensitivity | +/-200 V, down to 0.1 fA | Ultra-low leakage & device research |
| XMU5252 | 2 | Dual independent channels | +/-60 V, 100 mA DC, 1 A pulse | Dual-device or matched-pair testing |
| XMU5256 | 1 | High-voltage precision | +/-200 V, +/-1 A DC | General high-voltage source/measure |
| XMU5257 | 1 | Precision + pulse support | +/-200 V, +/-1 A DC, 3 A pulse | Transient & pulse characterization |
| XMU5258 | 1 | High-current DC | +/-60 V, +/-3 A DC | Low-voltage high-current continuous test |
| XMU5259 | 1 | High-current pulse | +/-60 V, +/-3 A DC, +/-10 A pulse | Power semiconductor pulse test |
XGY Tek specializes in tailoring power supplies to meet specific semiconductor, automotive, and aerospace testing requirements.
