Spectrum Analyzers for RF, EMC, and 5G Testing in Australia

XGY Tek supplies handheld and USB-based spectrum analyzers to engineering teams worldwide across telecom, defense, automotive, EMC, radar, and university research. The YSA-P400 series covers 9 kHz to 40 GHz with -161 dBm/Hz DANL in a 1.5 kg handheld form factor, 100 MHz real-time bandwidth, and 100% POI to 15 us for field interference hunting and EMC pre-compliance.

The YSA-U090 is a compact USB RTSA choice when 9 kHz to 9 GHz coverage is enough. A credible measurement record should include frequency span, RBW, VBW, detector, attenuation, preamp state, antenna or probe, calibration status, screenshot, raw trace export, site note, and instrument serial number.

For model selection, see our spectrum analyzer selection guide. Calibration documentation and RF support scope are confirmed during quotation.

Spectrum Analyzers product list

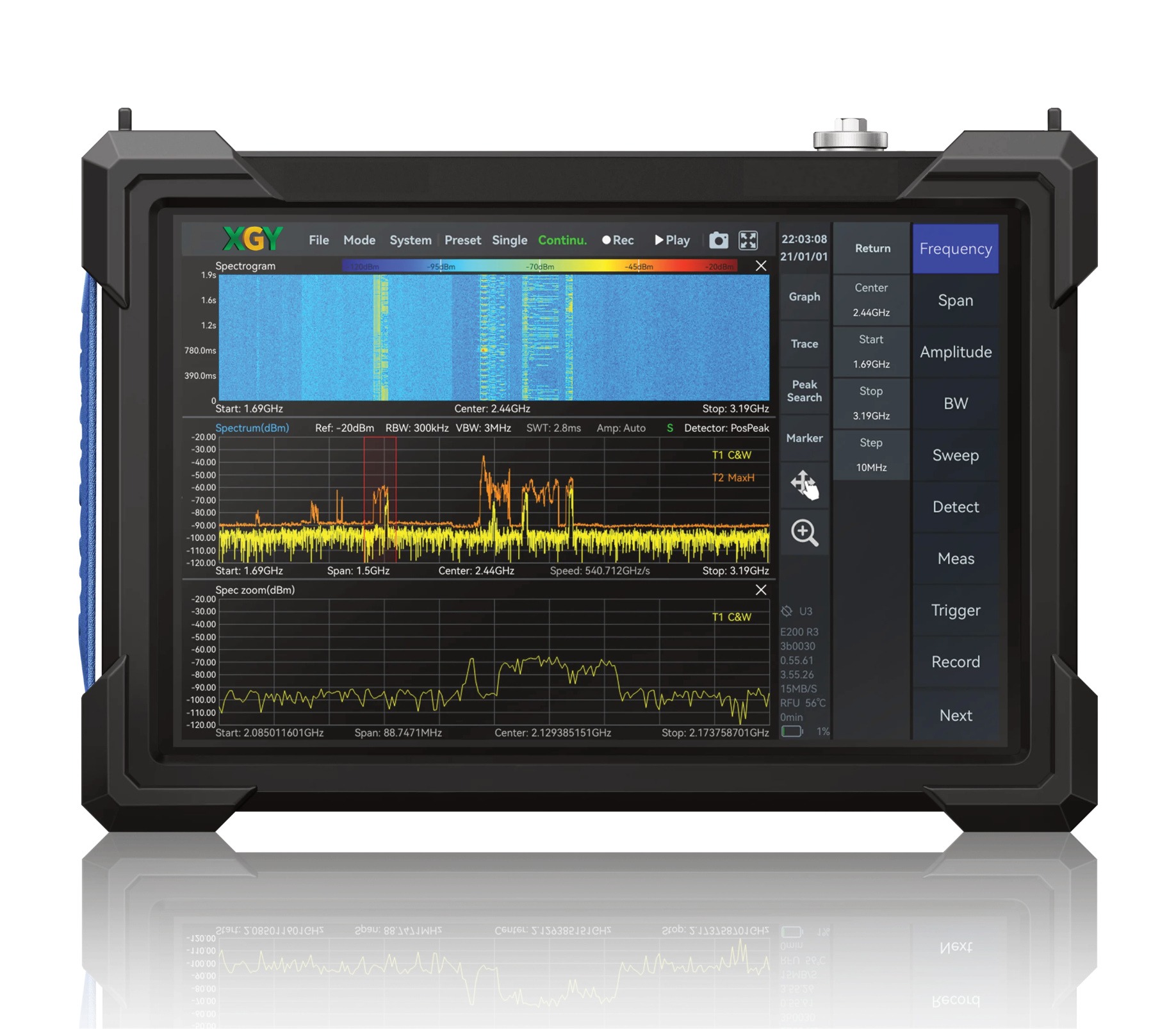

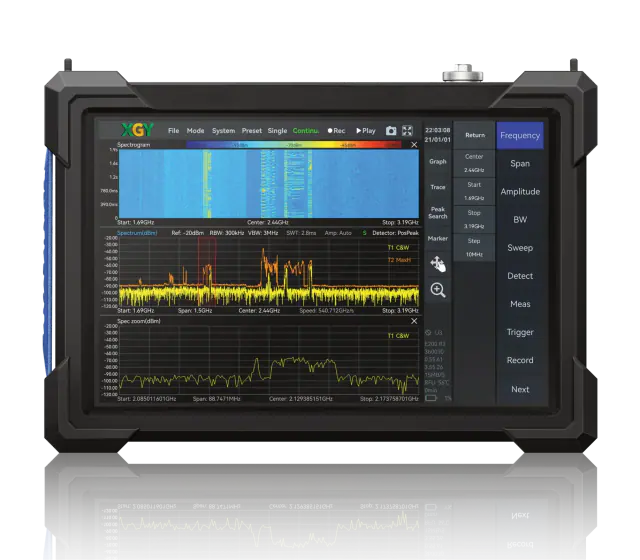

YSA-P400 Spectrum Analyzer

  • Frequency: 9 kHz to 40 GHz
  • DANL: -161 dBm/Hz
  • Analysis BW: Up to 100 MHz
  • Form Factor: Handheld
View Product

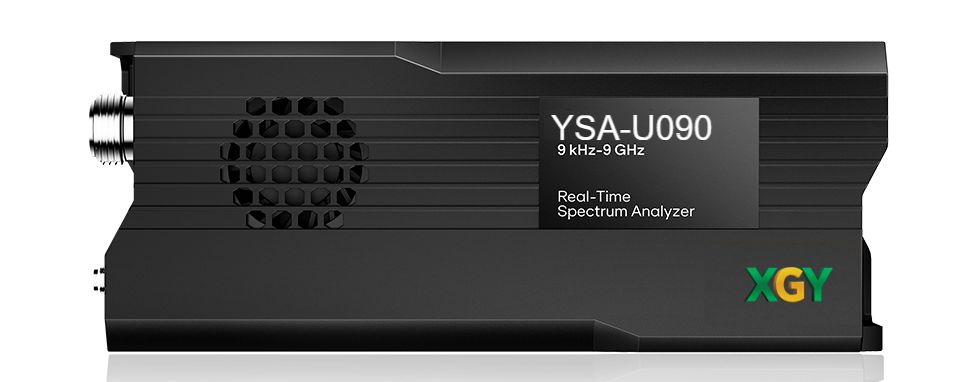

YSA-U090 Series USB Real-Time Spectrum Analyzer

  • Frequency range: 9 kHz to 9 GHz
  • DANL: -168 dBm/Hz (preamp on) (Typical)
  • Analysis bandwidth: 50 / 100 MHz
  • Phase noise: -112 dBc/Hz (Typical; 10 kHz offset)
View Product

YSA-P045 Handheld Real-Time Spectrum Analyzer

  • Frequency range: 9 kHz to 4.5 GHz
  • Sensitivity: 1 GHz DANL -168 dBm/Hz
  • Display: 10.1-inch multi-touch display
  • Weight: 1.5 kg
View Product

YSA-P045-DC Handheld Real-Time Spectrum Analyzer

  • Frequency range: 0 Hz to 4.5 GHz
  • Sensitivity: 1 GHz DANL -168 dBm/Hz
  • Display: 10.1-inch multi-touch display
  • Weight: 1.5 kg
View Product

YSA-P060 Handheld Real-Time Spectrum Analyzer

  • Frequency range: 9 kHz to 6 GHz
  • Sensitivity: 1 GHz DANL -168 dBm/Hz
  • Display: 10.1-inch multi-touch display
  • Weight: 1.5 kg
View Product

YSA-P090 Handheld Real-Time Spectrum Analyzer

  • Frequency range: 9 kHz to 9 GHz
  • Control and field operation: battery up to 2.5 hours
  • Display: 10.1-inch multi-touch display
  • Weight: 1.5 kg
View Product

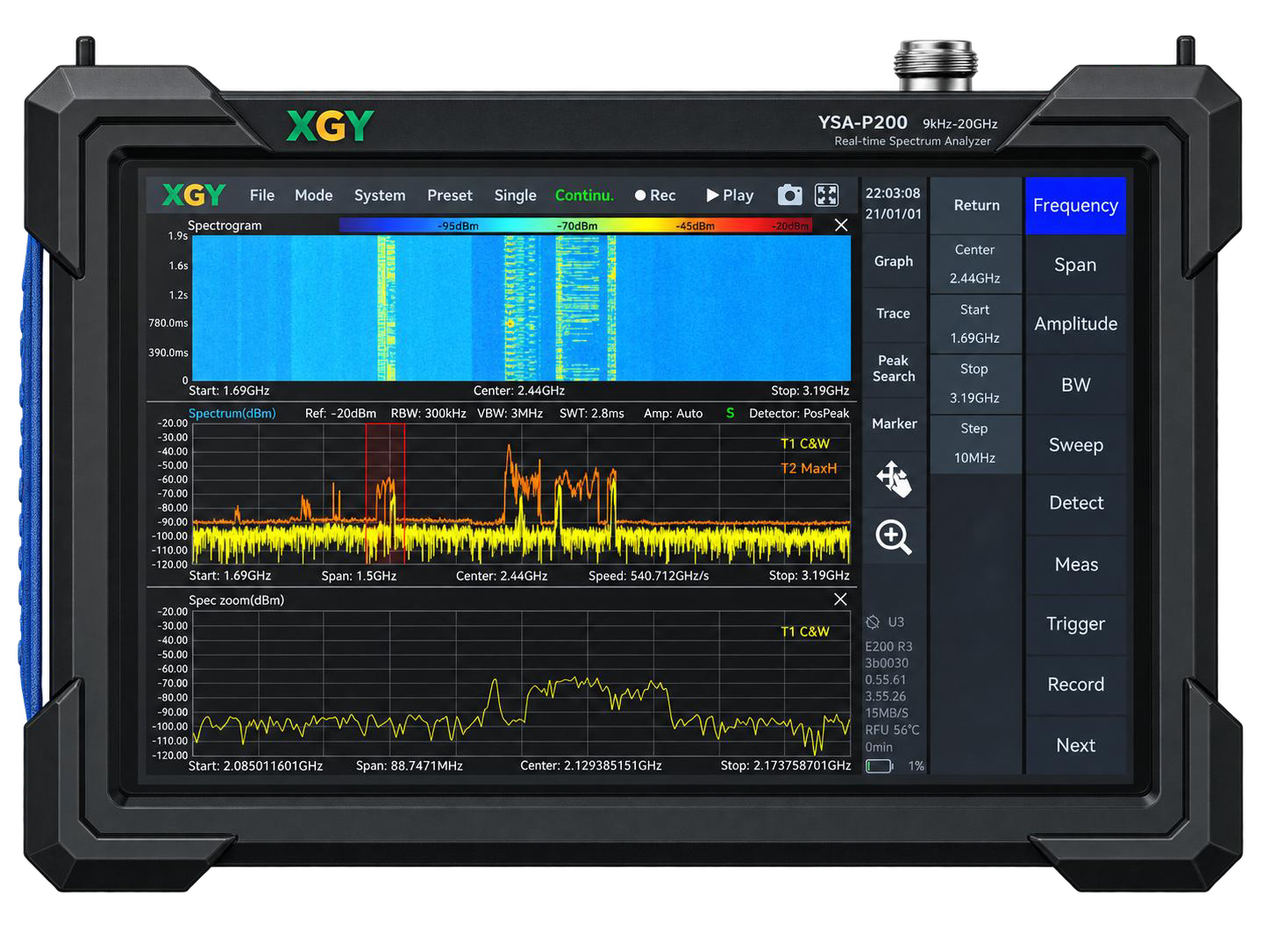

YSA-P200 Handheld Real-Time Spectrum Analyzer

  • Frequency range: 9 kHz to 20 GHz
  • Analysis bandwidth: 100 MHz
  • DANL: 1 GHz: -166 dBm/Hz
  • Weight: 1.5 kg
View Product

Selection path

Handheld and USB spectrum analyzers

Choose the format from the measurement location and control workflow, then confirm frequency ceiling, real-time bandwidth, sensitivity, POI, interfaces, and the evidence that must be saved with each result.

  • YSA-P400 Spectrum AnalyzerHandheld
    Coverage
    9 kHz to 40 GHz; 100 MHz real-time bandwidth
    Best fit
    Field interference hunting, EMC pre-compliance, 5G maintenance, radar work, and measurements that need an integrated display and battery.
  • YSA-U090 SeriesUSB module
    Coverage
    9 kHz to 9 GHz; 50 or 100 MHz real-time bandwidth
    Best fit
    Compact lab benches, portable host-controlled capture, Python or C/C++ automation, and workflows that do not require coverage above 9 GHz.
  • YSA-P045Handheld
    Coverage
    9 kHz to 4.5 GHz; 50 MHz standard / 100 MHz with Option 50
    Best fit
    Portable spectrum analysis, interference hunting, EMC pre-compliance, and field or laboratory RF work.
  • YSA-P045-DCHandheld
    Coverage
    0 Hz to 4.5 GHz; 50 MHz standard / 100 MHz with Option 50
    Best fit
    Portable spectrum analysis when the DC-frequency extension is required for field or laboratory measurements.
  • YSA-P060Handheld
    Coverage
    9 kHz to 6 GHz; 50 MHz standard / 100 MHz with Option 50
    Best fit
    Portable spectrum analysis, interference hunting, EMC pre-compliance, and field or laboratory RF work.
  • YSA-P090Handheld
    Coverage
    9 kHz to 9 GHz; 50 MHz standard / 100 MHz with Option 50
    Best fit
    Portable spectrum analysis, interference hunting, EMC pre-compliance, and field or laboratory RF work.
  • YSA-P200Handheld
    Coverage
    9 kHz to 20 GHz; 100 MHz analysis bandwidth
    Best fit
    Portable spectrum analysis, phase-noise and occupied-bandwidth measurements, IQ streaming, and real-time analysis.

Frequently Asked Questions

Which XGY spectrum analyzer covers the widest frequency range?
The YSA-P400 series publishes a 9 kHz to 40 GHz ceiling with 100 MHz real-time bandwidth in a 1.5 kg handheld instrument, so it covers both field work and bench work. The YSA-U090 USB analyzer is the smaller host-controlled option when 9 kHz to 9 GHz coverage is sufficient.
Does 40 GHz coverage automatically fit every 5G measurement?
No. Choose the YSA-P400 only when every carrier, span, harmonic, and out-of-band check in the written test plan remains within the published 40 GHz ceiling. If the required measurement extends above 40 GHz, the current published YSA models are not a complete fit. For work at or below 9 GHz, compare the USB YSA-U090 before specifying a 40 GHz instrument.
Which spectrum analyzer should I choose - handheld or USB?
Handheld units (YSA-P400 series) are the right pick when measurements must happen on-site - rooftops, masts, radar ranges, EMC chambers - and you want benchtop-class performance in a battery-powered tool. USB analyzers (YSA-U090 series) are ideal for compact lab benches and headless automated setups driven by Python or LabVIEW. Our team in Adelaide can help you size POI, RBW, and DANL against your application - request a quote with your test plan.
What measurements can XGY spectrum analyzers perform?
XGY spectrum analyzers cover spurious and harmonic analysis, channel power, ACPR, OBW, EVM and digital demodulation (ASK/FSK/PSK/QAM with constellation, eye diagrams), real-time persistence and density displays, phase-noise measurement (-107.5 dBc/Hz at 1 GHz on the YSA-P400), and IQ streaming for post-capture processing. Typical workloads include 5G NR FR1/FR2 conformance, radar pulse analysis, EMC pre-compliance (CISPR/MIL-STD-461 with our RF accessories), and aerospace/defense receiver test.
Do XGY spectrum analyzers ship with calibration and warranty?
Calibration documentation, warranty terms, re-calibration options, on-site commissioning, and Python/LabVIEW automation scripting are confirmed during quotation or through our Custom Automation service. For turnkey EMC pre-compliance benches that pair an analyzer with an EM5040 LISN, RF cables, and a control PC, review the EMC pre-compliance setup checklist, then contact our team via the quote form.
What should be saved with an interference-hunting result?
Save a screenshot, raw trace, time and location, antenna or probe type, frequency span, RBW/VBW, detector, attenuation, preamp state, calibration status, and instrument serial number. That makes the result reproducible.
When is 100 MHz real-time bandwidth important?
It matters for short pulses, hopping signals, radar events, bursty emissions, and intermittent interference, because a swept receiver visits each frequency in turn and an event can begin and end before the sweep returns to it. Real-time bandwidth sets how much spectrum is captured in one gap-free acquisition, and probability of intercept sets the shortest event that is guaranteed to be caught: the YSA-P400 publishes 100 MHz real-time bandwidth with 100% POI to 15 us, and the USB YSA-U090 publishes 50 or 100 MHz real-time bandwidth with 100% POI down to 0.5 us in its high-speed mode. Size the figure against the widest single signal that must be seen whole, not against the total span being swept - a 40 GHz sweep range and a 100 MHz real-time bandwidth answer different questions.
