Programmable DC and AC Power Solutions for EV, Solar, and Lab

XGY Tek supplies programmable DC sources, AC grid simulators, bidirectional supplies, regenerative AC/DC platforms, electronic loads, and LISN interfaces to power-electronics teams worldwide. Applications span EV battery cycling, solar inverter compliance, fuel-cell I-V testing, automotive 48 V and HV bench work, aerospace power-quality verification, charger validation, and production burn-in.

The selection should be driven by source quadrant, sink requirement, the model-specific voltage and power envelope, ripple and transient targets where applicable, regeneration path, remote-control interface, safety interlock, cooling, and facility limits.

The published portfolio spans compact benchtop instruments, DC loads to 2400 V, and medium-voltage grid simulators to 35 kV line-to-line with multi-MVA configurations. For source/load selection, see our DC power test platform guide.

A quote should define line voltage, available power, cooling, calibration documentation, installation scope, emergency-stop logic, report fields, and whether the bench must pass at least 3 known-good and 3 known-fail DUT states before production use.

Power Supplies product list

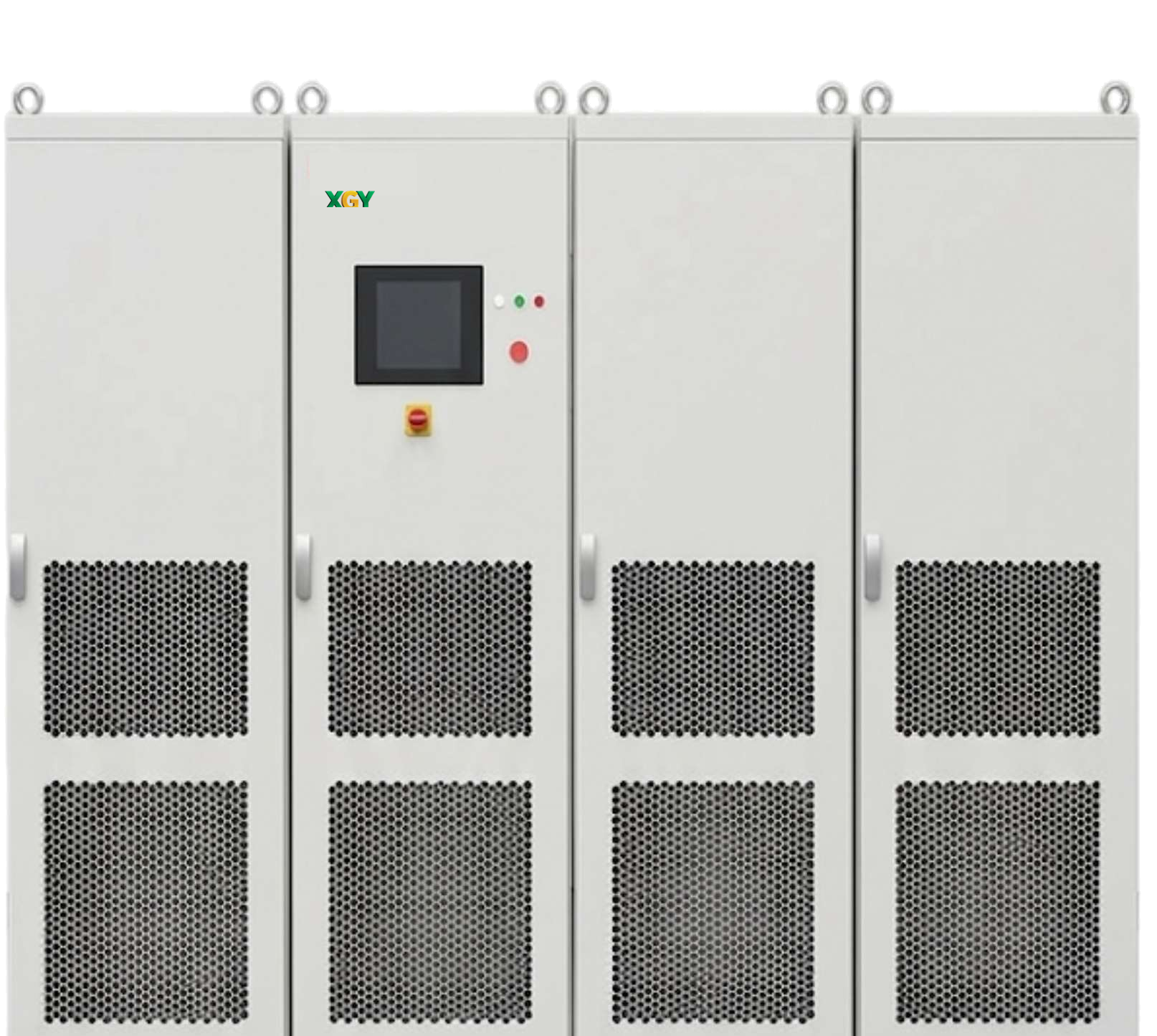

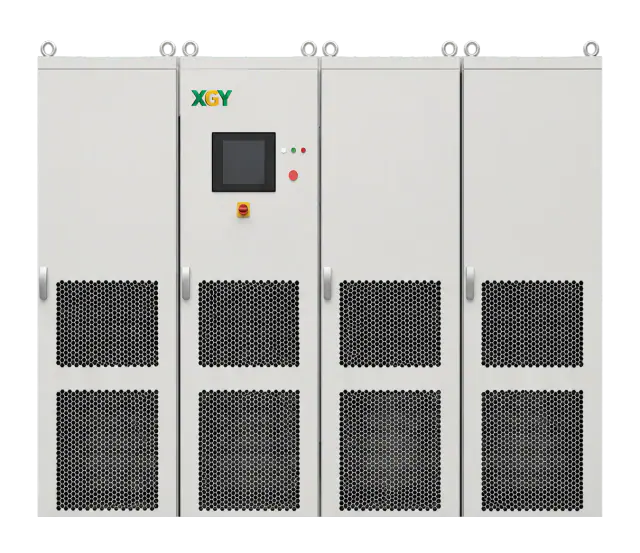

MVGS Series Medium-Voltage Grid Simulator

  • Output: 3-phase MV
  • Power: 1 to 20 MVA+
  • Key Spec: <= 1.0% THD
  • Type: MV Grid Simulator
View Product

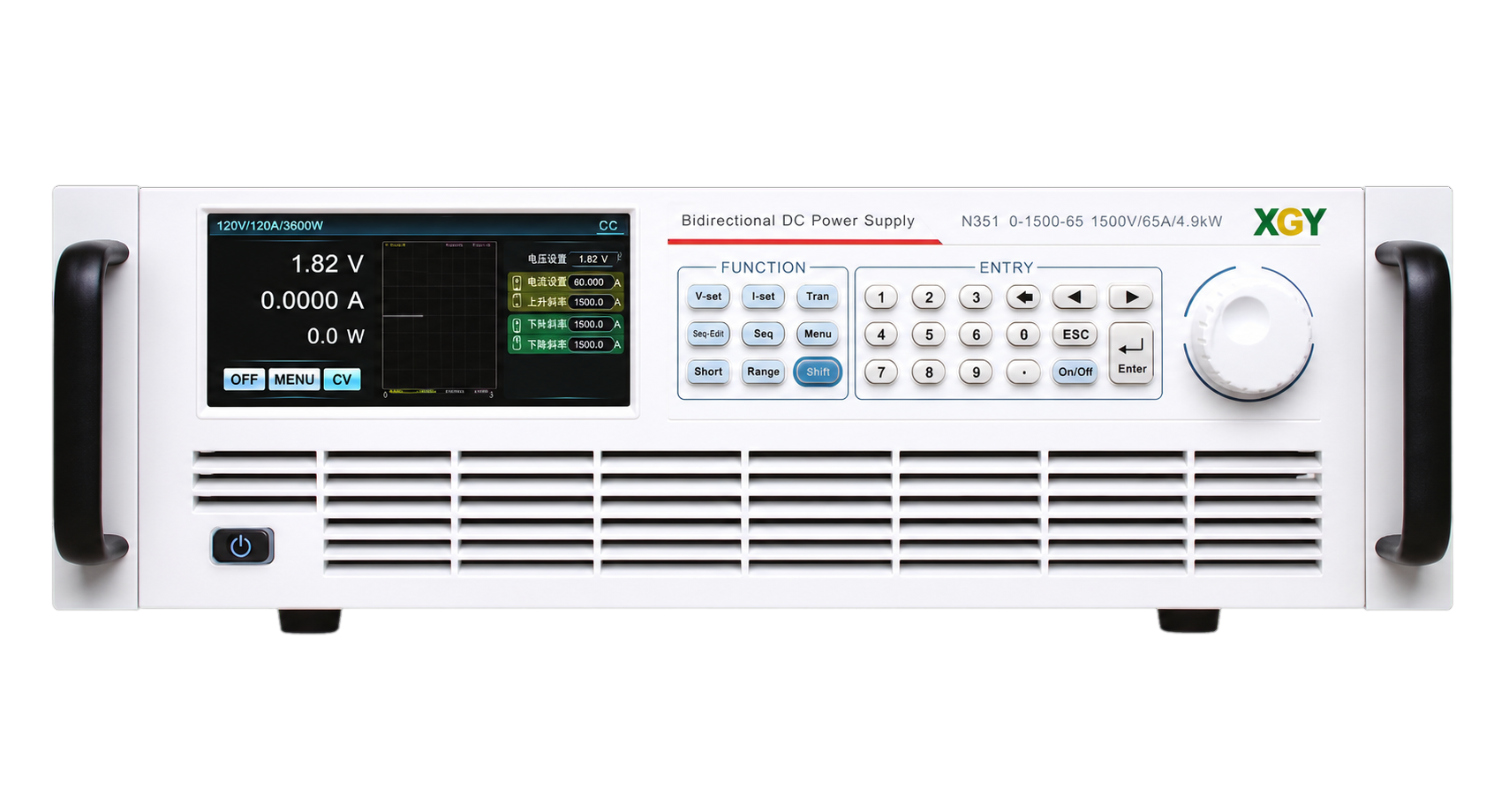

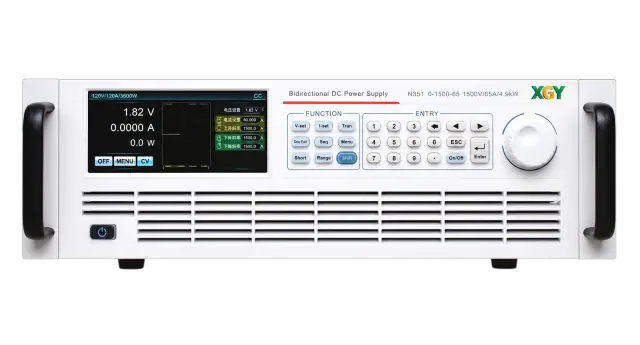

N351 Bidirectional Programmable DC Power Supply

  • Power range: 2.5 kW / 5 kW / 7.5 kW
  • Voltage range: 40 V / 80 V
  • Current range: ±55 A to ±300 A by model
  • Operating modes: CC, CV, CR, CP
View Product

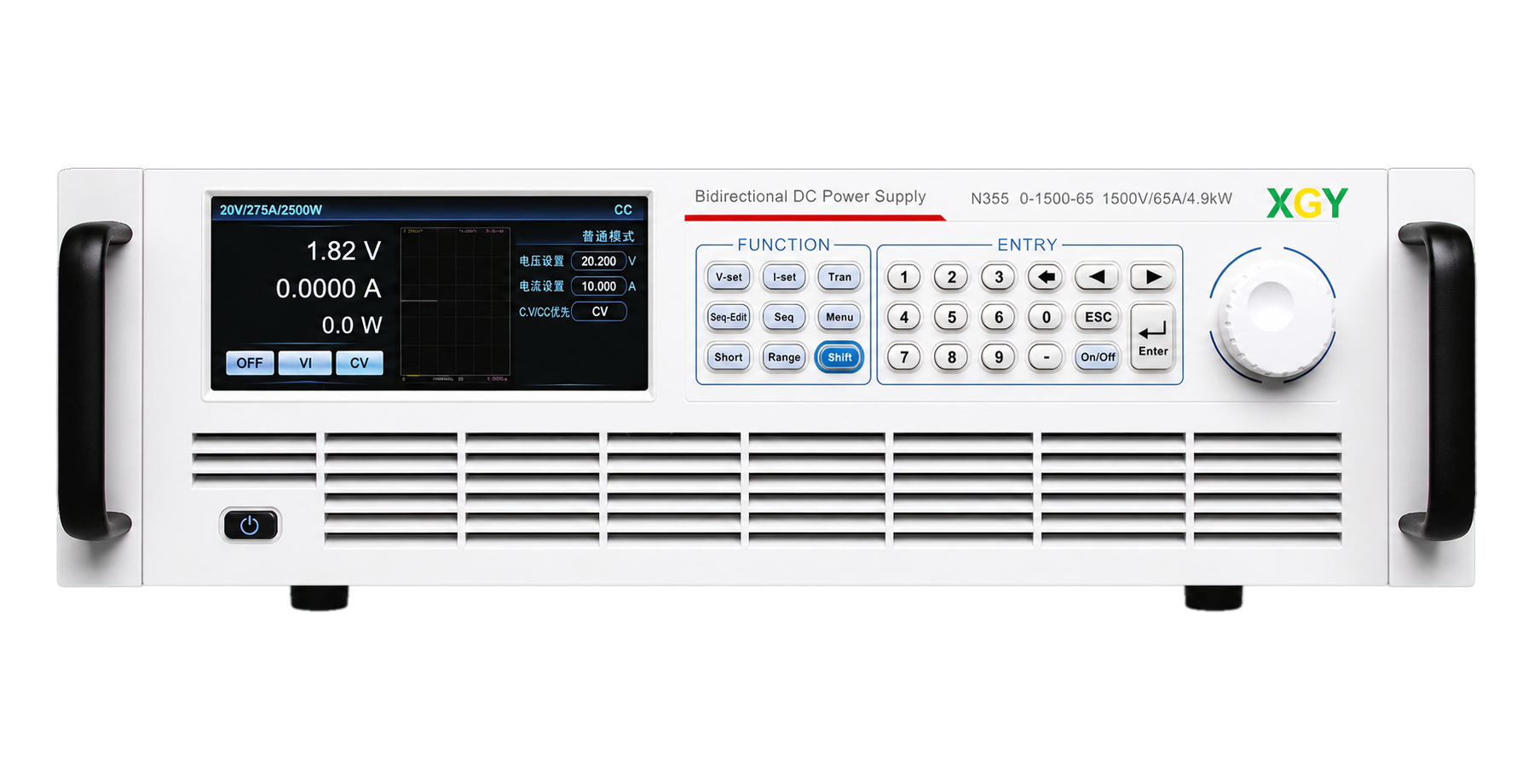

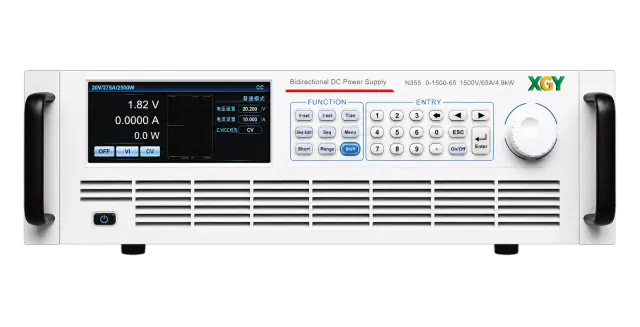

N355 High Power Bidirectional Programmable DC Power Supply

  • Voltage range: 0 to 2250 V by model
  • Standalone power density: Up to 42 kW in 3U
  • Current range: Up to 240 A for 3U models
  • Regeneration efficiency: Up to 93% (Stated for the series)
View Product

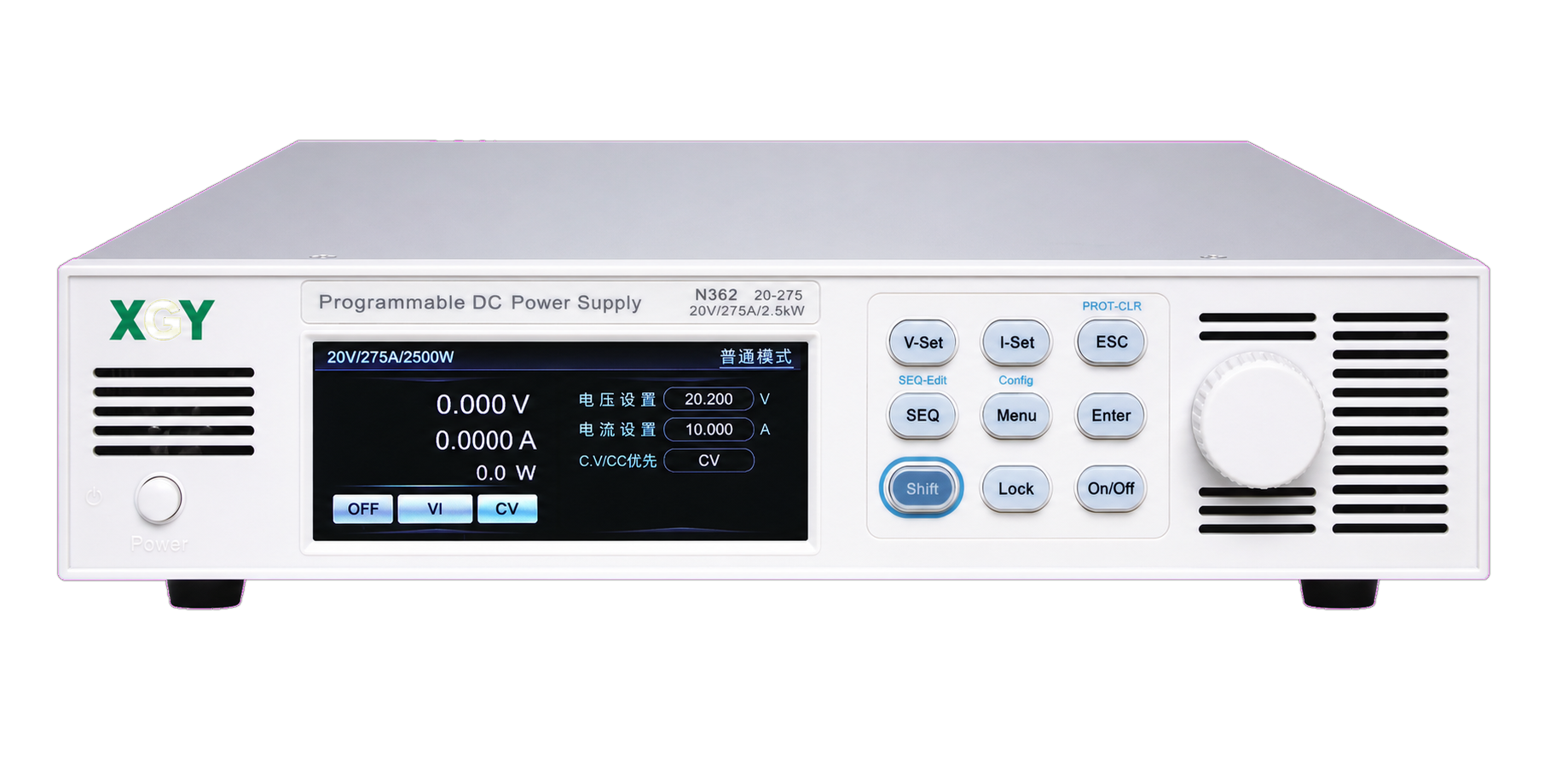

N362 Wide Range Programmable DC Power Supply

  • Output power: 500 to 10,000 W by model
  • Voltage families: 20 V, 40 V, 80 V, 360 V, 750 V, 1500 V
  • Voltage accuracy: 0.03% + 0.02% F.S.
  • Interfaces: LAN, RS232, RS485, CAN
View Product

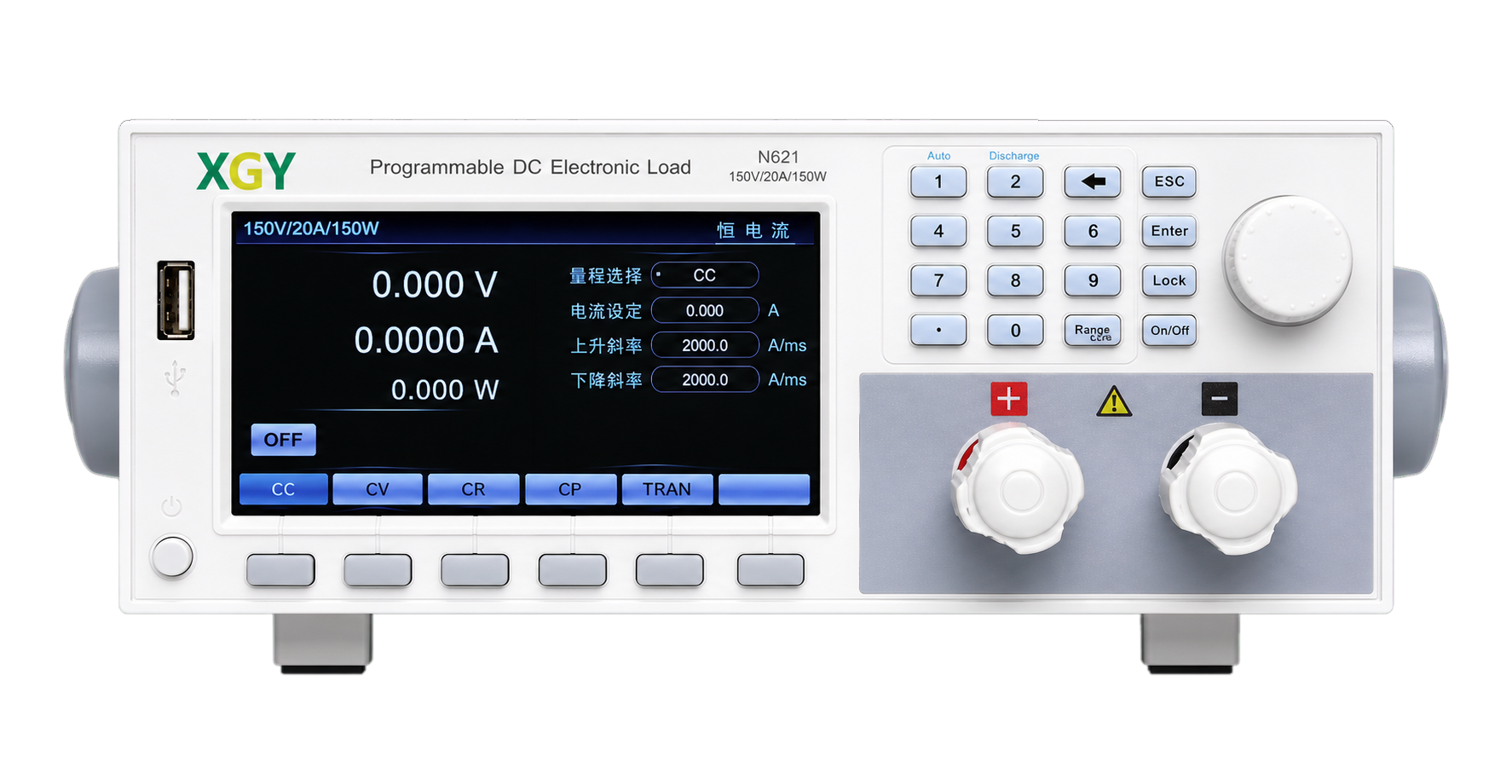

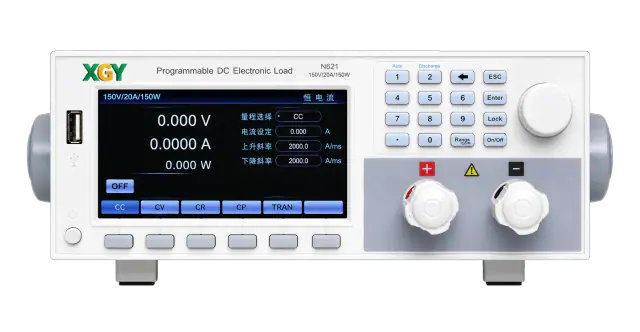

N621 High Performance Benchtop DC Electronic Load

  • Voltage classes: 80 V / 150 V / 600 V
  • Current range: Up to 60 A by model
  • Power range: 150 W / 300 W / 600 W
  • Operating modes: CC, CV, CR, CP, CV+CC, CV+CR, CR+CC, CP+CC
View Product

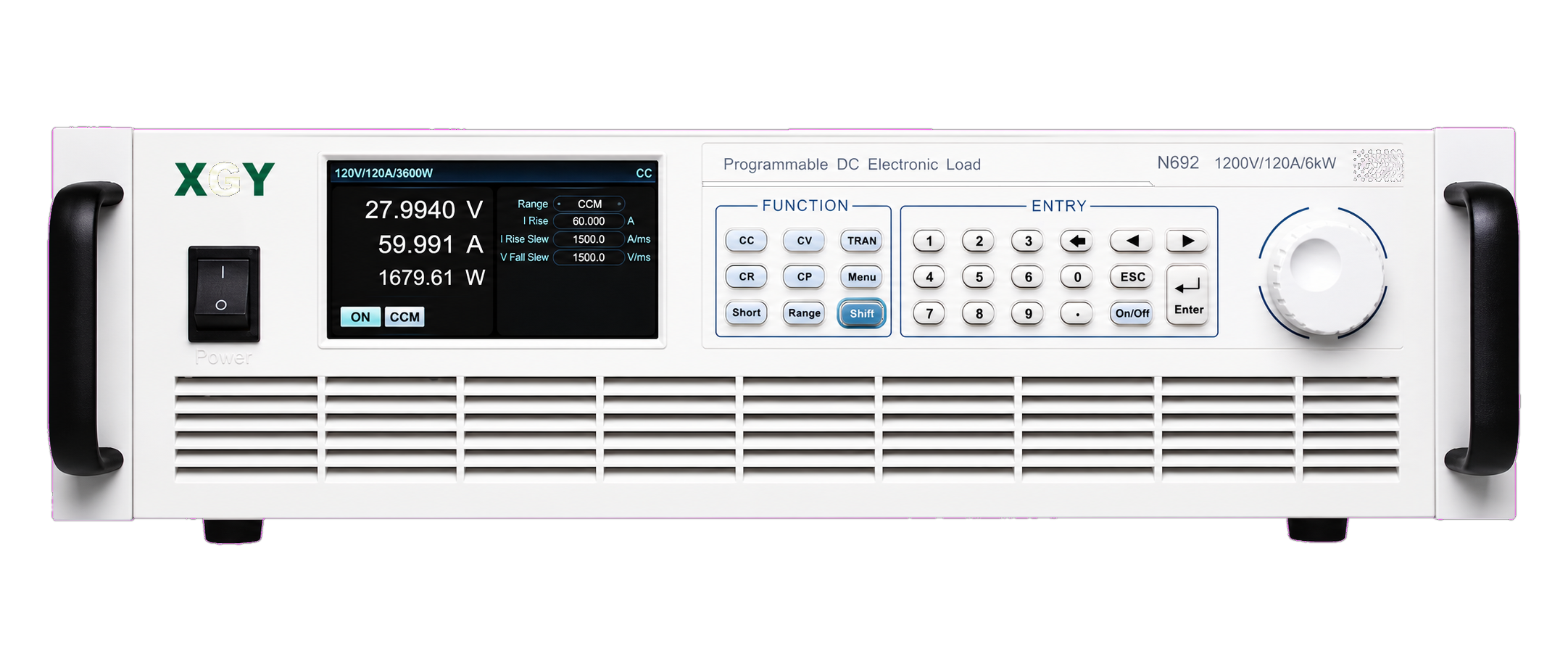

N692 High Power Programmable DC Electronic Load

  • Standalone input power: 2 to 60 kW
  • Current range: Up to 2500 A
  • Dynamic mode: Up to 30 kHz
  • Voltage measurement accuracy: 0.015% + 0.015% F.S.
View Product

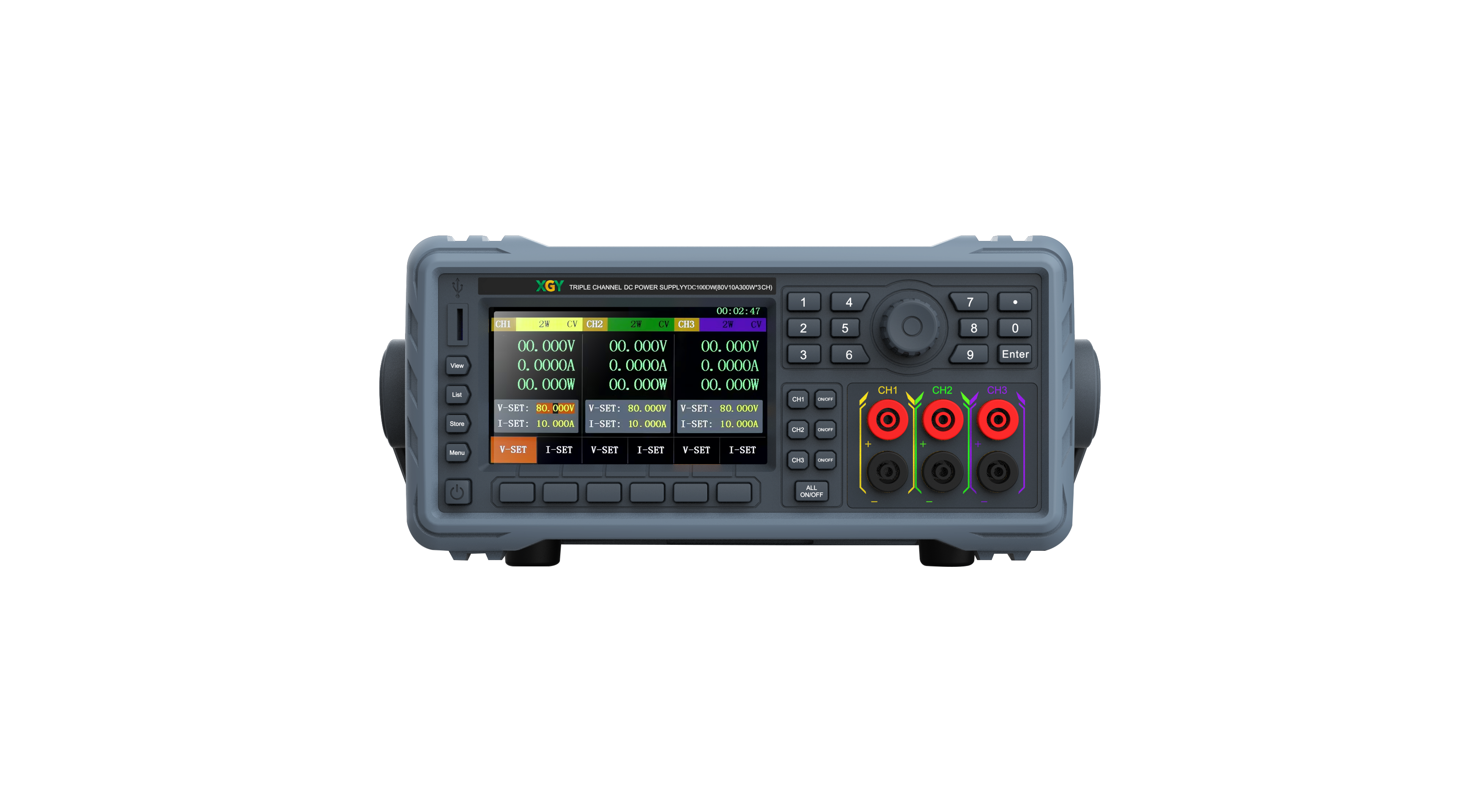

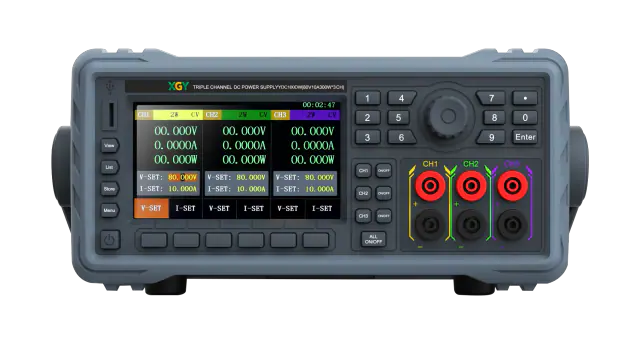

YDC100 Series Multi-Channel Programmable DC Power Supply

  • Channel count: 2 (YDC100DW) or 3 (YDC100TW)
  • Voltage range: Up to 150 V per channel depending on model
  • Current range: Up to 10 A per channel depending on model
  • Programming resolution: 1 mV / 0.1 mA
View Product

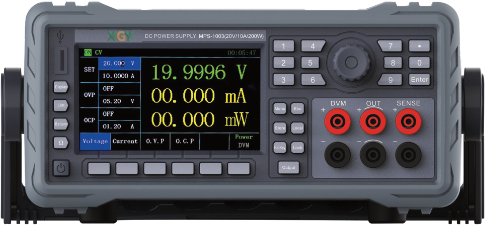

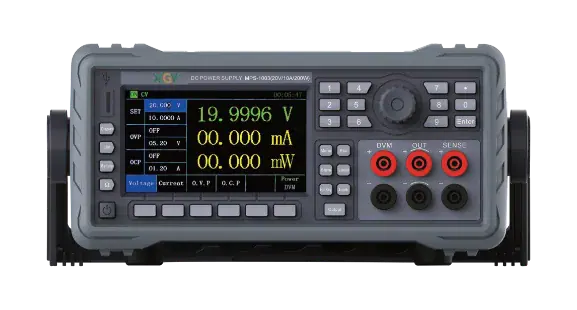

XDC100SA Series Programmable DC Power Supply

  • Power range: 36 to 360 W
  • Voltage: Up to 150 V (model dependent)
  • Current: Up to 10 A (model dependent)
  • Display resolution: 0.1 mV / 1 µA (Stated for the series)
View Product

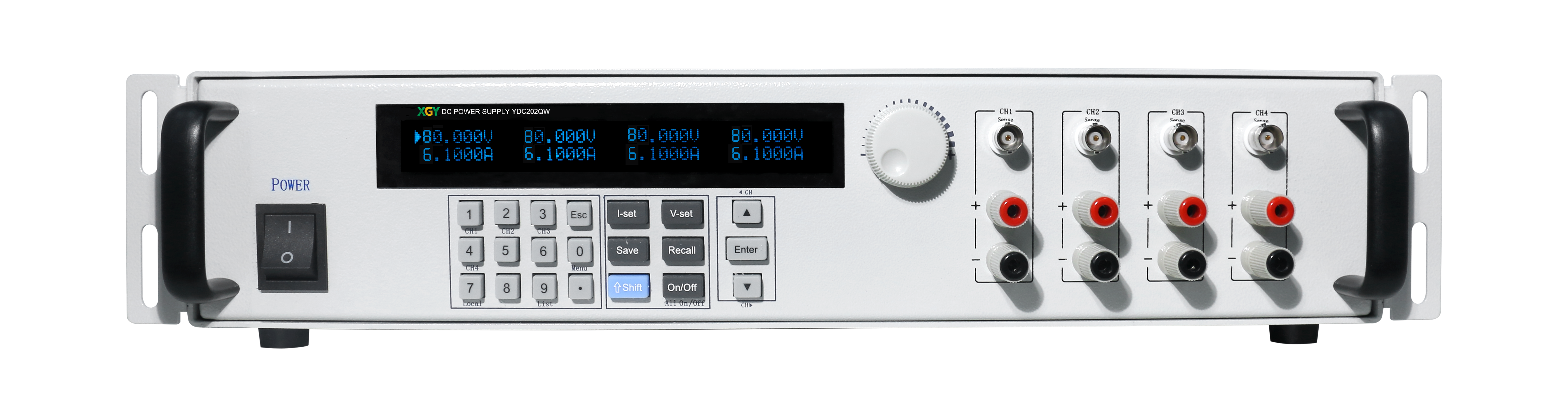

YDC202QW Series Quad-Channel Programmable DC Power Supply

  • Channels: 4 Independent Isolated
  • Rated voltage classes: 80 V / 150 V
  • Power per channel: 150 W / 300 W
  • Resolution: 1 mV / 0.1 mA
View Product

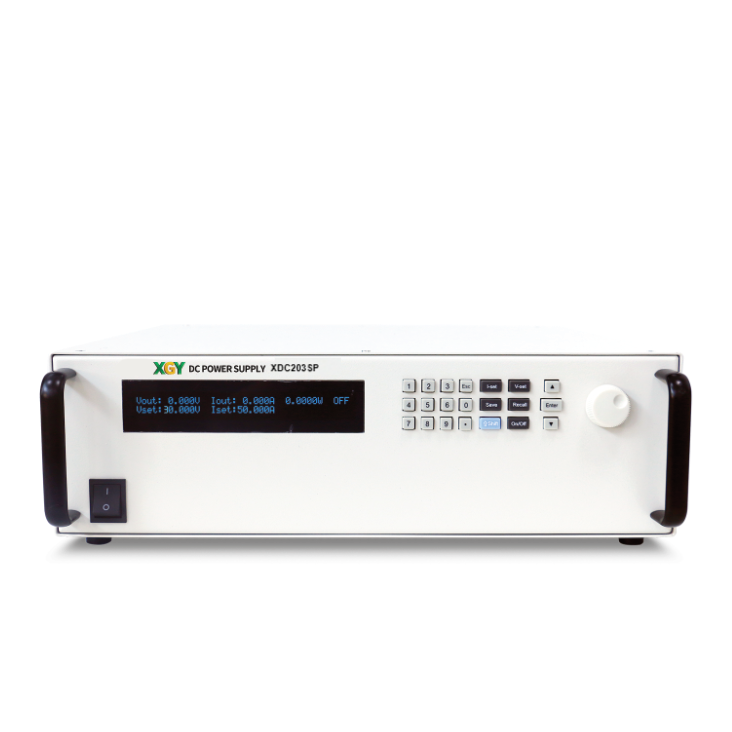

XDC203SP Series High-Power Linear DC Power Supply

  • Channels: 1
  • Maximum power: Up to 1500 W
  • Rated voltage classes: 30 V / 50 V / 60 V
  • Current range: Up to 50 A
View Product

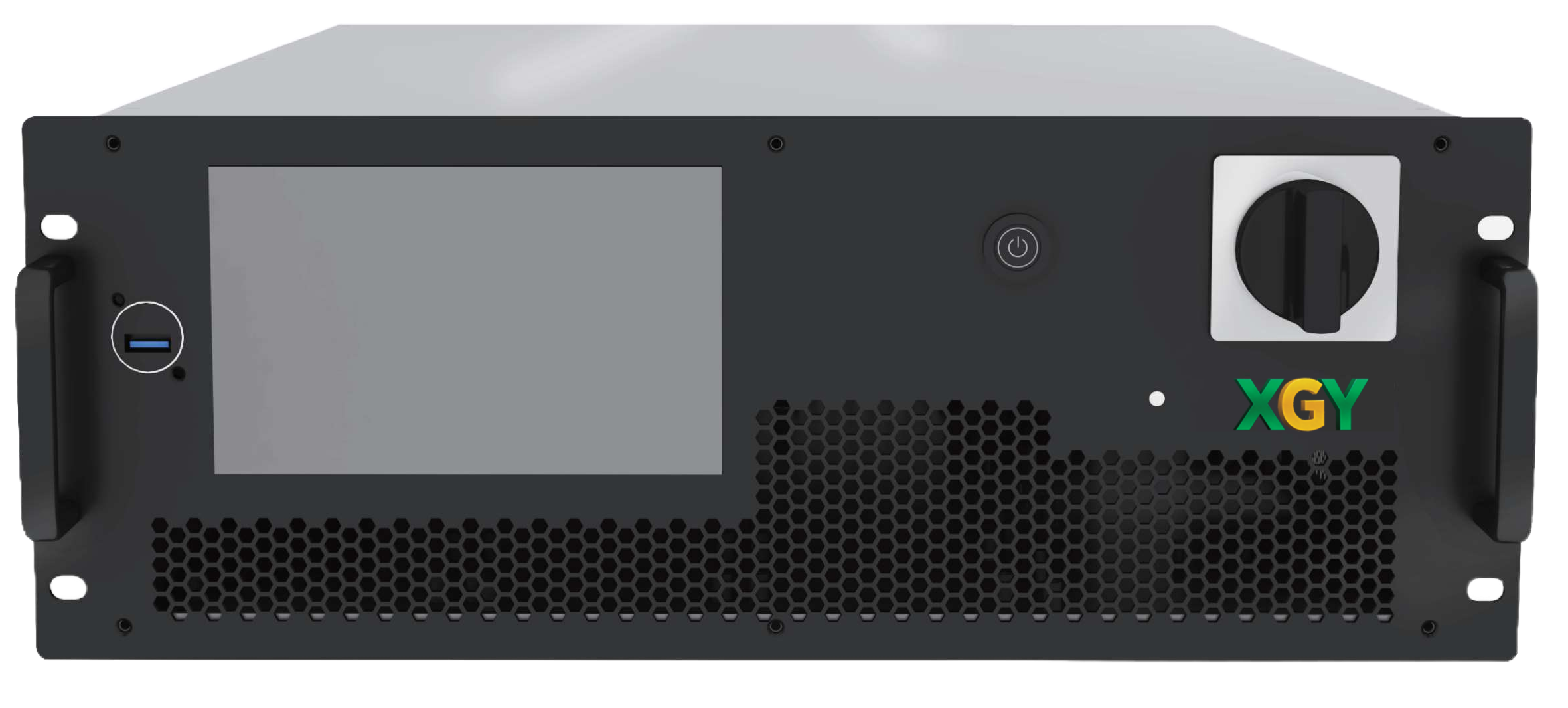

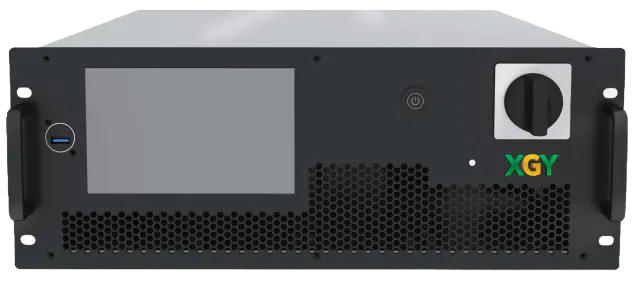

GXC804B-5K Series Regenerative AC/DC Power Source

  • Rated power: 5 to 22.5 kW
  • AC voltage: 0 to 450 V L-N at 0.01 to 70 Hz
  • DC voltage: 0 to 636 V
  • THD: < 0.5% at DC to 400 Hz
View Product

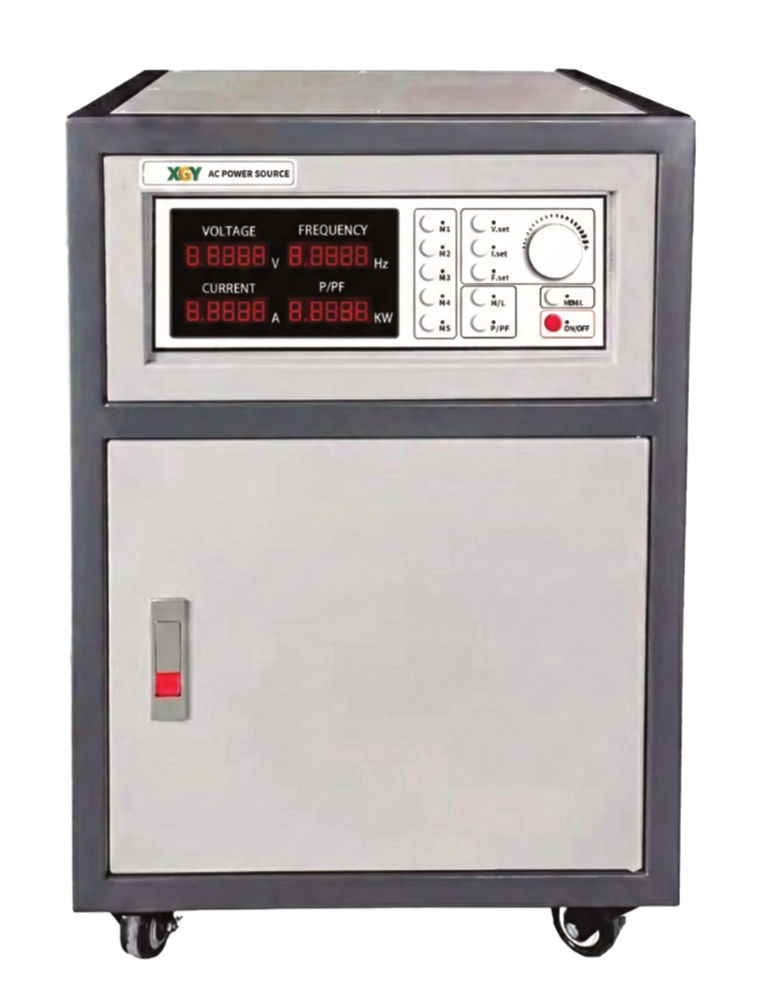

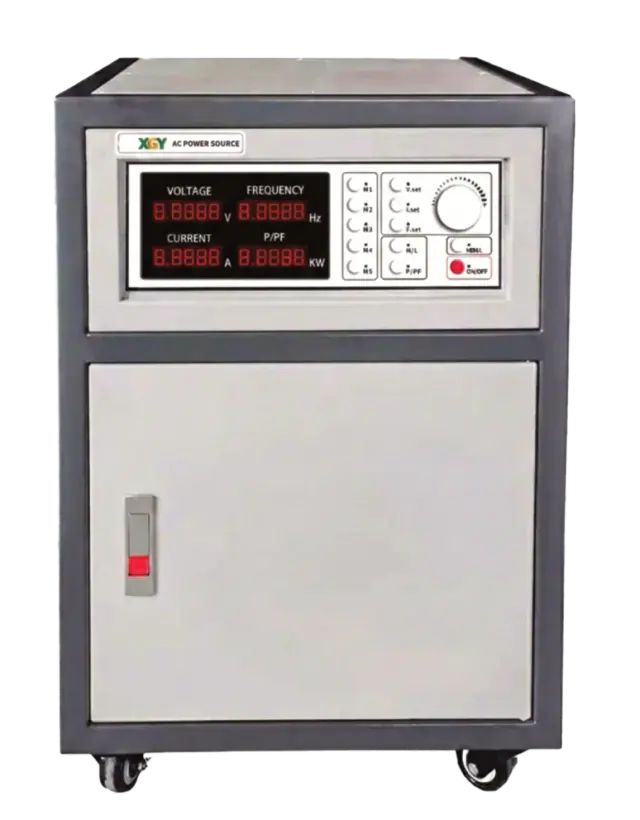

AC301SHP / AC303SHP Series High-Power AC Grid Simulator Power Supply

  • Output capacity: 5 to 500 kVA
  • Waveform distortion: < 1% THD
  • Phase voltage (L-N): 0 to 150 V / 0 to 300 V
  • Line voltage (L-L): 0 to 520 V
View Product

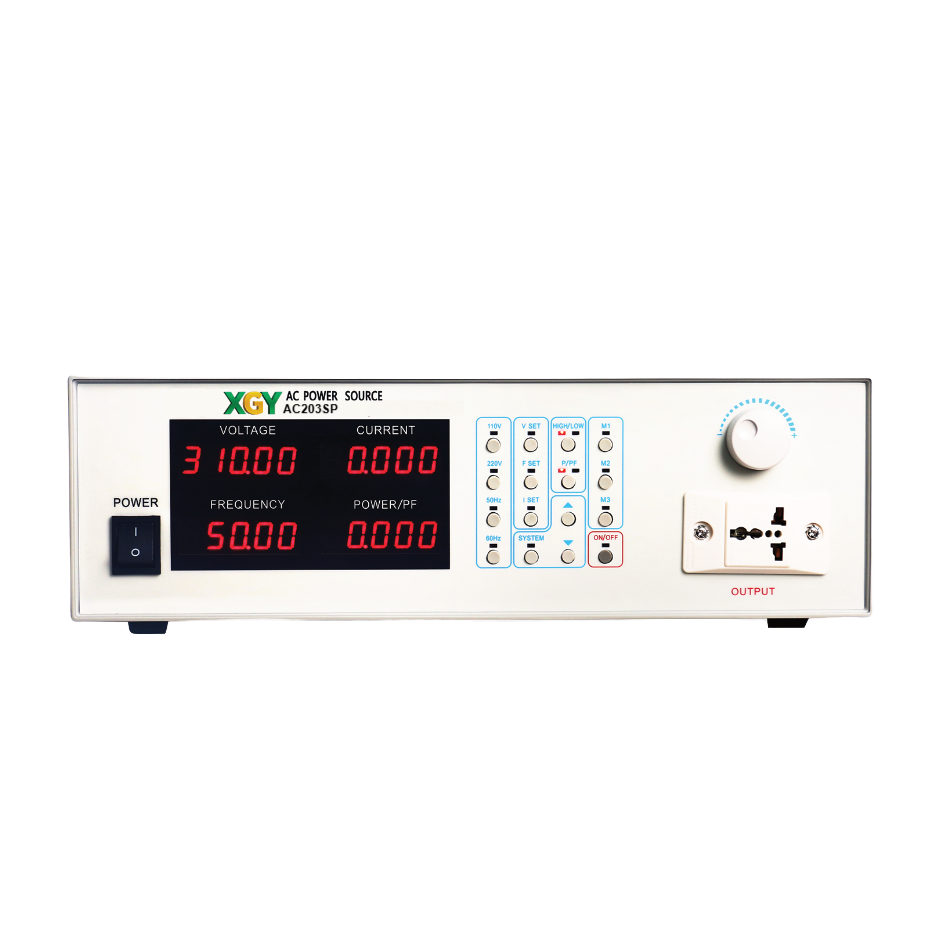

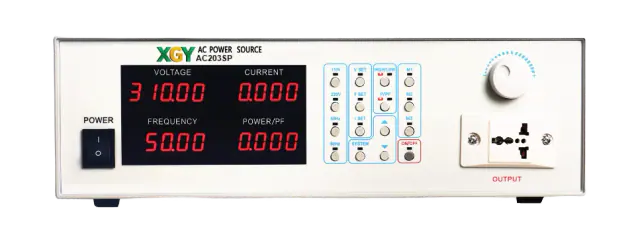

AC203SP / AC205SP AC Power Source

  • Power range: 500 VA to 3 kVA
  • Quick settings: 110 V/220 V, 50 Hz/60 Hz
  • Overload capacity: 300% Overload for 2 s
  • Phase: Single-phase, 2-wire
View Product

YDC-302 Series Two-Channel DC Power Supply

  • Ripple: 10 mVrms; 15 mVrms on the 80 V and 150 V models
  • Setting resolution: 1 mV voltage, 1 mA current
  • Setting accuracy: Voltage ≤ 0.1% + 10 mV; current ≤ 0.3% + 10 mA (25 °C ± 5 °C)
  • Dimensions (W × H × D): 480 × 100 × 390 mm, standard 2U
View Product

YDC-304 Series Four-Channel DC Power Supply

  • Rated input voltage: AC 220 V ±10%, 50 Hz
  • Setting resolution: 1 mV and 1 mA on every channel
  • Setting accuracy: Voltage ≤ 0.1% + 10 mV, current ≤ 0.3% + 10 mA (25 °C ± 5 °C)
  • Dimensions (W × H × D): 482 × 190 × 372 mm
View Product

Selection path

DC sources, electronic loads, and AC grid simulators

Start with source or load operation, voltage and power envelope, channel count, regeneration requirement, and facility supply; then confirm model-specific ratings and installation conditions.

  • MVGSMedium-voltage grid simulator
    Coverage
    Up to 35 kV line-to-line; 1 to 10 MVA standard; expandable to 20 MVA+
    Best fit
    Four-quadrant medium-voltage grid simulation for SST, PCS, renewable-energy, and megawatt-scale power-electronics validation.
  • N351Bidirectional DC source/sink
    Coverage
    40 V / 80 V voltage; 2.5 kW / 5 kW / 7.5 kW power; ±55 A to ±300 A current by model
    Best fit
    Compact regenerative battery, photovoltaic, and component tests that need programmable source and load operation.
  • N355High-voltage bidirectional DC
    Coverage
    0 to 2250 V voltage by model; up to 42 kW power in 3U; up to 240 A current
    Best fit
    High-voltage battery, traction, and production ATE requiring regenerative source/sink capability and parallel expansion.
  • N362Wide-range rack DC source
    Coverage
    20 V, 40 V, 80 V, 360 V, 750 V, 1500 V voltage families; 500 W to 10 kW power by model
    Best fit
    Automotive, aerospace, energy-system, and integrated ATE source-mode tests needing a compact wide-range DC supply.
  • N621Benchtop DC electronic load
    Coverage
    80 V / 150 V / 600 V voltage classes; 150 W / 300 W / 600 W power
    Best fit
    Medium- and low-power supply, component, battery, and fast-charge adapter loading on a benchtop.
  • N692High-power DC electronic load
    Coverage
    150 V to 2400 V voltage classes; 2 to 60 kW input power; up to 2500 A current
    Best fit
    High-power battery, fuel-cell, power-supply, and production ATE loading with modular expansion.
  • YDC100 SeriesDual- or triple-channel DC source
    Coverage
    2 or 3 channels; up to 150 V voltage and 10 A current per channel; 300 W per channel
    Best fit
    R&D and automated test requiring independently controlled multi-rail DC outputs with sequencing and remote control.
  • XDC100SA SeriesSingle-channel linear DC source
    Coverage
    Up to 150 V voltage and 10 A current by model; 36 to 360 W power; no more than 5 mVrms ripple
    Best fit
    Low-ripple R&D and validation work needing one programmable linear DC output and fine measurement resolution.
  • YDC202QW SeriesFour-channel isolated DC source
    Coverage
    4 isolated channels; 0 to 80 V or 150 V; 150 W or 300 W per channel
    Best fit
    Dense ATE and device-characterization workflows that need four independently controlled outputs in one chassis.
  • XDC203SP SeriesHigh-power linear DC source
    Coverage
    Up to 1500 W power; 0 to 30 V, 50 V, or 60 V voltage; up to 50 A current
    Best fit
    Audio, production-line, and industrial DC powering where linear output and sequence operation are required.
  • GXC804B-5K SeriesRegenerative AC/DC source/load
    Coverage
    5 to 22.5 kW rated power; up to 450 V L-N AC at 0.01 to 70 Hz or 636 V DC; DC to 1 kHz
    Best fit
    Grid, RLC/RCD load, bipolar DC, and HIL workflows needing AC/DC source and regenerative load operation.
  • AC301SHP / AC303SHP SeriesSingle- or three-phase AC grid source
    Coverage
    5 to 500 kVA output capacity; up to 520 V line-to-line; 40 to 250 Hz frequency
    Best fit
    Industrial, EV motor and charger, appliance, and facility-scale power simulation across single- or three-phase systems.
  • AC203SP / AC205SPCompact single-phase AC source
    Coverage
    500 VA to 3 kVA power; single-phase 2-wire; 300% overload for 2 s
    Best fit
    ATE racks and component tests needing a compact programmable single-phase AC source.
  • YDC-302 SeriesTwo-channel isolated DC source, 2U
    Coverage
    2 isolated channels; 15 to 150 V, 6 to 60 A and 600 W or 880 W or 900 W power per channel, by model
    Best fit
    Benches and integrated test stations that need two independent high-current or high-voltage rails from one 2U unit.
  • YDC-304 SeriesFour-channel isolated DC source
    Coverage
    4 isolated channels; 15 to 150 V, 6 to 60 A and 600 W or 880 W or 900 W power per channel, by model
    Best fit
    Multi-rail production and integration testing where four independent rails of up to 900 W each must come from one chassis.

Frequently Asked Questions

What is the difference between linear, switching, and bidirectional power supplies?
Linear supplies (XDC100SA, XDC203SP series) deliver ultra-low noise but waste power as heat - ideal for low-noise lab work. Switching supplies (YDC100, YDC202QW, wide-range N362) are efficient and compact, suited to production benches, BMS test, and broad source-mode voltage coverage. Bidirectional supplies (N351 and high-power N355) source and sink current - required for battery cycling, regenerative load testing, and traction-system validation where the DUT can return energy.
Do XGY power supplies support battery cycling and regenerative testing?
Yes - our N351 bidirectional supply, N355 high-power bidirectional supply, and GXC804B-5K regenerative AC/DC source are engineered for battery cycling, fuel-cell I-V sweeps, and 48 V or 800 V automotive HV bench testing. They return energy to the grid rather than dumping into a resistor bank. Pair with the N621 benchtop or N692 high-power electronic load for full source-sink test stands. For RFQ detail, see our battery test system quote checklist and bidirectional DC power supply selection guide.
What standards do XGY AC sources comply with for grid simulation?
The AC301SHP and AC303SHP high-power grid simulators and MVGS programmable AC source support compliance testing against AS/NZS 4777 (Australia inverter grid connection), IEC 61727 (PV grid interconnect), IEC 62116 (anti-islanding), and MIL-STD-704 (aerospace power-quality). They generate programmable voltage sags, frequency excursions, and harmonic injection profiles. See our Power & Energy solutions for full bench configurations.
What should be validated before accepting a power supply bench?
Validate output accuracy, ripple or noise, transient recovery, current limit, OVP/OCP/OTP behavior, remote control, emergency stop, calibration status, thermal behavior, report export, and repeatability at representative load points.
When is a regenerative source worth specifying?
Specify regeneration when the DUT can return meaningful energy, the facility can accept regenerated power, and the operating profile would otherwise waste heat in a resistor bank. Battery cycling, motor drive, inverter, and high-power bidirectional tests are the common cases.
