PXIe Modular Test Instruments for Automated RF Validation
XGY Tek manufactures and integrates PXIe modular instruments for ATE rigs used in semiconductor production, defense electronics, telecom infrastructure, and university research labs across Australia and globally. The catalogue includes vector network analyzers, signal transceivers, frequency converters, AWGs, high-speed ADCs, DAQ modules, multifunction modules, and digital multimeter modules in a compact PXIe form factor.
The module decision should start with a DUT signal map: every RF port, IF path, DC bias, trigger, reference clock, voltage/current range, channel count, sampling rate, timing dependency, calibration point, and report field. A workable rack acceptance file includes the chassis model, slot map, controller path, airflow check, trigger/reference strategy, SCPI or driver interface, cable map, fixture interface, 1 known-good run, 1 forced-fail run, and exported data.
For broad module planning, see our PXIe modular test instrument guide; for VNA model selection, see our PXIe vector network analyzer guide.
Modular Test Instruments product list
Best fit
Four-port cables, PCBs, filters, and production fixtures where 8.5 GHz coverage is sufficient.

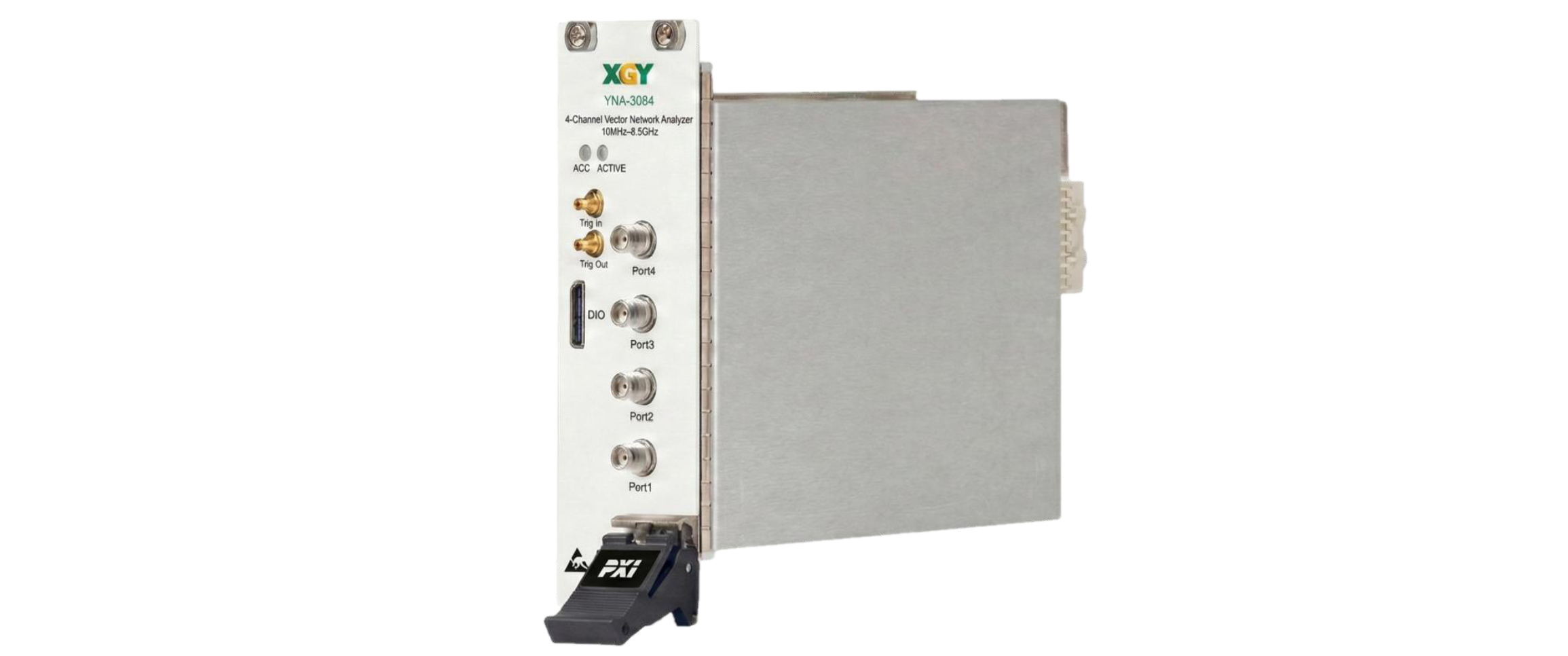

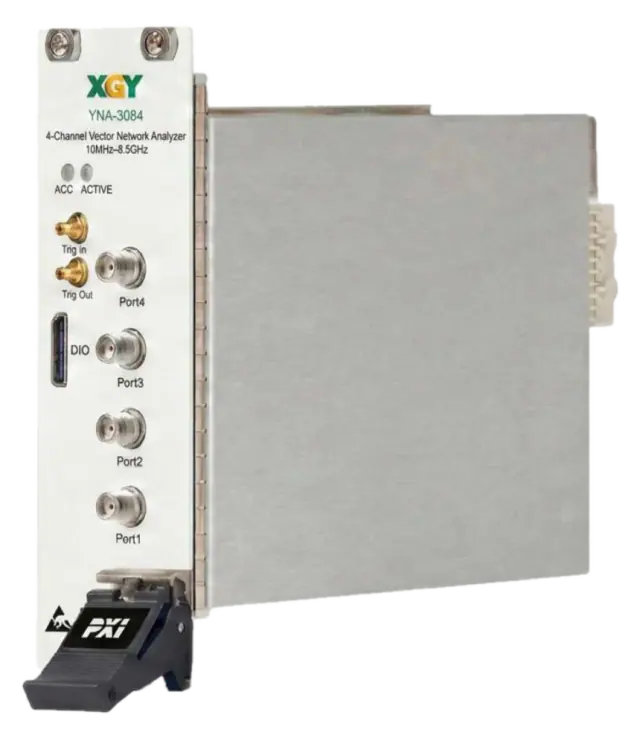

YNA-3084 Vector Network Analyzer
- Frequency: 10 MHz - 8.5 GHz
- Key Spec: 4 ports, >123 dB dynamic range
- Platform: PXIe 2-slot
- Best For: Multi-port VNA
Best fit

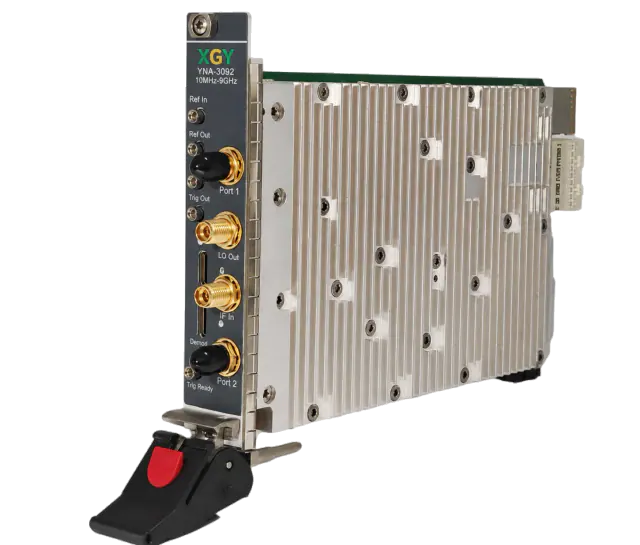

Two-port automated RF component test with a compact single-slot footprint.

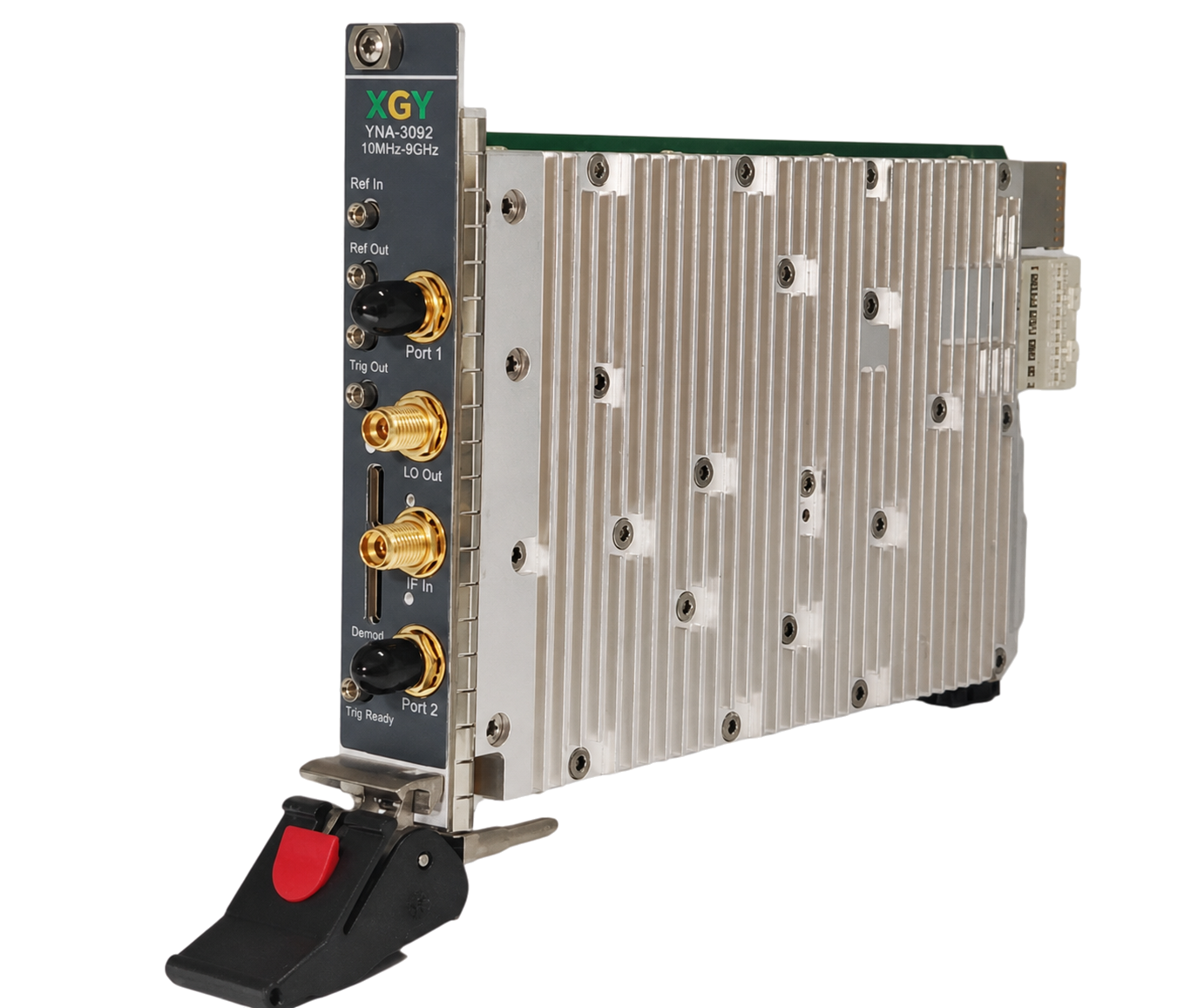

YNA-3092 Vector Network Analyzer Module
- Frequency: 10 MHz to 9 GHz
- Ports: 2 RF test ports
- Dynamic Range: 132 dB
- Platform: Single-slot PXIe

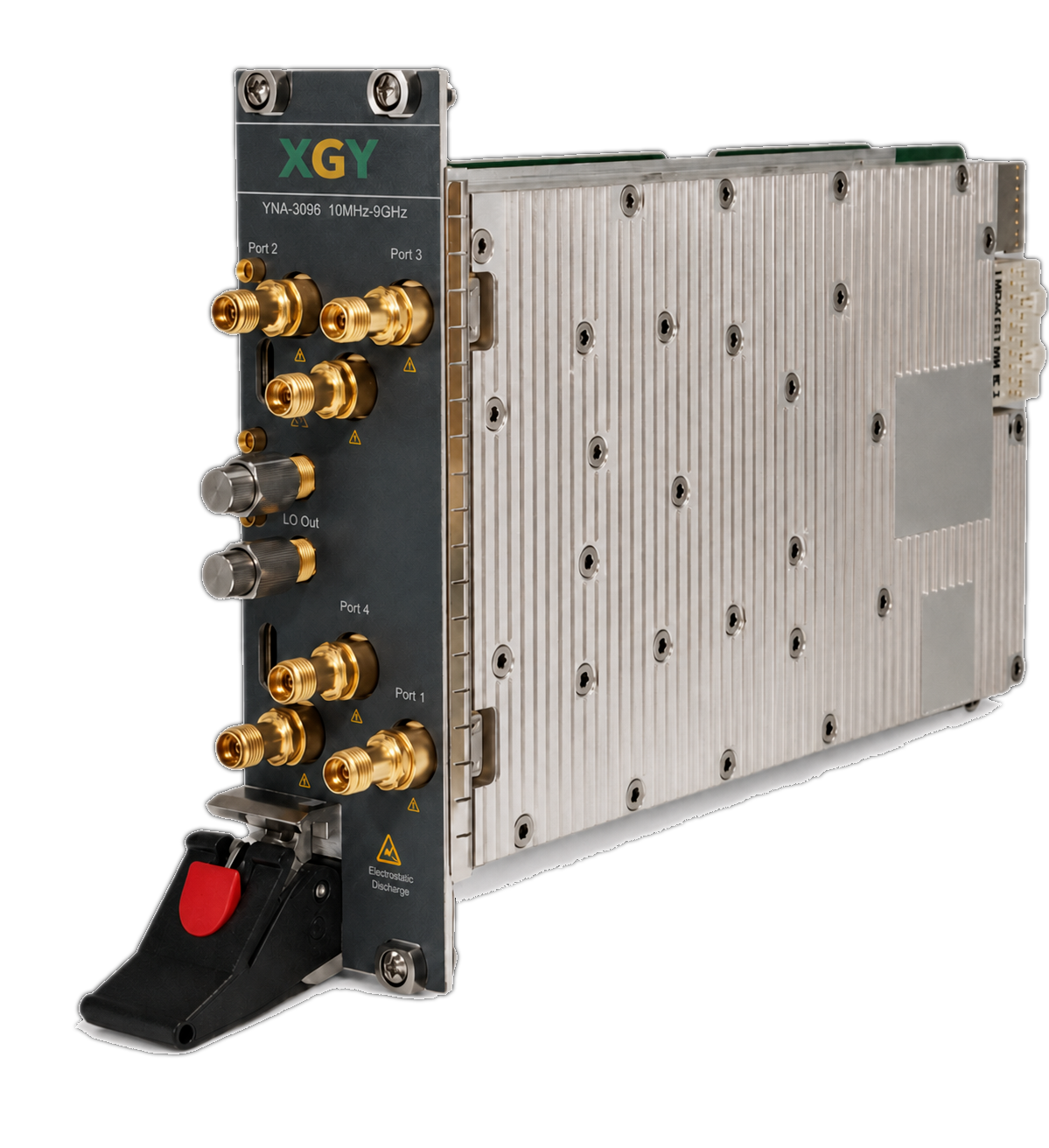

Best fit
Multiport RF component and subsystem measurements needing six physical ports.
YNA-3096 Vector Network Analyzer Module
- Frequency: 10 MHz to 9 GHz
- Ports: 6 RF test ports
- Dynamic Range: 132 dB
- Platform: Dual-slot PXIe
Best fit
Two-port measurements requiring a higher frequency ceiling than the 8.5 or 9 GHz models.

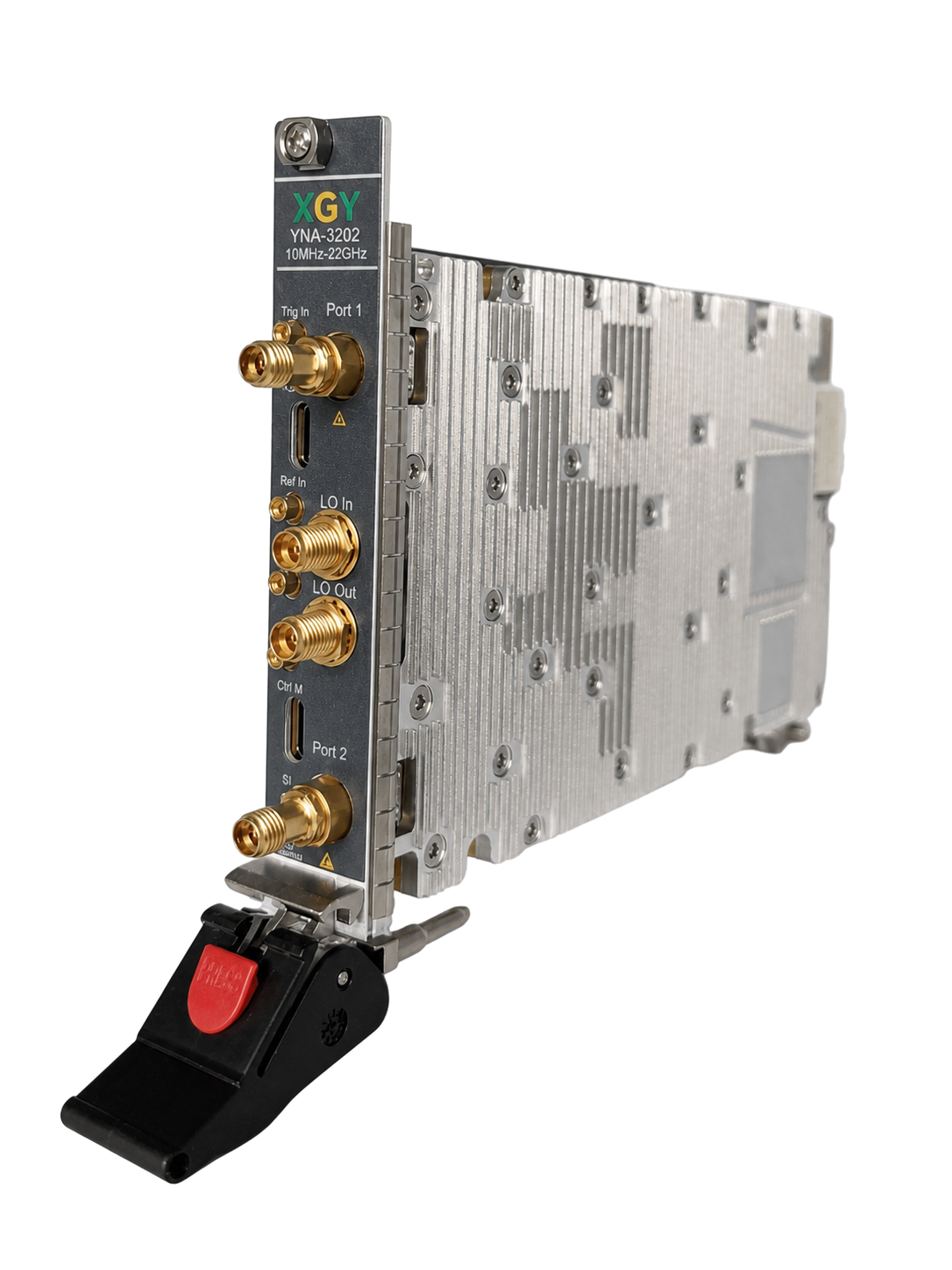

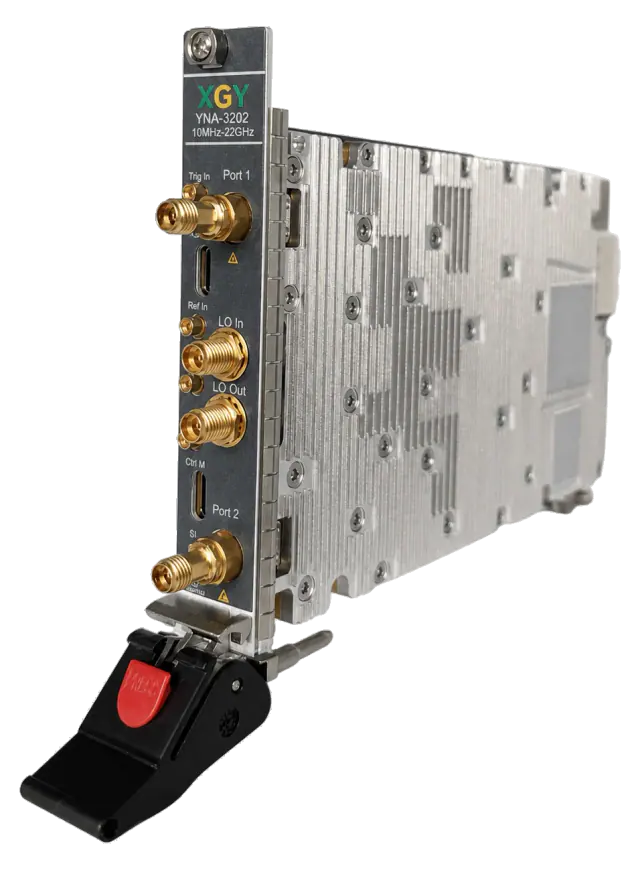

YNA-3202 Vector Network Analyzer Module
- Frequency: 10 MHz to 20 GHz
- Extension: Configurable to 22 GHz
- Dynamic Range: 132 dB
- Platform: Single-slot PXIe
Best fit

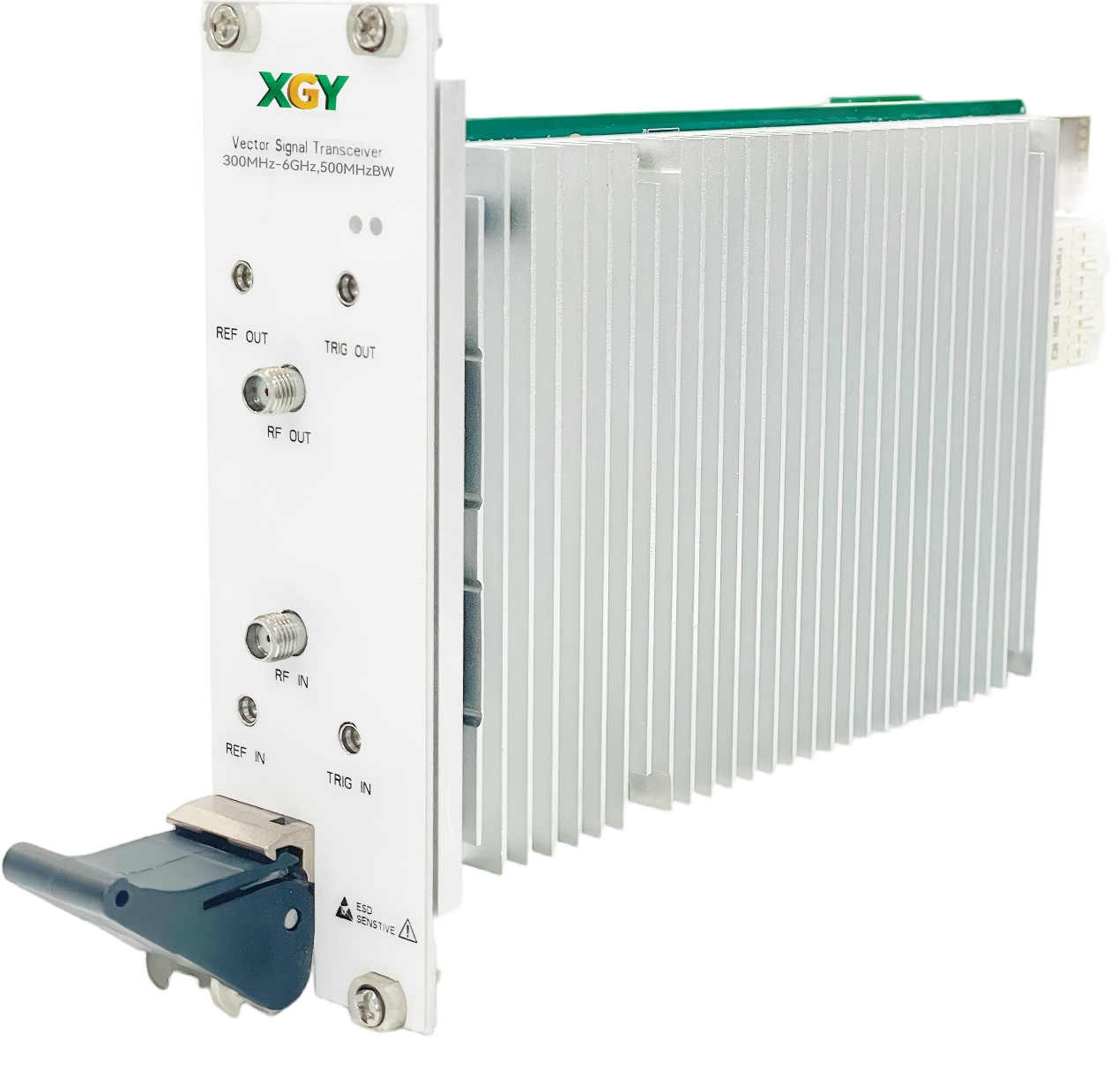

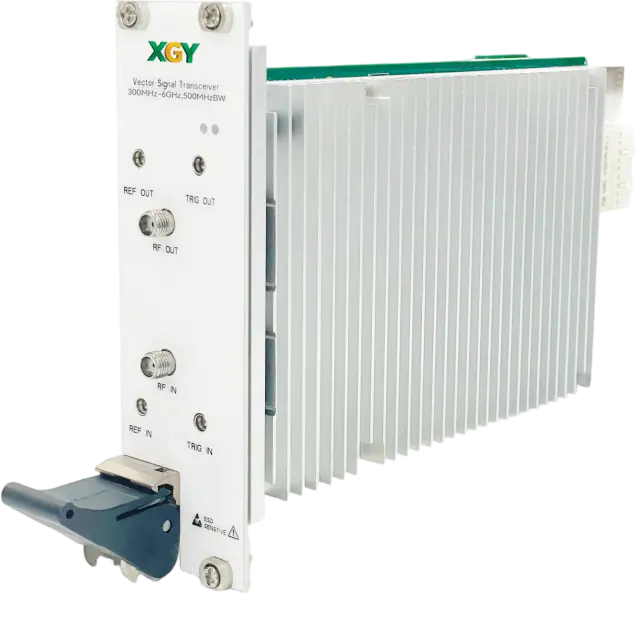

XGY YST-6061 is a PXIe RF vector signal transceiver that combines wideband vector signal generation and reception in one module. It covers 300 MHz to 6 GHz, provides 1 In / 1 Out RF channels, and supports configurable instantaneous bandwidth with optional upgrade support up to 1 GHz.
YST-6061 Vector Signal Transceiver
- Frequency: 300 MHz - 6 GHz
- Key Spec: Up to 1 GHz BW, <= -40 dB EVM
- Platform: PXIe 2-slot
- Best For: TX/RX transceiver
Best fit

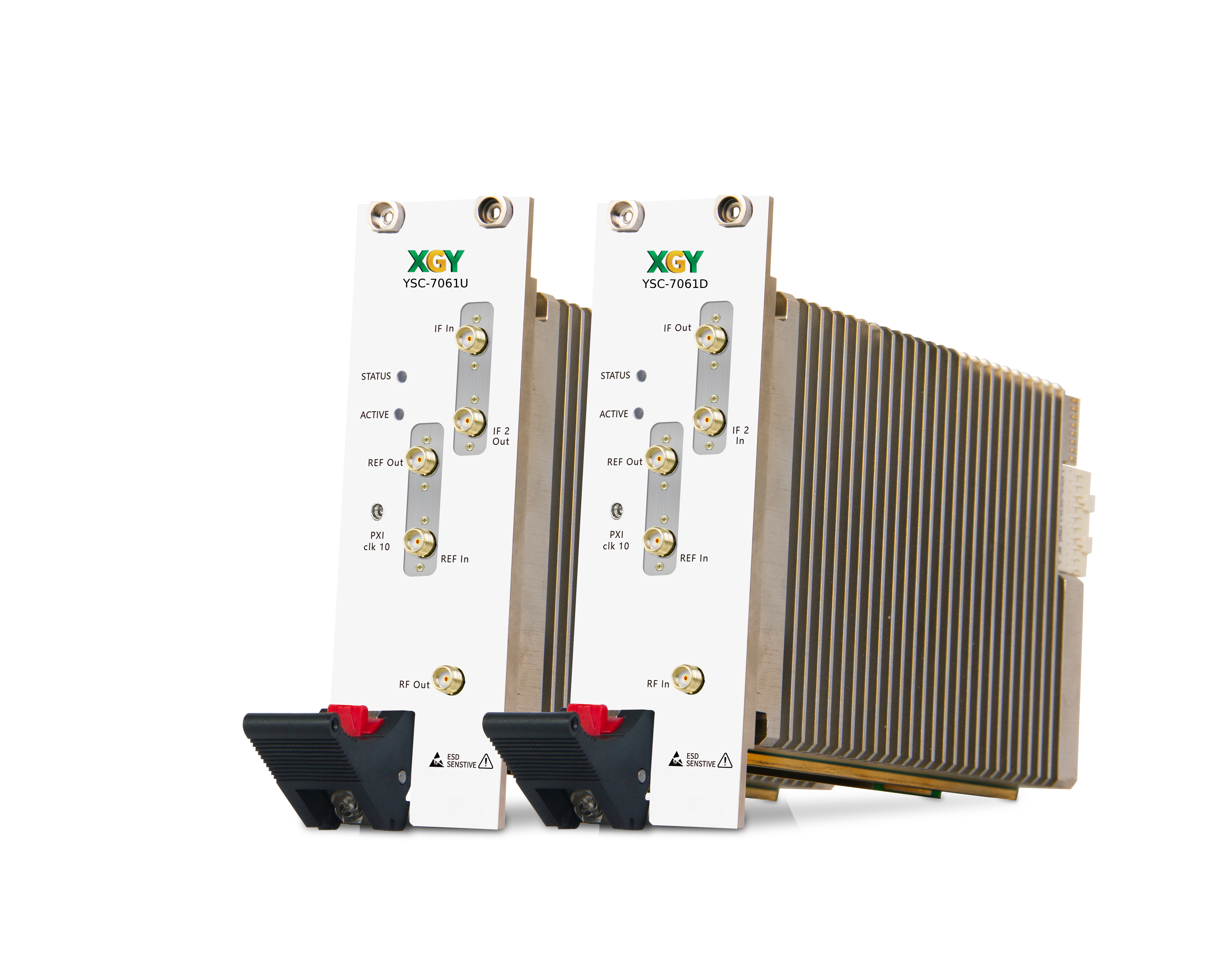

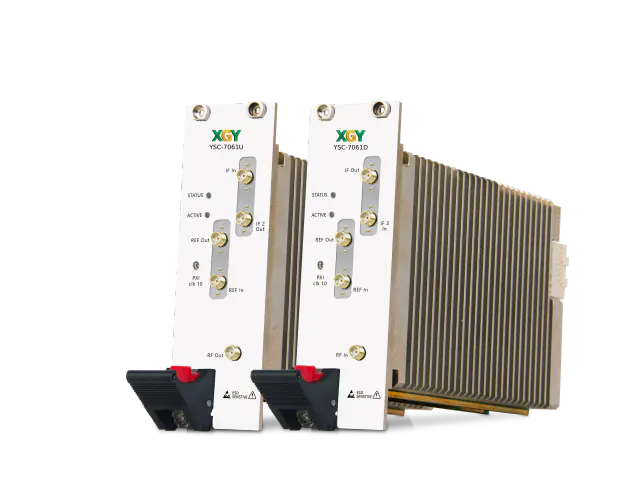

XGY YSC-7061 is a PXIe frequency conversion module pair for RF development, subsystem integration, and PXIe-controlled debugging. The up-converter provides 400 MHz to 6 GHz RF output while the down-converter accepts 20 MHz to 6 GHz RF input.
YSC-7061U / YSC-7061D Up/Down Converter
- Frequency: 400 MHz to 6 GHz
- Key Spec: 0 to 90 dB attenuation
- Platform: PXIe 2-slot
- Best For: Up/Down converter
Best fit

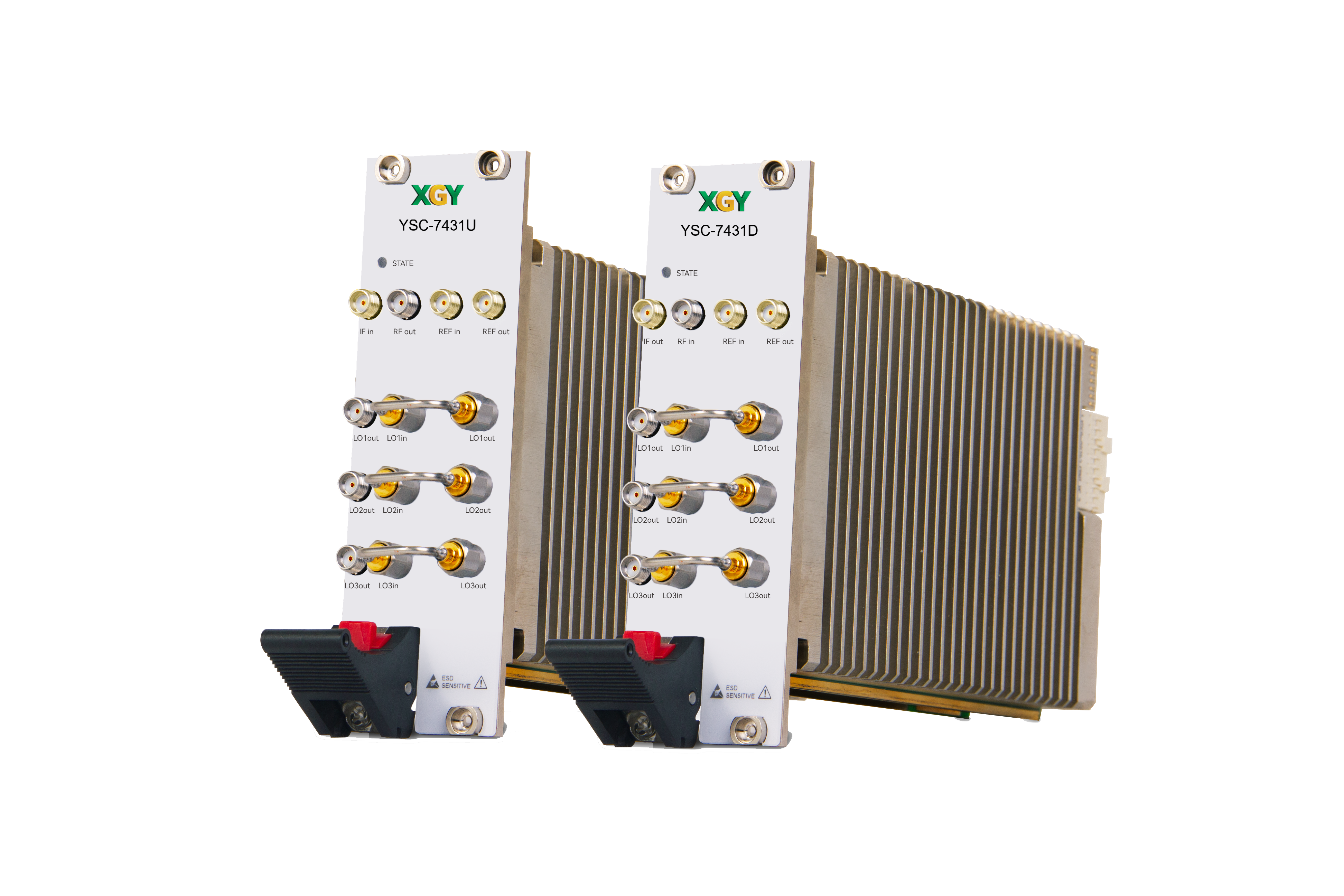

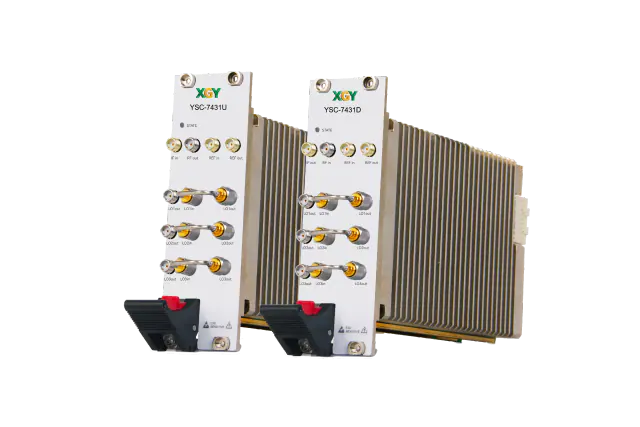

XGY YSC-7431U and YSC-7431D form a 43 GHz up/down converter pair for wideband RF frequency translation. The up-converter delivers 9 kHz to 43 GHz RF output, while the down-converter accepts 9 kHz to 43 GHz RF input with 1875 +/- 500 MHz IF conversion.
YSC-7431U / YSC-7431D Up/Down Converter
- Frequency: 9 kHz - 43 GHz
- Key Spec: >=60 dB image rejection
- Power: 42 W
- Best For: Wideband converter
Best fit

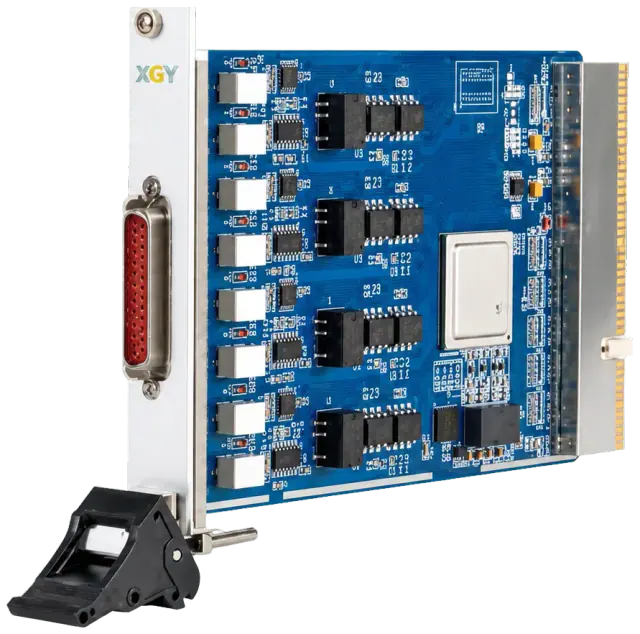

XGY PXI-4060 is a 16-channel PXI digital multimeter module for automated resistance, DC voltage, and AC voltage measurement. Each channel supports time-shared measurement in a compact 3U single-width 4HP module.

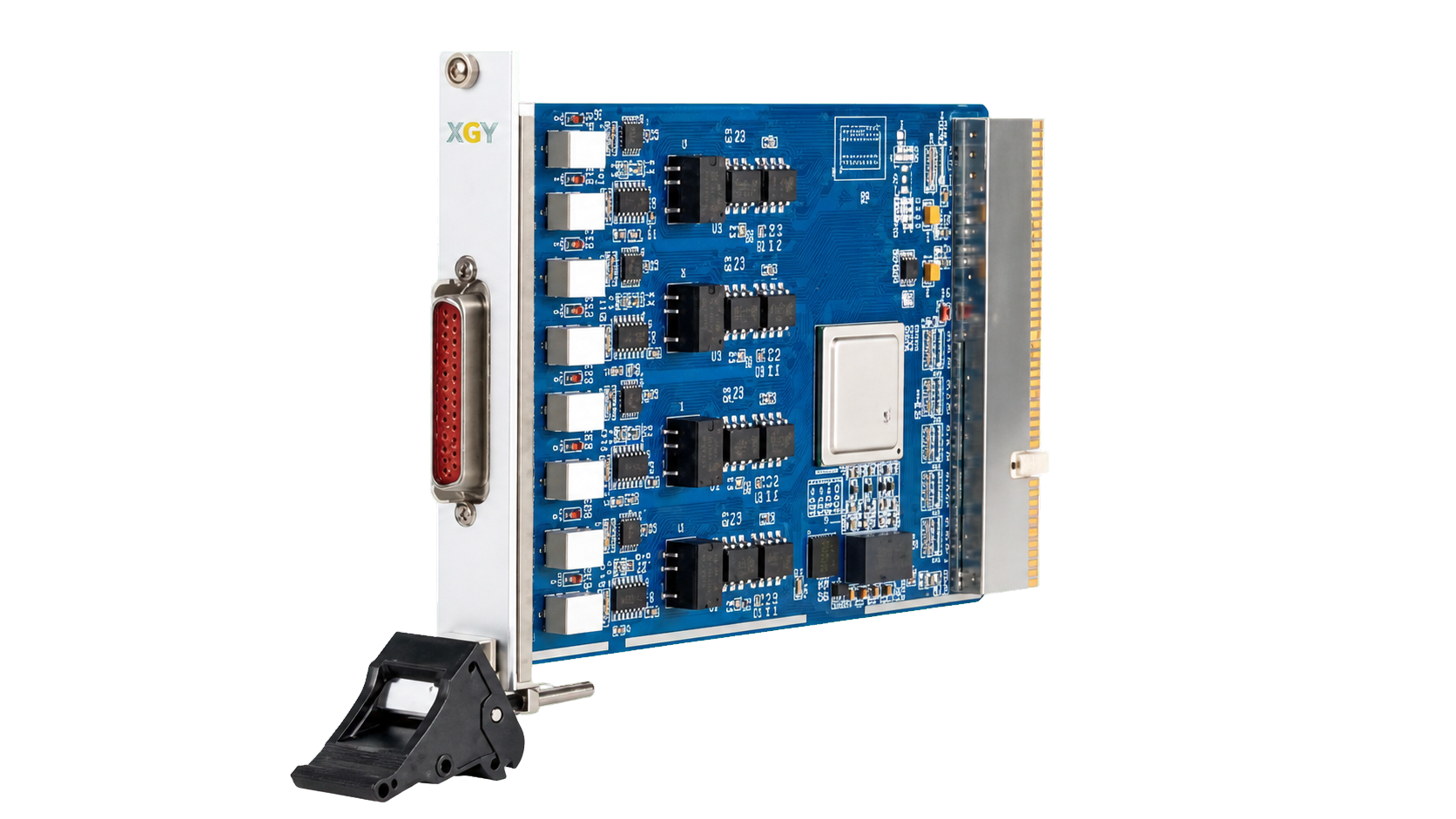

PXI-4060 16-Channel Digital Multimeter Module
- Input Channels: 16 channels
- Voltage Range: 0 to 400 V DC and AC
- Resistance Range: 0 to 40 Mohm
- Form Factor: 3U single-width, 4HP
Best fit

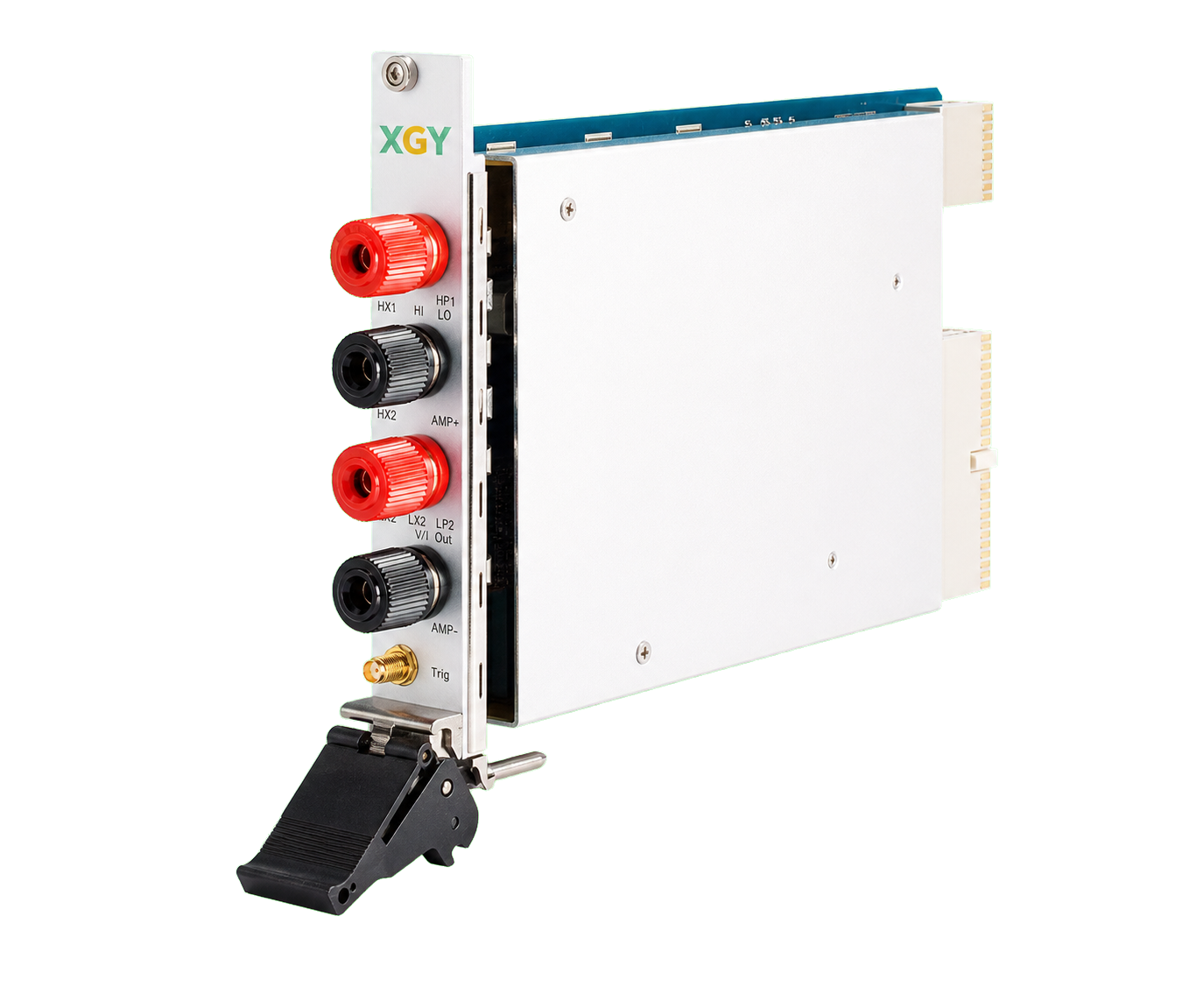

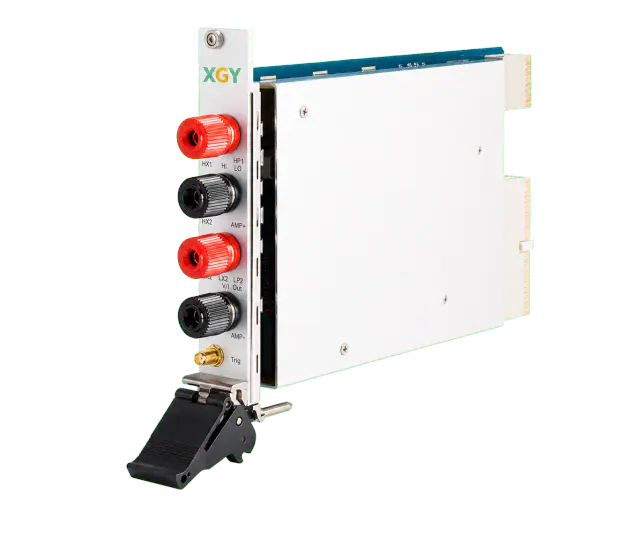

XGY PXI-406X is a 3U CPCI/PXI digital multimeter module family for modular automated test systems. The family supports AC/DC voltage and current, resistance, frequency, diode, and capacitance measurement with Windows and Linux VISA-based driver support.
PXI-406X Digital Multimeter Module
- Frequency Range: 3 to 300 kHz
- Voltage Range: +/-350 VDC; 0 to 350 Vrms
- Current Range: 0 to 3 A
- Form Factor: 3U single-width, 4HP
Best fit

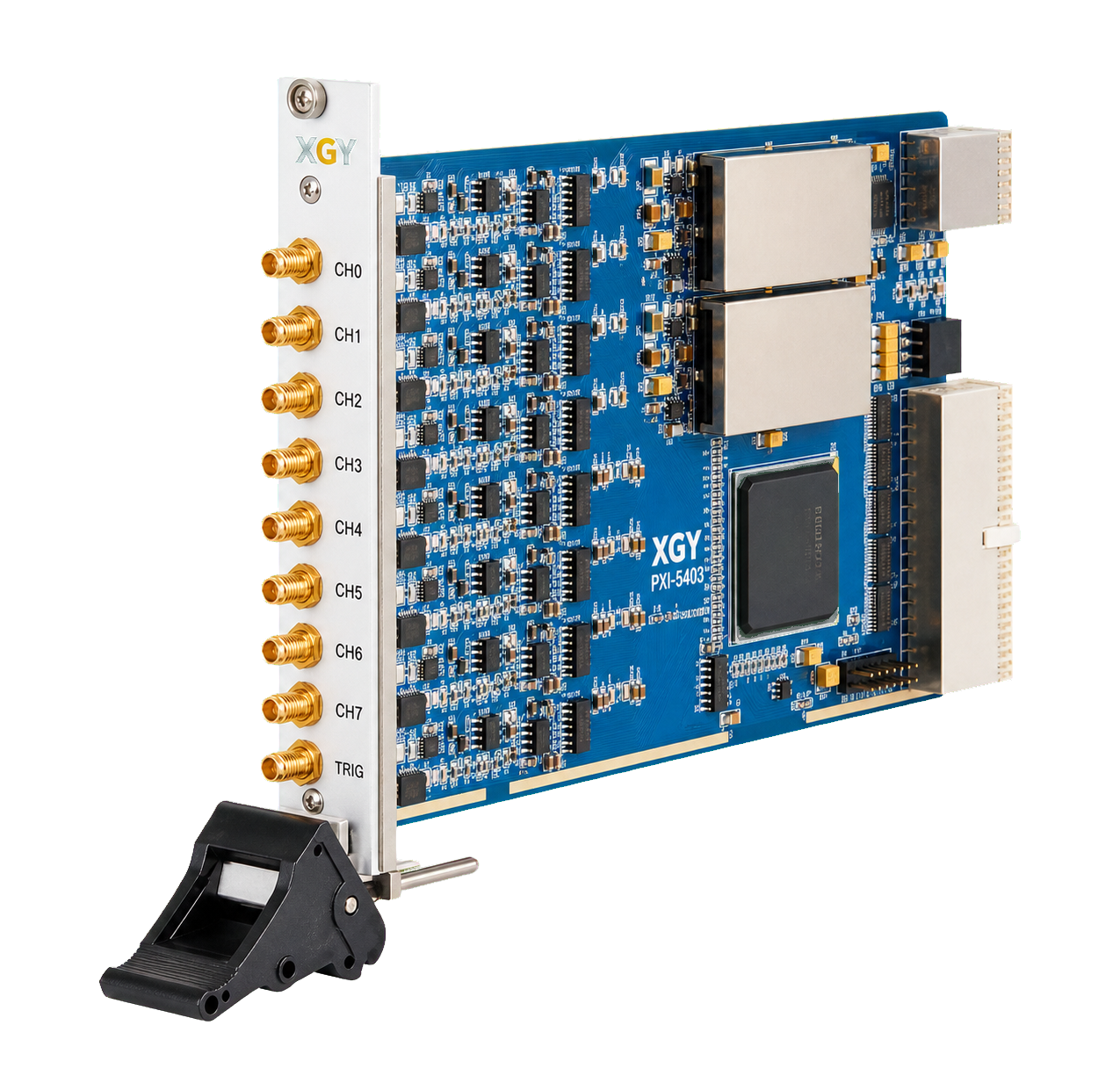

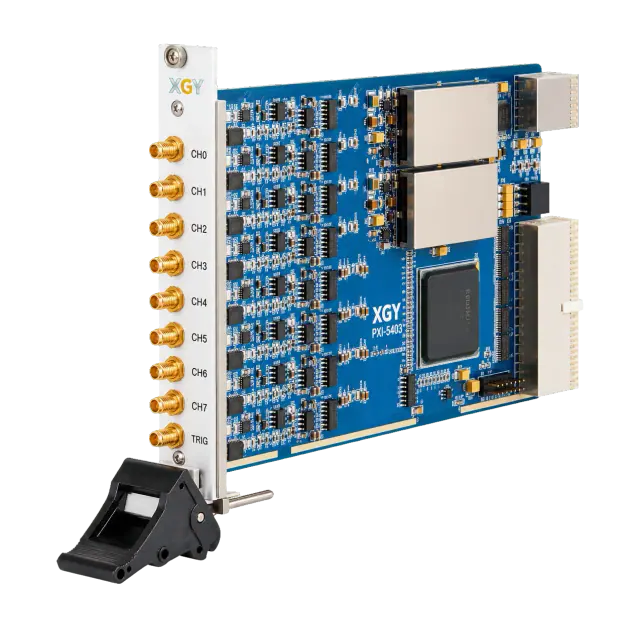

XGY PXI-5403 is an 8-channel 16-bit function generator module for 3U CPCI/PXI signal generation systems. It provides programmable waveform output up to 10 kHz with +/-10 V output amplitude, selectable output impedance, and standard sine, square, triangle, and sawtooth waveforms.
PXI-5403 8-Channel Function Generator Module
- Output Frequency: 10 kHz maximum; programmable
- Channel Count: 8 channels
- Resolution: 16 bits
- Form Factor: 3U single-width, 4HP
Best fit

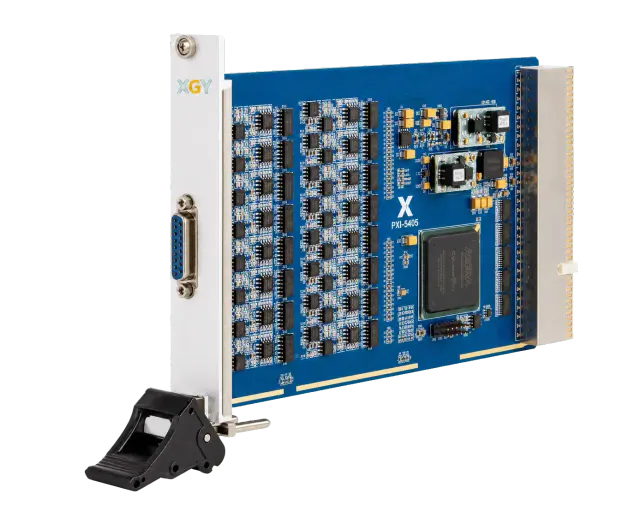

XGY PXI-5405 is a 16-channel 16-bit function generator module for 3U CPCI/PXI signal generation systems. It provides independent waveform-output channels with 500 kSa conversion rate, 1 to 20 kHz output frequency, and +/-10 V output capability.

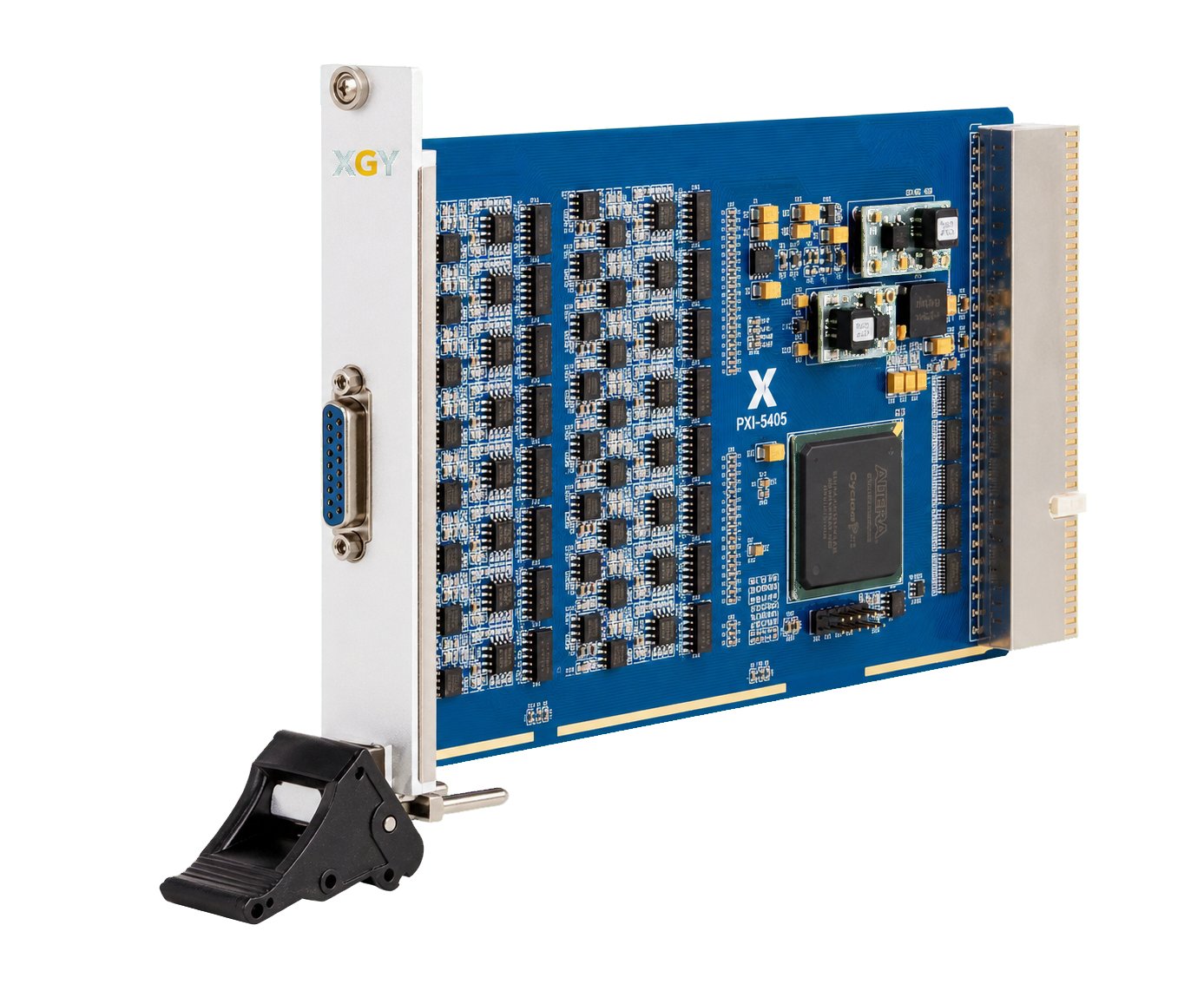

PXI-5405 16-Channel Function Generator Module
- Frequency Range: 1 to 20 kHz
- Channel Count: 16 channels
- Resolution: 16 bits
- Form Factor: 3U single-width, 4HP
Best fit

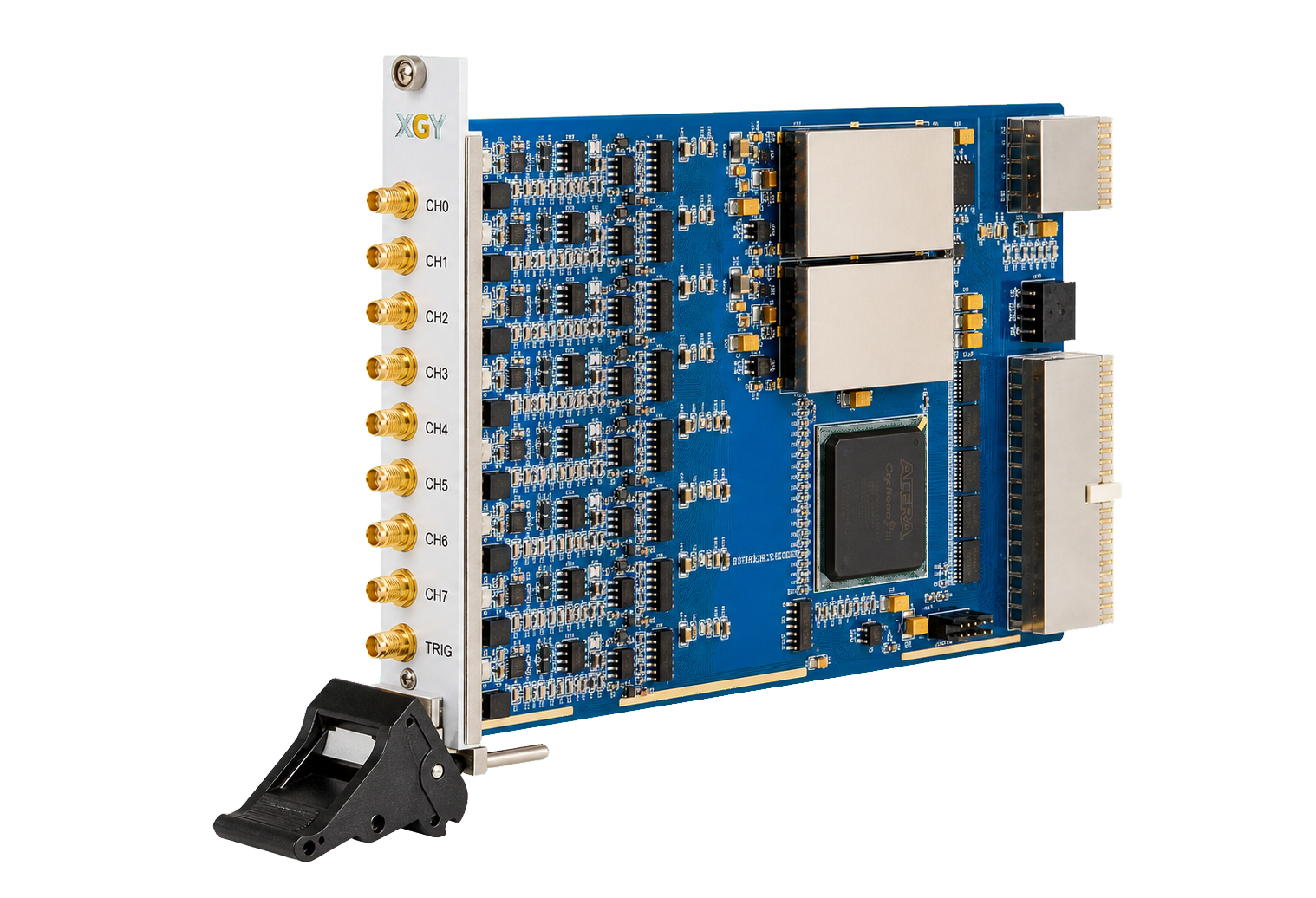

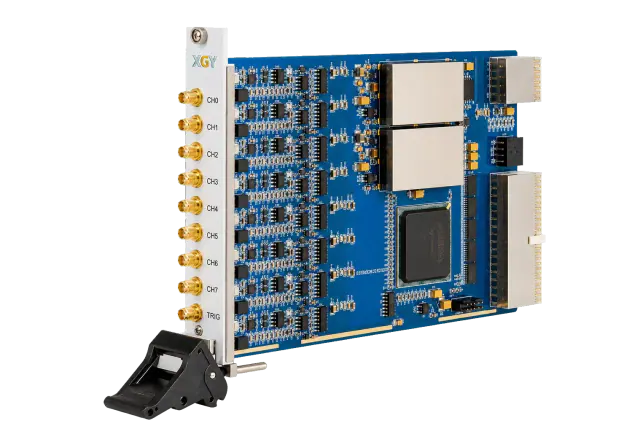

XGY PXI-5412X is a 2-channel arbitrary waveform generator module for 3U CPCI/PXI signal generation systems. Each channel supports 12-bit output, up to 50 MSa/CH conversion, 64 kSa/CH waveform memory, and +/-5 V output amplitude.
PXI-5412X 2-Channel Arbitrary Waveform Generator Module
- Output Frequency: Sine: 5 MHz; triangle/square/ramp: 1 MHz; pulse: 10 kHz
- Channel Count: 2 channels
- Resolution: 12 bits
- Form Factor: 3U single-width, 4HP
Best fit

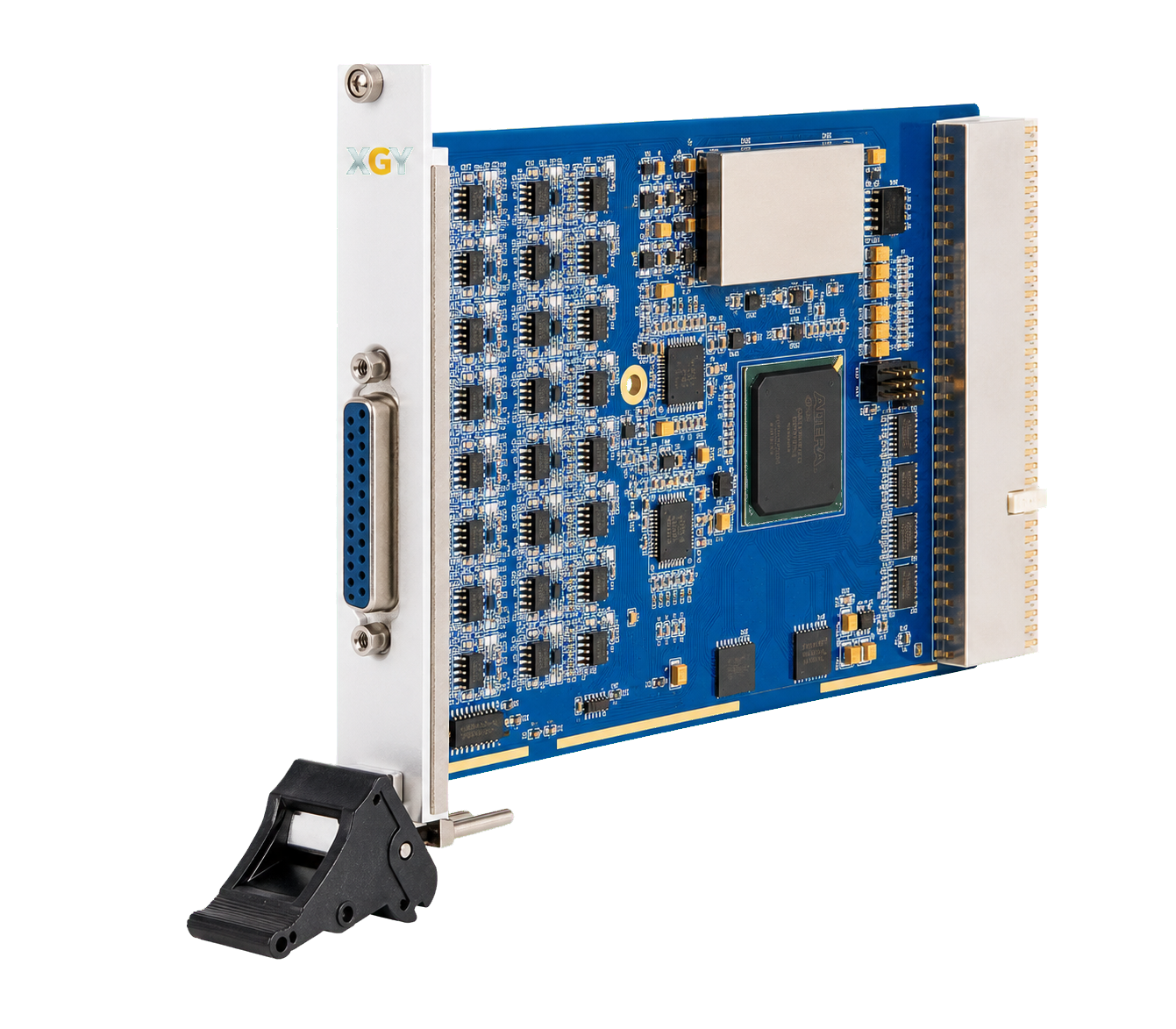

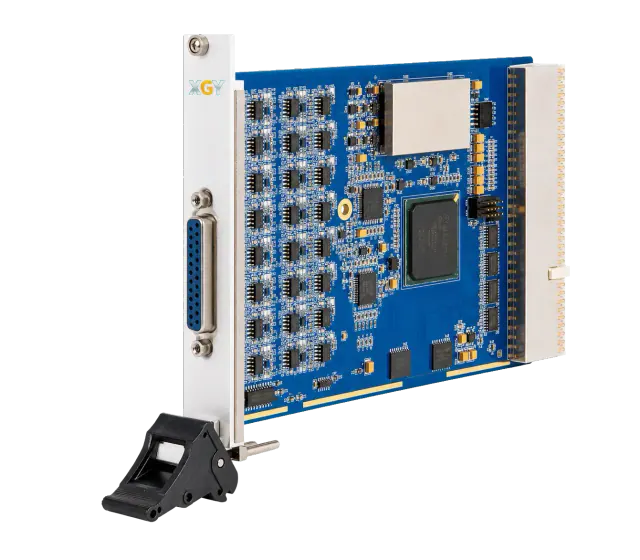

XGY PXI-6143 is an 8-channel 16-bit parallel data acquisition module for 3U CPCI/PXI systems. It provides up to 100 kSa/s sampling, 50 kHz bandwidth, differential input channels, selectable AC/DC coupling, and buffered storage for continuous acquisition workflows.
PXI-6143 8-Channel Data Acquisition Module
- Channel Count: 8 channels, differential
- Sampling Rate: 100 kSa/s maximum, integer division, 1 Hz minimum
- Resolution: 16 bits
- Bandwidth: 50 kHz
Best fit

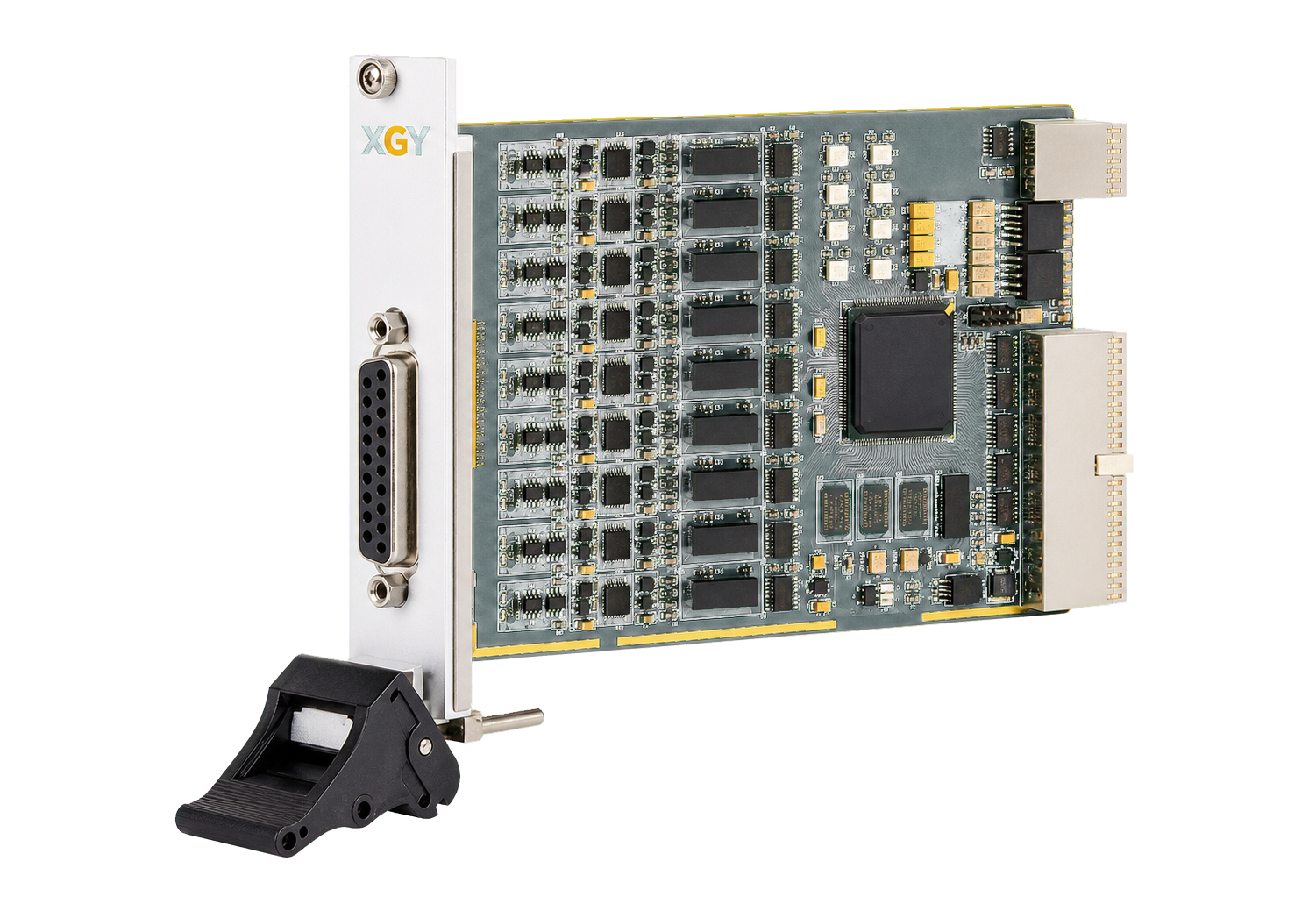

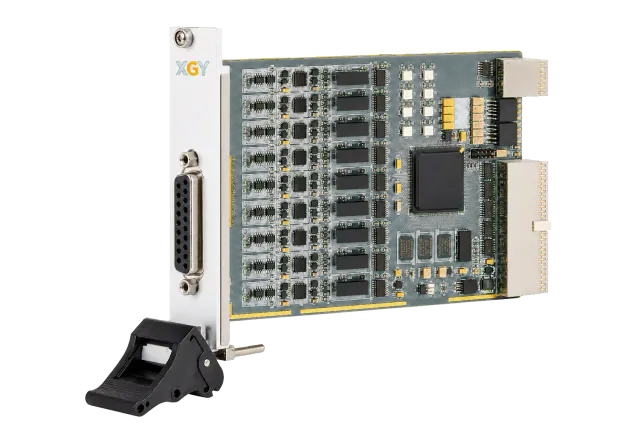

XGY PXI-6207 is an 8-channel isolated 16-bit parallel data acquisition module for 3U CPCI/PXI systems. It provides up to 100 kSa/s sampling, 20 kHz signal bandwidth, programmable input ranges, selectable AC/DC coupling, and buffered storage.
PXI-6207 8-Channel Isolated Data Acquisition Module
- Channel Count: 8 isolated channels
- Sampling Rate: 100 kSa/s maximum, integer division, 1 Hz minimum
- Resolution: 16 bits
- Signal Bandwidth: 20 kHz
Best fit

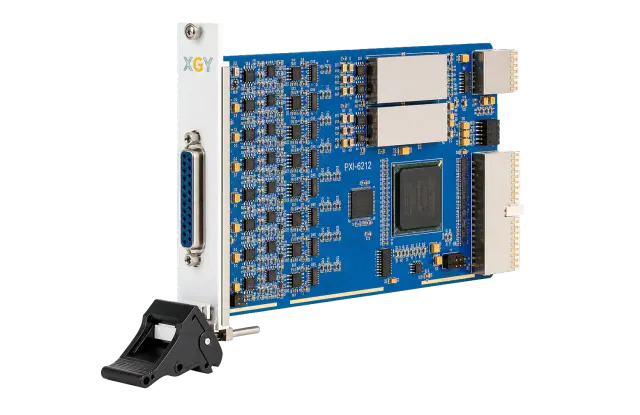

XGY PXI-6212 provides eight synchronous analog input channels in a compact 3U CPCI/PXI module. It supports 14-bit, 125 MSa/s high-speed acquisition, configurable input ranges, AC/DC coupling, 1 Mohm or 50 ohm input impedance, and multi-module synchronization.

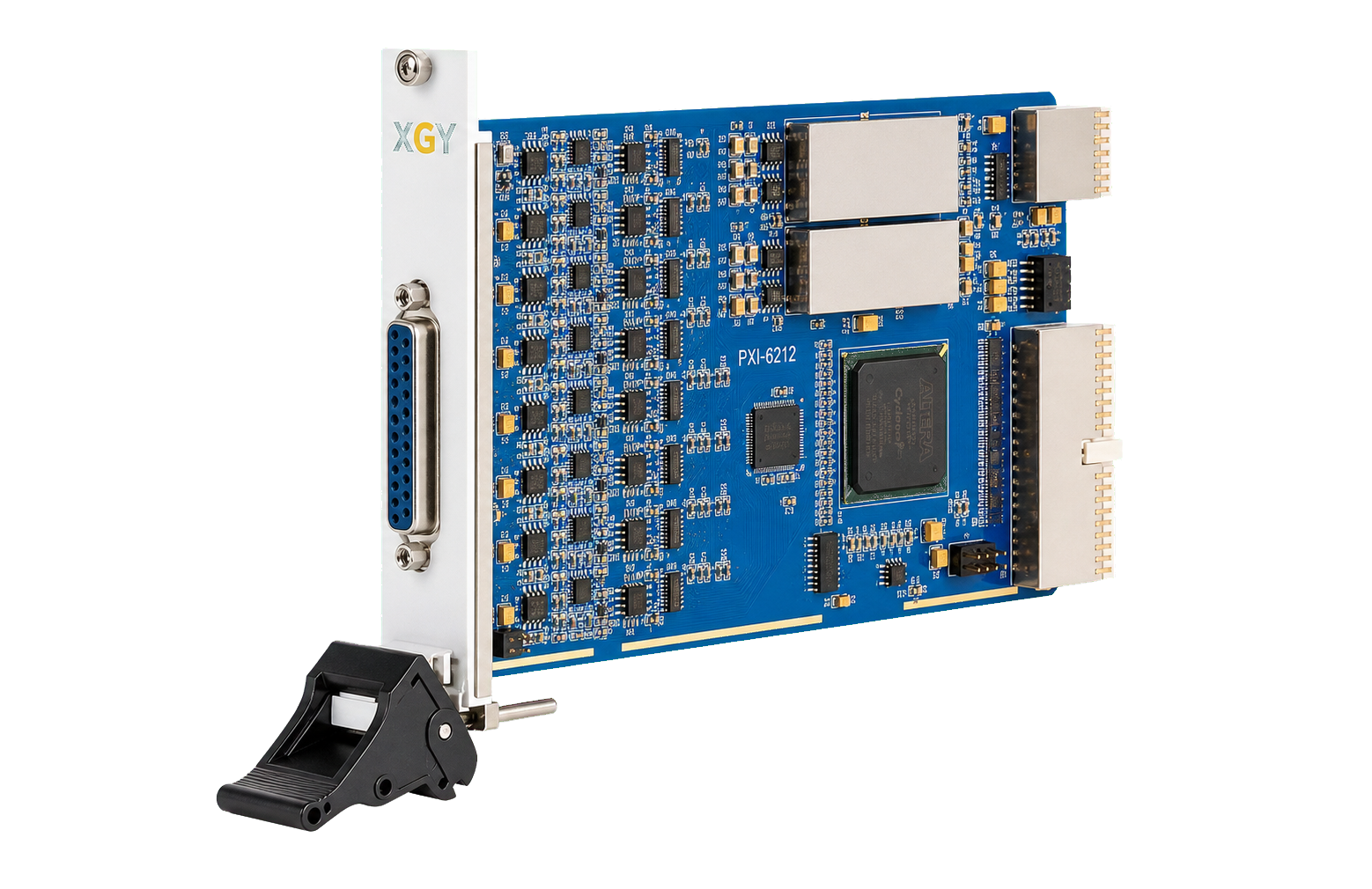

PXI-6212 8-Channel High-Speed Data Acquisition Module
- Input Channels: 8 channels
- Sampling Rate: 125 MSa/s
- Resolution: 14 bits
- Form Factor: 3U single-width, 4HP
Best fit

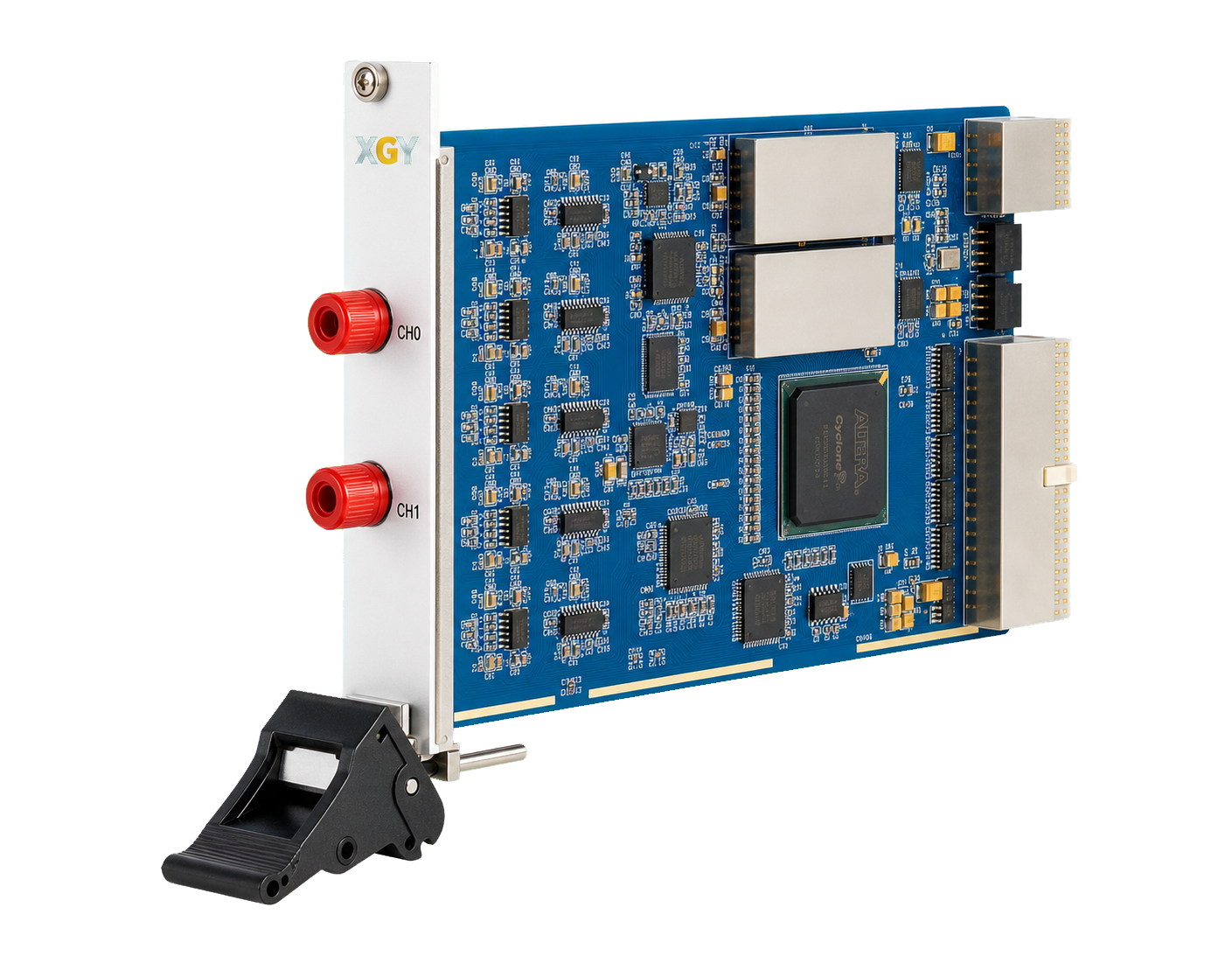

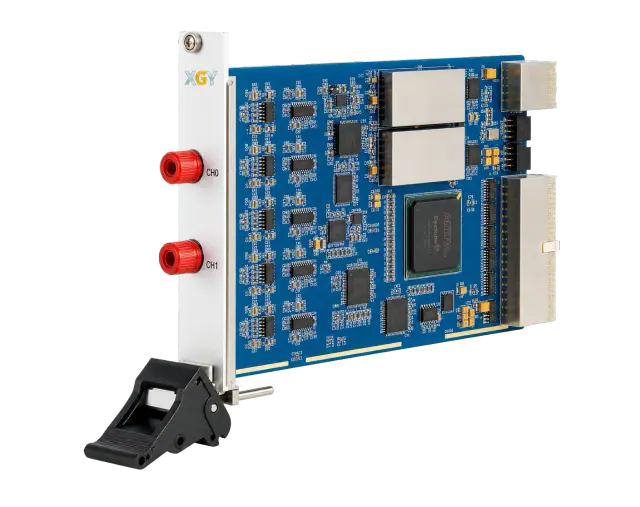

XGY PXI-6217X is a 64-channel scanning data acquisition module for 3U CPCI/PXI measurement and control systems. It combines voltage acquisition, current acquisition, 32-channel TTL digital I/O, 16-bit resolution, and 500 kSa/s total sampling.
PXI-6217X 64-Channel Scanning Data Acquisition Module
- Voltage Channels: 64 single-ended channels or 32 differential channels
- Sampling Rate: 500 kSa/s total sampling frequency; per-channel rate configurable
- Resolution: 16 bits
- Form Factor: 3U single-width, 4HP
Best fit

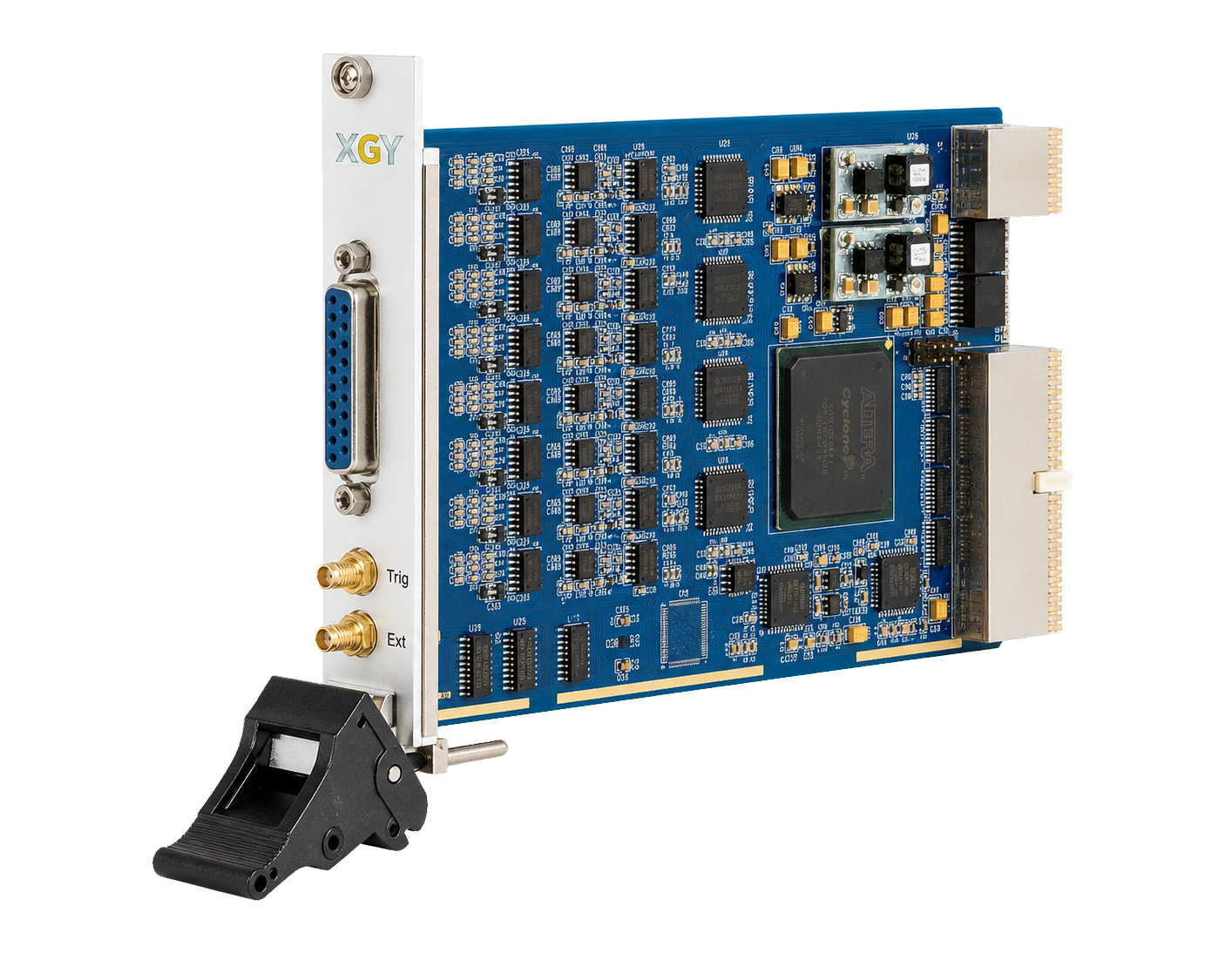

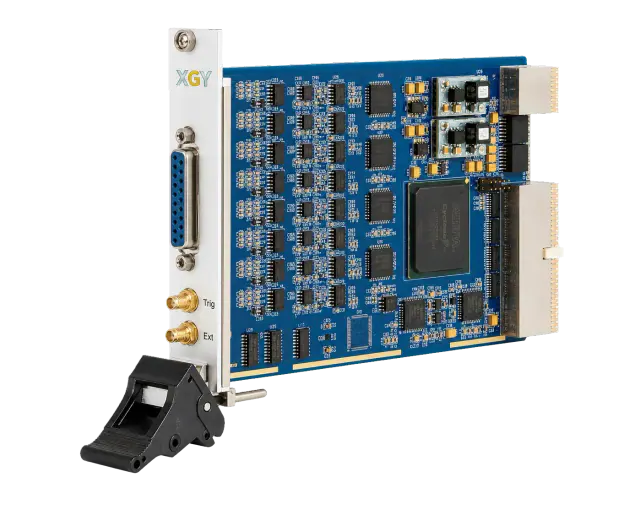

XGY PXI-6227 is a 32-channel differential parallel acquisition module for PXI measurement systems. It provides 16-bit, 50 kSa/s per-channel sampling, selectable input ranges, AC/DC coupling, common-mode protection, and 4 MSa per-channel onboard buffering.
PXI-6227 32-Channel Parallel Acquisition Module
- Channels: 32 channels
- Sampling Rate: 50 kSa/s per channel
- Resolution: 16 bits
- Bandwidth: 20 kHz (-3 dB)
Best fit

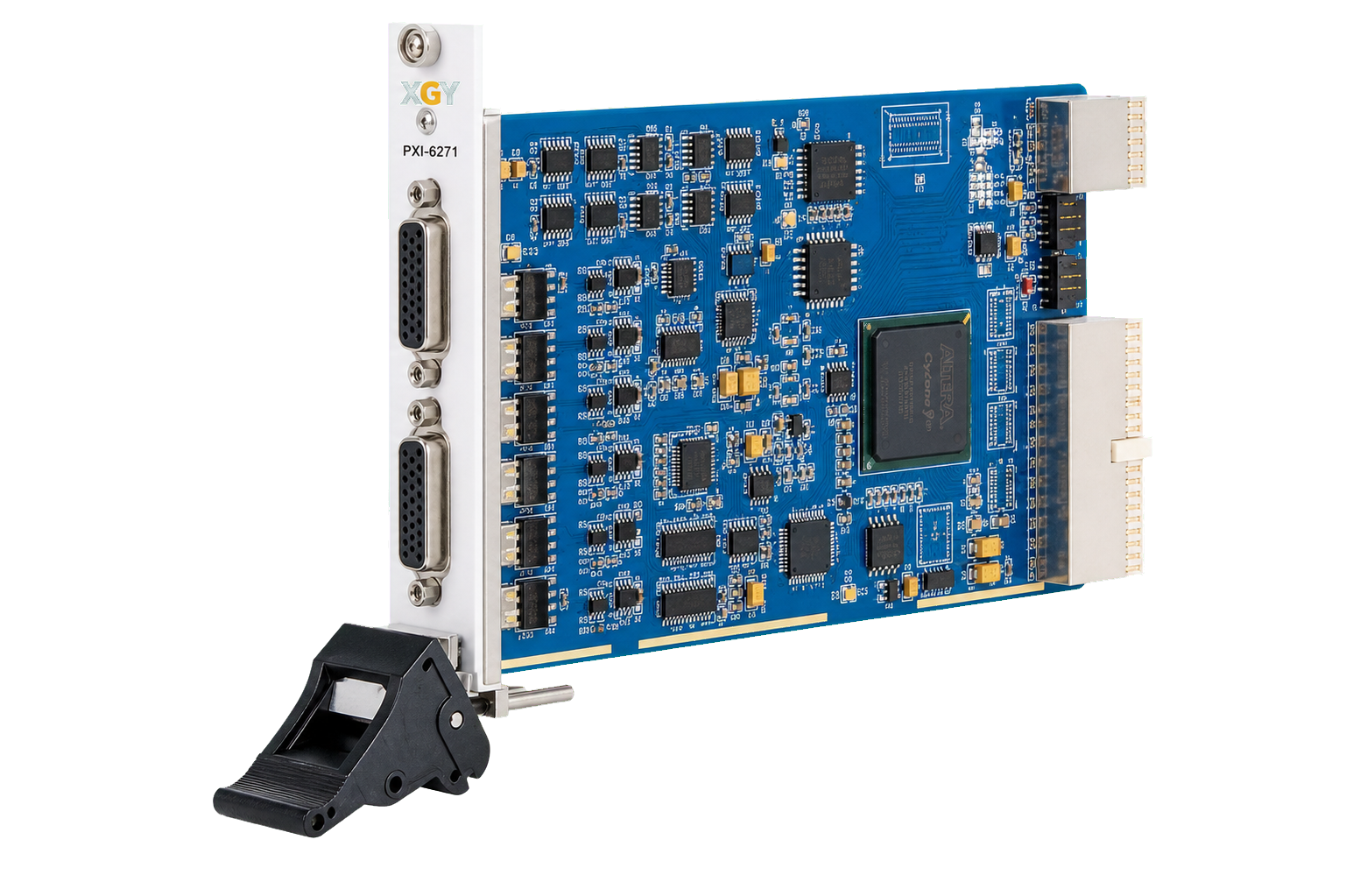

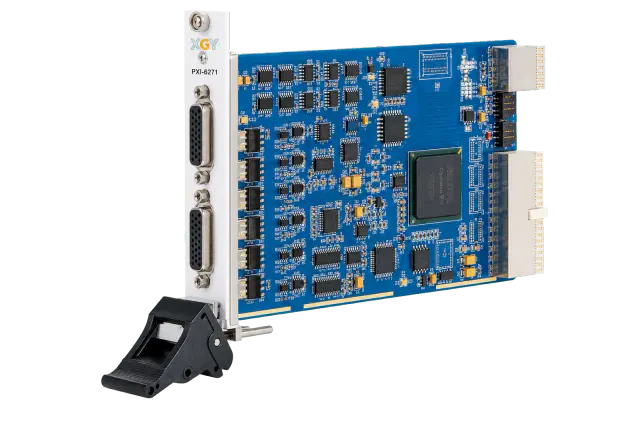

XGY PXI-6271 is an MFM multi-function PXI module for mixed analog and digital measurement and control tasks. PXI-6271 consolidates analog input, analog output, isolated digital I/O, and programmable digital interface functions in a compact PXI card.
PXI-6271 MFM Multi-Function Module
- AI Channels: 8 differential channels
- AI Sampling Rate: 100 kSa/s
- AI Voltage Range: +/-10 V
- Form Factor: 3U single-width, 4HP
Best fit

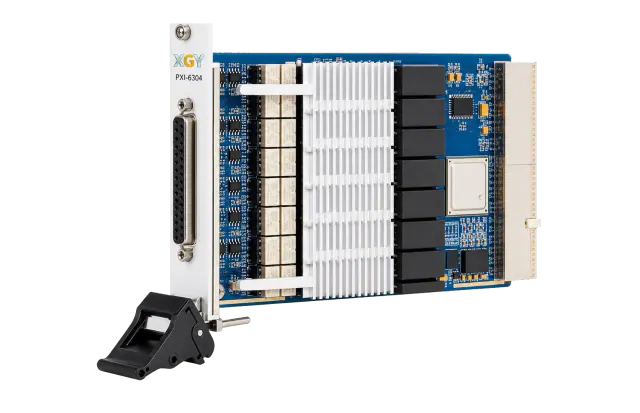

XGY PXI-6304 is an 8-channel high-speed analog-to-digital converter module for isolated PXI acquisition systems. It provides 16-bit resolution, 1 MSa/s sampling, channel-to-channel isolation, programmable input ranges, and 1 MSa per-channel storage.

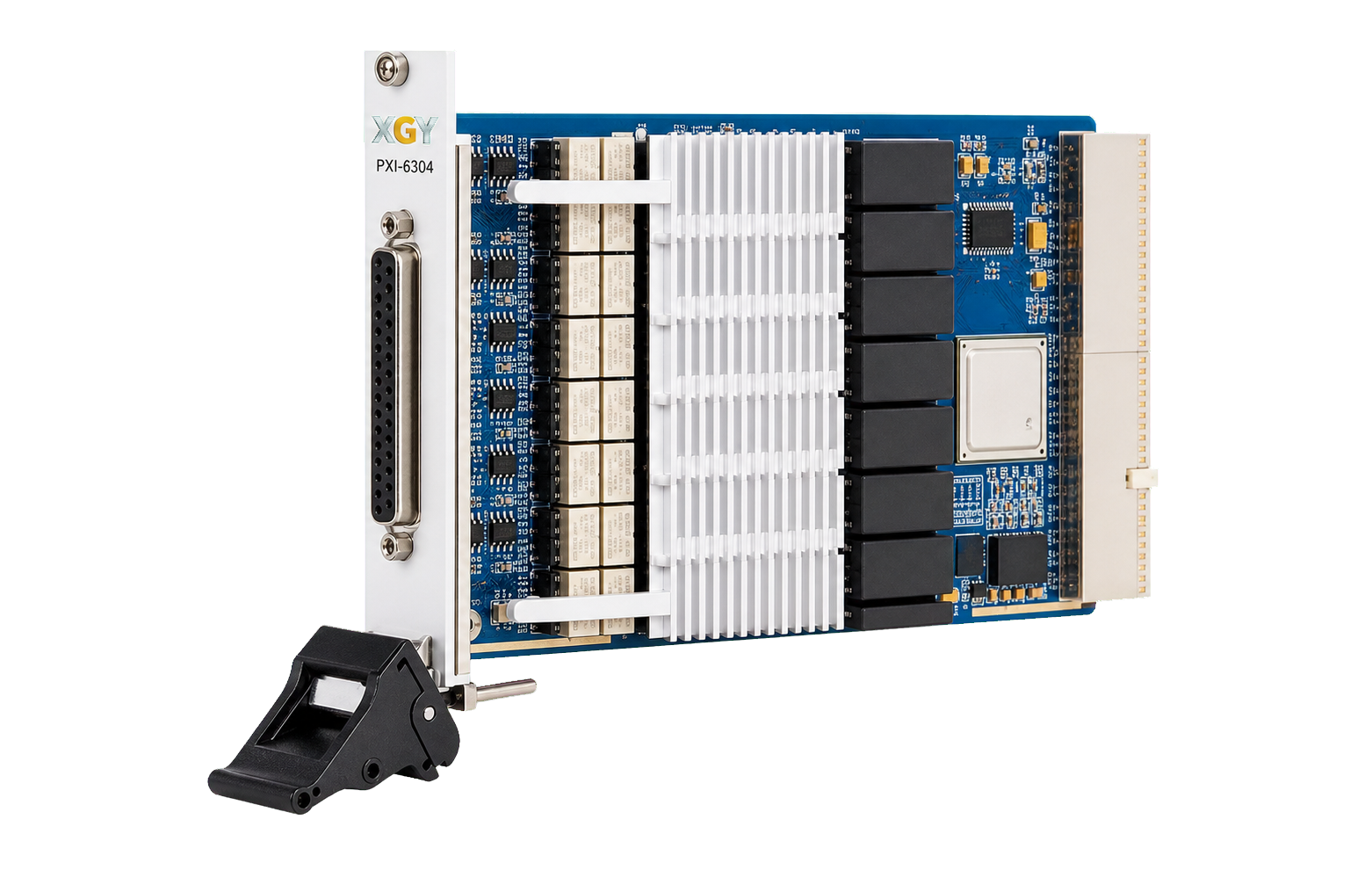

PXI-6304 8-Channel High-Speed ADC Module
- Channels: 8 differential channels with channel-to-channel isolation
- Sampling Rate: 1 MSa/s
- Resolution: 16 bits
- Form Factor: 3U single-width, 4HP
Best fit

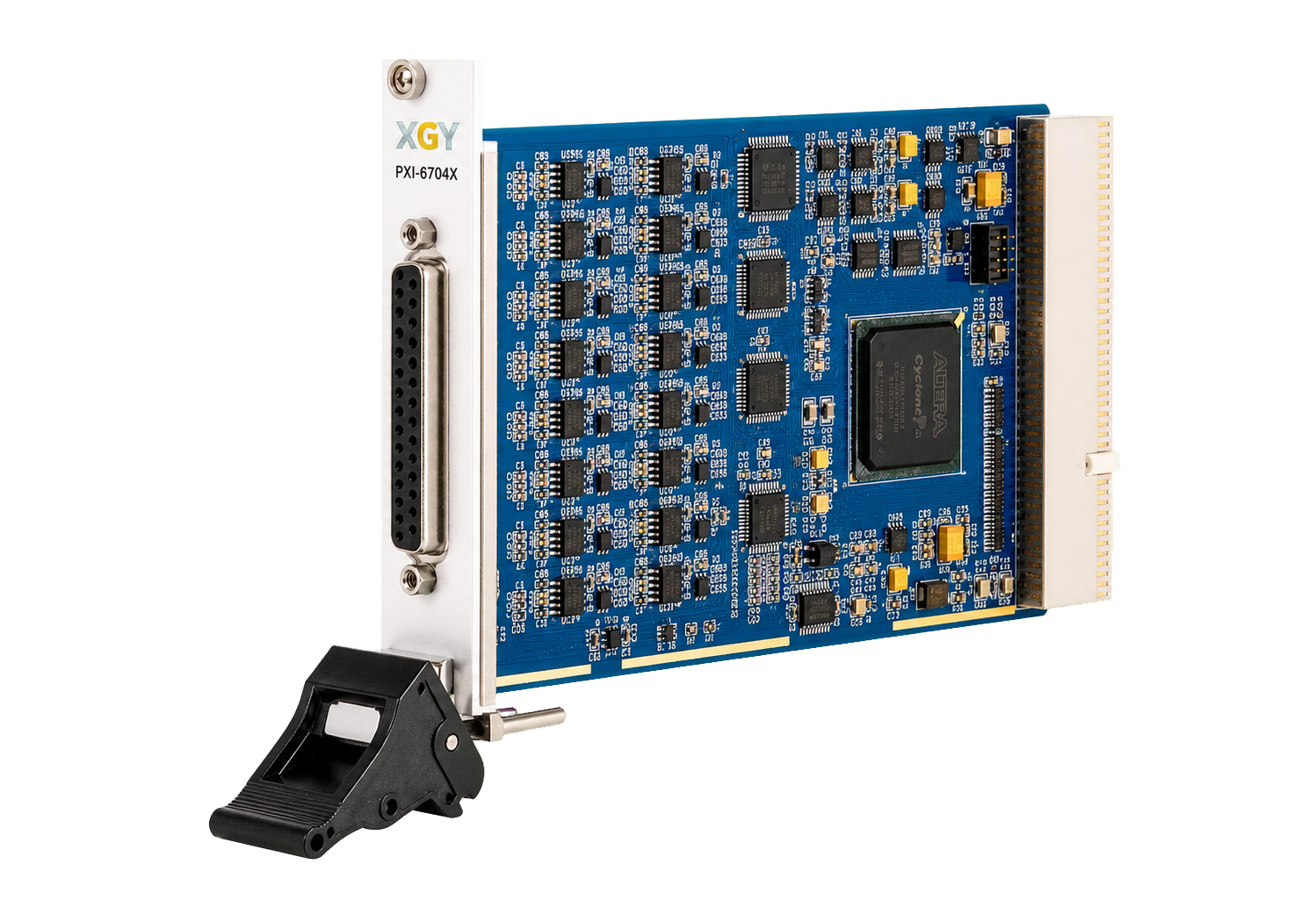

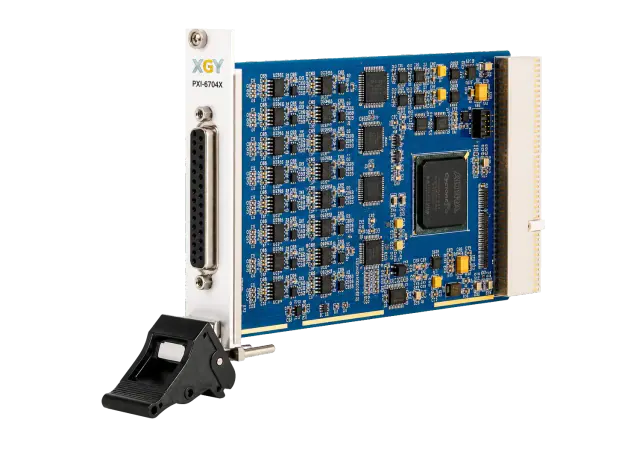

XGY PXI-6704X provides multi-channel analog source capability in a compact 3U PXI module. Voltage, current, and digital I/O variants support flexible stimulus and control applications across laboratory and industrial systems.
PXI-6704X 32-Channel Analog Output Module
- Channels: 32 channels
- Resolution: 16 bits
- Current Range: 0.1 mA to 20 mA
- Voltage Accuracy: Reading x 0.05%; overview also specifies +/-1 mV at 25 deg C
Best fit

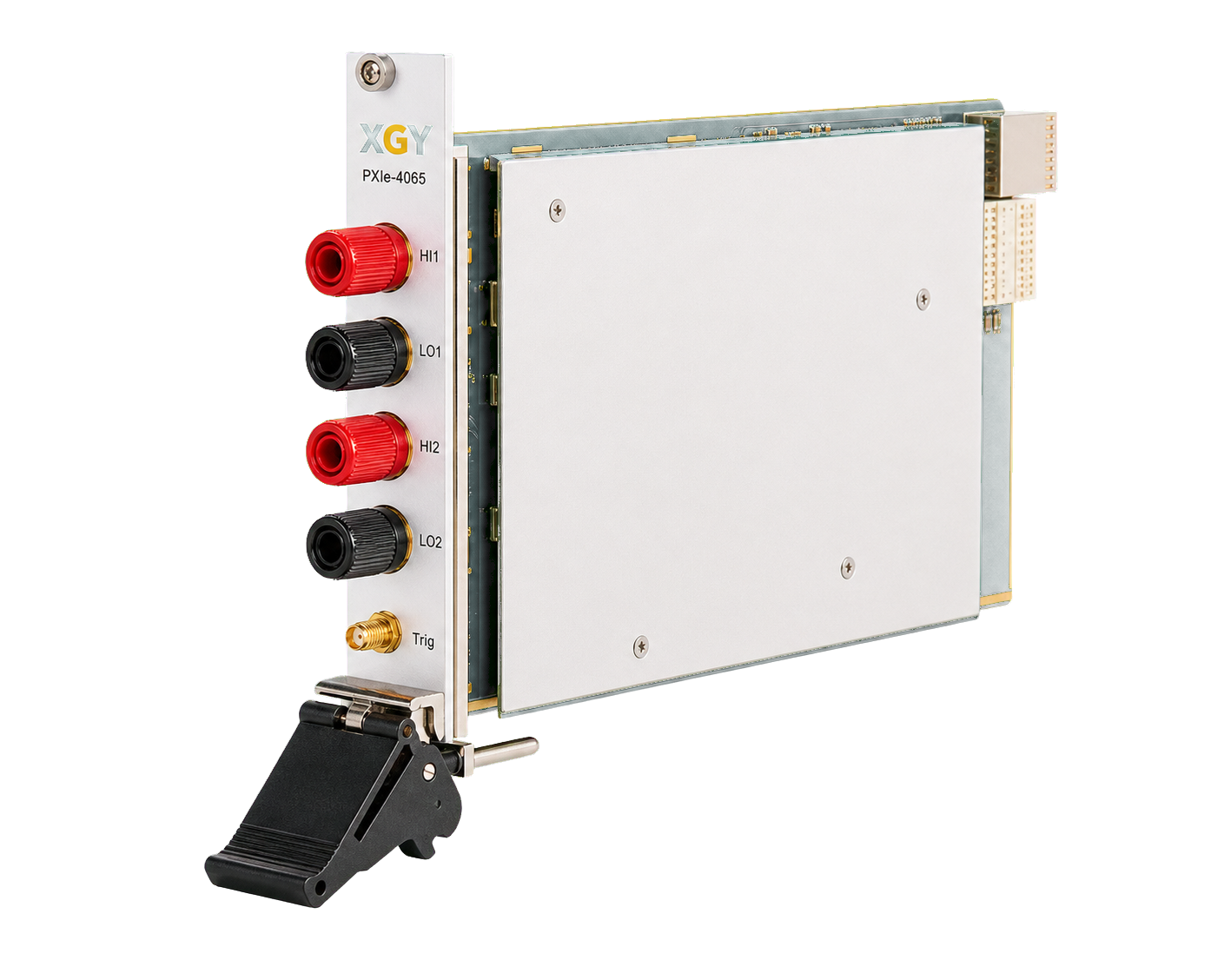

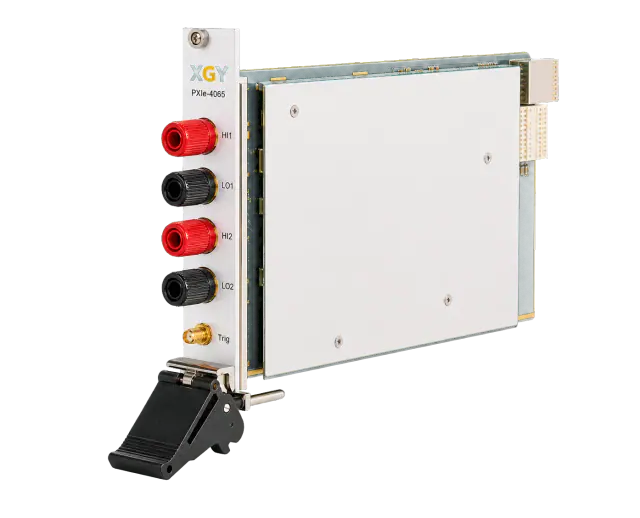

XGY PXIe-4065 is a 6.5-digit digital multimeter module for PXIe-based automated measurement systems. It supports voltage, current, resistance, frequency, and period measurement with +/-300 V maximum voltage, 3 A maximum current, and programmable delay control.
PXIe-4065 Digital Multimeter Module
- Frequency Range: 3 Hz to 1.5 MHz
- Resolution Class: 6.5 digits
- Form Factor: 3U single-width, 4HP
- Maximum Voltage: +/-300 V
Best fit

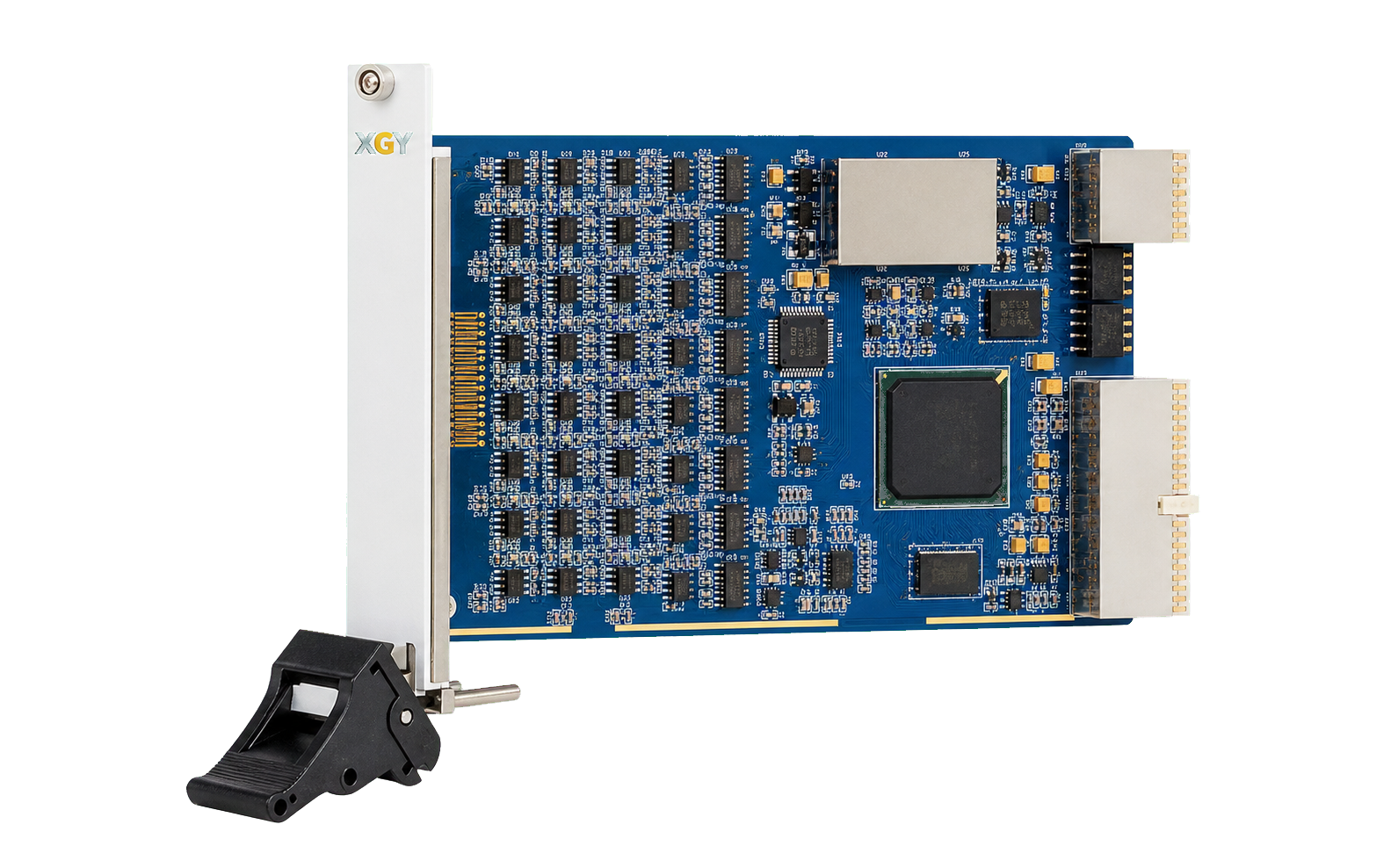

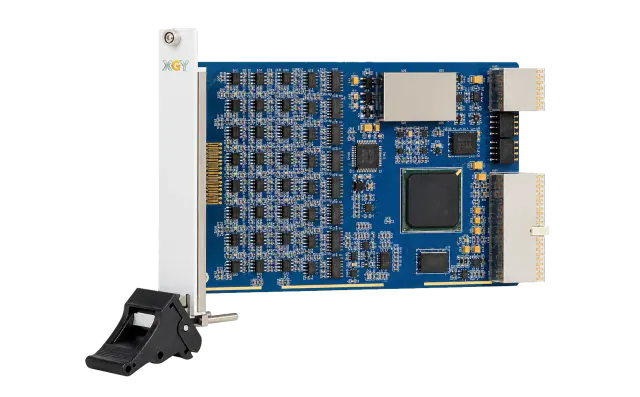

XGY PXIe-6363 is a multi-function PXIe module for data acquisition, analog output, and digital I/O tasks. PXIe-6363 consolidates analog acquisition, analog output, static digital I/O, and programmable I/O into a compact PXIe card.
PXIe-6363 Multi-Function Module
- AI Channels: 32 channels
- Sampling Rate: 2 MSa/s
- AO Channels: 4 channels
- Form Factor: 3U single-width, 4HP
Selection path
PXIe vector network analyzer model comparison
Select by port count, highest required frequency, slot budget, and dynamic-range conditions; then confirm calibration, fixture de-embedding, trigger, driver, and export requirements.
| Format | Model | Coverage | Best fit |
|---|---|---|---|
| 4-port, 2-slot | YNA-3084 | 10 MHz to 8.5 GHz; over 123 dB dynamic range above 50 MHz | Four-port cables, PCBs, filters, and production fixtures where 8.5 GHz coverage is sufficient. |
| 2-port, 1-slot | YNA-3092 | 10 MHz to 9 GHz; up to 132 dB dynamic range | Two-port automated RF component test with a compact single-slot footprint. |
| 6-port, 2-slot | YNA-3096 | 10 MHz to 9 GHz; 132 dB dynamic range | Multiport RF component and subsystem measurements needing six physical ports. |
| 2-port, 1-slot | YNA-3202 | 10 MHz to 20 GHz; configurable extension to 22 GHz | Two-port measurements requiring a higher frequency ceiling than the 8.5 or 9 GHz models. |
Frequently Asked Questions
How do PXI-6143, PXI-6212, PXI-6304, and PXI-6207 differ?
Where are the PXI DMM and multifunction module choices?
Which PXIe modules does XGY Tek manufacture?
Do XGY PXIe modules work with NI or Keysight chassis?
Can XGY build a turnkey PXIe rack for my application?
What should be supplied before quoting a PXIe rack?
How should mixed-vendor PXIe compatibility be accepted?
