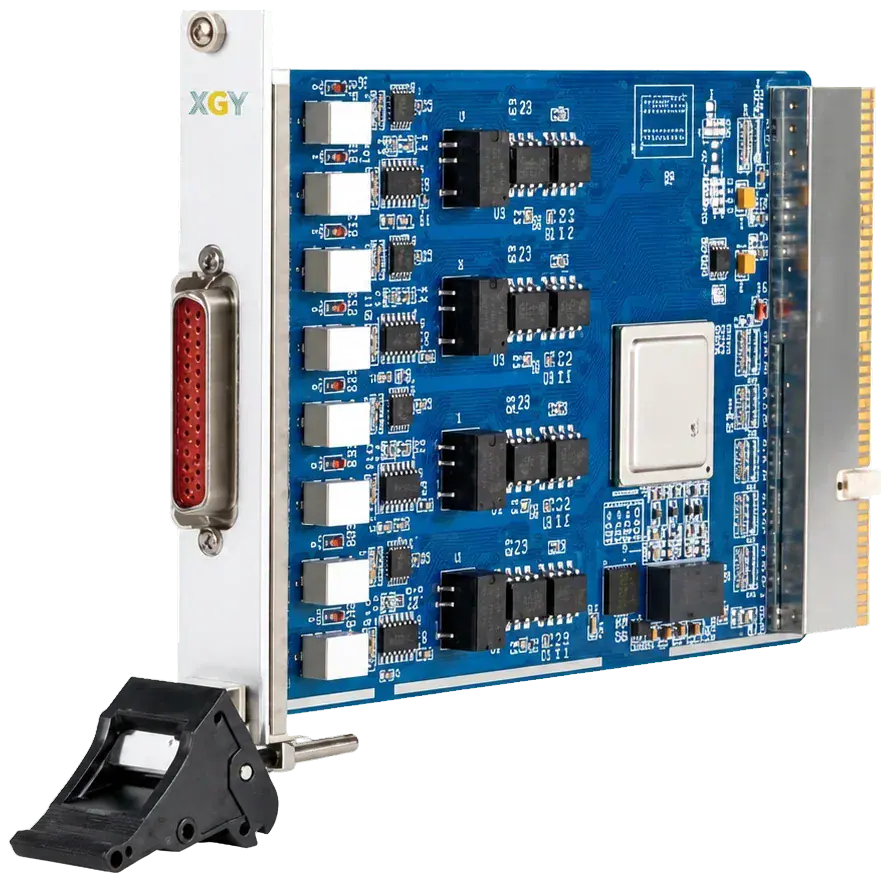

PXI-4060 16-Channel Digital Multimeter Module

16-Channel PXI Digital Multimeter Module - Resistance, DC Voltage, and AC Voltage Acquisition

XGY PXI-4060 is a 16-channel PXI digital multimeter module for automated resistance, DC voltage, and AC voltage measurement. Each channel supports time-shared measurement in a compact 3U single-width 4HP module.

Get a Quote Download Datasheet
PXI-4060 16-Channel Digital Multimeter Module

Core Specifications

Key technical parameters for the PXI-4060 16-Channel Digital Multimeter Module.

Input Channels

16 channels

Resistance Accuracy 0 to 400 ohm

<= +/- (reading x 0.1% + full scale x 0.5%)

Resistance Range

0 to 40 Mohm

Application fit

Match the product configuration to the engineering workflow before quotation.

Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.

Application fit

Automated Electrical Measurement Systems

PXI-4060 16-Channel Digital Multimeter Module should be scoped around Automated electrical measurement systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

16 channels0 to 400 V DC and AC0 to 40 Mohm

Application fit

PXI Automated Measurement Fixtures

PXI-4060 16-Channel Digital Multimeter Module should be scoped around PXI automated measurement fixtures, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

0 to 400 V DC and AC0 to 40 Mohm3U single-width, 4HP

Application fit

Resistance, DC Voltage, And AC Voltage Validation

PXI-4060 16-Channel Digital Multimeter Module should be scoped around Resistance, DC voltage, and AC voltage validation, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

0 to 40 Mohm3U single-width, 4HP0 to 400 V

Application fit

Time Shared Multi Channel Voltage And Resistance Acquisition

PXI-4060 16-Channel Digital Multimeter Module should be scoped around Time-shared multi-channel voltage and resistance acquisition, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

3U single-width, 4HP0 to 400 V0 to 400 V

PXI 16-Channel Digital Multimeter Module for Automated Test

PXI-4060 provides 16 input channels for PXI measurement systems that need channel-switched resistance and voltage acquisition. Each channel supports resistance measurement plus DC and AC voltage measurement, allowing one compact module to cover common electrical test points in automated fixtures.

Key Technical Advantages

  • 16 Measurement Channels: Sixteen input channels support switched measurement in PXI data acquisition systems.
  • Resistance Measurement: Resistance measurement covers 0 to 40 Mohm across six ranges.
  • Voltage Measurement: DC and AC voltage measurement ranges extend to 400 V.
  • PXI System Integration: The 3U single-width 4HP form factor is designed for PXI chassis integration.
  • VISA PNP Driver: Driver support is provided through a VISA-based PNP driver program.
  • Temperature Grade Options: Commercial, industrial, and military temperature-grade ordering options are listed.

Typical Applications

  • Automated electrical measurement systems
  • PXI automated measurement fixtures
  • Resistance, DC voltage, and AC voltage validation
  • Time-shared multi-channel voltage and resistance acquisition

Core Specifications

  • Input Channels: 16 channels
  • Voltage Range: 0 to 400 V DC and AC
  • Resistance Range: 0 to 40 Mohm
  • Form Factor: 3U single-width, 4HP

Key Advantages

  • 16 Measurement Channels Sixteen input channels support switched measurement in PXI data acquisition systems.
  • Resistance Measurement Resistance measurement covers 0 to 40 Mohm across six ranges.
  • Voltage Measurement DC and AC voltage measurement ranges extend to 400 V.
  • PXI System Integration The 3U single-width 4HP form factor is designed for PXI chassis integration.
  • VISA PNP Driver Driver support is provided through a VISA-based PNP driver program.
  • Temperature Grade Options Commercial, industrial, and military temperature-grade ordering options are listed.

Performance Highlights

  • Input Channels 16 channels
  • Voltage Range 0 to 400 V DC and AC
  • Resistance Range 0 to 40 Mohm
  • Form Factor 3U single-width, 4HP

Ready to upgrade your automated test system?

XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-4060 16-Channel Digital Multimeter Module.

Get a Quote

Product Specifications

Parameter Specification
Input Channels 16 channels
Supported Measurements Resistance, DC voltage, AC voltage
Resistance Range 0 to 40 Mohm
DC Voltage Range 0 to 400 V
AC Voltage Range 0 to 400 V
Resistance Accuracy 0 to 400 ohm <= +/- (reading x 0.1% + full scale x 0.5%)
Resistance Accuracy 400 ohm to 4 kohm <= +/- (reading x 0.1% + full scale x 0.5%)
Resistance Accuracy 4 kohm to 40 kohm <= +/- (reading x 0.5% + full scale x 0.5%)
Resistance Accuracy 40 kohm to 400 kohm <= +/- (reading x 0.5% + full scale x 0.5%)
Resistance Accuracy 400 kohm to 4 Mohm <= +/- (reading x 1% + full scale x 0.5%)
Resistance Accuracy 4 Mohm to 40 Mohm <= +/- (reading x 1% + full scale x 0.5%)
DC Voltage Accuracy 0 to 400 mV <= +/- (reading x 0.5% + full scale x 0.2%)
DC Voltage Accuracy 400 mV to 4 V <= +/- (reading x 0.5% + full scale x 0.2%)
DC Voltage Accuracy 4 V to 40 V <= +/- (reading x 0.5% + full scale x 0.2%)
DC Voltage Accuracy 40 V to 400 V <= +/- (reading x 0.5% + full scale x 0.2%)
AC Voltage Accuracy 0 to 4 V <= +/- (reading x 0.5% + full scale x 0.2%)
AC Voltage Accuracy 4 V to 40 V <= +/- (reading x 0.5% + full scale x 0.2%)
AC Voltage Accuracy 40 V to 400 V <= +/- (reading x 0.5% + full scale x 0.2%)

* Specifications are subject to change without notice. Contact XGY Tek for full technical datasheet.

Technical Resources

Download Datasheet

PDF technical specifications

Get a Quote

Pre-filled product inquiry

Fit check

Use this product when the requirement matches the published envelope.

Strong fit

  • Projects centred on Automated electrical measurement systems
  • Projects centred on PXI automated measurement fixtures
  • Projects centred on Resistance, DC voltage, and AC voltage validation
  • Requirements that benefit from 16 Measurement Channels and Resistance Measurement

Review alternatives

  • Requirements outside the published voltage, current, power or frequency envelope
  • Projects without a defined DUT, site power, interface or acceptance method
  • Simple bench work where a lower-cost standard supply would meet the requirement
  • RFQs that cannot yet specify protection, cooling, cabling or control boundaries

Quote-stage checklist

The fastest way to make the enquiry useful.

Voltage rangeCurrent / powerOperating modeDUT typeLoad profileControl interfaceProtection needsCooling / installationCable / fixture planCompliance workflowLead timeFAT/SAT evidence

Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.

Quote workflow

Make the test plan visible before the quote is final.

A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.

Send RFQ
01

Confirm the electrical envelope

Ratings map

Start with 0 to 400 V. Confirm the required model rating before treating the page summary as a released configuration.

02

Define the DUT workflow

Use-case brief

Map the equipment to Automated electrical measurement systems; PXI automated measurement fixtures; Resistance, DC voltage, and AC voltage validation and record any transient, cycling, compliance or automation needs.

03

Lock the acceptance package

Quote evidence

Confirm control interfaces, protection requirements, data logging, remote operation and the FAT/SAT evidence needed by the buyer.

Ready to upgrade your automated test system?

XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-4060 16-Channel Digital Multimeter Module.

Get a Quote

Frequently Asked Questions

What is the PXI-4060 16-Channel Digital Multimeter Module used for?

The PXI-4060 16-Channel Digital Multimeter Module is part of XGY Tek's Modular Test Instruments catalogue, supplied to engineering teams worldwide for laboratory, production, and field test workflows. XGY PXI-4060 is a 16-channel PXI digital multimeter module for automated resistance, DC voltage, and AC voltage measurement. Each channel supports time-shared measurement in a compact 3U single-width 4HP module.

Which PXI-4060 16-Channel Digital Multimeter Module specifications should buyers compare first?

Start with Input Channels: 16 channels; Supported Measurements: Resistance, DC voltage, AC voltage; Resistance Range: 0 to 40 Mohm; DC Voltage Range: 0 to 400 V. Buyers should also confirm interface, software integration, accessories, calibration documentation, lead time, and acceptance requirements before purchase.

Which applications is the PXI-4060 16-Channel Digital Multimeter Module typically matched to?

Typical applications listed for the PXI-4060 16-Channel Digital Multimeter Module include Automated electrical measurement systems; PXI automated measurement fixtures; Resistance, DC voltage, and AC voltage validation; Time-shared multi-channel voltage and resistance acquisition. If the required range, channel count, power level, environmental condition, or automation interface differs from these scenarios, XGY Tek should review the configuration before quotation.

When should buyers consider another Modular Test Instruments option instead of the PXI-4060 16-Channel Digital Multimeter Module?

Compare alternatives when the required measurement range, output power, channel count, bandwidth, software workflow, fixture design, or documentation package does not match the published PXI-4060 16-Channel Digital Multimeter Module specifications. XGY Tek can recommend a different model or custom-scoped option during quotation.

How do I get a quote or datasheet for the PXI-4060 16-Channel Digital Multimeter Module?

Use the Get a Quote form to share your application, required configuration, and rollout timeline. An XGY Tek engineer based in Adelaide or Sydney will respond the same business day. Where a downloadable datasheet is available, it is linked from the product page. Get a Quote

Who is XGY Tek and how is the PXI-4060 16-Channel Digital Multimeter Module supported?

XGY Tek (XGY Pty Ltd, ABN 70 688 984 590) is an Australian test and measurement company headquartered in Adelaide with a Sydney office. XGY Tek ships the PXI-4060 16-Channel Digital Multimeter Module to engineering teams worldwide, with calibration documentation and acceptance requirements confirmed during quotation. Post-sales support is handled directly by applications engineers during AEST/ACST hours. About XGY TekWhere to Buy
