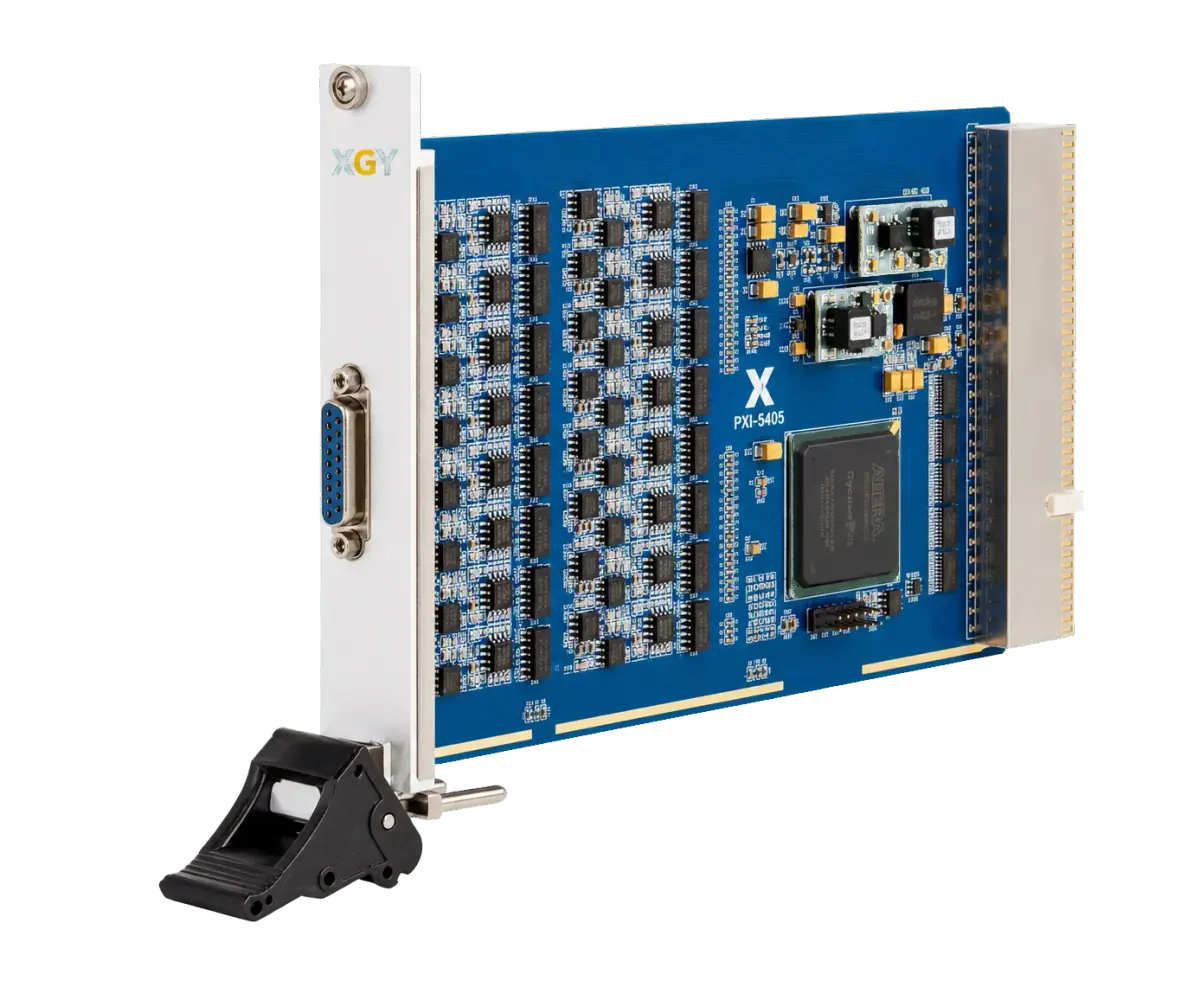

PXI-5405 16-Channel Function Generator Module

16-Channel PXI Function Generator Module - 500 kSa Independent Outputs across Sixteen Channels

XGY PXI-5405 is a 16-channel 16-bit function generator module for 3U CPCI/PXI signal generation systems. It provides independent waveform-output channels with 500 kSa conversion rate, 1 to 20 kHz output frequency, and +/-10 V output capability.

Get a Quote Download Datasheet
PXI-5405 16-Channel Function Generator Module

Core Specifications

Key technical parameters for the PXI-5405 16-Channel Function Generator Module.

Conversion Rate

500 kSa

Channel Count

16 channels

Resolution

16 bits

Driver Support

VISA-based PNP driver

Output Voltage

+/-10 V

Application fit

Match the product configuration to the engineering workflow before quotation.

Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.

Application fit

PXI Stimulus Generation For Automated Test

PXI-5405 16-Channel Function Generator Module should be scoped around PXI stimulus generation for automated test, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

1 to 20 kHz16 channels16 bits

Application fit

Multi Channel Low Frequency Function Generation

PXI-5405 16-Channel Function Generator Module should be scoped around Multi-channel low-frequency function generation, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

16 channels16 bits3U single-width, 4HP

Application fit

Software Controlled Waveform Output

PXI-5405 16-Channel Function Generator Module should be scoped around Software-controlled waveform output, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

16 bits3U single-width, 4HP+/-10 V

Application fit

3U CPCI PXI Signal Generation Systems

PXI-5405 16-Channel Function Generator Module should be scoped around 3U CPCI/PXI signal generation systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

3U single-width, 4HP+/-10 V1 to 20 kHz

PXI/CPCI 16-Channel Function Generator Module for Automated Test

PXI-5405 provides sixteen independent waveform-output channels in a compact 3U CPCI/PXI module. The module is designed for automated test systems that require multi-channel low-frequency function generation with software-controlled waveform output.

Key Technical Advantages

  • Sixteen Output Channels: Sixteen mutually independent signal channels support dense multi-point waveform generation.
  • 16-Bit DAC Resolution: Each channel provides 16-bit digital-to-analog output resolution.
  • Standard Waveforms: Sine, square, triangle, and DC output modes are supported.
  • 500 kSa Conversion Rate: The module supports up to 500 kSa conversion rate for waveform output.
  • 20 kHz Output Range: Output frequency can be configured from 1 to 20 kHz.
  • PXI Integration: The 3U single-width 4HP form factor supports chassis-based test-system integration.

Typical Applications

  • PXI stimulus generation for automated test
  • Multi-channel low-frequency function generation
  • Software-controlled waveform output
  • 3U CPCI/PXI signal generation systems

Core Specifications

  • Frequency Range: 1 to 20 kHz
  • Channel Count: 16 channels
  • Resolution: 16 bits
  • Form Factor: 3U single-width, 4HP

Key Advantages

  • Sixteen Output Channels Sixteen mutually independent signal channels support dense multi-point waveform generation.
  • 16-Bit DAC Resolution Each channel provides 16-bit digital-to-analog output resolution.
  • Standard Waveforms Sine, square, triangle, and DC output modes are supported.
  • 500 kSa Conversion Rate The module supports up to 500 kSa conversion rate for waveform output.
  • 20 kHz Output Range Output frequency can be configured from 1 to 20 kHz.
  • PXI Integration The 3U single-width 4HP form factor supports chassis-based test-system integration.

Performance Highlights

  • Frequency Range 1 to 20 kHz
  • Channel Count 16 channels
  • Resolution 16 bits
  • Form Factor 3U single-width, 4HP

Ready to upgrade your automated test system?

XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-5405 16-Channel Function Generator Module.

Get a Quote

Product Specifications

Parameter Specification
Channel Count 16 channels
Resolution 16 bits
Conversion Rate 500 kSa
Output Voltage +/-10 V
Frequency Range 1 to 20 kHz
Waveform Types Sine, square, triangle, DC
Output Impedance 50 ohm
Coupling DC
Voltage Accuracy reading x 0.5% +/-1 mV @ 25 deg C
Frequency Accuracy reading x 0.1% +/-0.2 Hz @ 25 deg C
Operating System Windows 7 / Windows 8 / Windows 10 / Linux
Driver Support VISA-based PNP driver
Form Factor 3U single-width, 4HP
Operating Temperature Commercial C: 0 to +50 deg C; Industrial I: -20 to +50 deg C; Military J: -40 to +50 deg C
Storage Temperature Commercial C: -20 to +70 deg C; Industrial I: -40 to +70 deg C; Military J: -55 to +85 deg C
Humidity 95% @ 25 deg C, non-condensing
PXI-5405 Description: 16 channels; 16 bits; 20 kHz; +/-10 V; commercial grade; Availability: Standard
PXI-5405-I Description: 16 channels; 16 bits; 20 kHz; +/-10 V; industrial grade; Availability: Optional

* Specifications are subject to change without notice. Contact XGY Tek for full technical datasheet.

Technical Resources

Download Datasheet

PDF technical specifications

Get a Quote

Pre-filled product inquiry

Fit check

Use this product when the requirement matches the published envelope.

Strong fit

  • Projects centred on PXI stimulus generation for automated test
  • Projects centred on Multi-channel low-frequency function generation
  • Projects centred on Software-controlled waveform output
  • Requirements that benefit from Sixteen Output Channels and 16-Bit DAC Resolution

Review alternatives

  • Requirements outside the published voltage, current, power or frequency envelope
  • Projects without a defined DUT, site power, interface or acceptance method
  • Simple bench work where a lower-cost standard supply would meet the requirement
  • RFQs that cannot yet specify protection, cooling, cabling or control boundaries

Quote-stage checklist

The fastest way to make the enquiry useful.

Voltage rangeCurrent / powerOperating modeDUT typeLoad profileControl interfaceProtection needsCooling / installationCable / fixture planCompliance workflowLead timeFAT/SAT evidence

Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.

Quote workflow

Make the test plan visible before the quote is final.

A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.

Send RFQ
01

Confirm the electrical envelope

Ratings map

Start with +/-10 V; +/-10 V. Confirm the required model rating before treating the page summary as a released configuration.

02

Define the DUT workflow

Use-case brief

Map the equipment to PXI stimulus generation for automated test; Multi-channel low-frequency function generation; Software-controlled waveform output and record any transient, cycling, compliance or automation needs.

03

Lock the acceptance package

Quote evidence

Confirm control interfaces, protection requirements, data logging, remote operation and the FAT/SAT evidence needed by the buyer.

Ready to upgrade your automated test system?

XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-5405 16-Channel Function Generator Module.

Get a Quote

Frequently Asked Questions

What is the PXI-5405 16-Channel Function Generator Module used for?

The PXI-5405 16-Channel Function Generator Module is part of XGY Tek's Modular Test Instruments catalogue, supplied to engineering teams worldwide for laboratory, production, and field test workflows. XGY PXI-5405 is a 16-channel 16-bit function generator module for 3U CPCI/PXI signal generation systems. It provides independent waveform-output channels with 500 kSa conversion rate, 1 to 20 kHz output frequency, and +/-10 V output capability.

Which PXI-5405 16-Channel Function Generator Module specifications should buyers compare first?

Start with Channel Count: 16 channels; Resolution: 16 bits; Conversion Rate: 500 kSa; Output Voltage: +/-10 V. Buyers should also confirm interface, software integration, accessories, calibration documentation, lead time, and acceptance requirements before purchase.

Which applications is the PXI-5405 16-Channel Function Generator Module typically matched to?

Typical applications listed for the PXI-5405 16-Channel Function Generator Module include PXI stimulus generation for automated test; Multi-channel low-frequency function generation; Software-controlled waveform output; 3U CPCI/PXI signal generation systems. If the required range, channel count, power level, environmental condition, or automation interface differs from these scenarios, XGY Tek should review the configuration before quotation.

When should buyers consider another Modular Test Instruments option instead of the PXI-5405 16-Channel Function Generator Module?

Compare alternatives when the required measurement range, output power, channel count, bandwidth, software workflow, fixture design, or documentation package does not match the published PXI-5405 16-Channel Function Generator Module specifications. XGY Tek can recommend a different model or custom-scoped option during quotation.

How do I get a quote or datasheet for the PXI-5405 16-Channel Function Generator Module?

Use the Get a Quote form to share your application, required configuration, and rollout timeline. An XGY Tek engineer based in Adelaide or Sydney will respond the same business day. Where a downloadable datasheet is available, it is linked from the product page. Get a Quote

Who is XGY Tek and how is the PXI-5405 16-Channel Function Generator Module supported?

XGY Tek (XGY Pty Ltd, ABN 70 688 984 590) is an Australian test and measurement company headquartered in Adelaide with a Sydney office. XGY Tek ships the PXI-5405 16-Channel Function Generator Module to engineering teams worldwide, with calibration documentation and acceptance requirements confirmed during quotation. Post-sales support is handled directly by applications engineers during AEST/ACST hours. About XGY TekWhere to Buy
