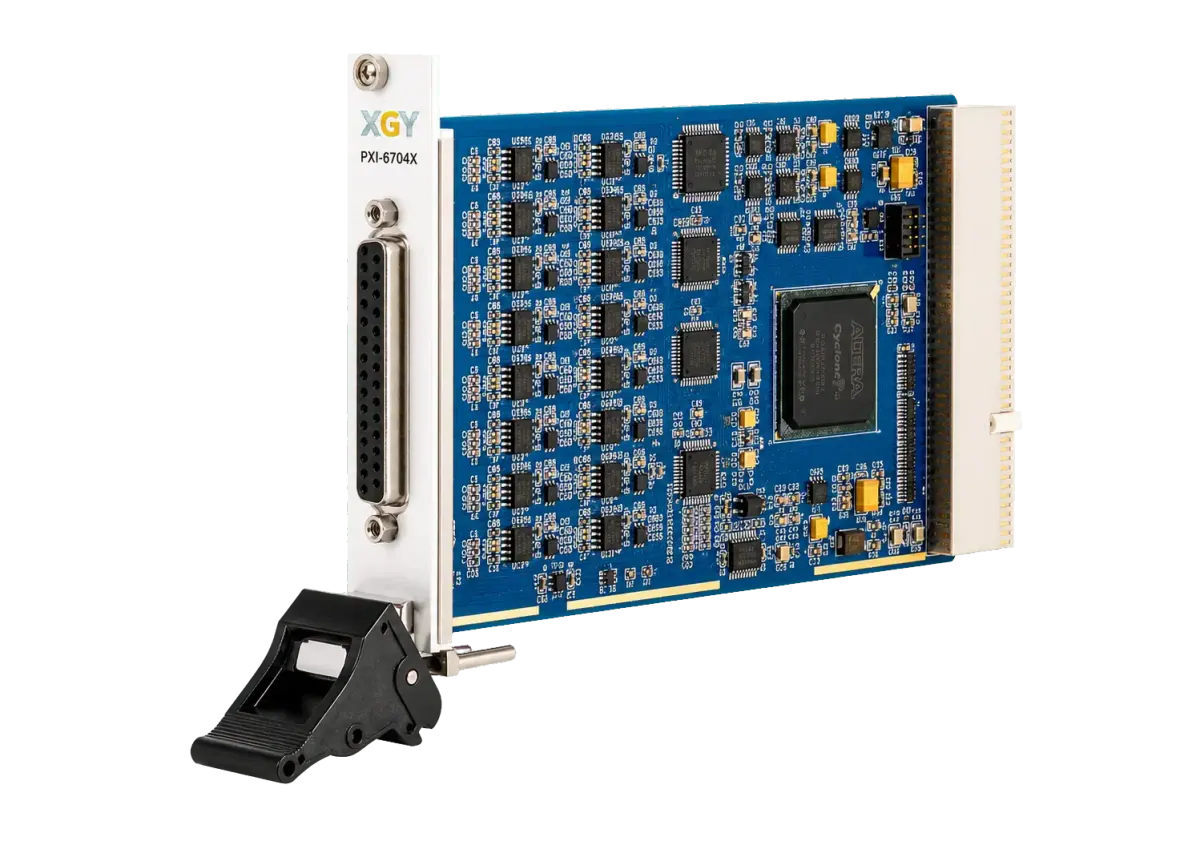

32-Channel PXI Analog Output Module - Voltage, Current, and DIO Source in One Card
XGY PXI-6704X provides multi-channel analog source capability in a compact 3U PXI module. Voltage, current, and digital I/O variants support flexible stimulus and control applications across laboratory and industrial systems.
Key technical parameters for the PXI-6704X 32-Channel Analog Output Module.
32 channels
16 bits
VISA-based PNP driver
+/-10 V
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
PXI-6704X 32-Channel Analog Output Module should be scoped around PXI analog source and control, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6704X 32-Channel Analog Output Module should be scoped around Laboratory stimulus applications, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6704X 32-Channel Analog Output Module should be scoped around Industrial control applications, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6704X 32-Channel Analog Output Module should be scoped around Voltage, current, and digital I/O output systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
PXI-6704X provides multi-channel analog source capability in a compact 3U PXI module. Voltage, current, and digital I/O variants support flexible stimulus and control applications across laboratory and industrial systems.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-6704X 32-Channel Analog Output Module.
Get a Quote| Parameter | Specification |
|---|---|
| Channels | 32 channels Condition: Analog Output |
| Resolution | 16 bits Condition: Analog Output |
| Voltage Output Range | +/-10 V Condition: Analog Output |
| Coupling | DC Condition: Analog Output |
| Output Impedance | 0.1 ohm max Condition: Analog Output |
| Output Current | +/-10 mA max Condition: Analog Output |
| Voltage Accuracy | Reading x 0.05%; overview also specifies +/-1 mV at 25 deg C Condition: Analog Output |
| Voltage Output Protection | Short-circuit protection Condition: Analog Output |
| Voltage Power-On State | Each channel independently configurable Condition: Analog Output |
| Current Range | 0.1 mA to 20 mA Condition: Current Output |
| Output Type | Source Condition: Current Output |
| Current Accuracy | Reading x 0.05% Condition: Current Output |
| Current Output Protection | Short-circuit protection Condition: Current Output |
| Digital Channels | 16 channels Condition: Digital I/O |
| Logic Levels | TTL / LVTTL / LVCMOS Condition: Digital I/O |
| Digital I/O Power-On State | Input, high impedance Condition: Digital I/O |
| Operating System | Windows 7 / Windows 8 / Windows 10 / Linux |
| Driver Support | VISA-based PNP driver |
| Form Factor | 3U single-width, 4HP |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
