50 kSa/s 32-Channel PXI Parallel Acquisition Module - 16-Bit Differential with Selectable Ranges
XGY PXI-6227 is a 32-channel differential parallel acquisition module for PXI measurement systems. It provides 16-bit, 50 kSa/s per-channel sampling, selectable input ranges, AC/DC coupling, common-mode protection, and 4 MSa per-channel onboard buffering.
Key technical parameters for the PXI-6227 32-Channel Parallel Acquisition Module.
50 kSa/s per channel
32 channels
16 bits
VISA-based PNP driver
1 Mohm
Parallel acquisition
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
PXI-6227 32-Channel Parallel Acquisition Module should be scoped around PXI-based measurement and control systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6227 32-Channel Parallel Acquisition Module should be scoped around 32-channel differential voltage acquisition, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6227 32-Channel Parallel Acquisition Module should be scoped around Low-level and general-purpose voltage measurement, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6227 32-Channel Parallel Acquisition Module should be scoped around Synchronized parallel acquisition workflows, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

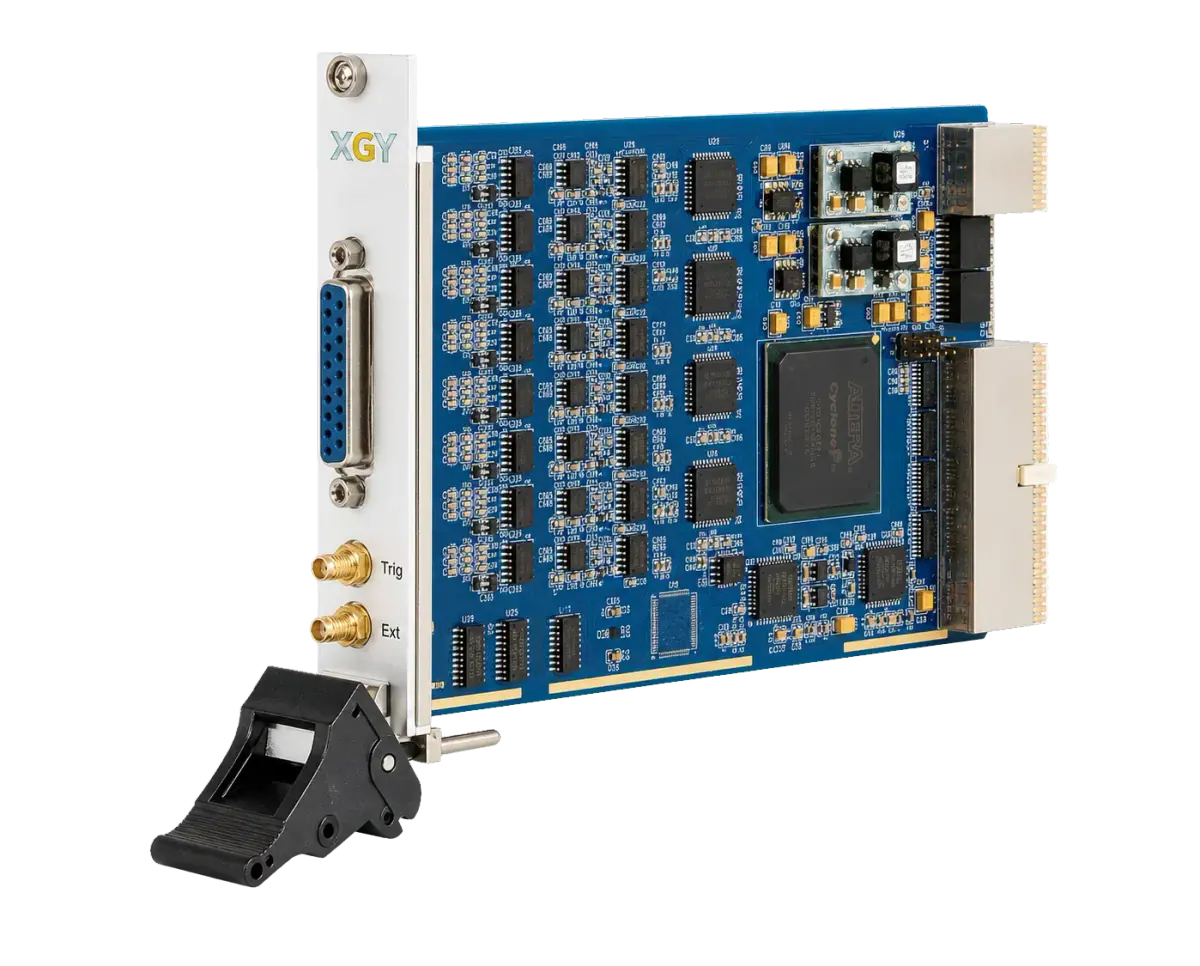

PXI-6227 provides synchronized parallel acquisition across 32 differential analog input channels in a compact 3U PXI module. The design supports low-level and general-purpose voltage measurement with configurable input ranges, selectable coupling, and common-mode protection.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-6227 32-Channel Parallel Acquisition Module.
Get a Quote| Parameter | Specification |
|---|---|
| Channels | 32 channels Condition: Input and Acquisition |
| Acquisition Mode | Parallel acquisition Condition: Input and Acquisition |
| Signal Input | Differential Condition: Input and Acquisition |
| Sampling Rate | 50 kSa/s per channel Condition: Input and Acquisition |
| Resolution | 16 bits Condition: Input and Acquisition |
| Input Impedance | 1 Mohm Condition: Input and Acquisition |
| Coupling | DC or AC, hardware option Condition: Input and Acquisition |
| Input Range | +/-0.1 V, +/-1 V, +/-10 V Condition: Input and Acquisition |
| DC Accuracy | <=0.03% FSR for 1 V ranges and above; <=0.1% FSR for 100 mV range Condition: Accuracy and Protection |
| AC Accuracy | <=0.15% FSR at f < 1 kHz for 1 V ranges and above; <=0.35% FSR at f < 1 kHz for 100 mV range Condition: Accuracy and Protection |
| Bandwidth | 20 kHz (-3 dB) Condition: Accuracy and Protection |
| Common-Mode Voltage | +/-10 V normal operation; +/-20 V without damage Condition: Accuracy and Protection |
| Onboard Buffer | 4 MSa per channel Condition: Accuracy and Protection |
| Operating System | Windows 7 / Windows 8 / Windows 10 / Linux |
| Driver Support | VISA-based PNP driver |
| Form Factor | 3U single-width, 4HP |
| Operating Temperature | Commercial C: 0 to +50 deg C; Industrial I: -20 to +50 deg C; Military J: -40 to +50 deg C |
| Storage Temperature | Commercial C: -20 to +70 deg C; Industrial I: -40 to +70 deg C; Military J: -55 to +85 deg C |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
