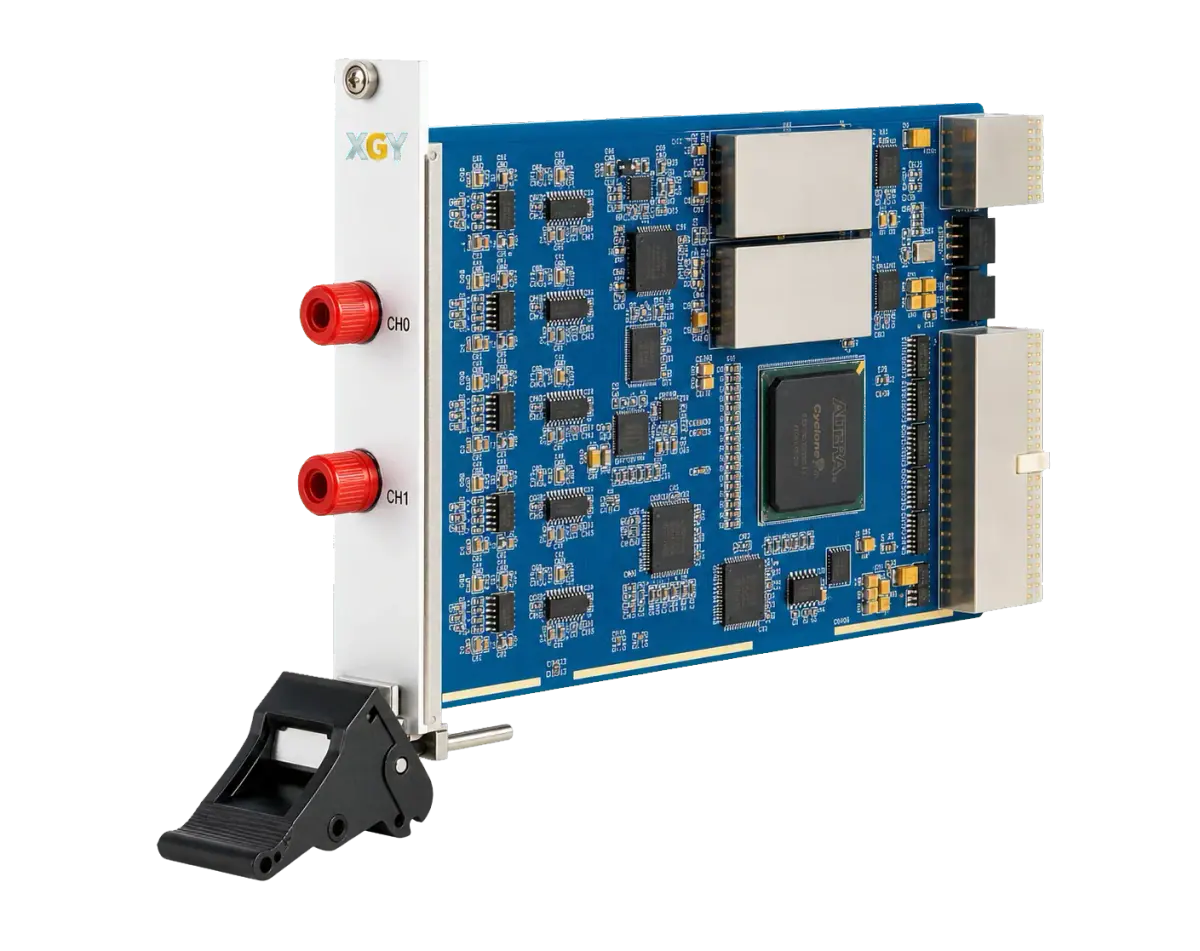

PXI-6217X 64-Channel Scanning Data Acquisition Module

500 kSa/s 64-Channel PXI Scanning Module - Voltage, Current, and TTL DIO in One Card

XGY PXI-6217X is a 64-channel scanning data acquisition module for 3U CPCI/PXI measurement and control systems. It combines voltage acquisition, current acquisition, 32-channel TTL digital I/O, 16-bit resolution, and 500 kSa/s total sampling.

Get a Quote Download Datasheet
PXI-6217X 64-Channel Scanning Data Acquisition Module

Core Specifications

Key technical parameters for the PXI-6217X 64-Channel Scanning Data Acquisition Module.

Sampling Rate

500 kSa/s total sampling frequency; per-channel rate configurable

Voltage Channels

64 single-ended channels or 32 differential channels

Resolution

16 bits

Driver Support

VISA-based PNP driver

Application fit

Match the product configuration to the engineering workflow before quotation.

Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.

Application fit

Multi Channel Measurement And Control Systems

PXI-6217X 64-Channel Scanning Data Acquisition Module should be scoped around Multi-channel measurement and control systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

64 single-ended channels or 32 differential channels500 kSa/s total sampling frequency; per-channel rate configurable16 bits

Application fit

Voltage And Current Acquisition

PXI-6217X 64-Channel Scanning Data Acquisition Module should be scoped around Voltage and current acquisition, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

500 kSa/s total sampling frequency; per-channel rate configurable16 bits3U single-width, 4HP

Application fit

Programmable TTL Digital I O

PXI-6217X 64-Channel Scanning Data Acquisition Module should be scoped around Programmable TTL digital I/O, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

16 bits3U single-width, 4HP64 single-ended channels or 32 differential channels

Application fit

Laboratory, Industrial, And Embedded Test Platforms

PXI-6217X 64-Channel Scanning Data Acquisition Module should be scoped around Laboratory, industrial, and embedded test platforms, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

3U single-width, 4HP64 single-ended channels or 32 differential channelsArbitrary frequency-division coefficient supported

PXI/CPCI 64-Channel Scanning Data Acquisition Module for Automated Test

PXI-6217X combines analog acquisition and programmable digital I/O in a compact PXI module for laboratory, industrial, and embedded test platforms. Voltage channels can be configured as 64 single-ended inputs or 32 differential inputs, while current acquisition and grouped TTL I/O expand mixed-signal test coverage.

Key Technical Advantages

  • 64 Voltage Channels: Supports 64 single-ended voltage channels or 32 differential voltage channels.
  • 16-Bit, 500 kSa/s: Provides 16-bit acquisition with 500 kSa/s total sampling frequency across channels.
  • Flexible Ranges: Single-ended +/-60 V and differential +/-30 V ranges support independently configurable gains.
  • Current Acquisition: Current input ranges include 0 to 24 mA with 24 mA, 12 mA, 6 mA, and 3 mA ranges.
  • 32-Channel TTL I/O: Four 8-channel groups can be independently configured for input or output direction.
  • PXI Integration: VISA-based PNP driver support is provided for Windows and Linux environments.

Typical Applications

  • Multi-channel measurement and control systems
  • Voltage and current acquisition
  • Programmable TTL digital I/O
  • Laboratory, industrial, and embedded test platforms

Core Specifications

  • Voltage Channels: 64 single-ended channels or 32 differential channels
  • Sampling Rate: 500 kSa/s total sampling frequency; per-channel rate configurable
  • Resolution: 16 bits
  • Form Factor: 3U single-width, 4HP

Key Advantages

  • 64 Voltage Channels Supports 64 single-ended voltage channels or 32 differential voltage channels.
  • 16-Bit, 500 kSa/s Provides 16-bit acquisition with 500 kSa/s total sampling frequency across channels.
  • Flexible Ranges Single-ended +/-60 V and differential +/-30 V ranges support independently configurable gains.
  • Current Acquisition Current input ranges include 0 to 24 mA with 24 mA, 12 mA, 6 mA, and 3 mA ranges.
  • 32-Channel TTL I/O Four 8-channel groups can be independently configured for input or output direction.
  • PXI Integration VISA-based PNP driver support is provided for Windows and Linux environments.

Performance Highlights

  • Voltage Channels 64 single-ended channels or 32 differential channels
  • Sampling Rate 500 kSa/s total sampling frequency; per-channel rate configurable
  • Resolution 16 bits
  • Form Factor 3U single-width, 4HP

Ready to upgrade your automated test system?

XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-6217X 64-Channel Scanning Data Acquisition Module.

Get a Quote

Product Specifications

Parameter Specification
Voltage Channels 64 single-ended channels or 32 differential channels
Resolution 16 bits
Sampling Rate 500 kSa/s total sampling frequency; per-channel rate configurable
Frequency Division Arbitrary frequency-division coefficient supported
Voltage Input Range Single-ended +/-60 V; differential +/-30 V; gain 1 / 2 / 4 / 8, independently configurable by channel
Current Input Range 0 to 24 mA; 24 mA, 12 mA, 6 mA, and 3 mA ranges
Data Storage 2 MB per channel
Voltage Accuracy DC +/-0.05% FSR with averaging; AC +/-0.1% FSR with RMS calculation, f < 1 kHz
Current Accuracy DC +/-0.1%
Digital Channels 32 channels total
Direction Control 4 groups, 8 channels per group; each group configurable as input or output
Logic Level 5 V TTL
Drive Current 24 mA per channel
Operating System Windows 7 / Windows 8 / Windows 10 / Linux
Driver Support VISA-based PNP driver
Form Factor 3U single-width, 4HP
Operating Temperature Commercial C: 0 to +50 deg C; Industrial I: -20 to +50 deg C; Military J: -40 to +50 deg C
Storage Temperature Commercial C: -20 to +70 deg C; Industrial I: -40 to +70 deg C; Military J: -55 to +85 deg C

* Specifications are subject to change without notice. Contact XGY Tek for full technical datasheet.

Technical Resources

Download Datasheet

PDF technical specifications

Get a Quote

Pre-filled product inquiry

Fit check

Use this product when the requirement matches the published envelope.

Strong fit

  • Projects centred on Multi-channel measurement and control systems
  • Projects centred on Voltage and current acquisition
  • Projects centred on Programmable TTL digital I/O
  • Requirements that benefit from 64 Voltage Channels and 16-Bit, 500 kSa/s

Review alternatives

  • Requirements outside the published voltage, current, power or frequency envelope
  • Projects without a defined DUT, site power, interface or acceptance method
  • Simple bench work where a lower-cost standard supply would meet the requirement
  • RFQs that cannot yet specify protection, cooling, cabling or control boundaries

Quote-stage checklist

The fastest way to make the enquiry useful.

Voltage rangeCurrent / powerOperating modeDUT typeLoad profileControl interfaceProtection needsCooling / installationCable / fixture planCompliance workflowLead timeFAT/SAT evidence

Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.

Quote workflow

Make the test plan visible before the quote is final.

A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.

Send RFQ
01

Confirm the electrical envelope

Ratings map

Start with 64 single-ended channels or 32 differential channels. Confirm the required model rating before treating the page summary as a released configuration.

02

Define the DUT workflow

Use-case brief

Map the equipment to Multi-channel measurement and control systems; Voltage and current acquisition; Programmable TTL digital I/O and record any transient, cycling, compliance or automation needs.

03

Lock the acceptance package

Quote evidence

Confirm control interfaces, protection requirements, data logging, remote operation and the FAT/SAT evidence needed by the buyer.

Ready to upgrade your automated test system?

XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-6217X 64-Channel Scanning Data Acquisition Module.

Get a Quote

Frequently Asked Questions

What is the PXI-6217X 64-Channel Scanning Data Acquisition Module used for?

The PXI-6217X 64-Channel Scanning Data Acquisition Module is part of XGY Tek's Modular Test Instruments catalogue, supplied to engineering teams worldwide for laboratory, production, and field test workflows. XGY PXI-6217X is a 64-channel scanning data acquisition module for 3U CPCI/PXI measurement and control systems. It combines voltage acquisition, current acquisition, 32-channel TTL digital I/O, 16-bit resolution, and 500 kSa/s total sampling.

Which PXI-6217X 64-Channel Scanning Data Acquisition Module specifications should buyers compare first?

Start with Voltage Channels: 64 single-ended channels or 32 differential channels; Resolution: 16 bits; Sampling Rate: 500 kSa/s total sampling frequency; per-channel rate configurable; Frequency Division: Arbitrary frequency-division coefficient supported. Buyers should also confirm interface, software integration, accessories, calibration documentation, lead time, and acceptance requirements before purchase.

Which applications is the PXI-6217X 64-Channel Scanning Data Acquisition Module typically matched to?

Typical applications listed for the PXI-6217X 64-Channel Scanning Data Acquisition Module include Multi-channel measurement and control systems; Voltage and current acquisition; Programmable TTL digital I/O; Laboratory, industrial, and embedded test platforms. If the required range, channel count, power level, environmental condition, or automation interface differs from these scenarios, XGY Tek should review the configuration before quotation.

When should buyers consider another Modular Test Instruments option instead of the PXI-6217X 64-Channel Scanning Data Acquisition Module?

Compare alternatives when the required measurement range, output power, channel count, bandwidth, software workflow, fixture design, or documentation package does not match the published PXI-6217X 64-Channel Scanning Data Acquisition Module specifications. XGY Tek can recommend a different model or custom-scoped option during quotation.

How do I get a quote or datasheet for the PXI-6217X 64-Channel Scanning Data Acquisition Module?

Use the Get a Quote form to share your application, required configuration, and rollout timeline. An XGY Tek engineer based in Adelaide or Sydney will respond the same business day. Where a downloadable datasheet is available, it is linked from the product page. Get a Quote

Who is XGY Tek and how is the PXI-6217X 64-Channel Scanning Data Acquisition Module supported?

XGY Tek (XGY Pty Ltd, ABN 70 688 984 590) is an Australian test and measurement company headquartered in Adelaide with a Sydney office. XGY Tek ships the PXI-6217X 64-Channel Scanning Data Acquisition Module to engineering teams worldwide, with calibration documentation and acceptance requirements confirmed during quotation. Post-sales support is handled directly by applications engineers during AEST/ACST hours. About XGY TekWhere to Buy
