8-Channel PXI Function Generator Module - 10 kHz Programmable Output across Eight Channels
XGY PXI-5403 is an 8-channel 16-bit function generator module for 3U CPCI/PXI signal generation systems. It provides programmable waveform output up to 10 kHz with +/-10 V output amplitude, selectable output impedance, and standard sine, square, triangle, and sawtooth waveforms.
Key technical parameters for the PXI-5403 8-Channel Function Generator Module.
10 kHz maximum; programmable
8 channels
16 bits
VISA-based PNP driver
+/-10 V
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
PXI-5403 8-Channel Function Generator Module should be scoped around PXI stimulus generation for automated test, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-5403 8-Channel Function Generator Module should be scoped around Low-frequency function generation, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-5403 8-Channel Function Generator Module should be scoped around Software-controlled frequency, amplitude, offset, coupling, and impedance, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-5403 8-Channel Function Generator Module should be scoped around 3U CPCI/PXI signal generation systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

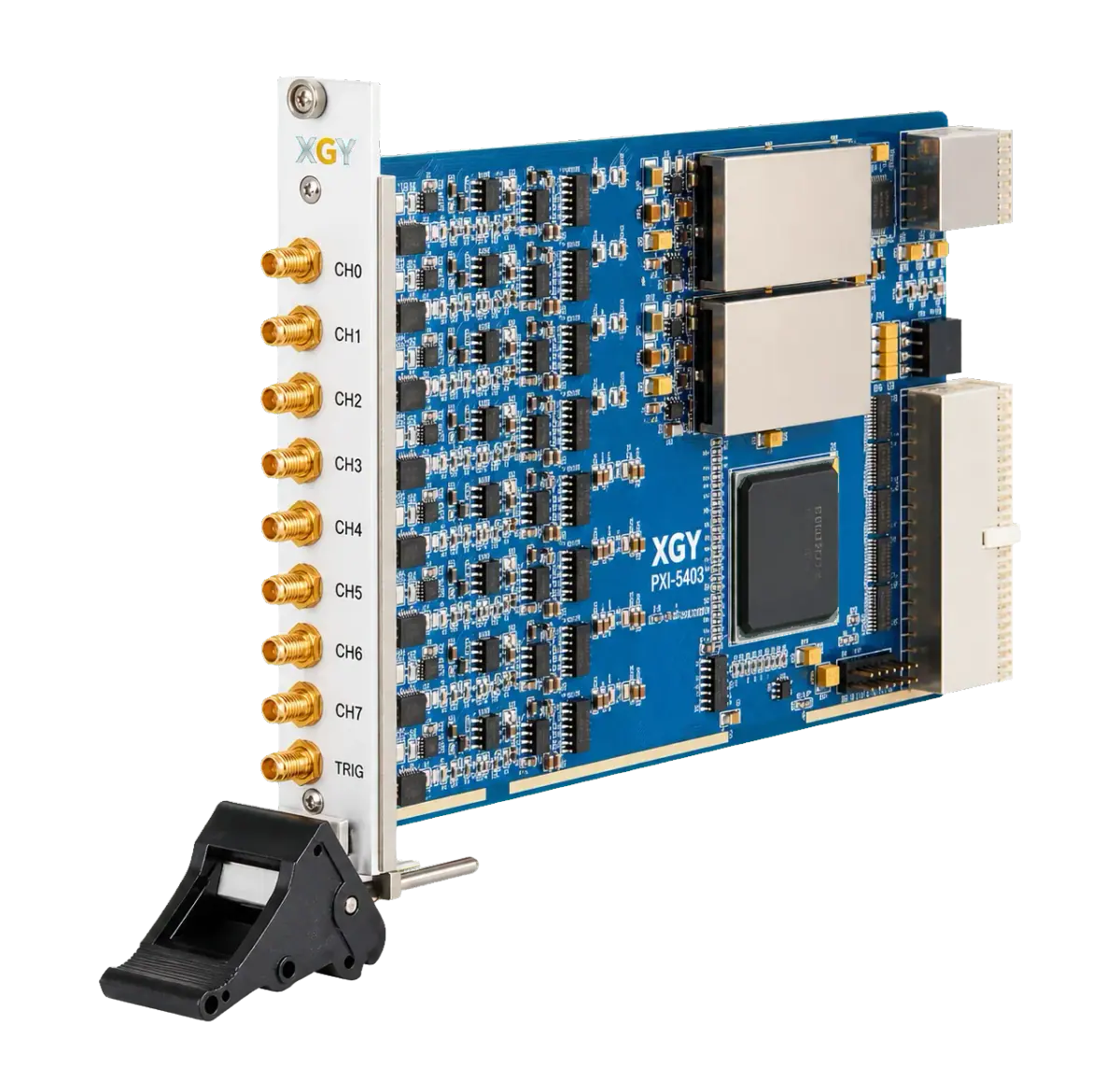

PXI-5403 provides eight programmable waveform-output channels in a compact 3U CPCI/PXI module. The module is designed for automated test systems that require low-frequency function generation with software-controlled frequency, amplitude, offset, coupling, and impedance settings.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-5403 8-Channel Function Generator Module.
Get a Quote| Parameter | Specification |
|---|---|
| Channel Count | 8 channels |
| Resolution | 16 bits |
| Output Voltage | +/-10 V |
| Output Frequency | 10 kHz maximum; programmable |
| Waveform Types | Sine, square, triangle, sawtooth |
| Coupling | DC |
| Output Impedance | 50 ohm or 75 ohm; programmable |
| Output Current | +/-10 mA minimum |
| Voltage Accuracy | reading x 0.1% +/-1 mV @ 25 deg C |
| Frequency Accuracy | reading x 0.01% +/-0.2 Hz @ 25 deg C |
| Operating System | Windows 7 / Windows 8 / Windows 10 / Linux |
| Driver Support | VISA-based PNP driver |
| Form Factor | 3U single-width, 4HP |
| Operating Temperature | Commercial C: 0 to +50 deg C; Industrial I: -20 to +50 deg C; Military J: -40 to +50 deg C |
| Storage Temperature | Commercial C: -20 to +70 deg C; Industrial I: -40 to +70 deg C; Military J: -55 to +85 deg C |
| Humidity | 95% @ 25 deg C, non-condensing |
| PXI-5403 | Description: 8 channels; 16 bits; 10 kHz; +/-10 V; commercial grade; Availability: Standard |
| PXI-5403-I | Description: 8 channels; 16 bits; 10 kHz; +/-10 V; industrial grade; Availability: Optional |
* Specifications are subject to change without notice. Contact XGY Tek for full technical datasheet.
