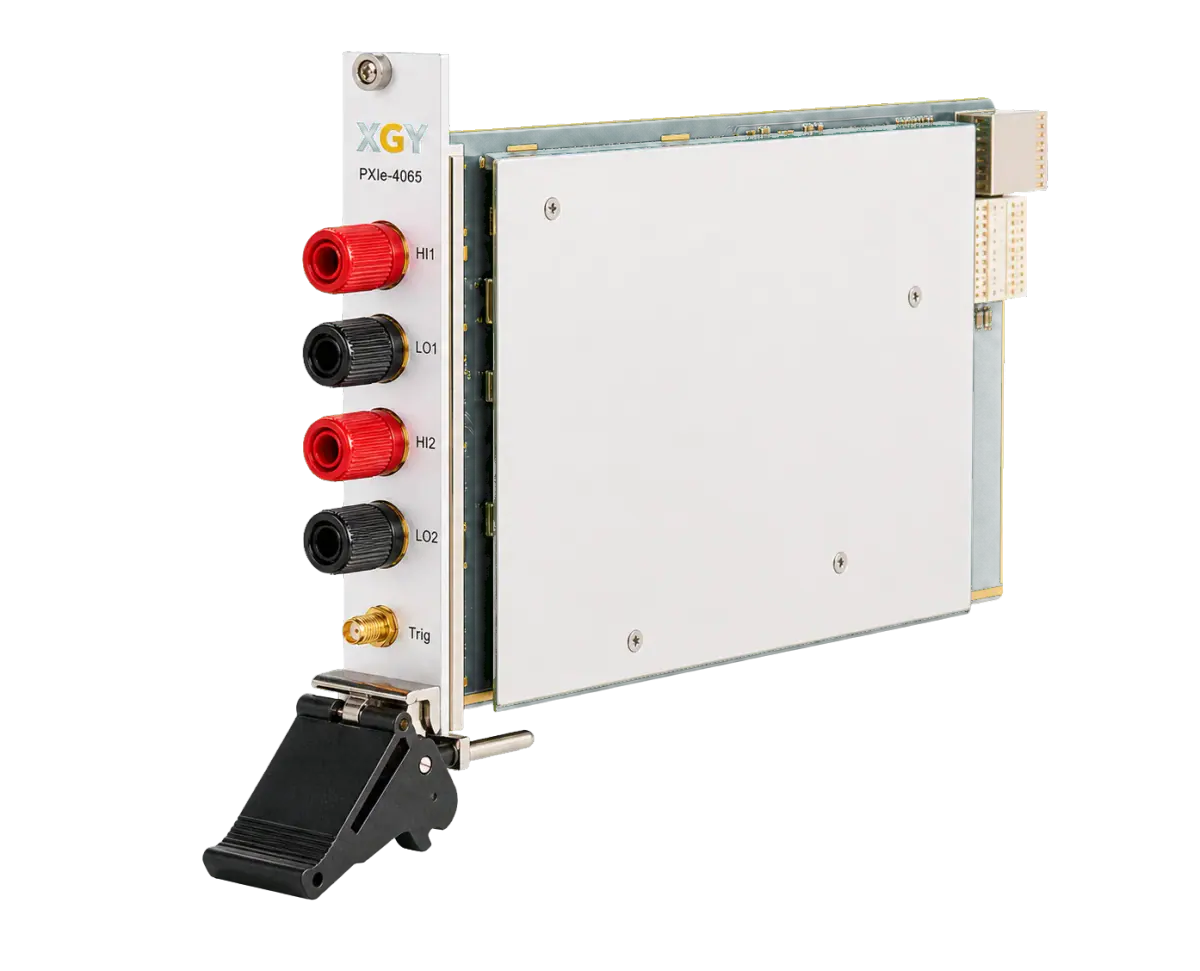

PXIe-4065 Digital Multimeter Module
6.5-digit PXIe DMM for voltage, current, resistance, frequency, and period measurement
PXIe-4065 brings DMM capability into PXIe instrumentation systems for aerospace, defense, automation, and research applications. Programmable timing, broad measurement modes, and VISA-based driver support make the module suitable for automated test sequencing.
Core Specifications
Key technical parameters for the PXIe-4065 Digital Multimeter Module.
Frequency Range
3 Hz to 1.5 MHz
Product Overview
PXIe-4065 brings DMM capability into PXIe instrumentation systems for aerospace, defense, automation, and research applications. Programmable timing, broad measurement modes, and VISA-based driver support make the module suitable for automated test sequencing.
Key Features
- 6.5-Digit DMM: Provides 6.5-digit digital multimeter measurement capability.
- Multiple Modes: Measures voltage, current, resistance, frequency, and period.
- 300 V Range: Maximum voltage measurement range is +/-300 V.
- 3 A Current: Maximum current measurement range is 3 A.
- 100 Mohm Resistance: Resistance measurement supports up to 100 Mohm full range.
- Programmable Delay: Delay can be programmed with 1 us resolution from 0 to 2147.483648 s.
Typical Applications
- Automated electrical measurement systems
- PXI/VPX production test fixtures
- Voltage, current, resistance, and frequency validation
- Laboratory data acquisition and system integration
Technical Snapshot
- Frequency Range: 3 Hz to 1.5 MHz
- Resolution Class: 6.5 digits
- Form Factor: 3U single-width, 4HP
- 6.5-Digit DMM: Provides 6.5-digit digital multimeter measurement capability.
Key Advantages
- 6.5-Digit DMM Provides 6.5-digit digital multimeter measurement capability.
- Multiple Modes Measures voltage, current, resistance, frequency, and period.
- 300 V Range Maximum voltage measurement range is +/-300 V.
- 3 A Current Maximum current measurement range is 3 A.
- 100 Mohm Resistance Resistance measurement supports up to 100 Mohm full range.
- Programmable Delay Delay can be programmed with 1 us resolution from 0 to 2147.483648 s.
Performance Highlights
- Frequency Range 3 Hz to 1.5 MHz
- Resolution Class 6.5 digits
- Form Factor 3U single-width, 4HP
- 6.5-Digit DMM Provides 6.5-digit digital multimeter measurement capability.
Request a Demo
See the PXIe-4065 Digital Multimeter Module in action. Our engineers provide 1-on-1 consultations for your specific testing needs.
Get a QuoteProduct Specifications
| Parameter | Specification |
|---|---|
| Resolution Class | 6.5 digits |
| Measurement Modes | DC voltage, AC voltage RMS, DC current, AC current RMS, 2-wire resistance, 4-wire resistance, frequency, period |
| Delay Range | Programmable delay with 1 us resolution; 0 to 2147.483648 s; automatic delay by default |
| Maximum Voltage | +/-300 V |
| Maximum Current | 3 A |
| Maximum Resistance | 100 Mohm full range |
| Frequency Range | 3 Hz to 1.5 MHz |
| Period Range | 666.667 ns to 0.3333 s |
| DC Voltage Resolution | 10 nV, 100 nV, 1 uV, 10 uV, 10 uV |
| DC Current Resolution | 100 pA, 1 nA, 10 nA, 100 nA, 100 nA |
| AC Current Resolution | 1 nA, 10 nA, 100 nA, 1 uA |
| Resistance Resolution | 10 uohm, 100 uohm, 1 mohm, 10 mohm, 100 mohm, 1 ohm, 10 ohm |
| Operating System | Windows 7 / Windows 8 / Windows 10 / Linux |
| Driver Support | VISA-based PNP driver |
| Form Factor | 3U single-width, 4HP |
| Operating Temperature | Commercial C: 0 to +50 deg C; Industrial I: -20 to +50 deg C; Military J: -40 to +50 deg C |
| Storage Temperature | Commercial C: -20 to +70 deg C; Industrial I: -40 to +70 deg C; Military J: -55 to +85 deg C |
| Humidity | 95% @ 25 deg C, non-condensing |
* Specifications are subject to change without notice. Contact XGY Tek for full technical datasheet.
