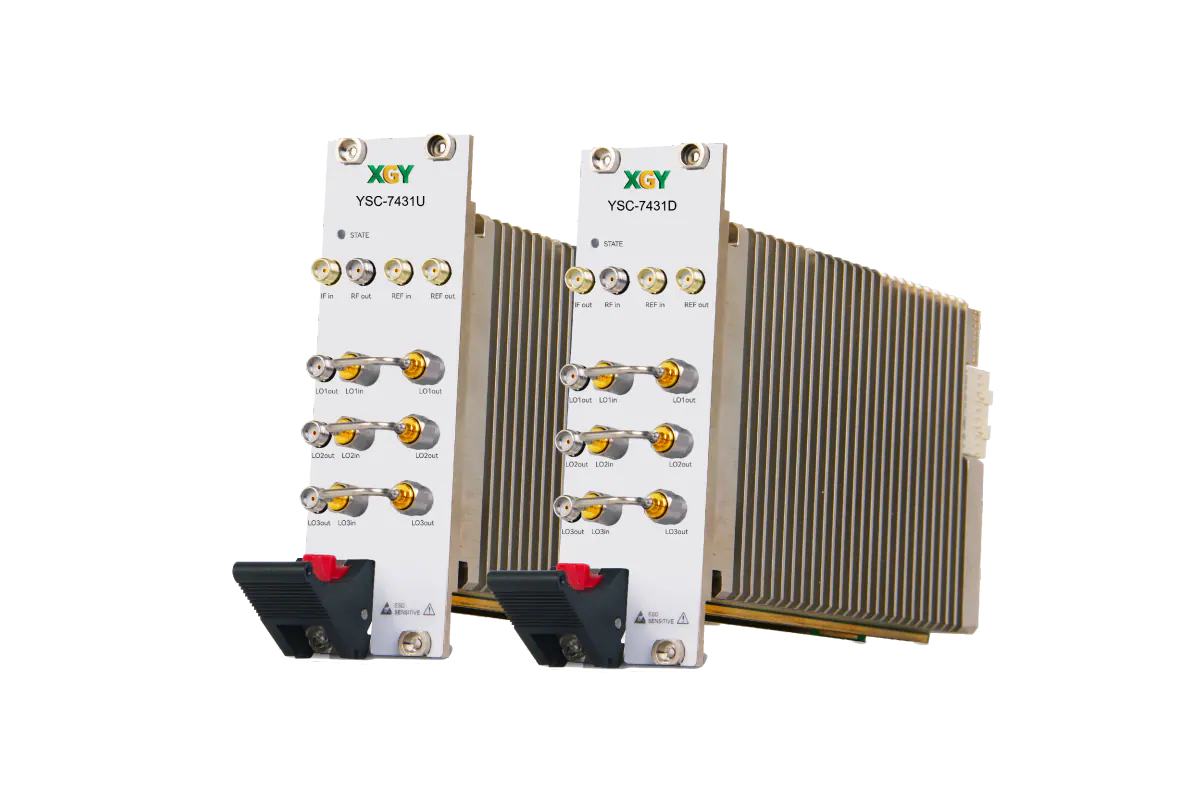

43 GHz Up/Down Converter - Wideband Frequency Translation in a Compact Modular Design
XGY YSC-7431U and YSC-7431D form a 43 GHz up/down converter pair for wideband RF frequency translation. The up-converter delivers 9 kHz to 43 GHz RF output, while the down-converter accepts 9 kHz to 43 GHz RF input with 1875 +/- 500 MHz IF conversion.
Key technical parameters for the YSC-7431U / YSC-7431D Up/Down Converter.
9 kHz to 43 GHz
1875 +/- 500 MHz
<= -104 dBc/Hz @ 10 kHz
<= -60 dBc
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
YSC-7431U / YSC-7431D Up/Down Converter should be scoped around wideband signal generation and analysis systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSC-7431U / YSC-7431D Up/Down Converter should be scoped around external LO phase-synchronization setups, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSC-7431U / YSC-7431D Up/Down Converter should be scoped around MIMO-related frequency conversion, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSC-7431U / YSC-7431D Up/Down Converter should be scoped around compact modular RF converter systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
YSC-7431U and YSC-7431D are wideband RF frequency conversion modules covering 9 kHz to 43 GHz. Together they provide a matched up-conversion and down-conversion platform for high-frequency signal generation, analysis, and subsystem integration.
The converters support external LO input and can be combined with SGR RF transceivers to extend system-level test capability across a broader frequency range. Their low phase noise, image rejection, and wide tuning coverage make them well suited to multi-channel and MIMO-related measurement architectures.
| Parameter | Value |
|---|---|
| IF Input Frequency | 1875 +/- 500 MHz |
| IF Input Power | -5 dBm |
| RF Output Frequency | 9 kHz to 43 GHz |
| Max RF Output Power | 15 dBm |
| Gain Range | -10 dB to 20 dB |
| Gain Flatness | 0 +/-2.5 dB |
| Parameter | Value |
|---|---|
| RF Input Frequency | 9 kHz to 43 GHz |
| Max RF Input Power | 15 dBm |
| IF Output Frequency | 1875 +/- 500 MHz |
| IF Output Power | 0 dBm |
| Gain Range (Normal) | -35 dB to 25 dB |
| Gain Range (Low-Noise) | -15 dB to 45 dB |
| Gain Flatness | 0 +/-2.5 dB |
| Parameter | Value |
|---|---|
| Conversion Spurious | <= -60 dBc |
| Image Rejection | >=60 dB |
| LO Phase Noise | <= -104 dBc/Hz @ 10 kHz |
| LO Step Size | 10 MHz |
| Reference Clock | 10 MHz output, 9 +/-1 dBm |
| Frequency Stability | 0.05 ppm |
| Power Consumption | 42 W |
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the YSC-7431U / YSC-7431D Up/Down Converter.
Get a Quote| Parameter | Specification |
|---|---|
| RF Frequency Range | 9 kHz to 43 GHz |
| Up-Converter IF Input | 1875 +/- 500 MHz |
| Up-Converter Max RF Output | 15 dBm |
| Up-Converter Gain Range | -10 dB to 20 dB |
| Down-Converter IF Output | 1875 +/- 500 MHz |
| Down-Converter Gain Range | -35 dB to 25 dB (normal) / -15 dB to 45 dB (low-noise) |
| Gain Flatness | 0 +/-2.5 dB |
| Conversion Spurious | <= -60 dBc |
| Image Rejection | >=60 dB |
| LO Phase Noise | <= -104 dBc/Hz @ 10 kHz |
| LO Step Size | 10 MHz |
| Reference Clock | 10 MHz output, 9 +/-1 dBm |
| Power Consumption | 42 W |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
