6 GHz PXIe Vector Signal Transceiver - Combined Source and Analyzer for Wireless Test

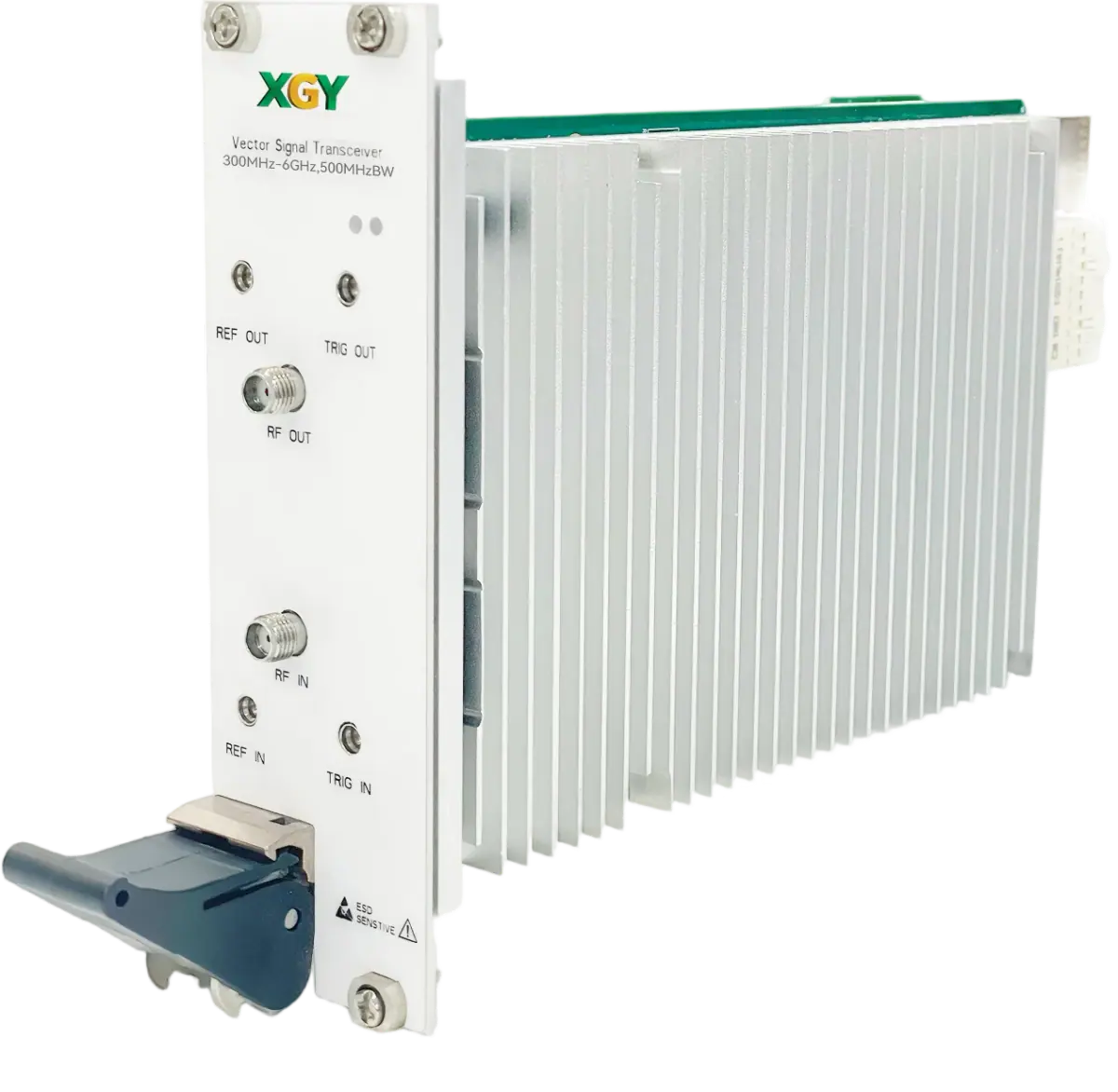

XGY YST-6061 is a PXIe RF vector signal transceiver that combines wideband vector signal generation and reception in one module. It covers 300 MHz to 6 GHz, provides 1 In / 1 Out RF channels, and supports configurable instantaneous bandwidth with optional upgrade support up to 1 GHz.
Key technical parameters for the YST-6061 Vector Signal Transceiver.
300 MHz to 6 GHz
1 In / 1 Out
-102 dBc/Hz @ 960 MHz, 10 kHz offset
3U 2-slot PXIe
<= +30 dBm
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
YST-6061 Vector Signal Transceiver should be scoped around PXIe vector signal analysis, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YST-6061 Vector Signal Transceiver should be scoped around wireless transceiver test, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YST-6061 Vector Signal Transceiver should be scoped around automated RF stimulus and capture, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YST-6061 Vector Signal Transceiver should be scoped around modular ATE systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
The YST-6061 is a PXIe RF vector signal transceiver that integrates broadband vector signal generation and reception into one reconfigurable modular platform. Covering 300 MHz to 6 GHz with instantaneous bandwidth options up to 1 GHz, it is designed for modern RF validation environments that demand both flexible waveform handling and scalable PXIe deployment.
The platform supports general-purpose ASK, PSK, and QAM modulation and demodulation, with optional capability packages for WiFi, Bluetooth, LTE, and NR measurement workflows. Its compact 3U two-slot form factor enables multi-module configurations within a single PXIe chassis.
| Parameter | Value |
|---|---|
| Frequency Range | 300 MHz to 6 GHz |
| Instantaneous Bandwidth | 200 MHz / 500 MHz / 1 GHz option |
| Maximum Input Power | <= +30 dBm |
| Amplitude Accuracy | +/-1 dB |
| Average Noise Floor | -150 dBm/Hz |
| Analysis Phase Noise | -102 dBc/Hz @ 960 MHz, 10 kHz offset |
| Maximum Sample Rate | 1.25 GS/s |
| Maximum Storage Depth | 1 GSa; I/Q separately 500 MSa |
| Parameter | Value |
|---|---|
| Maximum Output Power | <= +20 dBm |
| Output Amplitude Accuracy | +/-1 dB |
| Output Signal Resolution | 0.01 dB |
| Generation Phase Noise | -102 dBc/Hz @ 960 MHz, 10 kHz offset |
| Output Harmonics | <= -48 dBc |
| Generation Noise Floor | -152 dBm/Hz |
| Supported Modulation | ASK / PSK / QAM |
| EVM | <= -40 dB at 20 MHz, 64QAM |
| Parameter | Value |
|---|---|
| Form Factor | 3U, 2 slots |
| Dimensions | 210 x 40.3 x 128.65 mm |
| Weight | 1 kg |
| Model | Description |
|---|---|
| YST-6061 | RF Broadband Transceiver (300 MHz to 6 GHz, 200 MHz BW) |
| YST-U500 | Instantaneous Bandwidth Upgrade (up to 500 MHz) |
| YST-K11 | WiFi Basic Measurement Option |
| YST-K12 | WiFi 6 Measurement Option |
| YST-K21 | Bluetooth Basic Measurement Option |
| YST-K22 | Bluetooth 5.0 Measurement Option |
| YST-K31 | LTE Measurement Option |
| YST-K41 | NR Measurement Option |
| YST-W11 | WiFi Waveform Library |
| YST-W21 | Bluetooth Waveform Library |
| YST-W31 | LTE Waveform Library |
| YST-W41 | NR Waveform Library |
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the YST-6061 Vector Signal Transceiver.
Get a Quote| Parameter | Specification |
|---|---|
| Frequency | 300 MHz to 6 GHz |
| Bandwidth | 200 MHz / 500 MHz / up to 1 GHz option |
| RF Channels | 1 In / 1 Out |
| Max Input Power | <= +30 dBm |
| Max Output Power | <= +20 dBm |
| Analysis Phase Noise | -102 dBc/Hz @ 960 MHz, 10 kHz offset |
| Generation Phase Noise | -102 dBc/Hz @ 960 MHz, 10 kHz offset |
| EVM | <= -40 dB at 20 MHz, 64QAM |
| Form Factor | 3U 2-slot PXIe |
* Specifications are subject to change without notice. Contact XGY Tek for full technical datasheet.
Fit check
Quote-stage checklist
Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.
Quote workflow
A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.
Send RFQStart with <= +30 dBm; <= +20 dBm. Confirm the required model rating before treating the page summary as a released configuration.
Map the equipment to PXIe vector signal analysis; wireless transceiver test; automated RF stimulus and capture and record any transient, cycling, compliance or automation needs.
Confirm control interfaces, protection requirements, data logging, remote operation and the FAT/SAT evidence needed by the buyer.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the YST-6061 Vector Signal Transceiver.
The YST-6061 Vector Signal Transceiver is part of XGY Tek's Modular Test Instruments catalogue, supplied to engineering teams worldwide for laboratory, production, and field test workflows. XGY YST-6061 is a PXIe RF vector signal transceiver that combines wideband vector signal generation and reception in one module. It covers 300 MHz to 6 GHz, provides 1 In / 1 Out RF channels, and supports configurable instantaneous bandwidth with optional upgrade support up to 1 GHz.
Start with Frequency: 300 MHz to 6 GHz; Bandwidth: 200 MHz / 500 MHz / up to 1 GHz option; RF Channels: 1 In / 1 Out; Max Input Power: <= +30 dBm. Buyers should also confirm interface, software integration, accessories, calibration documentation, lead time, and acceptance requirements before purchase.
Typical applications listed for the YST-6061 Vector Signal Transceiver include PXIe vector signal analysis; wireless transceiver test; automated RF stimulus and capture; modular ATE systems. If the required range, channel count, power level, environmental condition, or automation interface differs from these scenarios, XGY Tek should review the configuration before quotation.
Compare alternatives when the required measurement range, output power, channel count, bandwidth, software workflow, fixture design, or documentation package does not match the published YST-6061 Vector Signal Transceiver specifications. XGY Tek can recommend a different model or custom-scoped option during quotation.
