45 GHz PXIe Microwave Signal Generator - Analog Stimulus from 9 kHz in a Compact Slot
XGY YSG-5451 is a high-performance PXIe microwave analog signal generator covering 9 kHz to 45 GHz. It combines fine frequency and power control, narrow-pulse modulation down to 100 ns, AM/FM/PM modulation, and dual-slot 3U PXIe scalability.
Use frequency coverage, output range, stability, phase-noise behaviour, switching speed and control requirements to shortlist the YSG-5451 Signal Generator.
9 kHz to 45 GHz
-100 dBm to +10 dBm
-105 dBc/Hz @ 10 kHz
0.01 Hz
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
YSG-5451 Signal Generator should be scoped around Automated RF and microwave test systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSG-5451 Signal Generator should be scoped around Broadband RF and microwave signal generation, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSG-5451 Signal Generator should be scoped around Analog-modulated RF and microwave signal generation, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSG-5451 Signal Generator should be scoped around Multi-channel PXIe test systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSG-5451 Signal Generator should be scoped around Production test and ATE integration, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

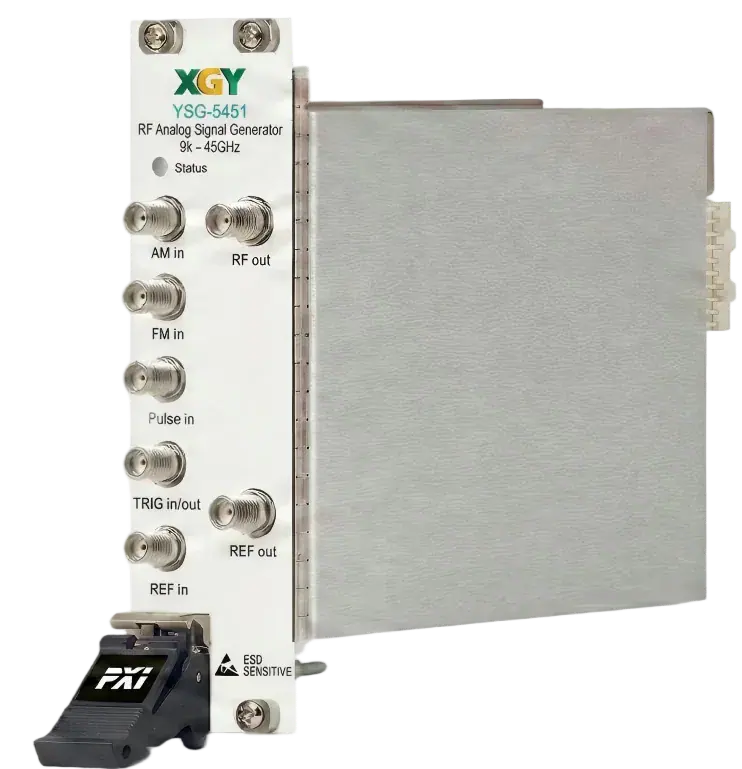

The YSG-5451 is a high-performance PXIe microwave analog signal generator designed for broadband RF and microwave test systems. It delivers continuous-wave output across a 9 kHz to 45 GHz range while maintaining fine frequency and power control, making it suitable for bench validation and automated test environments.
The platform supports analog modulation modes including AM, FM, and PM, with integrated narrow-pulse modulation capability down to 100 ns minimum pulse width. Its dual-slot 3U PXIe architecture allows independent frequency and power control for each channel, enabling scalable ATE configurations and synchronized multi-channel test systems.
| Parameter | Value |
|---|---|
| Frequency Range | 9 kHz to 45 GHz |
| Frequency Step Resolution | 0.01 Hz |
| Output Power Range | -100 dBm to +10 dBm |
| Power Step Resolution | 0.01 dB |
| Power Accuracy (ALC) | +/-1 dB |
| Phase Noise | -105 dBc/Hz @ 10 kHz offset |
| Spurious Response | <= -60 dBc |
| Harmonic Levels | <= -30 dBc |
| Minimum Pulse Width | 100 ns |
| Pulse On/Off Ratio | >= 70 dB |
| Trigger Lead Time | 5 ns |
| Modulation Modes | AM, FM, PM |
| Internal Modulation Source | 12 waveform types |
| Clock Synchronization | 10 MHz / 100 MHz |
| PXIe Architecture | Dual-slot 3U modular design |
