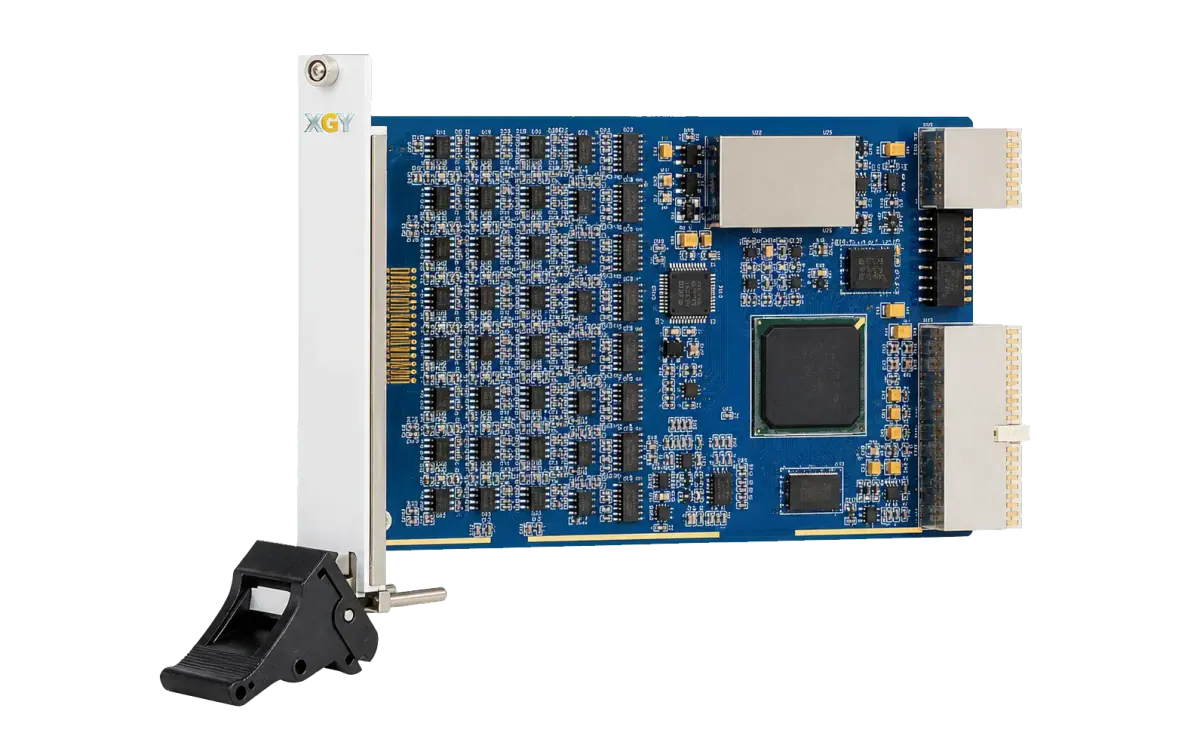

PXIe-6363 Multi-Function Module

32-Channel PXIe Multi-Function Module - Analog, Digital, and PFI in a Single PXIe Card

XGY PXIe-6363 is a multi-function PXIe module for data acquisition, analog output, and digital I/O tasks. PXIe-6363 consolidates analog acquisition, analog output, static digital I/O, and programmable I/O into a compact PXIe card.

Get a Quote Download Datasheet
PXIe-6363 Multi-Function Module

Core Specifications

Key technical parameters for the PXIe-6363 Multi-Function Module.

Sampling Rate

2 MSa/s

AI Channels

32 channels

Driver Support

VISA-based PNP driver

Input Range

+/-10 V

Acquisition Mode

Scanning acquisition

Application fit

Match the product configuration to the engineering workflow before quotation.

Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.

Application fit

Data Acquisition, Analog Output, And Digital I O Tasks

PXIe-6363 Multi-Function Module should be scoped around Data acquisition, analog output, and digital I/O tasks, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

32 channels2 MSa/s4 channels

Application fit

PXIe Mixed Signal Measurement Systems

PXIe-6363 Multi-Function Module should be scoped around PXIe mixed-signal measurement systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

2 MSa/s4 channels3U single-width, 4HP

Application fit

Automated Test Integration

PXIe-6363 Multi-Function Module should be scoped around Automated test integration, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

4 channels3U single-width, 4HPScanning acquisition

Application fit

Acquisition, Stimulus, Digital Control, And Counter Or Frequency Functions

PXIe-6363 Multi-Function Module should be scoped around Acquisition, stimulus, digital control, and counter or frequency functions, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

3U single-width, 4HPScanning acquisition+/-10 V

PXIe Multi-Function Module for Automated Test Integration

PXIe-6363 consolidates analog acquisition, analog output, static digital I/O, and programmable I/O into a compact PXIe card. It is suited to mixed-signal measurement systems that need acquisition, stimulus, digital control, and counter or frequency functions from one module.

Key Technical Advantages

  • 32-Channel AI: Scanning acquisition supports 32 input channels at 2 MSa/s with +/-10 V range.
  • 4-Channel AO: Analog output provides 4 channels with +/-10 V output and 5 mA output current.
  • 32-Channel DIO: Static digital I/O includes 32 channels at 5 V TTL level.
  • 16-Channel PFI: Programmable I/O provides 16 channels for static I/O, counter, and frequency measurement modes.
  • PXIe Integration: The module fits a 3U single-width, 4HP PXIe slot.
  • Driver Support: VISA-based PNP driver support is provided for Windows and Linux.

Typical Applications

  • Data acquisition, analog output, and digital I/O tasks
  • PXIe mixed-signal measurement systems
  • Automated test integration
  • Acquisition, stimulus, digital control, and counter or frequency functions

Core Specifications

  • AI Channels: 32 channels
  • Sampling Rate: 2 MSa/s
  • Form Factor: 3U single-width, 4HP

Key Advantages

  • 32-Channel AI Scanning acquisition supports 32 input channels at 2 MSa/s with +/-10 V range.
  • 4-Channel AO Analog output provides 4 channels with +/-10 V output and 5 mA output current.
  • 32-Channel DIO Static digital I/O includes 32 channels at 5 V TTL level.
  • 16-Channel PFI Programmable I/O provides 16 channels for static I/O, counter, and frequency measurement modes.
  • PXIe Integration The module fits a 3U single-width, 4HP PXIe slot.
  • Driver Support VISA-based PNP driver support is provided for Windows and Linux.

Performance Highlights

  • AI Channels 32 channels
  • Sampling Rate 2 MSa/s
  • AO Channels 4 channels
  • Form Factor 3U single-width, 4HP

Ready to upgrade your automated test system?

XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXIe-6363 Multi-Function Module.

Get a Quote

Product Specifications

Parameter Specification
AI Channels 32 channels
Acquisition Mode Scanning acquisition
Sampling Rate 2 MSa/s
Input Range +/-10 V
AO Channels 4 channels
Output Voltage +/-10 V
Output Current 5 mA
DIO Channels 32 channels
DIO Level 5 V TTL
PFI Channels 16 channels
PFI Modes Static I/O, counter, frequency measurement
Operating System Windows 7 / Windows 8 / Windows 10 / Linux
Driver Support VISA-based PNP driver
Form Factor 3U single-width, 4HP
Operating Temperature Commercial C: 0 to +50 deg C; Industrial I: -20 to +50 deg C; Military J: -40 to +50 deg C
Storage Temperature Commercial C: -20 to +70 deg C; Industrial I: -40 to +70 deg C; Military J: -55 to +85 deg C
Humidity 95% @ 25 deg C, non-condensing
PXIe-6363 Description: AI 32 channels, 2 MSa/s; DA 4 channels; DIO 32 channels; PFI 16 channels; commercial grade; Availability: Standard
PXIe-6363-I Description: AI 32 channels, 2 MSa/s; DA 4 channels; DIO 32 channels; PFI 16 channels; industrial grade; Availability: Optional
PXIe-6363-J Description: AI 32 channels, 2 MSa/s; DA 4 channels; DIO 32 channels; PFI 16 channels; military grade; Availability: Optional
3002007 Description: J30J-100TJL cable, 50 cm, with wire labels; Availability: Standard

* Specifications are subject to change without notice. Contact XGY Tek for full technical datasheet.
