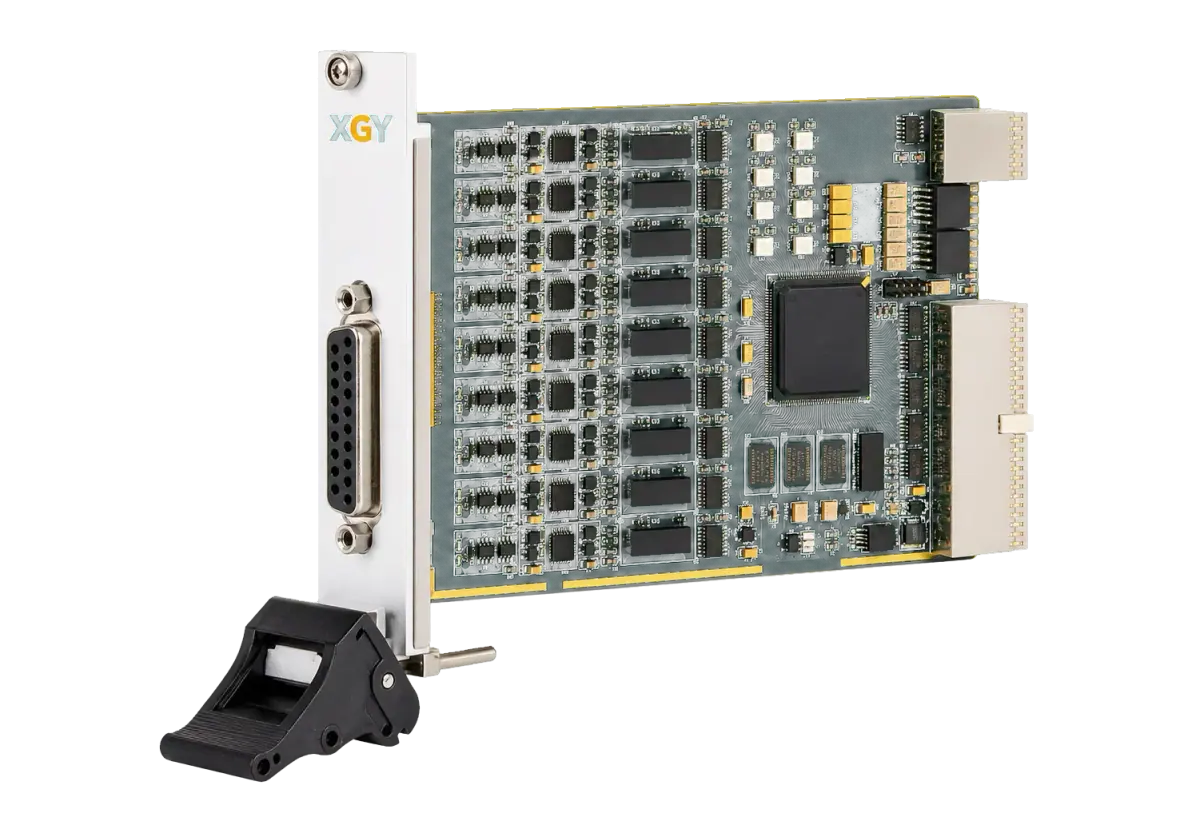

100 kSa/s 8-Channel Isolated PXI Acquisition Module - Isolated Sampling for Noisy Environments
XGY PXI-6207 is an 8-channel isolated 16-bit parallel data acquisition module for 3U CPCI/PXI systems. It provides up to 100 kSa/s sampling, 20 kHz signal bandwidth, programmable input ranges, selectable AC/DC coupling, and buffered storage.
Key technical parameters for the PXI-6207 8-Channel Isolated Data Acquisition Module.
100 kSa/s maximum, integer division, 1 Hz minimum
8 isolated channels
16 bits
VISA-based PNP driver
+/-50 V
Parallel acquisition
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
PXI-6207 8-Channel Isolated Data Acquisition Module should be scoped around 3U CPCI/PXI isolated parallel data acquisition, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6207 8-Channel Isolated Data Acquisition Module should be scoped around Measurement and control systems requiring isolation, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6207 8-Channel Isolated Data Acquisition Module should be scoped around Multi-point acquisition in electrically demanding systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6207 8-Channel Isolated Data Acquisition Module should be scoped around Buffered data acquisition with trigger support, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
PXI-6207 provides eight isolated acquisition channels with parallel sampling in a compact 3U CPCI/PXI module. The module is designed for measurement and control systems that require isolation, programmable input ranges, trigger support, and buffered data acquisition.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-6207 8-Channel Isolated Data Acquisition Module.
Get a Quote| Parameter | Specification |
|---|---|
| Channel Count | 8 isolated channels Condition: Input and Acquisition |
| Resolution | 16 bits Condition: Input and Acquisition |
| Sampling Rate | 100 kSa/s maximum, integer division, 1 Hz minimum Condition: Input and Acquisition |
| Acquisition Mode | Parallel acquisition Condition: Input and Acquisition |
| Input Range | +/-50 V Condition: Input and Acquisition |
| Range Grades | +/-0.5 V, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V, +/-25 V, +/-50 V Condition: Input and Acquisition |
| Signal Bandwidth | 20 kHz Condition: Input and Acquisition |
| Input Impedance | 1 Mohm Condition: Input and Acquisition |
| Input Coupling | DC or AC, software selectable Condition: Input and Acquisition |
| Data Storage | 128 MB typical Condition: Storage, Accuracy, and Trigger |
| Transfer Rate | >=20 MB/s Condition: Storage, Accuracy, and Trigger |
| DC Accuracy | +/-0.4% FSR, average calculation Condition: Storage, Accuracy, and Trigger |
| AC Accuracy | +/-0.6% FSR, RMS calculation, f < 5 kHz Condition: Storage, Accuracy, and Trigger |
| Trigger Mode | External TTL, channel-level, PXI, and software trigger Condition: Storage, Accuracy, and Trigger |
| Trigger Edge | Rising edge or falling edge Condition: Storage, Accuracy, and Trigger |
| Trigger Count | Single trigger Condition: Storage, Accuracy, and Trigger |
| Trigger Output | TTL front-panel output, 3.3 V / TTL level Condition: Storage, Accuracy, and Trigger |
| Operating System | Windows 7 / Windows 8 / Windows 10 / Linux |
| Driver Support | VISA-based PNP driver |
| Form Factor | 3U single-width, 4HP |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
