1 MSa/s 8-Channel Isolated PXI ADC Module - 16-Bit Acquisition with Programmable Ranges

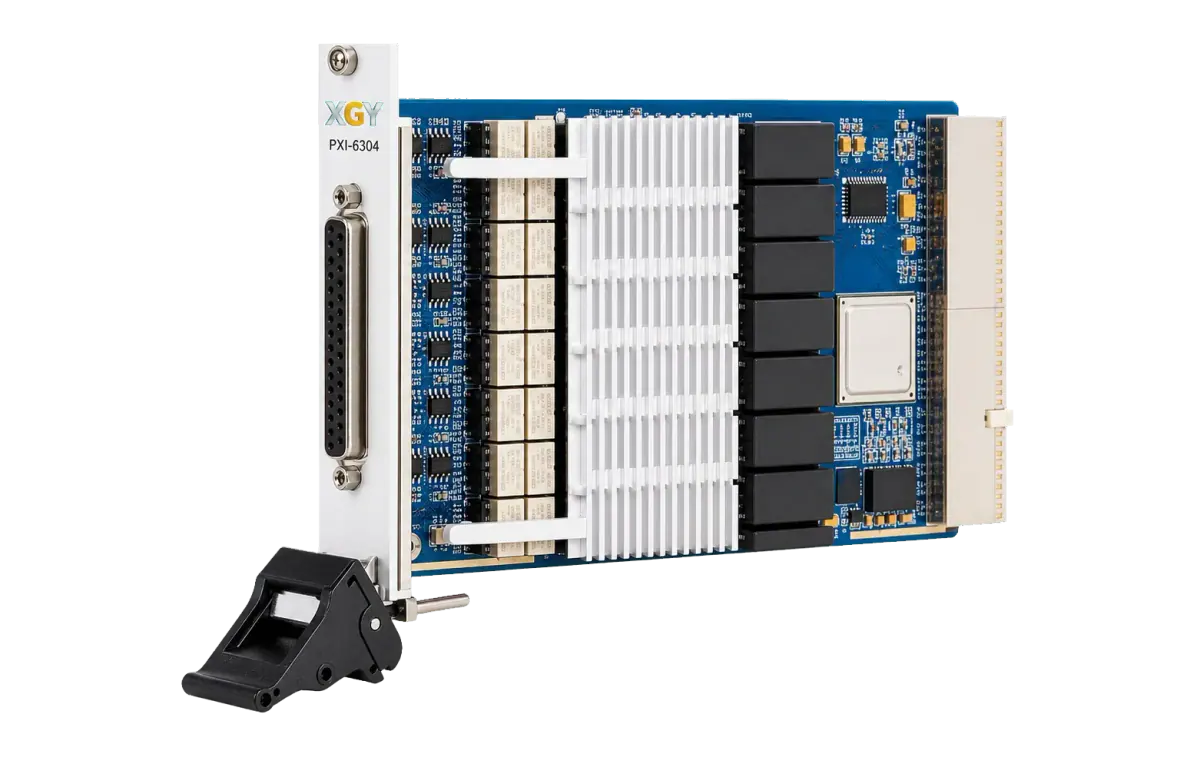

XGY PXI-6304 is an 8-channel high-speed analog-to-digital converter module for isolated PXI acquisition systems. It provides 16-bit resolution, 1 MSa/s sampling, channel-to-channel isolation, programmable input ranges, and 1 MSa per-channel storage.
Key technical parameters for the PXI-6304 8-Channel High-Speed ADC Module.
1 MSa/s
8 differential channels with channel-to-channel isolation
16 bits
VISA-based PNP driver
+/-10 V; programmable +/-1 V, +/-2 V, +/-5 V, and +/-10 V ranges
Parallel acquisition
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
PXI-6304 8-Channel High-Speed ADC Module should be scoped around Isolated PXI acquisition systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6304 8-Channel High-Speed ADC Module should be scoped around Simultaneous high-speed conversion, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6304 8-Channel High-Speed ADC Module should be scoped around Programmable input range selection, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6304 8-Channel High-Speed ADC Module should be scoped around Parallel acquisition at 1 MSa/s, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
PXI-6304 provides high-speed acquisition for eight isolated differential channels in a compact 3U PXI module. The module is designed for systems that need simultaneous high-speed conversion, programmable input range selection, and straightforward PXI software integration.
Choose PXI-6304 when channel-to-channel isolation and its published high-speed acquisition boundary are explicit requirements. If the signal map instead needs selectable AC/DC coupling, wider published input-range grades, and buffered lower-speed acquisition, compare the PXI-6143 8-channel DAQ module. Confirm isolation, range, sampling rate, bandwidth, trigger, storage, and grade from the selected datasheet before quotation.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-6304 8-Channel High-Speed ADC Module.
Get a Quote| Parameter | Specification |
|---|---|
| Channels | 8 differential channels with channel-to-channel isolation Condition: Input and Acquisition |
| Input Range | +/-10 V; programmable +/-1 V, +/-2 V, +/-5 V, and +/-10 V ranges Condition: Input and Acquisition |
| Resolution | 16 bits Condition: Input and Acquisition |
| Sampling Rate | 1 MSa/s Condition: Input and Acquisition |
| Acquisition Mode | Parallel acquisition Condition: Input and Acquisition |
| DC Error | <0.2% FSR Condition: Input and Acquisition |
| Storage Depth | 1 MSa per channel Condition: Input and Acquisition |
| Input Impedance | 1 Mohm Condition: Input and Acquisition |
| Operating System | Windows 7 / Windows 8 / Windows 10 / Linux |
| Driver Support | VISA-based PNP driver |
| Form Factor | 3U single-width, 4HP |
| Operating Temperature | Commercial C: 0 to +50 deg C; Industrial I: -20 to +50 deg C; Military J: -40 to +50 deg C |
| Storage Temperature | Commercial C: -20 to +70 deg C; Industrial I: -40 to +70 deg C; Military J: -55 to +85 deg C |
| Humidity | 95% @ 25 deg C, non-condensing |
| PXI-6304 | Description: 8-channel isolated module, 1 MSa/s, 16 bits, commercial grade; Availability: Standard Condition: Default Configuration |
| PXI-6304-I | Description: 8-channel isolated module, 1 MSa/s, 16 bits, industrial grade; Availability: Optional Condition: Default Configuration |
| PXI-6304-J | Description: 8-channel isolated module, 1 MSa/s, 16 bits, military grade; Availability: Optional Condition: Default Configuration |
| 3002012 | Description: J30JA-37TJ cable, 50 cm, with wire labels; Availability: Standard Condition: Default Configuration |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
Fit check
Quote-stage checklist
Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.
Quote workflow
A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.
Send RFQStart with Parallel acquisition. Confirm the required model rating before treating the page summary as a released configuration.
Map the equipment to Isolated PXI acquisition systems; Simultaneous high-speed conversion; Programmable input range selection and record any transient, cycling, compliance or automation needs.
Confirm control interfaces, protection requirements, data logging, remote operation and the FAT/SAT evidence needed by the buyer.
