125 MSa/s 8-Channel PXI Acquisition Module - 14-Bit Sampling for High-Dynamic-Range Signals

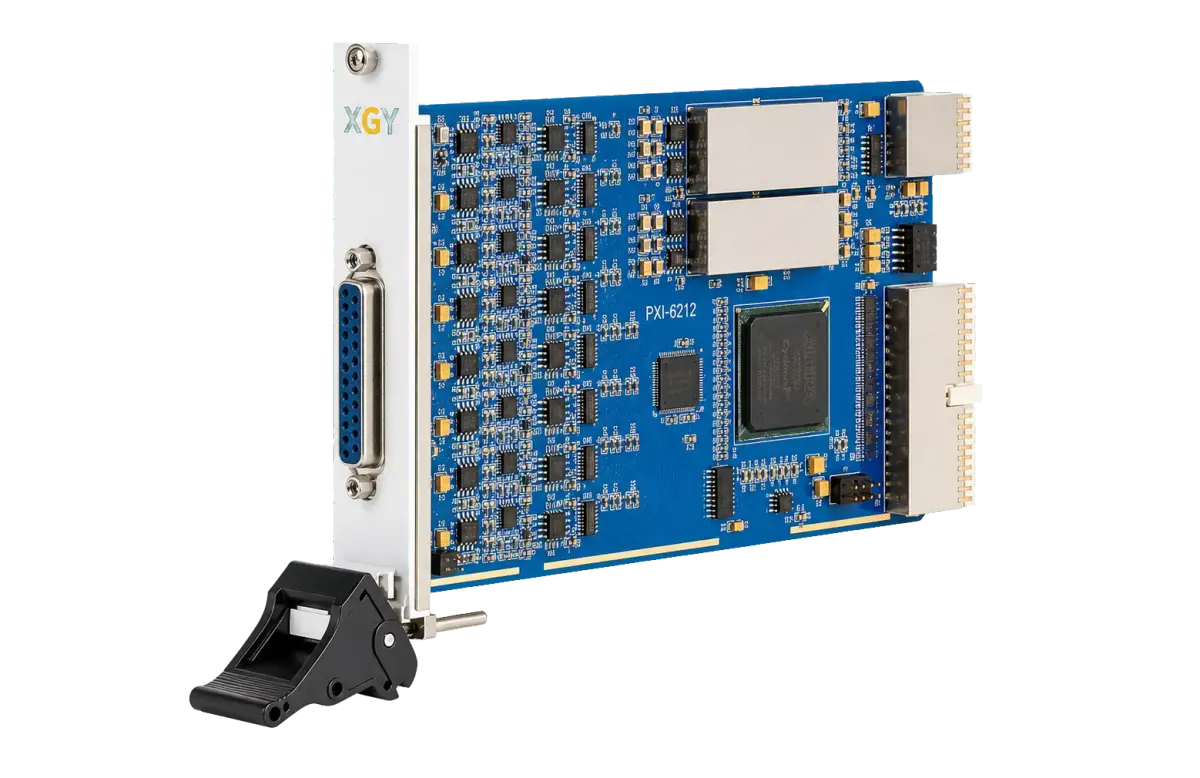

XGY PXI-6212 provides eight synchronous analog input channels in a compact 3U CPCI/PXI module. It supports 14-bit, 125 MSa/s high-speed acquisition, configurable input ranges, AC/DC coupling, 1 Mohm or 50 ohm input impedance, and multi-module synchronization.
Key technical parameters for the PXI-6212 8-Channel High-Speed Data Acquisition Module.
125 MSa/s
8 channels
14 bits
VISA-based PNP driver
+/-10 V, +/-5 V, +/-1 V, +/-0.5 V, +/-0.1 V configurable
Parallel acquisition
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
PXI-6212 8-Channel High-Speed Data Acquisition Module should be scoped around PXI-based high-speed parallel data acquisition, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6212 8-Channel High-Speed Data Acquisition Module should be scoped around High-frequency, high-dynamic-range signal capture, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6212 8-Channel High-Speed Data Acquisition Module should be scoped around Multi-module synchronized acquisition, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-6212 8-Channel High-Speed Data Acquisition Module should be scoped around Onboard-storage acquisition workflows, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
PXI-6212 provides eight synchronous analog input channels in a compact 3U CPCI/PXI module. The module is suitable for transient signal acquisition, impact testing, ultrasonic and acoustic measurement, communications, aerospace, defense, and other time-domain or frequency-domain measurement tasks.
| Module | Published acquisition boundary | Choose it when |
|---|---|---|
| PXI-6212 | 8 synchronous channels, 14 bits, 125 MSa/s per channel | High-speed parallel capture, large onboard storage, and multi-module synchronisation are the primary requirements. |
| PXI-6304 high-speed ADC | Higher-resolution, channel-isolated acquisition at a lower sampling rate | Resolution and isolated inputs matter more than the PXI-6212 sampling rate. |
| PXI-6143 DAQ module | Wider selectable voltage ranges with buffered lower-speed acquisition | Voltage range, coupling, trigger options, and buffered capture fit the signal map better than the PXI-6212 high-speed boundary. |
| PXI-6207 isolated DAQ | Lower-bandwidth isolated acquisition | Isolated signal capture, rather than the PXI-6212 high-speed boundary, is the defined measurement need. |
Keep the chosen module, input range, impedance, coupling, trigger/synchronisation plan, storage depth, operating grade, and cable configuration in the rack acceptance record. For chassis-level planning, review the PXIe modular test instrument guide.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-6212 8-Channel High-Speed Data Acquisition Module.
Get a Quote| Parameter | Specification |
|---|---|
| Input Channels | 8 channels Condition: Input and Acquisition |
| Acquisition Mode | Parallel acquisition Condition: Input and Acquisition |
| Sampling Rate | 125 MSa/s Condition: Input and Acquisition |
| Resolution | 14 bits Condition: Input and Acquisition |
| Input Range | +/-10 V, +/-5 V, +/-1 V, +/-0.5 V, +/-0.1 V configurable Condition: Input and Acquisition |
| Coupling | AC/DC Condition: Input and Acquisition |
| Input Impedance | 1 Mohm / 50 ohm Condition: Input and Acquisition |
| DC Accuracy | +/-0.25% FSR for >=1 V ranges; +/-0.50% FSR for <1 V ranges Condition: Accuracy and Storage |
| AC Accuracy | +/-0.75% FSR, f < 300 kHz Condition: Accuracy and Storage |
| Storage Capacity | 256M / 512M / 1GB Condition: Accuracy and Storage |
| Synchronization Accuracy | 8 ns Condition: Accuracy and Storage |
| SNR | 65 dBFS Condition: Accuracy and Storage |
| Operating System | Windows 7 / Windows 8 / Windows 10 / Linux |
| Driver Support | VISA-based PNP driver |
| Form Factor | 3U single-width, 4HP |
| Operating Temperature | Commercial C: 0 to +50 deg C; Industrial I: -20 to +50 deg C; Military J: -40 to +50 deg C |
| Storage Temperature | Commercial C: -20 to +70 deg C; Industrial I: -40 to +70 deg C; Military J: -55 to +85 deg C |
| Humidity | 95% @ 25 deg C, non-condensing |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
Fit check
Quote-stage checklist
Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.
Quote workflow
A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.
Send RFQStart with 256M / 512M / 1GB; Parallel acquisition. Confirm the required model rating before treating the page summary as a released configuration.
Map the equipment to PXI-based high-speed parallel data acquisition; High-frequency, high-dynamic-range signal capture; Multi-module synchronized acquisition and record any transient, cycling, compliance or automation needs.
Confirm control interfaces, protection requirements, data logging, remote operation and the FAT/SAT evidence needed by the buyer.
1 MSa/s 8-Channel Isolated PXI ADC Module - 16-Bit Acquisition with Programmable Ranges
View details
100 kSa/s 8-Channel PXI DAQ Module - 16-Bit Parallel Sampling with 50 kHz Bandwidth
View details
100 kSa/s 8-Channel Isolated PXI Acquisition Module - Isolated Sampling for Noisy Environments
View details

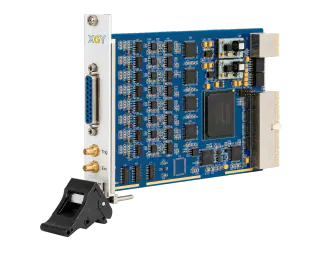

50 kSa/s 32-Channel PXI Parallel Acquisition Module - 16-Bit Differential with Selectable Ranges
