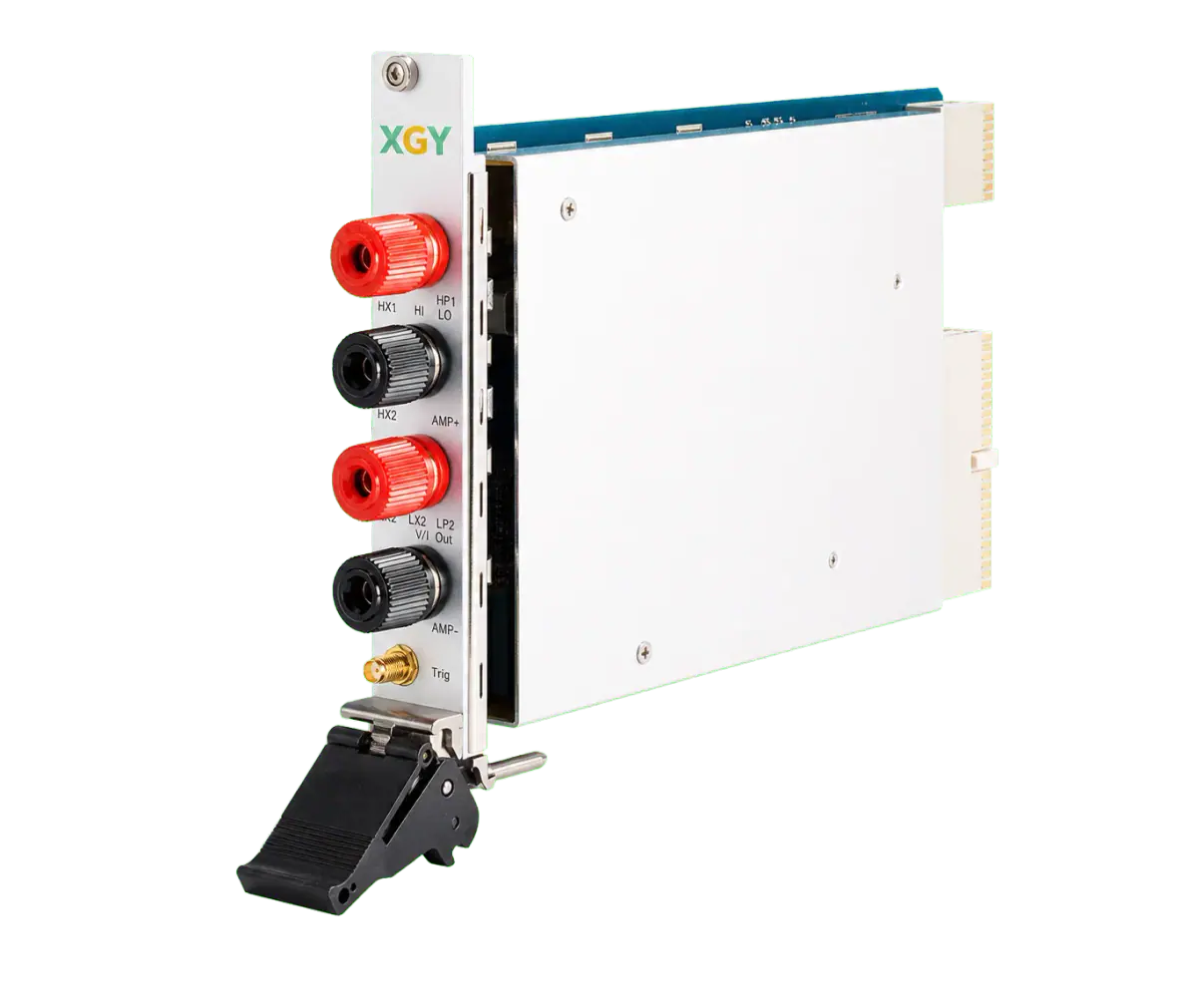

3U PXI Digital Multimeter Module - V/I/R/Frequency/Diode/Capacitance in One Card
XGY PXI-406X is a 3U CPCI/PXI digital multimeter module family for modular automated test systems. The family supports AC/DC voltage and current, resistance, frequency, diode, and capacitance measurement with Windows and Linux VISA-based driver support.
Key technical parameters for the PXI-406X Digital Multimeter Module.
3 to 300 kHz
+/-1% @ 25 deg C +/-10 deg C
VISA-based PNP driver
0 to 3 A
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
PXI-406X Digital Multimeter Module should be scoped around Automated electrical measurement systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-406X Digital Multimeter Module should be scoped around PXI and CPCI modular measurement platforms, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-406X Digital Multimeter Module should be scoped around Voltage, current, resistance, frequency, diode, and capacitance measurement, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
PXI-406X Digital Multimeter Module should be scoped around Windows and Linux VISA driver integration, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
PXI-406X digital multimeter modules are designed for PXI and CPCI measurement platforms that need compact electrical measurement capability in a 3U single-width module. The family covers common automated-test measurements, including voltage, current, resistance, frequency, diode, and capacitance measurement.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-406X Digital Multimeter Module.
Get a Quote| Parameter | Specification |
|---|---|
| Current Range | 0 to 3 A Condition: Measurement Functions |
| Voltage Range | +/-350 VDC; 0 to 350 Vrms Condition: Measurement Functions |
| Resistance Range | 0 to 100 Mohm Condition: Measurement Functions |
| Frequency Range | 3 to 300 kHz Condition: Measurement Functions |
| Diode Measurement | Supported Condition: Measurement Functions |
| Capacitance Range | 0.3 nF to 1000 nF; capacitance value can be customized Condition: Measurement Functions |
| Capacitance Accuracy | +/-1% @ 25 deg C +/-10 deg C Condition: Measurement Functions |
| Operating System | Windows 7 / Windows 8 / Windows 10 / Linux Condition: System and Mechanical |
| Driver Support | VISA-based PNP driver Condition: System and Mechanical |
| Form Factor | 3U single-width, 4HP Condition: System and Mechanical |
| Operating Temperature | Commercial C: 0 to +50 deg C; Industrial I: -20 to +50 deg C; Military J: -40 to +50 deg C |
| Storage Temperature | Commercial C: -20 to +70 deg C; Industrial I: -40 to +70 deg C; Military J: -55 to +85 deg C |
| Humidity | 95% @ 25 deg C, non-condensing |
| PXI-4061 | Description: 5 1/2 digit multimeter module; 300 V range; commercial grade; Availability: Standard Condition: Default Configuration |
| PXI-4062 | Description: 5 1/2 digit multimeter module; 350 V range; commercial grade; Availability: Standard Condition: Default Configuration |
| PXI-4063 | Description: Capacitance measurement module; 0.3 nF to 1000 nF range; commercial grade; Availability: Standard Condition: Default Configuration |
| PXI-406X-I | Description: Digital multimeter module; industrial grade; Availability: Optional Condition: Default Configuration |
| PXI-406X-J | Description: Digital multimeter module; military grade; Availability: Optional Condition: Default Configuration |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
Fit check
Quote-stage checklist
Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.
Quote workflow
A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.
Send RFQStart with +/-350 VDC; 0 to 350 Vrms. Confirm the required model rating before treating the page summary as a released configuration.
Map the equipment to Automated electrical measurement systems; PXI and CPCI modular measurement platforms; Voltage, current, resistance, frequency, diode, and capacitance measurement and record any transient, cycling, compliance or automation needs.
Confirm control interfaces, protection requirements, data logging, remote operation and the FAT/SAT evidence needed by the buyer.
This product page summarises PXI-406X Digital Multimeter Module within XGY Tek's Modular Test Instruments catalogue. Review the published specifications and application notes to determine whether the product matches the intended workflow.
Start with the values highlighted on this page: Current Range: 0 to 3 A; Voltage Range: +/-350 VDC; 0 to 350 Vrms; Resistance Range: 0 to 100 Mohm; Frequency Range: 3 to 300 kHz. Check whichever selection criteria apply, such as measurement or operating range, resolution, accuracy, sensitivity, interfaces, software compatibility, environmental limits, accessories, and any stated test conditions. Not every criterion applies to every product.
Published applications include Automated electrical measurement systems; PXI and CPCI modular measurement platforms; Voltage, current, resistance, frequency, diode, and capacitance measurement; Windows and Linux VISA driver integration. Use the application notes as selection guidance, then confirm the required operating conditions, interfaces, software compatibility, and accessories against the published specifications.
Compare alternatives when the published measurement or operating range, resolution, accuracy, sensitivity, interfaces, software compatibility, environmental limits, or available accessories do not match the intended workflow. Confirm any critical value together with its stated conditions before selecting a configuration.
Use the Get a Quote form to share the application, required configuration, interfaces, accessories, documentation needs, and timing. XGY Tek will review the request before confirming a suitable configuration. A downloadable datasheet is linked from the product page.Get a Quote
Support scope is confirmed during quotation. Ask about commissioning, software integration, calibration documentation, acceptance requirements, training, accessories, spares, and service arrangements relevant to the application.About XGY TekWhere to Buy
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the PXI-406X Digital Multimeter Module.
