6 GHz PXIe Up/Down Converter - Frequency Translation for Sub-6 GHz Test Chains

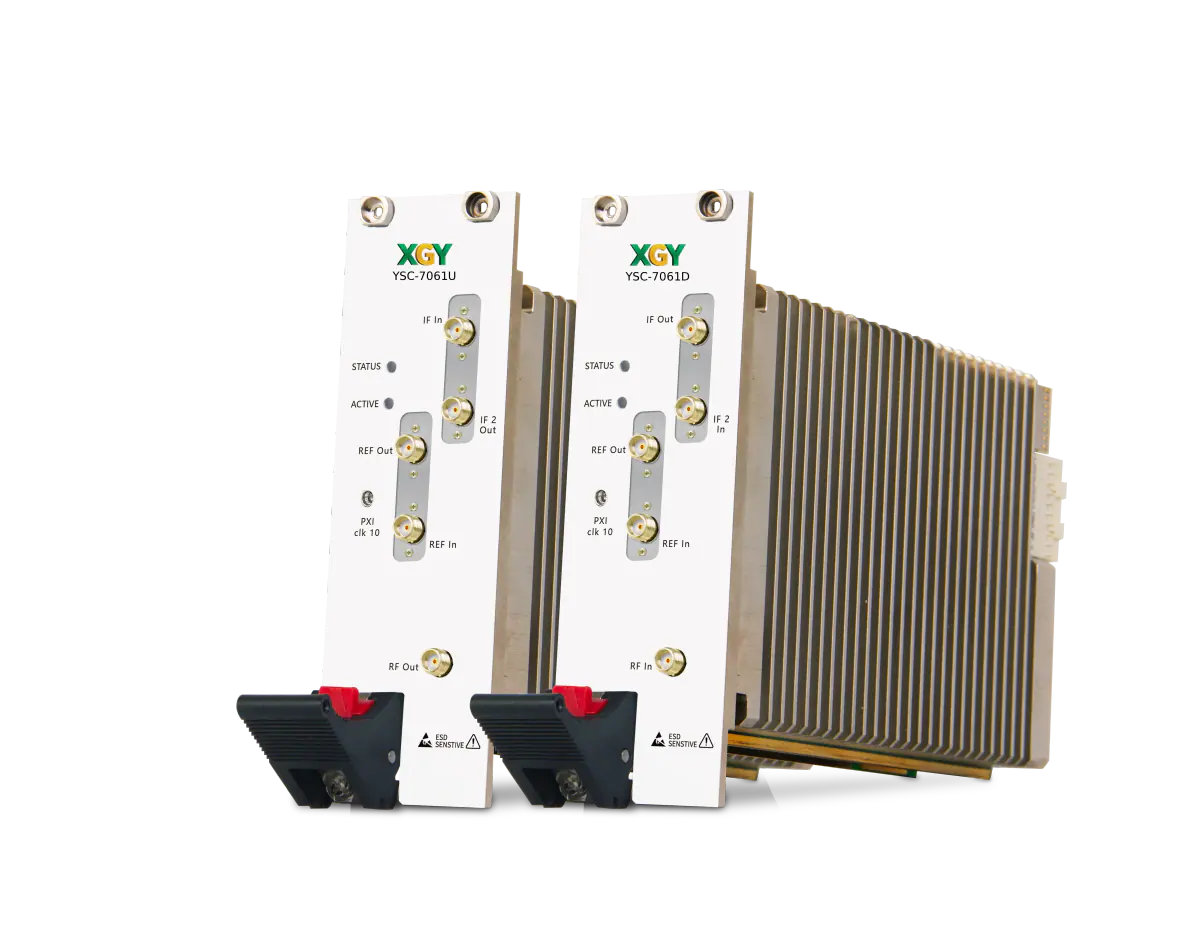

XGY YSC-7061 is a PXIe frequency conversion module pair for RF development, subsystem integration, and PXIe-controlled debugging. The up-converter provides 400 MHz to 6 GHz RF output while the down-converter accepts 20 MHz to 6 GHz RF input.
Key technical parameters for the YSC-7061U / YSC-7061D Up/Down Converter.
400 MHz to 6 GHz
80 MHz
< -100 dBc/Hz
PXIe 3U, 2-slot
0 to 90 dB up-converter / 0 to 60 dB down-converter (1 dB step)
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
YSC-7061U / YSC-7061D Up/Down Converter should be scoped around frequency conversion, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSC-7061U / YSC-7061D Up/Down Converter should be scoped around PXIe RF test systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSC-7061U / YSC-7061D Up/Down Converter should be scoped around IF/RF up-conversion and down-conversion, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YSC-7061U / YSC-7061D Up/Down Converter should be scoped around PXIe-controlled subsystem debugging, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
YSC-7061U and YSC-7061D form a compact PXIe-based frequency conversion solution for RF development, subsystem integration, and automated test platforms. The up-converter provides RF output from 400 MHz to 6 GHz, while the down-converter supports RF input from 20 MHz to 6 GHz.
Both modules use a 3U two-slot PXIe architecture and support parameter configuration, functional control, status monitoring, and reference clock configuration through the PXIe control interface with C/C++ host integration and Windows 10 compatibility.
| Parameter | Value |
|---|---|
| IF Input Frequency | 30 MHz to 110 MHz |
| IF Bandwidth | 80 MHz |
| RF Output Frequency | 400 MHz to 6 GHz |
| Output Power | -70 dBm to +13 dBm |
| Gain Flatness | <= +/-0.75 dB |
| Output P1dB | >=15 dBm |
| Link Gain | -70 dB to +20 dB |
| Spurs | < -60 dBc |
| Programmable Attenuation | 0 dB to 90 dB, 1 dB step |
| Parameter | Value |
|---|---|
| RF Input Frequency | 20 MHz to 6 GHz |
| Max Input Power | 27 dBm |
| IF Output Frequency | 70 MHz |
| IF Bandwidth | 80 MHz |
| Max IF Output Power | 15 dBm |
| Gain Range | 25 +/-3 dB (normal) / 40 +/-3 dB (low-noise) |
| Output P1dB | >=15 dBm |
| RF Flatness | <= +/-0.75 dB |
| Input VSWR | < 2.5 |
| Spurious Suppression | <=50 dB typ |
| Programmable Attenuation | 0 dB to 60 dB, 1 dB step |
| Parameter | Value |
|---|---|
| LO Phase Noise | < -100 dBc/Hz @ 10 kHz |
| Power Consumption | <=25 W per module |
| PXIe Form Factor | 3U, 2 slots |
| Host Integration | C/C++ control library, Windows 10 |
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the YSC-7061U / YSC-7061D Up/Down Converter.
Get a Quote| Parameter | Specification |
|---|---|
| RF Range | 400 MHz to 6 GHz |
| IF BW | 80 MHz |
| Attenuation Range | 0 to 90 dB up-converter / 0 to 60 dB down-converter (1 dB step) |
| LO Phase Noise | < -100 dBc/Hz |
| Output P1dB | >=15 dBm |
| Platform | PXIe 3U, 2-slot |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
Fit check
Quote-stage checklist
Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.
Quote workflow
A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.
Send RFQStart with >=15 dBm. Confirm the required model rating before treating the page summary as a released configuration.
Map the equipment to frequency conversion; PXIe RF test systems; IF/RF up-conversion and down-conversion and record any transient, cycling, compliance or automation needs.
Confirm control interfaces, protection requirements, data logging, remote operation and the FAT/SAT evidence needed by the buyer.
