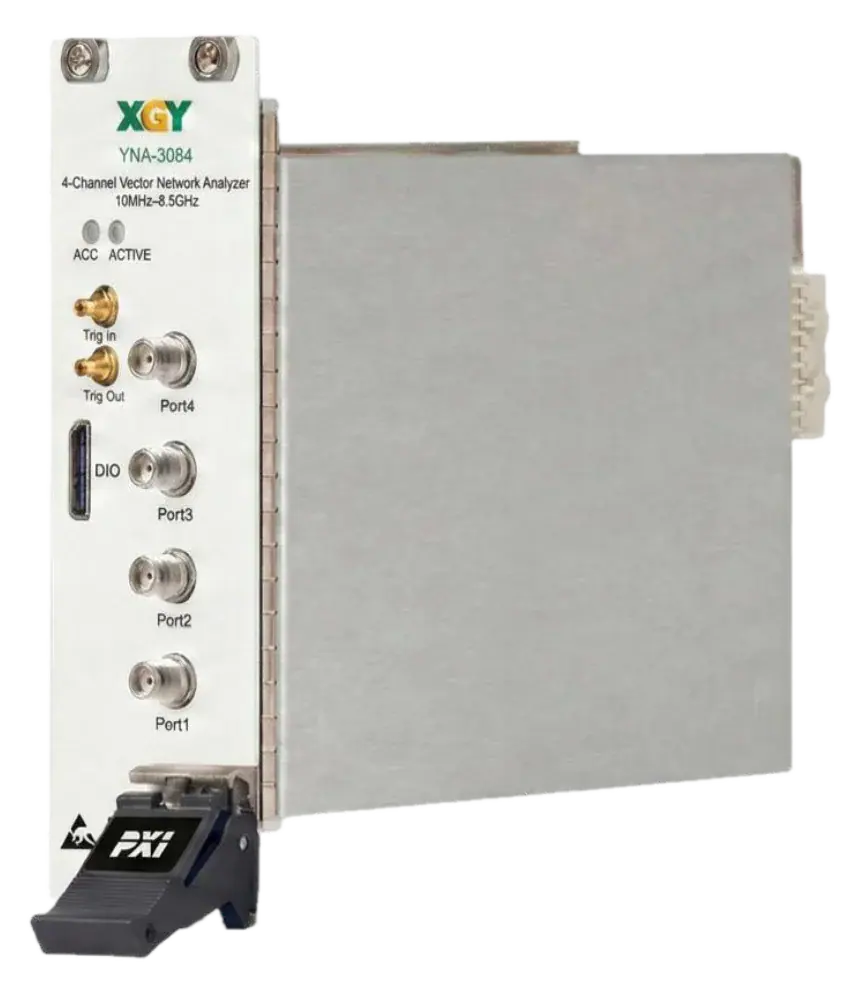

8.5 GHz 4-Port PXIe VNA - >123 dB Dynamic Range in a 2-Slot Card
XGY YNA-3084 is a 4-port PXIe vector network analyzer covering 10 MHz to 8.5 GHz in a 2-slot 3U module. It supports laboratory and production-line testing for cables, PCBs, filters, and automated test systems with >123 dB dynamic range above 50 MHz.
Key technical parameters for the YNA-3084 Vector Network Analyzer.
10 MHz - 8.5 GHz
4 test ports
1 Hz
2-Slot PXIe (3U)
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
YNA-3084 Vector Network Analyzer should be scoped around laboratory cable, PCB, and filter testing, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3084 Vector Network Analyzer should be scoped around production-line cable, PCB, and filter testing, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3084 Vector Network Analyzer should be scoped around automated test systems, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3084 Vector Network Analyzer should be scoped around multi-port S-parameter measurement, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
The YNA-3084 improves test density by integrating a 4-port VNA into a 2-slot PXIe module, allowing engineers to fit more test lanes into a single chassis and reduce bench footprint.
Covering 10 MHz to 8.5 GHz, it addresses laboratory and production-line test workflows for cables, PCBs, filters, and automated test systems.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the YNA-3084 Vector Network Analyzer.
Get a Quote| Parameter | Specification |
|---|---|
| Frequency Range | 10 MHz - 8.5 GHz |
| Bus Interface | 2-Slot PXIe (3U) |
| Number of Ports | 4 test ports |
| Frequency Resolution | 1 Hz |
| Frequency Accuracy | +/-5 ppm |
| IF Bandwidth | 1 MHz / 100 kHz / 10 kHz / 1 kHz / 100 Hz |
| Dynamic Range | >123 dB Condition: Above 50 MHz; >113 dB from 10 MHz to 50 MHz |
| Output Power | -35 dBm to +5 dBm |
| Power Accuracy | +/-1.5 dB |
| Power Resolution | 0.05 dB |
| Port Switch Time | <=1 ms |
| Noise Floor | <-120 dBm/Hz Condition: Above 50 MHz; <-110 dBm/Hz from 10 MHz to 50 MHz |
| Damage Level | >+26 dBm |
| Weight | 1.4 kg |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
Fit check
Quote-stage checklist
Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.
Quote workflow
A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.
Send RFQStart with -35 dBm to +5 dBm; -35 dBm to +5 dBm. Confirm the required model rating before treating the page summary as a released configuration.
Map the equipment to laboratory cable, PCB, and filter testing; production-line cable, PCB, and filter testing; automated test systems and record any transient, cycling, compliance or automation needs.
Confirm 2-Slot PXIe (3U), protection requirements, data logging, remote control and the FAT/SAT evidence needed by the buyer.
