9 GHz 2-Port PXIe VNA - Production Sweeps in a Single PXIe Slot
XGY YNA-3092 is a two-port, single-slot PXIe vector network analyzer module for automated RF component and system-level test. It covers 10 MHz to 9 GHz with 10 Hz frequency resolution, +/-3 ppm frequency accuracy, 15 us lock time, and up to 132 dB dynamic range.
Key technical parameters for the YNA-3092 Vector Network Analyzer Module.
10 MHz to 9 GHz
2 physical RF test ports
10 Hz
PXIe, compatible with PXI hybrid slots
7 ms / 13 ms / 23 ms
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
YNA-3092 Vector Network Analyzer Module should be scoped around Two-port S-parameter measurement, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3092 Vector Network Analyzer Module should be scoped around Automated RF component and system-level test, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3092 Vector Network Analyzer Module should be scoped around FIFO test-queue accelerated sweeps, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3092 Vector Network Analyzer Module should be scoped around Fixture embedding and de-embedding workflows, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

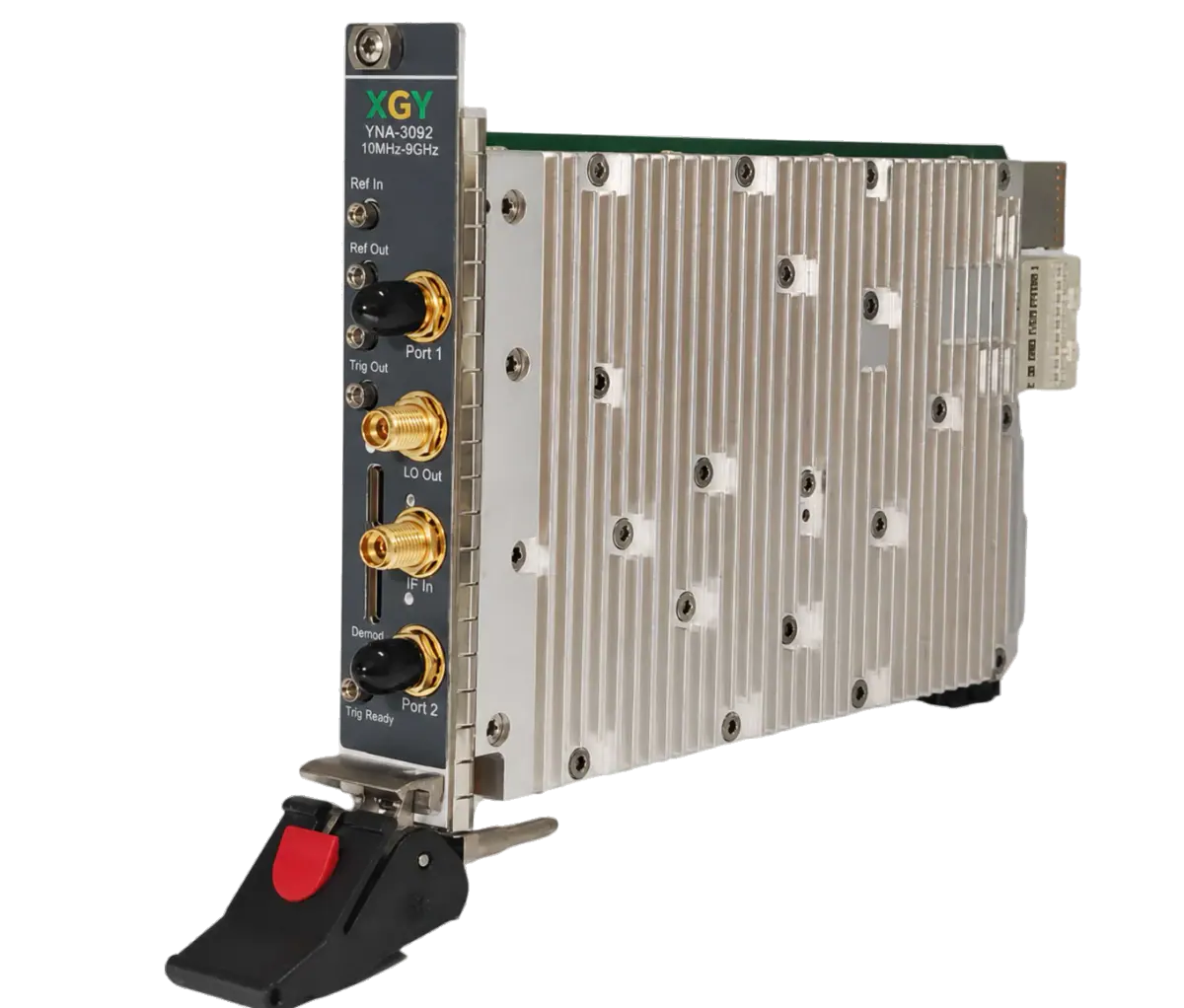

The YNA-3092 provides two physical RF test ports in a compact single-slot PXIe form factor. It is designed for automated S-parameter measurement from 10 MHz to 9 GHz, with 10 Hz frequency resolution, +/-3 ppm frequency accuracy, and fast 15 us frequency lock time.
The software environment supports 64 software test channels, 32 traces per channel, up to 10001 points per trace, FIFO test-queue acceleration, linear and segmented sweeps, and standard network-analysis views including log magnitude, phase, VSWR, Smith chart, and polar chart.
Across 30 MHz to 9 GHz, the module specifies 132 dB dynamic range normalized to 10 Hz IF bandwidth. Port output power is configurable from +10 dBm to -30 dBm, with +10 dBm maximum output power across the full 10 MHz to 9 GHz range.
YNA-3092 supports mechanical calibration, matching-product electronic calibration, single-port OSL, and dual-port TR, ER, SOLT, TRL, and UT calibration algorithms. Port extension, fixture embedding, and de-embedding help adapt measurements to cables, fixtures, and production test interfaces.
The module uses PXIe control and is compatible with PXI hybrid slots. It requires 12 VDC input power with 25 W maximum consumption, operates from 0 to 50 C, and has a recommended calibration cycle of 24 months.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the YNA-3092 Vector Network Analyzer Module.
Get a Quote| Parameter | Specification |
|---|---|
| Frequency Range | 10 MHz to 9 GHz |
| Frequency Resolution | 10 Hz |
| Frequency Accuracy | +/-3 ppm |
| Number of Ports | 2 physical RF test ports |
| Lock Time | 15 us |
| Dynamic Range | 132 dB Condition: 30 MHz to 9 GHz, normalized to 10 Hz IF bandwidth |
| Output Power Range | +10 dBm to -30 dBm |
| Test Port Input Damage Level | >+27 dBm, >+/-35 VDC, >1000 V ESD |
| Measurement Speed | 7 ms / 13 ms / 23 ms Condition: Uncorrected, 201 / 401 / 801 points at 100 kHz IF bandwidth |
| Interface | PXIe, compatible with PXI hybrid slots |
| Dimensions | 128.4 mm H x 19.9 mm W x 212.6 mm L |
| Weight | <=0.5 kg |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
Fit check
Quote-stage checklist
Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.
Quote workflow
A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.
Send RFQStart with +10 dBm to -30 dBm; +10 dBm to -30 dBm. Confirm the required model rating before treating the page summary as a released configuration.
Map the equipment to Two-port S-parameter measurement; Automated RF component and system-level test; FIFO test-queue accelerated sweeps and record any transient, cycling, compliance or automation needs.
Confirm PXIe, compatible with PXI hybrid slots, protection requirements, data logging, remote control and the FAT/SAT evidence needed by the buyer.
