9 GHz 6-Port PXIe VNA - Multi-Port Sweeps in a Dual-Slot Card

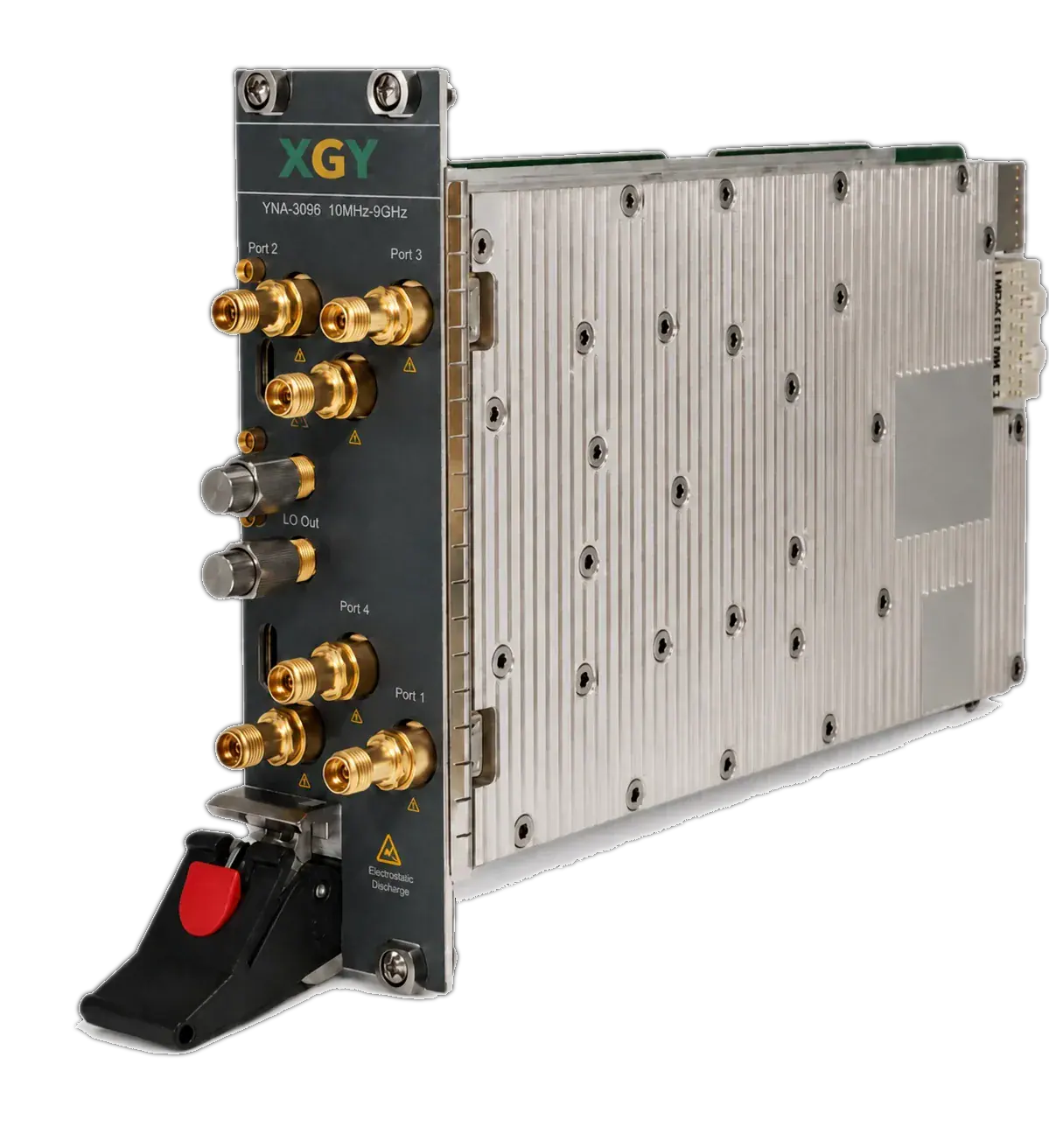

XGY YNA-3096 is a six-port, dual-slot PXIe vector network analyzer module for multiport RF component and system test. It covers 10 MHz to 9 GHz with 10 Hz resolution, +/-3 ppm frequency accuracy, 15 us lock time, and 132 dB dynamic range.
Key technical parameters for the YNA-3096 Vector Network Analyzer Module.
10 MHz to 9 GHz
6 physical RF test ports
10 Hz
PXIe, fits PXI hybrid slots
16 ms / 31 ms / 57 ms
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
YNA-3096 Vector Network Analyzer Module should be scoped around Multiport S-parameter measurement, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3096 Vector Network Analyzer Module should be scoped around Six-port RF test workflows, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3096 Vector Network Analyzer Module should be scoped around FIFO test-queue accelerated sweeps, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3096 Vector Network Analyzer Module should be scoped around Fixture embedding and de-embedding workflows, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
The YNA-3096 is built for multiport S-parameter measurement where two-port instruments are not enough. It provides six physical RF test ports in a dual-slot PXIe module and covers 10 MHz to 9 GHz with 10 Hz resolution and +/-3 ppm frequency accuracy.
The application software supports 64 test channels, 32 traces per channel, 10001 points per trace, FIFO test-queue acceleration, segmented frequency sweeps, continuous triggering, manual single triggering, and external triggering. Display formats include log magnitude, linear magnitude, phase, VSWR, Smith chart, and polar plot.
YNA-3096 specifies 132 dB dynamic range across 30 MHz to 9 GHz, normalized to 10 Hz IF bandwidth. Port output power ranges from +10 dBm to -30 dBm, with +10 dBm maximum output power across the full 10 MHz to 9 GHz range.
The module supports mechanical calibration, matching-product electronic calibration, single-port OSL, and two-port TR, ER, SOLT, TRL, and UT calibration algorithms. Port extension, fixture embedding, and de-embedding support complex fixture and production test configurations.
The YNA-3096 fits PXI hybrid slots, uses 12 VDC input power with 60 W maximum consumption, operates from 0 to 50 C, and has a recommended calibration interval of 24 months.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the YNA-3096 Vector Network Analyzer Module.
Get a Quote| Parameter | Specification |
|---|---|
| Frequency Range | 10 MHz to 9 GHz |
| Frequency Resolution | 10 Hz |
| Frequency Accuracy | +/-3 ppm |
| Number of Ports | 6 physical RF test ports |
| Lock Time | 15 us |
| Dynamic Range | 132 dB Condition: 30 MHz to 9 GHz, normalized to 10 Hz IF bandwidth |
| Output Power Range | +10 dBm to -30 dBm |
| Test Port Input Damage Level | >+27 dBm, >+/-35 VDC, >1000 V ESD |
| Measurement Speed | 16 ms / 31 ms / 57 ms Condition: Uncorrected, 201 / 401 / 801 points at 100 kHz IF bandwidth |
| 6-Port Calibration Speed | 27 ms / 53 ms / 99 ms Condition: 201 / 401 / 801 points at 100 kHz IF bandwidth |
| Interface | PXIe, fits PXI hybrid slots |
| Dimensions | 128.4 mm H x 40.0 mm W x 212.6 mm L |
| Weight | <=1.4 kg |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
Fit check
Quote-stage checklist
Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.
Quote workflow
A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.
Send RFQStart with +10 dBm to -30 dBm; +10 dBm to -30 dBm. Confirm the required model rating before treating the page summary as a released configuration.
Map the equipment to Multiport S-parameter measurement; Six-port RF test workflows; FIFO test-queue accelerated sweeps and record any transient, cycling, compliance or automation needs.
Confirm PXIe, fits PXI hybrid slots, protection requirements, data logging, remote control and the FAT/SAT evidence needed by the buyer.
8.5 GHz 4-Port PXIe VNA - >123 dB Dynamic Range in a 2-Slot Card
View details
9 GHz 2-Port PXIe VNA - Production Sweeps in a Single PXIe Slot
View details

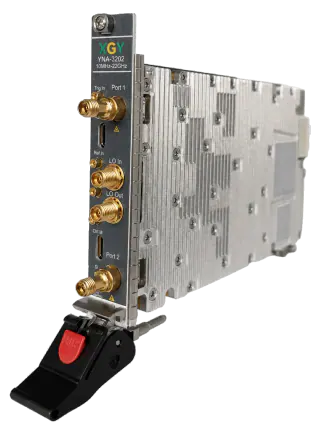

20 GHz 2-Port PXIe VNA - Wideband Sweeps in a Single PXIe Slot
