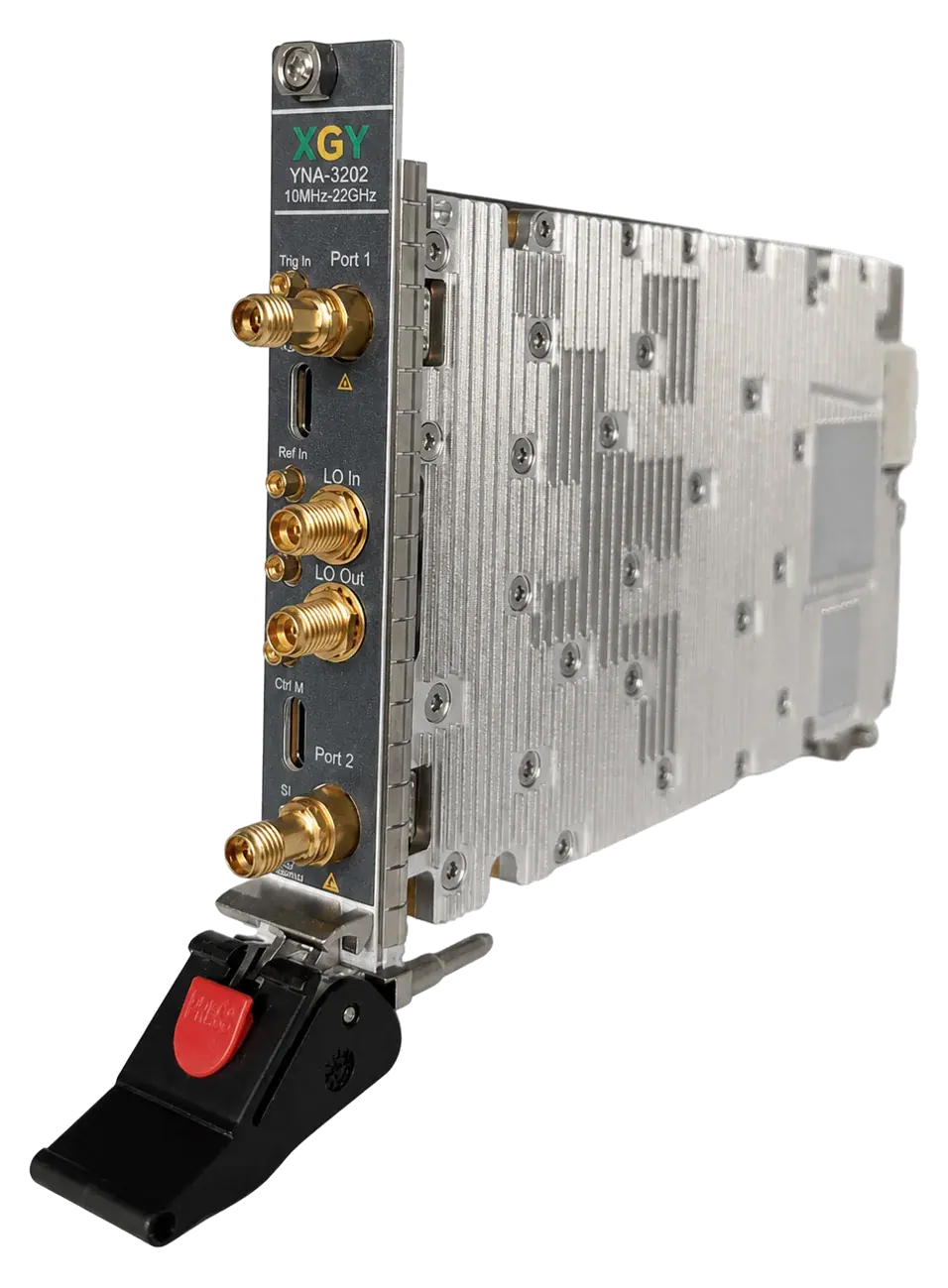

20 GHz 2-Port PXIe VNA - Wideband Sweeps in a Single PXIe Slot
XGY YNA-3202 is a two-port, single-slot PXIe vector network analyzer module covering 10 MHz to 20 GHz, with configurable extension to 22 GHz. It provides 10 Hz resolution, +/-3 ppm frequency accuracy, 15 us lock time, selectable IF bandwidths, and 132 dB dynamic range.
Key technical parameters for the YNA-3202 Vector Network Analyzer Module.
10 MHz to 20 GHz
2 physical RF test ports
10 Hz
PXIe, compatible with PXI hybrid slots
7 ms / 13 ms / 25 ms
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
YNA-3202 Vector Network Analyzer Module should be scoped around Two-port S11, S21, S22, and S12 measurement, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3202 Vector Network Analyzer Module should be scoped around 20 GHz RF measurement applications, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3202 Vector Network Analyzer Module should be scoped around FIFO test-queue accelerated sweeps, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
YNA-3202 Vector Network Analyzer Module should be scoped around Fixture embedding and de-embedding workflows, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
The YNA-3202 brings two-port vector network analysis to a compact single-slot PXIe module. It covers 10 MHz to 20 GHz and can be configured to extend to 22 GHz, making it suitable for microwave component validation and automated RF test systems.
The software supports S11, S21, S22, and S12 measurements, 64 software test channels, 32 traces per channel, 10001 points per trace, FIFO test-queue acceleration, linear sweeps, segmented sweeps, and display formats including log magnitude, phase, VSWR, Smith chart, and polar chart.
YNA-3202 specifies 132 dB dynamic range across its frequency bands. Output power reaches +10 dBm up to 18 GHz and +8 dBm from 18 GHz to 20 GHz, with a lower range limit of -30 dBm. Selectable IF bandwidths from 1 MHz to 10 Hz allow engineers to balance speed and sensitivity.
The module supports mechanical calibration, matching-product electronic calibration, single-port OSL, and dual-port TR, ER, SOLT, TRL, and UT calibration algorithms. Port extension, fixture embedding, and de-embedding are available for fixture-aware measurements.
YNA-3202 uses PXIe control, is compatible with PXI hybrid slots, requires 12 VDC input power with 25 W maximum consumption, operates from 0 to 50 C, and has a recommended calibration cycle of 24 months.
XGY Tek engineering team can assist you with module integration, custom API hooks, and throughput optimization for the YNA-3202 Vector Network Analyzer Module.
Get a Quote| Parameter | Specification |
|---|---|
| Frequency Range | 10 MHz to 20 GHz Condition: Configurable to 22 GHz |
| Frequency Resolution | 10 Hz |
| Frequency Accuracy | +/-3 ppm |
| Number of Ports | 2 physical RF test ports |
| Lock Time | 15 us |
| Dynamic Range | 132 dB Condition: 10 MHz to 20 GHz |
| Output Power Range | +10 dBm to -30 dBm Condition: Up to 18 GHz; +8 dBm to -30 dBm from 18 GHz to 20 GHz |
| Test Port Input Damage Level | >+27 dBm, >+/-35 VDC, >1000 V ESD |
| Measurement Speed | 7 ms / 13 ms / 25 ms Condition: Uncorrected, 201 / 401 / 801 points at 100 kHz IF bandwidth |
| 2-Port Calibration Speed | 10 ms / 20 ms / 40 ms Condition: 201 / 401 / 801 points at 100 kHz IF bandwidth |
| Interface | PXIe, compatible with PXI hybrid slots |
| Dimensions | 128.4 mm H x 19.9 mm W x 212.6 mm L |
| Weight | <=0.5 kg |
* Specifications are subject to change without notice. Contact XGY Tek for the full technical datasheet.
Fit check
Quote-stage checklist
Add the operating profile, safety boundary, control interface and acceptance evidence expected by the buyer before requesting final configuration and lead time.
Quote workflow
A useful RFQ is a short engineering model: operating envelope, DUT workflow, control boundary and acceptance evidence.
Send RFQStart with +10 dBm to -30 dBm; +10 dBm to -30 dBm. Confirm the required model rating before treating the page summary as a released configuration.
Map the equipment to Two-port S11, S21, S22, and S12 measurement; 20 GHz RF measurement applications; FIFO test-queue accelerated sweeps and record any transient, cycling, compliance or automation needs.
Confirm PXIe, compatible with PXI hybrid slots, protection requirements, data logging, remote control and the FAT/SAT evidence needed by the buyer.
