XPA-0727-200 RF Power Amplifier

200 W CW RF Amplifier from 0.7 to 2.7 GHz

A solid-state broadband amplifier with 200 W CW output, forced-air cooling, protection functions and GPIB/LAN control for integrated RF test setups.

Get a Quote

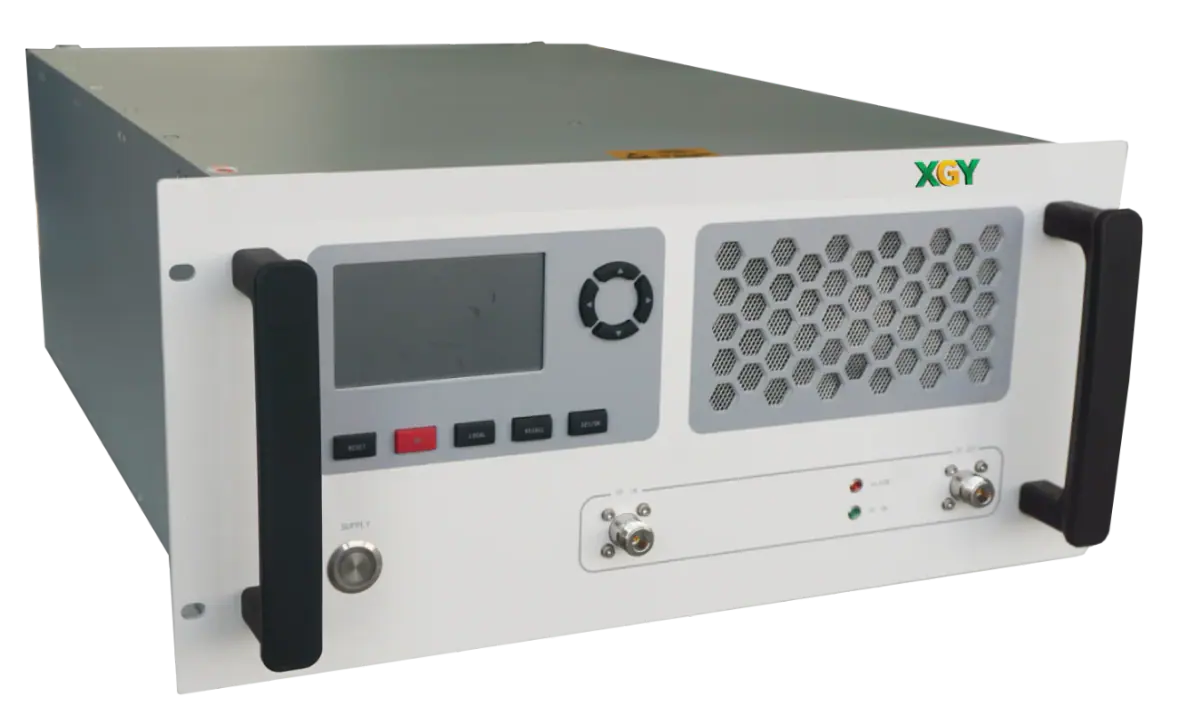

XPA-0727-200 RF Power Amplifier
Frequency
0.7 to 2.7 GHz
Output Power
200 W CW
Gain
>= 53 dB
Type
Solid-state broadband

Overview

XPA-0727-200 delivers 200 W CW output across 0.7 to 2.7 GHz with gain of at least 53 dB. The solid-state amplifier supports wireless, medical and EMC test applications.

GPIB and LAN provide remote control, while forced-air cooling and a 5U enclosure support cabinet installation. Protection functions cover excessive VSWR, temperature and excitation.

Additional product details

High-Power Solid-State Amplification

The XPA-0727-200 provides robust 200 W CW amplification across the 0.7 to 2.7 GHz band. Designed for CW output operation, it features protection mechanisms for over-VSWR, over-heat, and over-excitation conditions.

Built for Reliability

  • Solid-State Design: Complete solid-state RF amplification platform
  • Comprehensive Protection: Automatic shutdown on VSWR > 5.0:1, over-heat, and over-excitation conditions
  • Remote Control: GPIB and LAN control interfaces with communication protocol support
  • Thermal Design: Forced-air cooling in a standardized enclosure for cabinet installation

Key Capabilities & Applications

Provide broadband RF power

The CW output rating is 200 W from 0.7 to 2.7 GHz. Maximum CW input power is 0 dBm, with nominal 50 ohm input impedance.

Protect the amplifier

VSWR above 5.0:1 triggers an alarm. Over-temperature and over-excitation protection accompany self-contained forced-air cooling; the over-temperature threshold is 70 °C.

Integrate remote operation

GPIB and LAN support remote control. Front-panel I/O positioning, DB15 safety lock and gain adjustment are optional configurations; pulsed operation has separate duty-cycle and pulse-width conditions.

All capabilities and operating conditions

High Power

200 W CW Output

Broadband

0.7 GHz to 2.7 GHz Coverage

Safety

Over-VSWR, Over-heat, Over-excitation

Control

Remote control via GPIB and LAN

Common applications

  • Wireless telecommunications infrastructure testing - 0.7 to 2.7 GHz coverage
  • EMC and immunity testing - 200 W CW with comprehensive protection
  • Medical RF testing applications - PDF-listed medical testing context with solid-state design
  • Professional RF test integration - GPIB and LAN remote control interfaces

Technical Specifications

ParameterSpecification
Operating Frequency0.7 - 2.7 GHz
Output Power200 W CW
Gain>= 53 dB
Max Input Power0 dBm CW
Harmonics<= -15 dBcRated output power
Gain Flatness<= +/-4 dBRated output power
VSWR Protection> 5.0:1 Alarm
Control InterfaceGPIB, LANCommunication protocol provided
View all 21 specifications
ParameterSpecification
ConnectorsN-K TypeInput / output / coupling; rear panel
Pulsed operating conditionDuty ≤ 10%; pulse width 10 to 100 µsPulsed operation; CW output rating listed separately
Input impedance50 Ω nominal
Input VSWR≤ 2.0:1
RF switching rise/fall time≤ 100 ns
Out-of-band clutter≤ -50 dBcOffset 200 kHz
AC input220 V ±10%; 50 / 60 Hz; ≤ 10 A
Over-temperature threshold70 °C
CoolingSelf-contained forced-air cooling
Operating environment0 to 40 °C; ≤ 90% RH
Storage temperature-10 to 50 °C
Dimensions448 × 600 × 225 mmW × L × H; 5U rack
Optional configurationsFront-panel I/O position, DB15 safety lock, gain adjustment, humidity alarm and cloud boxOptional configurations

Specifications are subject to change without notice.

Models, Configuration & Compatibility

XPA-0727-200

Control interfaces and software

The XPA-0727-200 RF Power Amplifier should be scoped with the signal source, DUT/load, couplers, protection threshold, cooling and control interface before final quotation.

Solid-state RF power · GPIB / LAN control · VSWR protection · Continuous-duty operation · EMC drive workflow

Order codes and configuration are confirmed in the quotation.

Technical Resources

Download Datasheet

PDF technical specifications

Get a Quote

Pre-filled product inquiry

Selection guidance

Format: Solid-state rack amplifier

Coverage: 0.7 to 2.7 GHz; 200 W CW; at least 53 dB gain

Best for: Wireless, medical, EMC, and RF stimulus benches needing over-VSWR, over-temperature, over-excitation, forced-air cooling, GPIB, and LAN details.
