YNA-P060 Handheld Vector Network Analyzer
6 GHz Handheld Two-Port Vector Network Analyzer
YNA-P060 combines two-port S-parameter measurements from 100 kHz to 6 GHz with VNStudio, a touchscreen and standard ECB-60 electronic calibration.
Get a Quote
- Frequency range
- 100 kHz to 6 GHz
- Number of ports
- 2 ports
- Dynamic range
- 100 to 120 dB
- Typical
- Battery life
- 5-hour battery life with power bank support
Overview
YNA-P060 measures two-port networks from 100 kHz to 6 GHz. VNStudio displays S11, S12, S21 and S22 as magnitude, phase, SWR or Smith charts, with frequency, power and CW sweep modes.
The handheld system includes an ECB-60 electronic calibration module and amplitude- and phase-stable test cables. A 10.1-inch multi-touch display, typical five-hour operation and power-bank support cover laboratory and field setups.
Product & Measurement Gallery

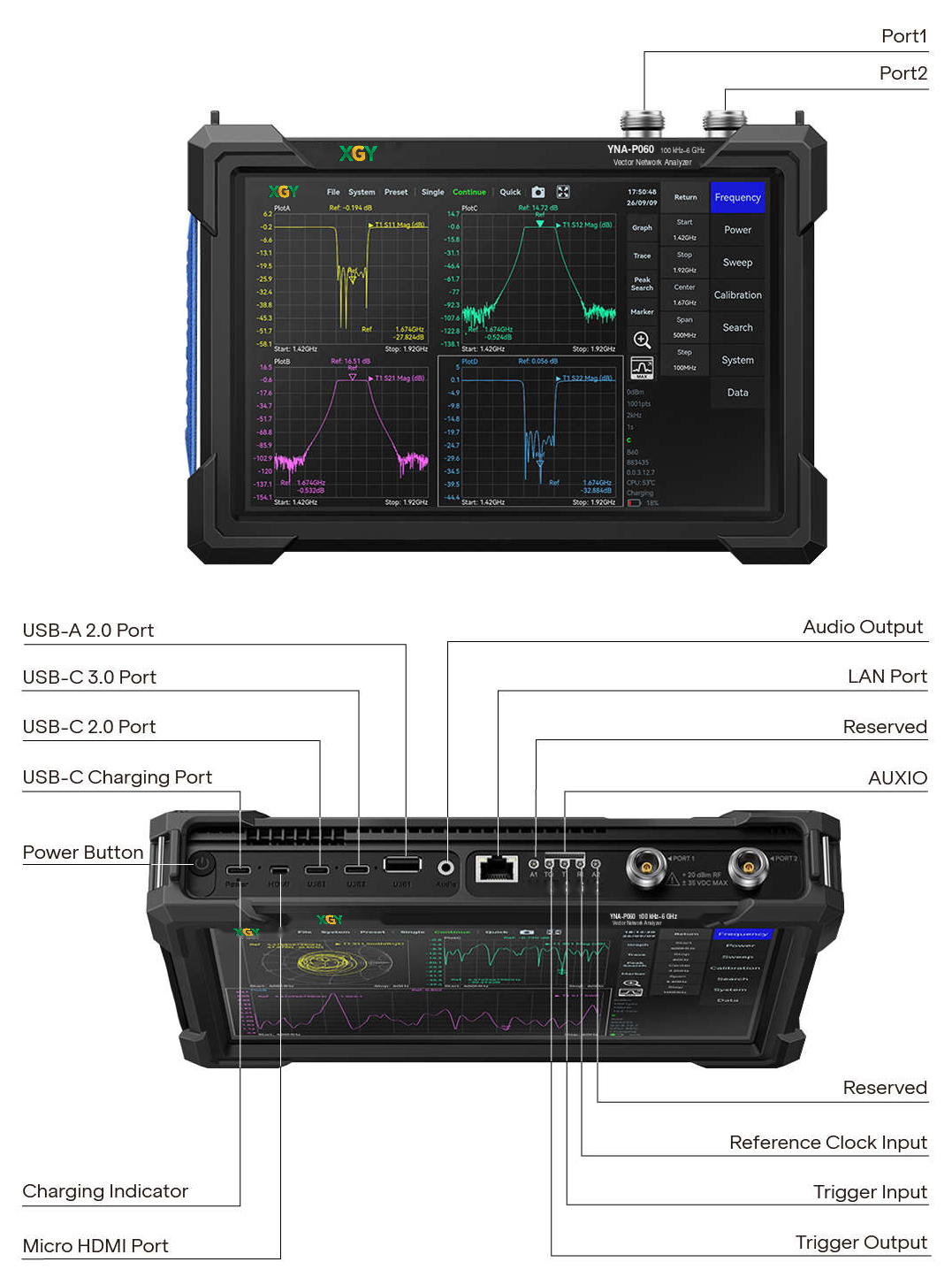

YNA-P060 Interface Description
Front and rear interface views with port and control callouts.

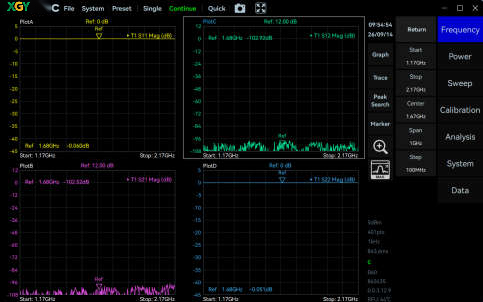

VNStudio User Interface
VNStudio measurement display and control interface.

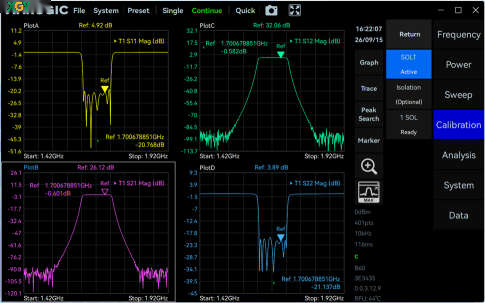

Two-Port S-Parameter Measurements
VNStudio display for two-port S-parameter traces.

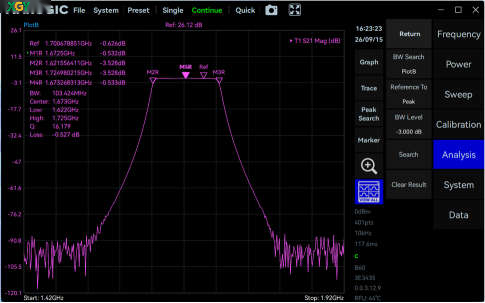

VNStudio Analysis Functions
VNStudio analysis display with markers and trace results.

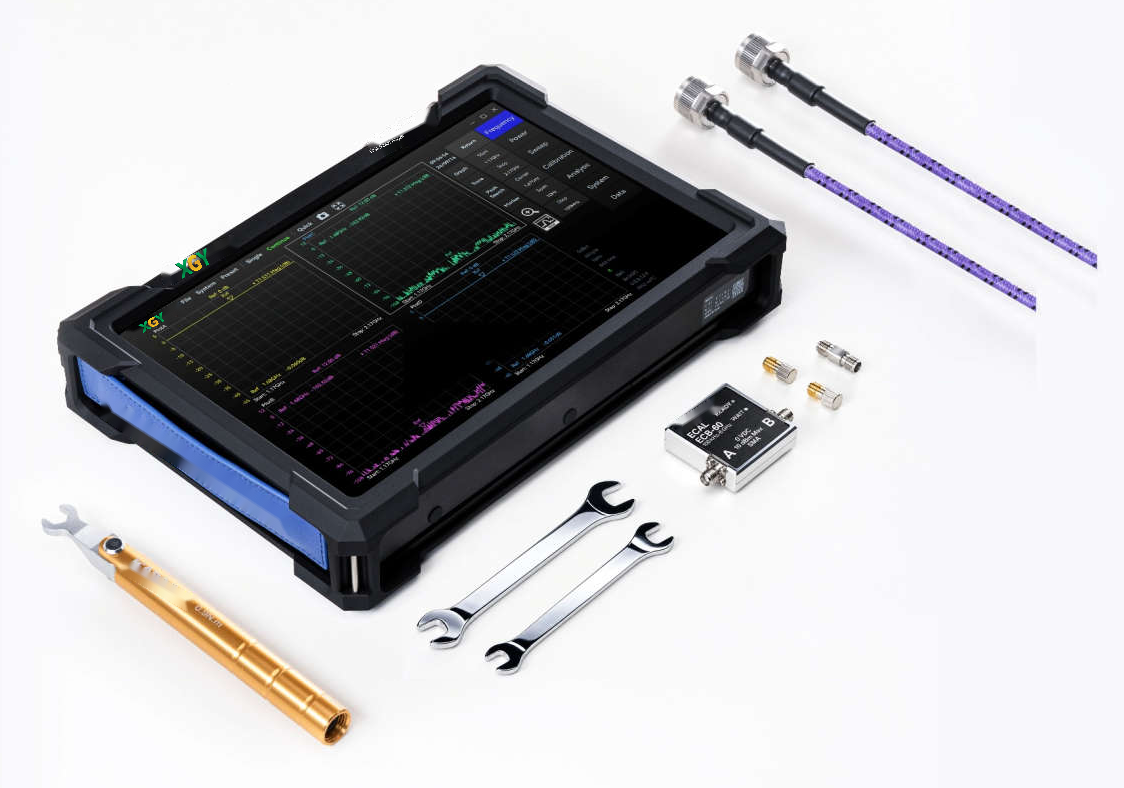

YNA-P060 Measurement Kit
YNA-P060 instrument with ECB-60, cables, loads, adapters, and wrench set.
Additional product details
The YNA-P060 delivers high-quality two-port S-parameter measurements, featuring a high-performance directional coupler with ≥ 40 dB effective directivity and a professional receiver design providing 100–120 dB typical dynamic range. It combines excellent portability with an interactive experience comparable to a benchtop VNA, featuring a 10.1-inch high-resolution, high-brightness touchscreen and weighing only 1.4 kg. This combination enables deployment and operation in both the laboratory and the field.
High Usability and Measurement Confidence
The YNA-P060 can be paired with the ECB-60 electronic calibration module and verified amplitude- and phase-stable cables to form a complete test solution. The dedicated ECB-60 simplifies calibration while providing sufficient accuracy for most applications. The verified cables help prevent measurement errors caused by poor cable performance. Together with VNStudio, the YNA-P060 provides an interactive experience comparable to, or even more convenient than, a benchtop VNA, making instrument setup, calibration, and S-parameter measurements more intuitive and efficient.
Clear and User-Friendly Interface
VNStudio features a modular interface with five clearly organized functional areas: the menu bar, measurement display area, graph settings area, parameter settings area, and status information bar.
Two-Port S-Parameter Measurements
VNStudio supports S11, S12, S21, and S22 measurements with multiple display formats, including logarithmic magnitude, linear magnitude, phase, real, imaginary, SWR, and Smith chart. It is suitable for network parameter measurements of RF devices such as filters, amplifiers, cables, and antennas.
Flexible Sweep and Scenario Configuration
VNStudio supports linear frequency, logarithmic frequency, power, and CW sweeps, with configurable IF bandwidth, sweep points, averaging, and dwell time. Built-in measurement scenarios for typical devices allow quick recall of sweep and trace configurations for efficient setup.
Automatic Search and Analysis
VNStudio supports bandwidth and X dB searches for quick extraction of key frequency characteristics from traces. DTF analysis converts frequency-domain measurements to the time or distance domain, with multiple transform modes, display formats, and window functions to help locate impedance discontinuities in cables and other devices.
Key Capabilities & Applications
Characterize two-port networks
Measure S11, S12, S21 and S22 with IF bandwidth from 15 Hz to 75 kHz. Output power is frequency-dependent: −35 to −4 dBm from 100 kHz to 10 MHz and −35 to +5 dBm from 10 MHz to 6 GHz.
Calibrate the measurement
SOLT and isolation calibration are included by default. The standard ECB-60 module covers 100 kHz to 6 GHz, with matched loads and stable test cables in the supplied package.
Analyze and automate
VNStudio provides bandwidth and X dB searches and DTF analysis. SCPI commands and LAN remote control support automated measurements, while the integrated screen supports local operation.
Common applications
- Two-port S-parameter measurement
- RF filter, amplifier, cable, and antenna testing
- Laboratory and field RF characterization
Technical Specifications
| Parameter | Specification |
|---|---|
| Key features | |
| Frequency range | 100 kHz to 6 GHz |
| Number of ports | 2 ports |
| Dynamic range | 100 to 120 dBTypical |
| Trace noise | ≤ 0.003 dBrmsTypical |
| IF bandwidth | 15 Hz to 75 kHz |
| Output power | -35 to +5 dBm; frequency-dependent |
| Battery life | 5-hour battery life with power bank support |
| General | |
| Weight | ≤ 1.4 kg |
View all 12 specifications
| Parameter | Specification |
|---|---|
| General | |
| Display | 10.1-inch IPS LCD, 1280 × 800, multi-touch |
| Dimensions (L × W × H) | 260 × 185 × 46 mm |
| Operating temperature (ambient) | 0 to 50 °C |
| Storage temperature (ambient) | -20 to +70 °C |
Detailed performance and interface tables (10)
Key features (13 rows)
| Specification | YNA-P060 |
|---|---|
| Frequency range | 100 kHz to 6 GHz |
| Number of ports | 2 ports |
| Directional coupler | High-performance directional coupler with effective directivity ≥ 40 dB |
| Output power | -35 to +5 dBm |
| Dynamic range | 100 to 120 dB (typ.) |
| Trace noise | ≤ 0.003 dBrms (typ.) |
| IF bandwidth | 15 Hz to 75 kHz |
| Sweep speed | 150 µs/point at 75 kHz IF bandwidth |
| Electronic calibration module | ECB-60 (standard) |
| Test cables | Amplitude- and phase-stable cables (standard) |
| Remote commands | Supports SCPI commands |
| Battery life | 5-hour battery life with power bank support |
| Portable design | 1.4 kg with a 10.1-inch multi-touch display |
Frequency (7 rows)
| Specification | YNA-P060 |
|---|---|
| Frequency range | 100 kHz to 6 GHz |
| Frequency resolution | ≤ 10 Hz |
| Reference clock | Internal or external |
| Frequency stability | < ± 2.5 ppm |
| Aging rate | ≤ 1 ppm/year |
| Sweep points | 11 to 65535 |
| IF bandwidth range | 15 Hz to 75 kHz |
S-parameter measurement capability (5 rows)
| Frequency range | YNA-P060 |
|---|---|
| 100 kHz to 1 MHz | 90 dB, 100 dB (typ.) |
| 1 MHz to 10 MHz | 100 dB, 105 dB (typ.) |
| 10 MHz to 3 GHz | 115 dB, 120 dB (typ.) |
| 3 GHz to 4.5 GHz | 110 dB, 115 dB (typ.) |
| 4.5 GHz to 6 GHz | 110 dB, 115 dB (typ.) |
Dynamic range at 15 Hz IF bandwidth.
Corrected system performance (typ.) (20 rows)
| Frequency range | 85033E Mechanical Calibration Kit | ECB-60 Electronic Calibration Module |
|---|---|---|
| Directivity | ||
| 100 kHz to 1 MHz | 45 dB | 32 dB |
| 1 MHz to 10 MHz | 50 dB | 45 dB |
| 10 MHz to 4.5 GHz | 50 dB | 48 dB |
| 4.5 GHz to 6 GHz | 44 dB | 42 dB |
| Load match | ||
| 100 kHz to 1 MHz | 40 dB | 30 dB |
| 1 MHz to 10 MHz | 46 dB | 44 dB |
| 10 MHz to 4.5 GHz | 48 dB | 46 dB |
| 4.5 GHz to 6 GHz | 44 dB | 42 dB |
| Source match | ||
| 100 kHz to 1 MHz | 42 dB | 25 dB |
| 1 MHz to 10 MHz | 46 dB | 44 dB |
| 10 MHz to 4.5 GHz | 46 dB | 38 dB |
| 4.5 GHz to 6 GHz | 42 dB | 32 dB |
| Transmission tracking | ||
| 100 kHz to 1 MHz | ± 0.05 dB | ± 0.15 dB |
| 1 MHz to 10 MHz | ± 0.03 dB | ± 0.05 dB |
| 10 MHz to 4.5 GHz | ± 0.02 dB | ± 0.08 dB |
| 4.5 GHz to 6 GHz | ± 0.02 dB | ± 0.15 dB |
| Reflection tracking | ||
| 100 kHz to 1 MHz | ± 0.05 dB | ± 0.40 dB |
| 1 MHz to 10 MHz | ± 0.03 dB | ± 0.05 dB |
| 10 MHz to 4.5 GHz | ± 0.03 dB | ± 0.06 dB |
| 4.5 GHz to 6 GHz | ± 0.03 dB | ± 0.10 dB |
Trace noise (1 row)
| Specification | YNA-P060 |
|---|---|
| 10 MHz to 6 GHz; 1 kHz IF bandwidth | 0.003 dBrms / 0.02 degree rms (typ.) |
Sweep speed (2 rows)
| Calibration | 75 kHz IF bandwidth | 10 kHz IF bandwidth | 1 kHz IF bandwidth |
|---|---|---|---|
| Uncalibrated or one-port calibration | 45 ms | 61 ms | 250 ms |
| Two-port calibration | 51 ms | 85 ms | 450 ms |
10 MHz to 6 GHz; 201 points.
Power (4 rows)
| Specification | YNA-P060 |
|---|---|
| Range: 100 kHz to 10 MHz | -35 to -4 dBm |
| Range: 10 MHz to 6 GHz | -35 to +5 dBm |
| Resolution | 0.25 dB |
| Accuracy | ± 1.5 dB |
General (17 rows)
| Specification | YNA-P060 |
|---|---|
| RF ports | Port 1 and Port 2, N (F), impedance 50 Ω. Damage input level: +20 dBm or ±35 VDC. |
| Power | USB PD (65 W), supports power bank operation |
| USB ports | USB 3.0 Type-C × 1, USB 2.0 Type-C × 1, USB 2.0 Type-A × 1 |
| Ethernet port | RJ45, 1000 Mbps, supports remote control over LAN |
| Video and audio interfaces | Micro HDMI × 1 (supports external display), 3.5 mm headphone jack × 1 |
| External reference clock input | MMCX (F), 10 MHz, allowable input level: -8 to +10 dBm |
| External trigger input | MMCX (F), 3.3 V CMOS, high impedance |
| Trigger output | MMCX (F), 3.3 V CMOS, high impedance |
| Display | 10.1-inch IPS LCD, 1280 × 800, multi-touch |
| Power consumption | ≤ 15 W |
| Operating time | 5 hours (typ.) |
| Dimensions (L × W × H) | 260 × 185 × 46 mm |
| Weight | ≤ 1.4 kg |
| Operating temperature (ambient) | 0 to 50 °C |
| Storage temperature (ambient) | -20 to +70 °C |
| Operating relative humidity; ambient 0 to 40 °C | 5 to 75% |
| Operating relative humidity; ambient > 40 °C | 5 to 45% |
Standard accessories (2 rows)
| Specification | YNA-P060 |
|---|---|
| Electronic calibration module | ECB-60, 100 kHz to 6 GHz |
| RF test cable | CKB Series armored amplitude- and phase-stable RF cable |
Packaging accessories (9 rows)
| Specification | Quantity |
|---|---|
| YNA-P060 main unit | 1 |
| Power adapter | 1 |
| Power cord | 1 |
| ECB-60 electronic calibration module | 1 |
| Matched loads | 2 |
| USB cable | 1 |
| CKB Series armored amplitude- and phase-stable cables | 2 |
| SMA female-to-female adapter | 1 |
| Wrench set | 1 |
- Dynamic range: IF bandwidth of 15 Hz, output power of +5 dBm; ambient temperature of 25 °C (± 3 °C), with a deviation from the calibration temperature of < 1 °C.
- Corrected system performance: IF bandwidth of 15 Hz; ambient temperature of 25 °C (± 3 °C), with a deviation from the calibration temperature of < 1 °C.
- Typical and nominal values are not guaranteed and do not include measurement uncertainty.
- Calibration includes SOLT and isolation calibration by default.
- Specifications are subject to change with hardware and software revisions without notice.
Performance notes
The YNA-P060 sweep-speed times apply from 10 MHz to 6 GHz with 201 points.
Specifications are subject to change without notice.
Models, Configuration & Compatibility
YNA-P060
Control interfaces and software
VNStudio provides S11, S12, S21 and S22 measurements with logarithmic and linear magnitude, phase, real, imaginary, SWR and Smith-chart displays. Linear-frequency, logarithmic-frequency, power and CW sweeps are supported, together with bandwidth and X dB searches and DTF analysis. SCPI commands and remote LAN control are supported.
VNStudio · SCPI · LAN
Order codes and configuration are confirmed in the quotation.
