GT-E-DNC-7681 Bench-Top E-Band Down-Converter

E-Band Down-Conversion with an Integrated 73 GHz LO

GT-E-DNC-7681 is a bench-top fundamental down-converter for noise-figure and receiver tests. Typical RF coverage is 76–81 GHz, converted to a typical 3–8 GHz IF using the integrated 73 GHz LO.

Get a Quote
GT-E-DNC-7681 Bench-Top E-Band Down-Converter
RF frequency
76 to 81 GHz
Typical
IF frequency
3 to 8 GHz
Typical
RF-IF gain
20 dB
Typical
Mixer type
Fundamental Mixer
Typical

Overview

GT-E-DNC-7681 is a bench-top fundamental down-converter for noise-figure and receiver tests. Typical RF coverage is 76–81 GHz, converted to a typical 3–8 GHz IF using the integrated 73 GHz LO.

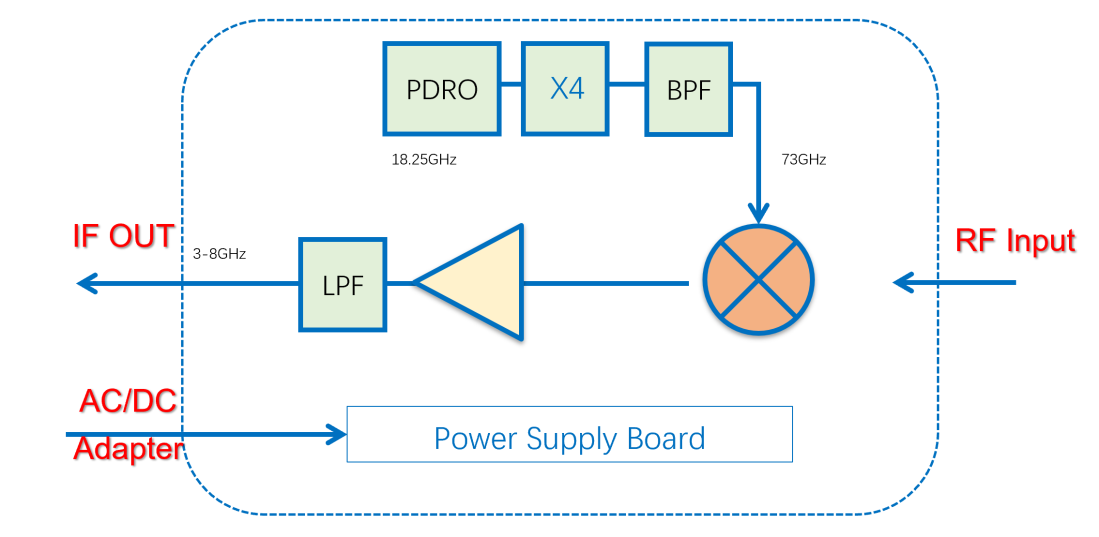

  1. Diagram block

    Integrated with LO.

Additional product details

The GT-E-DNC-7681 down-converter can be used for NF test and general receiver application.

Key Capabilities & Applications

Integrated conversion chain

The fixed internal LO removes the need for an external LO chain. RF-to-IF gain is 20 dB typical.

Waveguide and coaxial interfaces

A WR-12 RF port with UG-387/U flange and SMA female LO/IF ports connect the E-band converter to the bench.

Input and supply planning

RF input P1dB is +5 dBm typical; +13 dBm is the RF damage/absolute-maximum limit. An AC/DC converter is included for the +12 V bias supply.

Common applications

  • Noise figure test
  • 5G communication
  • ROF (RF over fiber)
  • Radar system
  • RCS test
  • Bench-top labs test

Technical Specifications

ParameterSpecification
Key features
RF frequency76 to 81 GHzTypical
LO inside73 GHzTypical
IF frequency3 to 8 GHzTypical
RF-IF gain20 dBTypical
RF input P1dB+5 dBmTypical
RF damage input level+13 dBmMaximum
Mechanical information
RF portWR-12 Waveguide with UG-387/U Flange
DC bias+12 V Supply, AC to DC Power Converter included
View all 18 specifications
ParameterSpecification
Key features
Mixer typeFundamental MixerTypical
Power supplyMin: +90 V; Typical: +220 V; Max: +240 VWith AC/DC adapter
Spec temperature25 °CTypical
Mechanical information
LO portSMA Female
IF portSMA Female
DC bias switchON-OFF switch with light indicator
Absolute maximum ratings
AC supply+260 VAbsolute maximum
RF input power+13 dBmAbsolute maximum
Operating temperature0 to 50 °CAbsolute maximum
Storage temperature-45 to +85 °CAbsolute maximum

Specifications are subject to change without notice.

Models, Configuration & Compatibility

GT-E-DNC-7681

Standard delivery contents

  • AC to DC power converter — Provides the +12 V DC bias supply.

Technical Resources

Download Datasheet

PDF technical specifications

Get a Quote

Pre-filled product inquiry

Selection guidance

Format: Bench-top down-converter

Coverage: 76 to 81 GHz RF to 3 to 8 GHz IF, typical; 73 GHz internal LO, typical; 20 dB RF-IF gain, typical

Best for: Bringing E-band signals into the range of a standard spectrum analyzer or receiver without building an external LO chain.
