GT-W-AM6-75110 Full W-Band Active Multiplier

Active ×6 Multiplier for 75 to 110 GHz Output

GT-W-AM6-75110 extends a 12.50–18.33 GHz microwave source into 75–110 GHz W-band output. The active ×6 multiplier provides 100 mW typical output through a WR-10 waveguide interface.

Get a Quote

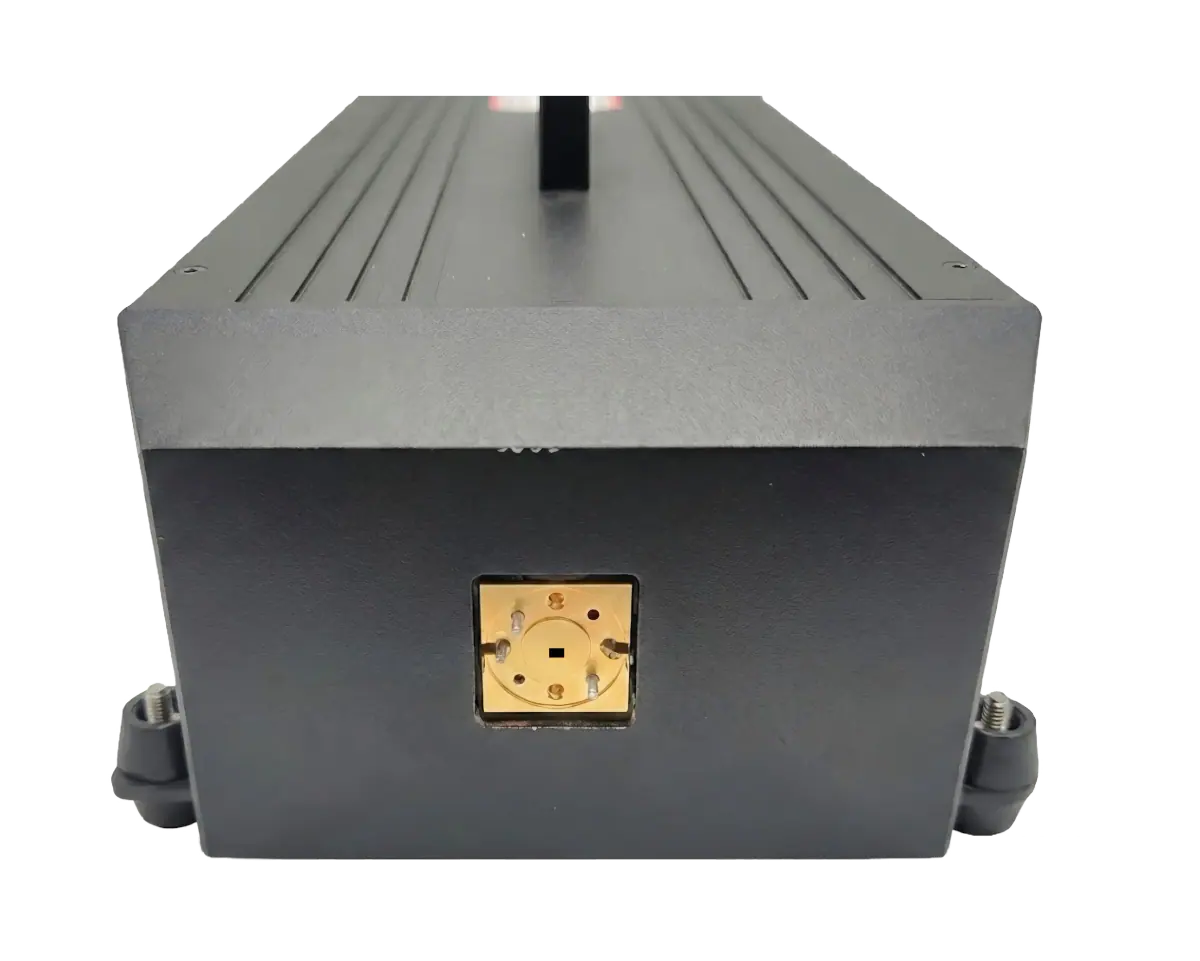

GT-W-AM6-75110 Full W-Band Active Multiplier
Frequency range
75 to 110 GHz
Output power
100 mW
Typical
Multiplier factor
x6 Active
Input frequency
12.50 to 18.33 GHz

Overview

GT-W-AM6-75110 extends a 12.50–18.33 GHz microwave source into 75–110 GHz W-band output. The active ×6 multiplier provides 100 mW typical output through a WR-10 waveguide interface.

Additional product details

The GT-W-AM6-75110 is designed for straightforward bench integration, enabling users to extend the frequency range of standard microwave signal generators into the W-Band (75 to 110 GHz). With a multiplier factor of x6, the GT-W-AM6-75110 accepts input signals from 12.50 to 18.33 GHz at its SMA connector and delivers a 75 to 110 GHz output frequency range through its WR-10 waveguide interface.

Ideally suited for R&D component verification and mmWave system bring-up, the GT-W-AM6-75110 provides a clean, high-power output (100 mW typical) with excellent harmonic suppression (-25 dBc). The GT-W-AM6-75110 delivers repeatable W-band output under controlled bench conditions for R&D and production test setups.

The drive plan is the one thing to settle before ordering: the module expects +4 dBm at the SMA input and must not see more than +13 dBm, so a source with adjustable output or a pad in line is worth planning for rather than discovering at the bench.

Key Capabilities & Applications

W-band source extension

Multiply the input frequency by six for component characterization and millimeter-wave system tests, with −25 dBc harmonic suppression.

Defined drive conditions

Input power is +4 dBm typical with a 0 to +8 dBm range. The maximum RF input is +13 dBm damage level.

Bench supply and connections

The RF input is SMA female and output is WR-10. Supply is 240 V AC, with an optional +10 V DC supply configuration.

Common applications

  • W-band component characterization
  • W-band system bring-up
  • MmWave system bring-up
  • R&D and production test setups

Technical Specifications

ParameterSpecification
Frequency range75 to 110 GHz
Output power100 mWTypical
Multiplier factorx6 Active
Input frequency12.50 to 18.33 GHz
Input power+4 dBm typical; 0 to +8 dBm range
Maximum RF input+13 dBm (damage level)
Output interfaceWR-10 waveguide
Power supply240 V AC (optional +10 V DC)
View all 14 specifications
ParameterSpecification
Harmonic suppression-25 dBc
Input connectorSMA (female)
Optional DC supply current0.5 ATypical; DC +10 V supply option
Dimensions200 × 180 × 100 mmActual dimensions subject to physical product
Operating temperature-10 to 40 °CAbsolute maximum
Storage temperature-25 to 80 °CAbsolute maximum

Specifications are subject to change without notice.

Models, Configuration & Compatibility

GT-W-AM6-75110

Order codes and configuration are confirmed in the quotation.

Technical Resources

Download Datasheet

PDF technical specifications

Get a Quote

Pre-filled product inquiry

Selection guidance

Format: Active x6 multiplier

Coverage: 12.5 to 18.33 GHz input; 75 to 110 GHz output; 100 mW typical output

Best for: Extending a microwave source into full W-band when the x6 drive and waveguide plan are defined.
