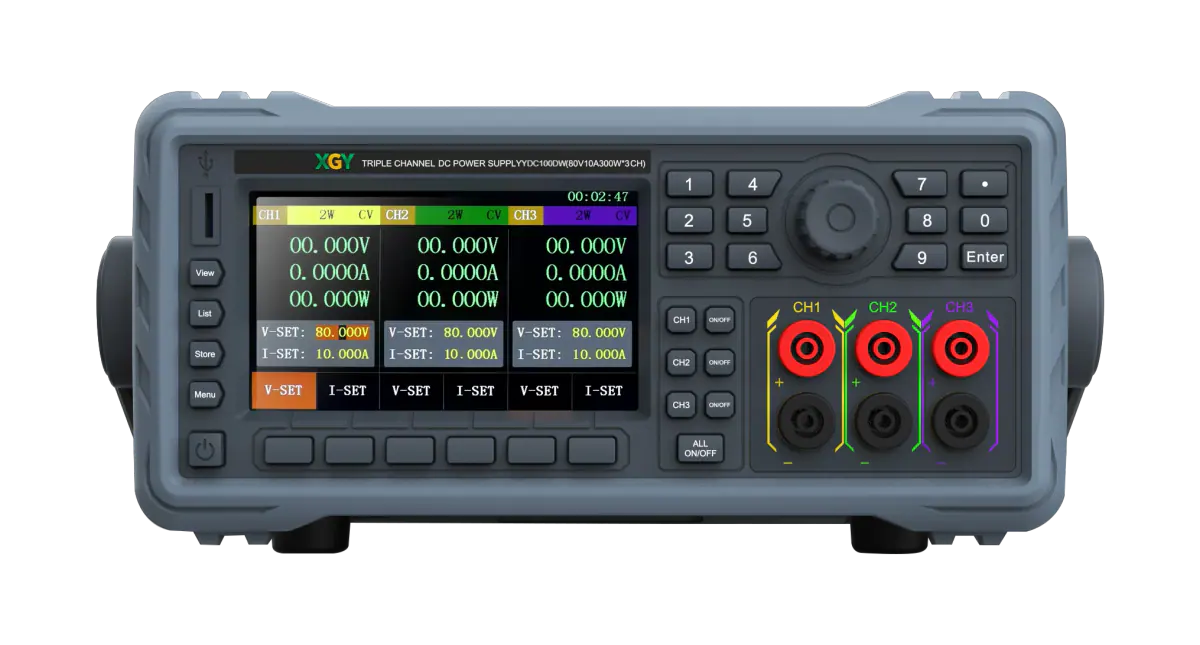

Name: YDC100 Series Multi-Channel Programmable DC Power Supply
Brand: XGY Tek

Overview

YDC100 combines two-channel YDC100DW and three-channel YDC100TW configurations for multi-rail R&D and ATE tests. Model-dependent limits reach 150 V or 10 A per channel, with 1 mV / 0.1 mA programming resolution.

Additional product details

The YDC100 Series combines low ripple, fine resolution, multi-step list programming, remote sense compensation, and CC/CV priority control in a compact instrument platform. Available in dual-channel and triple-channel configurations, the YDC100 delivers clean programmable DC output with both front-panel usability and remote SCPI/Modbus integration for engineering labs, automated production, and dynamic device test workflows. YDC100 programming and readback resolution is 1 mV / 0.1 mA.

Engineering overview

The YDC100 Series is a programmable DC power supply family designed for precision bench use, automated test environments, and device validation workflows that require stable multi-channel output. The series includes dual-channel YDC100DW models and triple-channel YDC100TW models, giving users flexibility when powering multiple rails or devices at the same time.

In addition to low ripple and fine resolution, the YDC100 series includes list programming, real-time waveform view, USB data logging, remote sense, configurable CC/CV priority, and programmable slew rate control. This makes the platform well suited to applications where dynamic load behavior, controlled ramping, and automated data capture are important.

Mechanical and environmental notes

YDC100DW is listed at 260 × 123 × 410 mm. YDC100TW is listed at 260 × 123 × 515 mm.

Key Capabilities & Applications

Multi-rail model selection

Representative models provide 80 V / 6 A, 80 V / 10 A or 150 V / 5 A ratings. Choose the channel count and rating for the DUT.

Sequences and fine settings

List programming, waveform sequencing and programmable slew rate support repeatable profiles. Voltage ripple is <8 mVrms and current ripple <5 mArms.

Sense and remote operation

Remote sense provides up to 2 V compensation. RS232 is standard; RS485, USB or LAN are optional, with SCPI and Modbus support.

All capabilities and operating conditions

Multi-channel flexibility

Available in dual-channel and triple-channel configurations for more complex test setups.

Advanced sequencing

Supports list programming, waveform sequencing, and programmable slew rate control.

Protected operation

Includes OVP, OCP, OTP, remote sense, and panel lock for safer DUT testing.

Common applications

R&D bench testing
Device characterization
Automated integrated test systems
Multi-rail DUT validation
Dynamic output workflows

Applications and test requirements

R&D bench testing

Device characterization

Low ripple and fine resolution for repeatable measurements.

Automated integrated test systems

Multi-rail DUT validation

Dynamic output workflows

List mode, remote sense, and CC/CV priority control.

Technical Specifications

Parameter	Specification
Channel count	2 (YDC100DW) or 3 (YDC100TW)
Representative models	80 V / 6 A, 80 V / 10 A, 150 V / 5 AYDC100DW and YDC100TW
Voltage range	Up to 150 V per channel depending on model
Current range	Up to 10 A per channel depending on model
Programming resolution	1 mV / 0.1 mA
Ripple and noise	< 8 mVrms voltage ripple, < 5 mArms current ripple
Remote sense	Max 2 V compensation
Remote control	RS-232 standard, optional RS-485 / USB / LAN, SCPI and Modbus

View all 23 specifications

Parameter	Specification
Series type	Programmable DC power supply family
Configuration	Dual-channel YDC100DW and triple-channel YDC100TW
Peak-to-Peak voltage ripple	30 mVpp
Setting accuracy	Voltage ≤ 0.1% + 8 mV, current ≤ 0.2% + 2 mA
Load regulation	Voltage ≤ 0.02% + 8 mV, current ≤ 0.02% + 5 mA
Line regulation	Voltage ≤ 0.02% + 8 mV, current ≤ 0.02% + 5 mA
Transient response	< 20 ms full load
Rise time	≤ 80 ms
Fall time	≤ 5.2 ms
Readback accuracy	Voltage ≤ 0.1% + 8 mV; current ≤ 0.2% + 2 mA25 °C ±5 °C
Operating environment	0 to 40 °C; ≤ 80% RH
Storage environment	-15 to 70 °C; ≤ 80% RH
Dual-channel dimensions	260 × 123 × 410 mmYDC100DW; W × H × D
Triple-channel dimensions	260 × 123 × 515 mmYDC100TW; W × H × D
AC input selector	110 V / 220 V

Specifications are subject to change without notice.

Models, Configuration & Compatibility

YDC100

Model comparison (2)

Model selection guide
Model Family	Example Models	Channel Count	Output Profile	Best Fit
YDC100DW	YDC100DW-80-6, YDC100DW-80-10, YDC100DW-150-5	2	Up to 150 V x2 and up to 10 A x2 depending on model	Dual-rail lab testing and compact automated setups
YDC100TW	YDC100TW-80-6, YDC100TW-80-10, YDC100TW-150-5	3	Up to 150 V x3 and up to 10 A x3 depending on model	Multi-rail DUT validation and higher channel-count workflows

Individual model ratings and input-power budget
Model	Channels	Voltage / channel	Current / channel	Power / channel	Full-load power consumption	Net weight
YDC100DW-80-6	2	80 V	6 A	200 W	500 W	4.3 kg
YDC100DW-80-10	2	80 V	10 A	300 W	800 W	4.8 kg
YDC100DW-150-5	2	150 V	5 A	300 W	700 W	4.8 kg
YDC100TW-80-6	3	80 V	6 A	200 W	700 W	5.6 kg
YDC100TW-80-10	3	80 V	10 A	300 W	1100 W	6.1 kg
YDC100TW-150-5	3	150 V	5 A	300 W	1200 W	6.1 kg

Per-channel maxima identify the selected model; voltage and current maxima are not a simultaneous full-power operating point. Power consumption is the full-load input figure.

Standard delivery contents

User manual (×1)
Communication cable (×1)
Calibration report (×1)
Power cord (×1)
Test leads — Varies by model.

Control interfaces and software

RS232 is standard, with optional RS485, USB or LAN remote-control interfaces. Remote sense terminals are provided for the output channels; SCPI and Modbus are supported.

RS232 · SCPI · Modbus · Remote sense · Optional RS485 / USB / LAN

Technical Resources

Download Datasheet

PDF technical specifications

Get a Quote

Pre-filled product inquiry

Selection guidance

Format: Dual- or triple-channel DC source

Coverage: 2 or 3 channels; up to 150 V voltage and 10 A current per channel; 300 W per channel

Best for: R&D and automated test requiring independently controlled multi-rail DC outputs with sequencing and remote control.

Compare products in the Power Supplies category

Send the operating envelope, configuration and acceptance evidence you need; the quotation confirms model, options and delivery documentation.

How do DW and TW configurations differ?

YDC100DW has two channels and measures 260 × 123 × 410 mm. YDC100TW has three channels and measures 260 × 123 × 515 mm; dimensions are W × H × D.

Which interfaces are standard?

RS232 is standard. RS485, USB and LAN are optional remote-control interfaces; SCPI and Modbus are supported.

What does remote sense compensate?

Remote sense compensates output-lead voltage drop up to 2 V. Setting resolution is 1 mV / 0.1 mA, which is separate from the specified setting and readback accuracy.

YDC100 Series Multi-Channel Programmable DC Power Supply
