GL Series Phase-Stable Test Cable
Frequency range
DC to 26.5 GHz
By configuration
Shielding effectiveness
> 100 dB
Phase stability
1° from DC to 10 GHz
Amplitude stability
0.05 dB from DC to 26 GHz

Overview

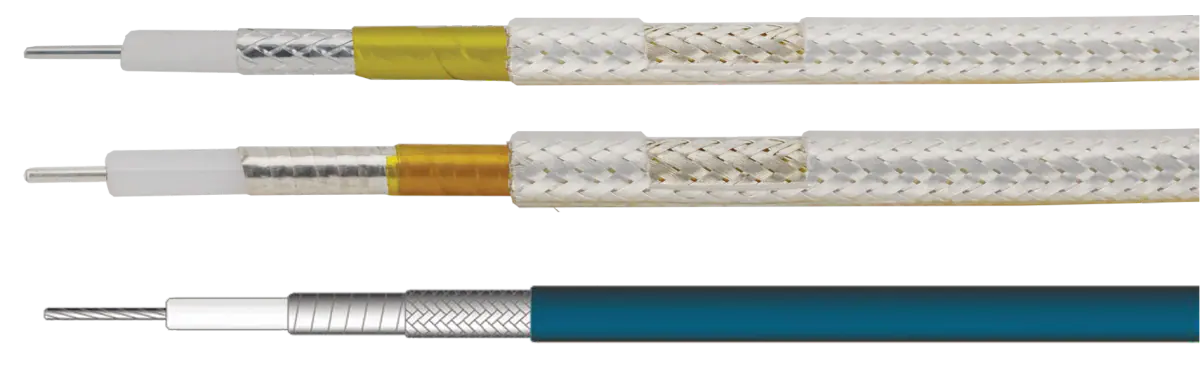

GL Series phase-stable cables cover DC to 26.5 GHz by configuration. Flat silver-plated tape shielding supports phase and amplitude stability, with stainless-steel and nylon armor choices for different mechanical requirements.

Select the cable type, connector pair and assembly length together. GL, Low Loss and Ultra Flex constructions have separate electrical and mechanical specifications; connector-dependent VSWR limits also differ.

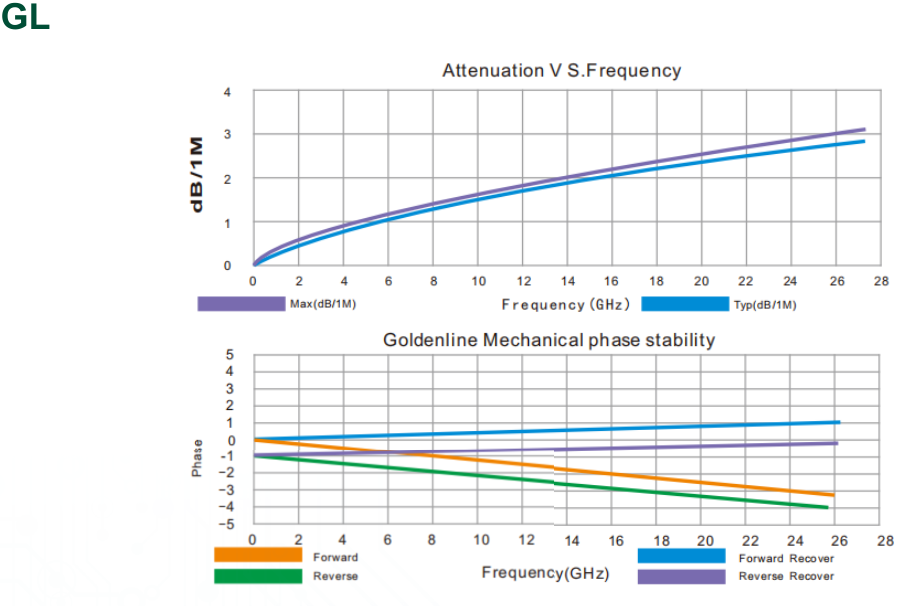

  1. GL attenuation and mechanical phase-stability plots

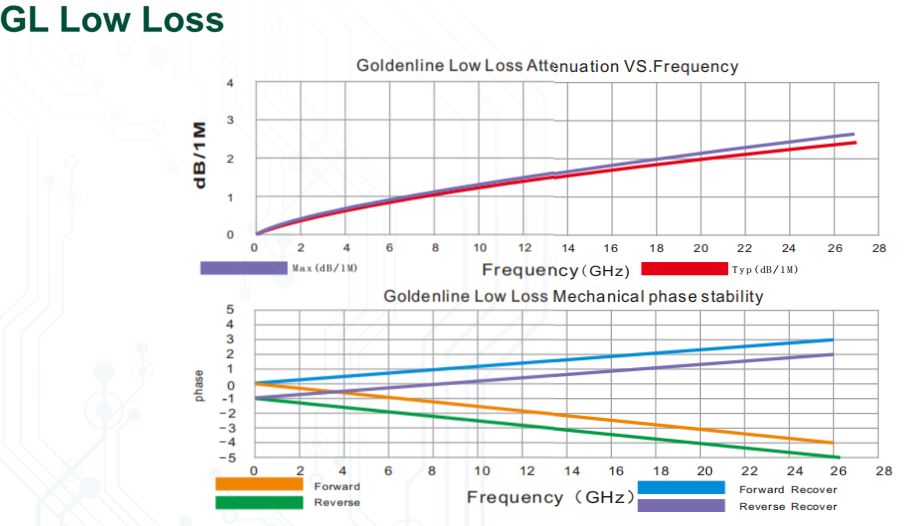

  2. GL Low Loss attenuation and mechanical phase-stability plots

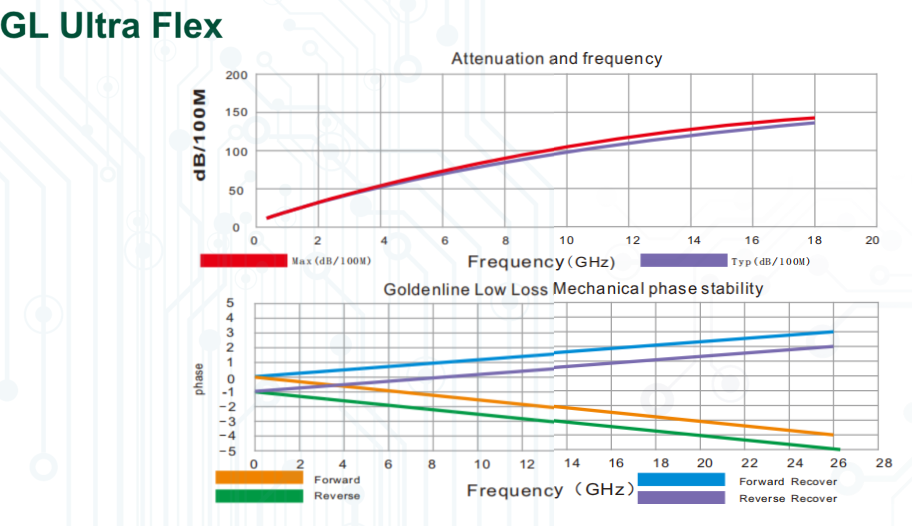

  3. GL Ultra Flex attenuation and mechanical phase-stability plots

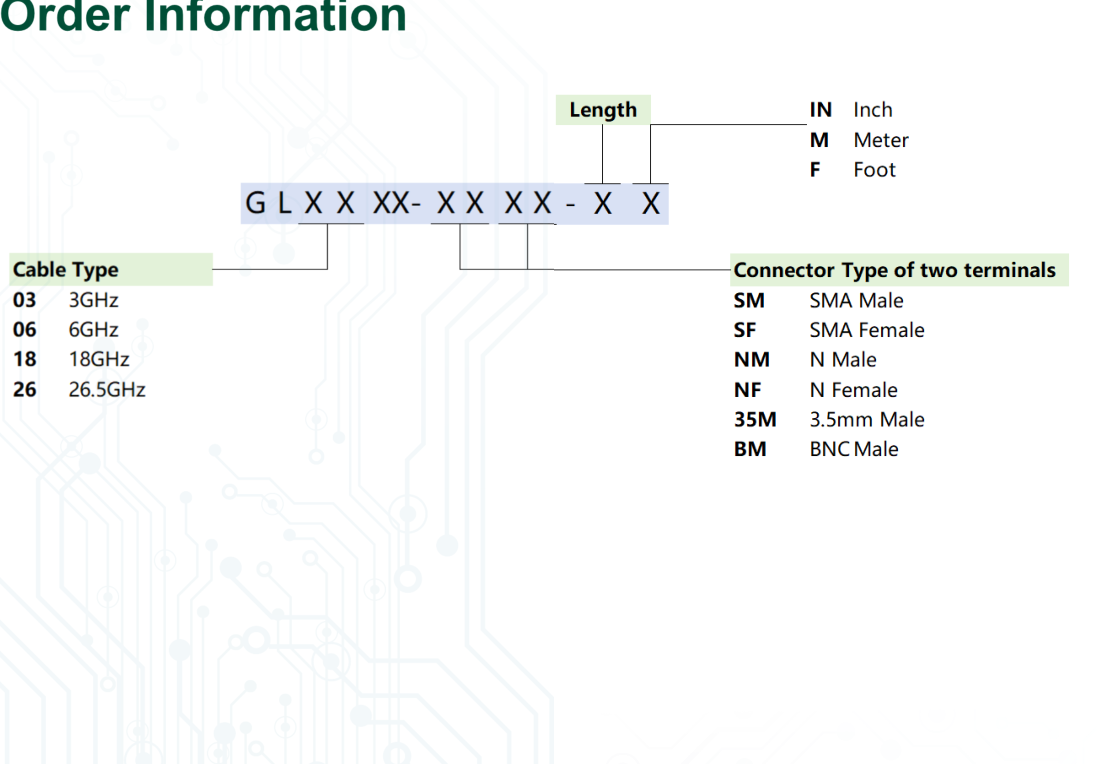

  4. GL Series ordering-code diagram

1 / 4
Additional product details

For outdoor base-station and dynamic-flexure measurement workflows, the GL series offers multiple armor options including stainless steel and nylon to support crush and torque resistance while maintaining measurement repeatability.

Key Capabilities & Applications

Maintain measurement stability

GL phase stability is 1° from DC to 10 GHz and 2° from 10 to 18 GHz. Amplitude stability is 0.05 dB from DC to 26 GHz, with shielding effectiveness greater than 100 dB.

Match construction to handling

The GL cable has a 20 mm minimum bend radius and a −55 to +125 °C temperature range. Low Loss and Ultra Flex constructions use different bend-radius and mechanical specifications.

Configure the complete assembly

Cable codes cover 3, 6, 18 and 26.5 GHz. Connector choices include SMA, N, 3.5 mm and BNC families; final coverage and VSWR depend on the selected assembly.

Common applications

  • Phase-stable RF measurement interconnects
  • Outdoor base-station test setups
  • Harsh-environment RF measurement
  • Dynamic-flexure measurement repeatability
Applications and test requirements

Phase-stable RF measurement interconnects

Outdoor base-station test setups

Harsh-environment RF measurement

Optional steel or nylon armor for demanding handling conditions.

Dynamic-flexure measurement repeatability

Stable performance when the cable is flexed or moved.

Technical Specifications

ParameterSpecification
Frequency rangeDC to 26.5 GHzBy configuration
Phase stability1° from DC to 10 GHz; 2° from 10 to 18 GHz
Amplitude stability0.05 dB from DC to 26 GHz
Shielding effectiveness> 100 dB
Minimum bend radius20 mm
Temperature range-55 to +125 °C
Armor optionsStainless steel (SS) or nylon sleeve
Connector optionsSMA (SM / SF), N (NM / NF), 3.5 mm (3M / 35M / 3F), 35NMD and BM
View all 15 specifications
ParameterSpecification
TechnologyFlat Tape
Velocity of propagation70%
Capacitance96.41 pF/m
Bending cycles> 5,000
Cable weight0.064 kg/mGL cable
Outer jacket diameter4.95 mmGL cable
Armor compression100 kg (PVC); 60 kg (SS); 80 kg (nylon)GL cable; by armor configuration
Detailed performance and interface tables (4)
Ultra Flex series comparison (11 rows)
Ultra Flex series comparison
ParameterUltra Flex
Frequency rangeDC to 26.5 GHz
Velocity of propagation77%
Shielding efficiency> 90 dB
Amplitude stability0.05 dB (DC to 26 GHz)
Phase stability1.1° from DC to 10 GHz; 2° from 10 GHz to 18 GHz
Minimum bend radius28 mm
Temperature range-55 to +125 °C
Cable weight0.065 kg/m
Inner conductor diameter1.45 mm
Dielectric diameter4.23 mm
Outer jacket diameter5.50 mm
GL and low-loss connector VSWR (3 rows)
GL and low-loss connector VSWR
Connector family3 GHz6 GHz18 GHz26.5 GHz
SMA / 3.5 mm1.071.11.21.25
N / 3.5NMD1.101.151.25—
BNC1.15———

Blank cells indicate that the value is not specified.

Ultra Flex connector VSWR (3 rows)
Ultra Flex connector VSWR
Connector family3 GHz6 GHz18 GHz26.5 GHz
SMA / 3.5 mm1.071.21.251.30
N / 3.5NMD1.101.201.30—
BNC1.15———

Blank cells indicate that the value is not specified.

Low-loss mechanical and construction specifications (7 rows)
Low-loss mechanical and construction specifications
ParameterLow Loss
Capacitance96.41 pF/m
Bending cycles> 5,000
Armor compression100 kg (PVC); 60 kg (SS); 120 kg (Black)
Weight0.050 kg/m
Inner conductor diameter1.02 mm
Dielectric diameter3.05 mm
Outer jacket diameter4.65 mm

Specifications are subject to change without notice.

— Not specified.

Models, Configuration & Compatibility

GL

Model comparison (1)
GL Series and low-loss series comparison (7 rows)
GL Series and low-loss series comparison
ParameterGL SeriesLow Loss Series
Frequency rangeDC to 26.5 GHzDC to 26.5 GHz
Velocity of propagation70%76%
Shielding efficiency> 100 dB> 110 dB
Phase stabilityDC to 10 GHz: 1° / 10 to 18 GHz: 2°DC to 10 GHz: 1.1° / 10 to 18 GHz: 2°
Amplitude stability0.05 dB (DC to 26 GHz)0.05 dB (DC to 26 GHz)
Minimum bend radius20 mm18 mm
Temperature range-55 to +125 °C-55 to +125 °C

Ordering code

Cable type: Cable type 03: 3 GHz coverage; 06: 6 GHz coverage; 18: 18 GHz coverage; 26: 26.5 GHz coverage

Connector: Two terminal connector codes

Length/unit: Length/unit

GL plus cable type, two terminal connector codes, and length/unit.

Technical Resources

Download Datasheet

PDF technical specifications

Get a Quote

Pre-filled product inquiry

Selection guidance

Format: Phase-stable RF test cable

Coverage: DC to 26.5 GHz by configuration; > 100 dB shielding; 1° from DC to 10 GHz and 2° from 10 to 18 GHz phase stability

Best for: Outdoor base-station and harsh-environment interconnects.

Compare products in the RF Accessories category
Information for your quotation

Confirm the final GL cable length, length unit, connector pair, armor option, and assembled part number during ordering.
