Frequency
DC - 67 GHz
Armor
Ruggedized stainless steel armor
Phase Stability
<= 1.5 to <= 3 deg with 10 cm mandrel, model dependent
Shielding Efficiency
-100 dB
DC to 67 GHz Precision VNA Test Cable - Phase-Stable Cable for Vector Network Analysis
XGY VT is a DC to 67 GHz vector network analyzer test cable family for precision VNA applications. Ruggedized stainless-steel armor, triple shielding, and stable phase and loss performance support repeatable measurement under dynamic flexure.
Application fit
Use the application fit, workflow and RFQ sections below to turn a product page into a practical engineering shortlist.
Application fit
VT Series Precision VNA Test Cable should be scoped around vector network analyzer precision measurement, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
VT Series Precision VNA Test Cable should be scoped around R&D and production VNA environments, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
VT Series Precision VNA Test Cable should be scoped around phase and loss stable VNA interconnects, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.
Application fit
VT Series Precision VNA Test Cable should be scoped around dynamic-flexure measurement repeatability, with voltage, power, interface, protection and acceptance requirements confirmed before quotation.

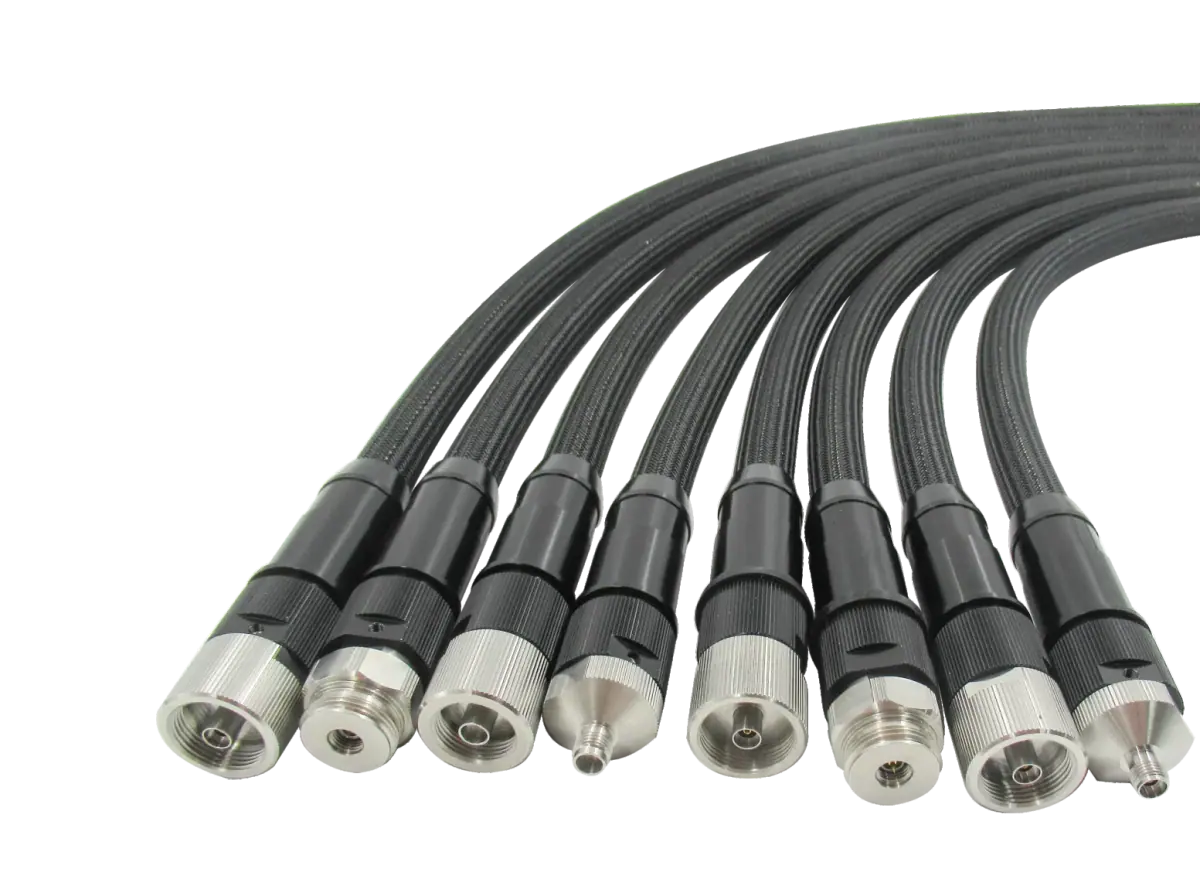

The VT Series VNA Test Cables are the result of advanced engineering to meet the stringent requirements of vector network analysis up to 67 GHz. They provide a stable connection with minimal insertion loss and excellent return loss.
The cable assembly is reinforced with a stainless steel armor that prevents crushing and over-bending, significantly extending the lifespan of the cable in busy lab or production environments.
| Connector Type | Max Frequency | VSWR (Max) | Insertion Loss |
|---|---|---|---|
| N-Type | 18 GHz | 1.23:1 | <=1.5 dB |
| 3.5mm | 26.5 GHz | 1.25:1 | <=1.8 dB |
| 2.92mm | 40 GHz | 1.30:1 | <=2.5 dB |
| 2.4mm | 50 GHz | 1.30:1 | <=3.2 dB |
| 1.85mm | 67 GHz | 1.35:1 | <=5.2 dB |

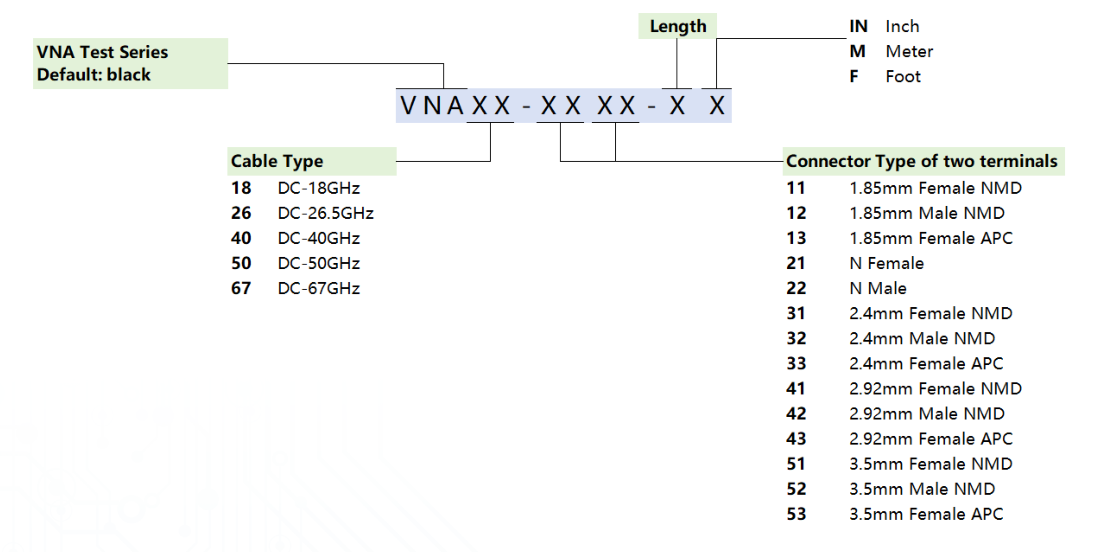

The PDF defines the VNA-series order code as VNA plus cable type, two terminal connector codes, and length/unit. Cable type codes include 18, 26, 40, 50, and 67 for DC to 18 / 26.5 / 40 / 50 / 67 GHz coverage. Connector code options include 11 / 12 / 13 for 1.85 mm, 21 / 22 for N, 31 / 32 / 33 for 2.4 mm, 41 / 42 / 43 for 2.92 mm, and 51 / 52 / 53 for 3.5 mm connector families.
Standard length: 63 cm. Custom lengths are available upon request.
XGY Tek specializes in tailoring instrument hardware, control interfaces, and validation workflows to meet specific aerospace, defense, and laboratory requirements.
Get a Quote| Parameter | Specification |
|---|---|
| Frequency | DC - 67 GHz |
| Armor | Ruggedized stainless steel armor |

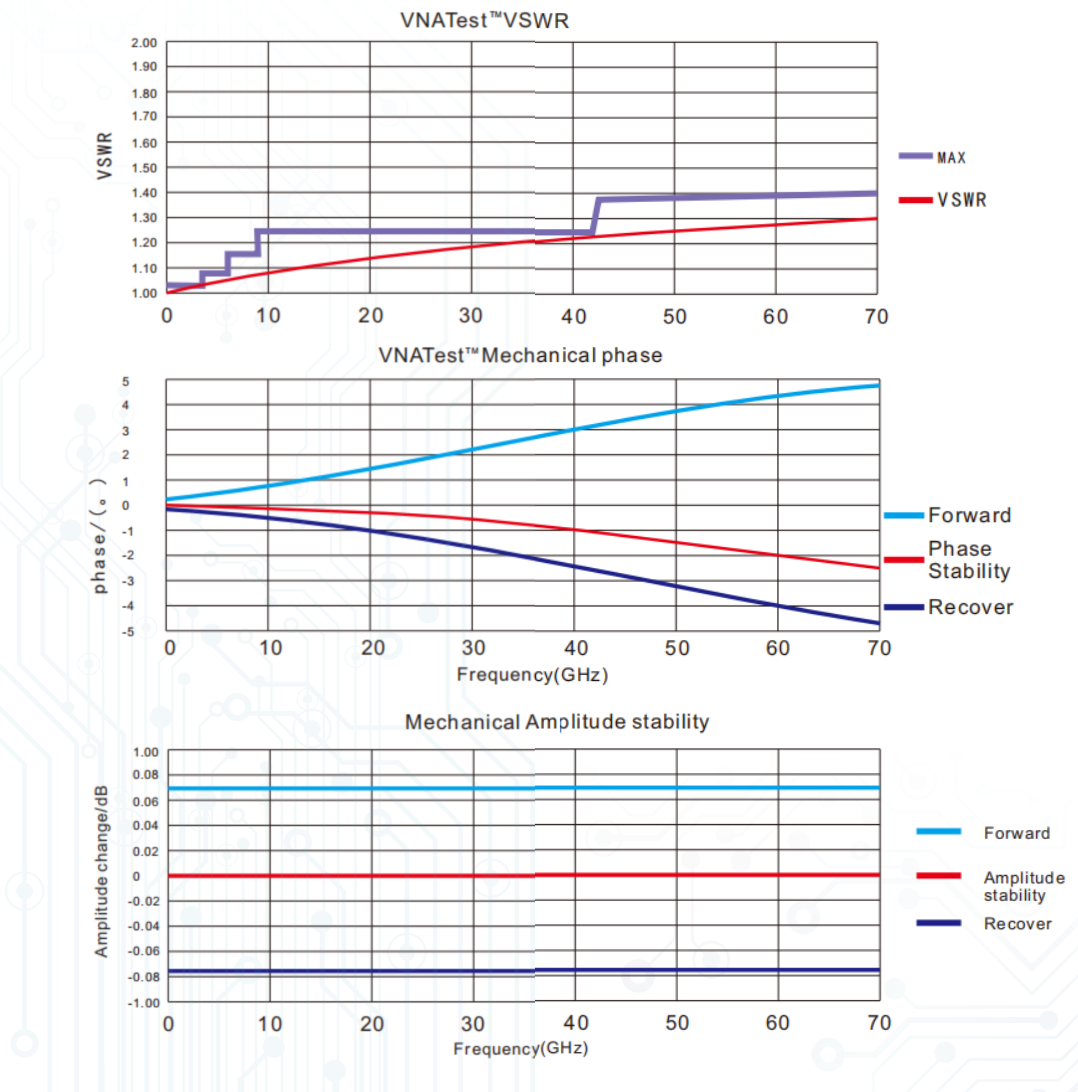

| Phase Stability | <= 1.5 to <= 3 deg with 10 cm mandrel, model dependent |
| Shielding Efficiency | -100 dB |
* Specifications are subject to change without notice. Contact XGY Tek for full technical datasheet.
