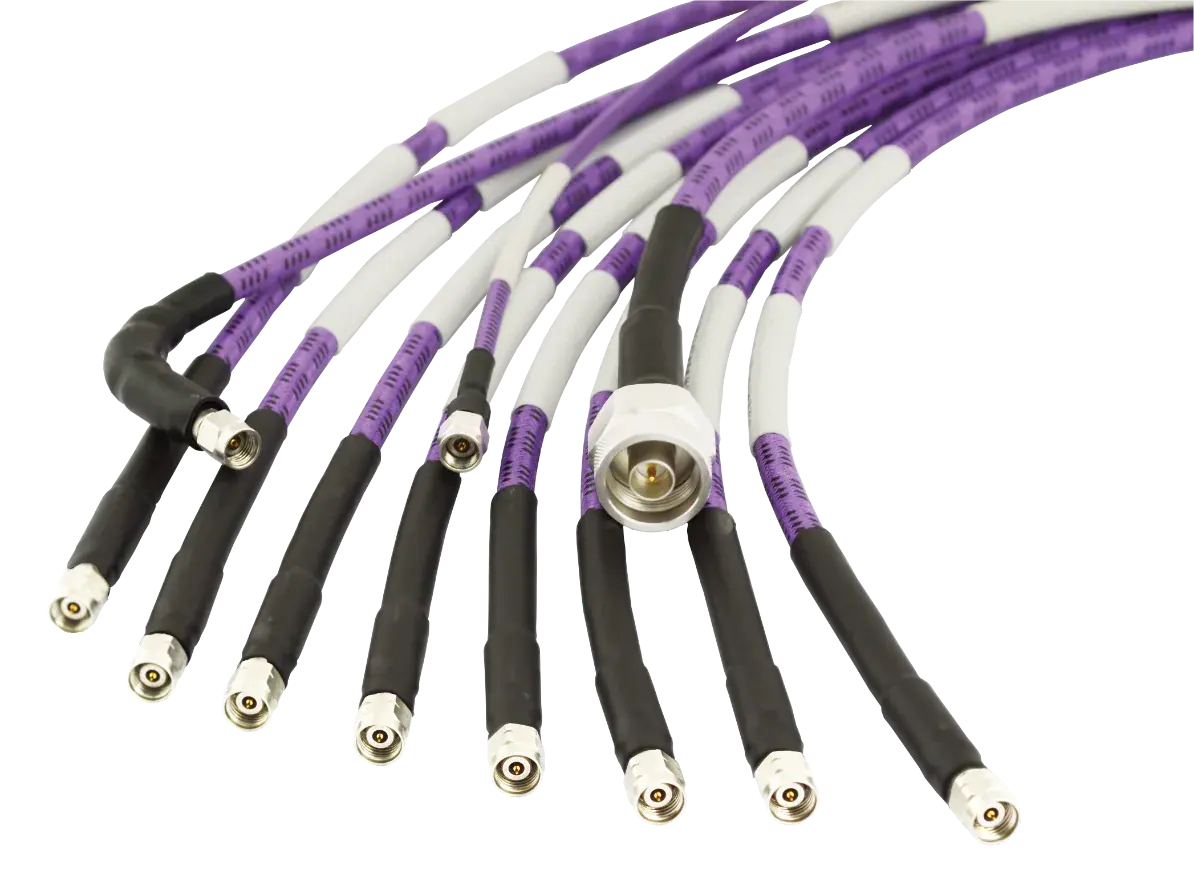

PT Series Precision Test Cable

Precision RF and mmWave Test Cables to 110 GHz by Configuration

PT cables combine a 10-layer armored construction with model-specific RF performance and connector choices for measurement interconnects from DC to 110 GHz.

Get a Quote
PT Series Precision Test Cable
Frequency range
DC to 110 GHz
By configuration
Structure
10-Layer Armor
Shielding efficiency
Better than 100 dB for PT40/PT50/PT67
Phase stability
3° / 5° / 8° for PT40 / PT50 / PT67

Overview

PT Series precision test cables cover RF and mmWave measurements up to 110 GHz by configuration. A 10-layer armored construction supports repeatable interconnects in R&D, calibration and field setups.

Choose the cable type and connector pair for the required band and handling conditions. Loss, VSWR, amplitude stability, phase stability and bend radius vary by model; PT110 stability values require confirmation during configuration.

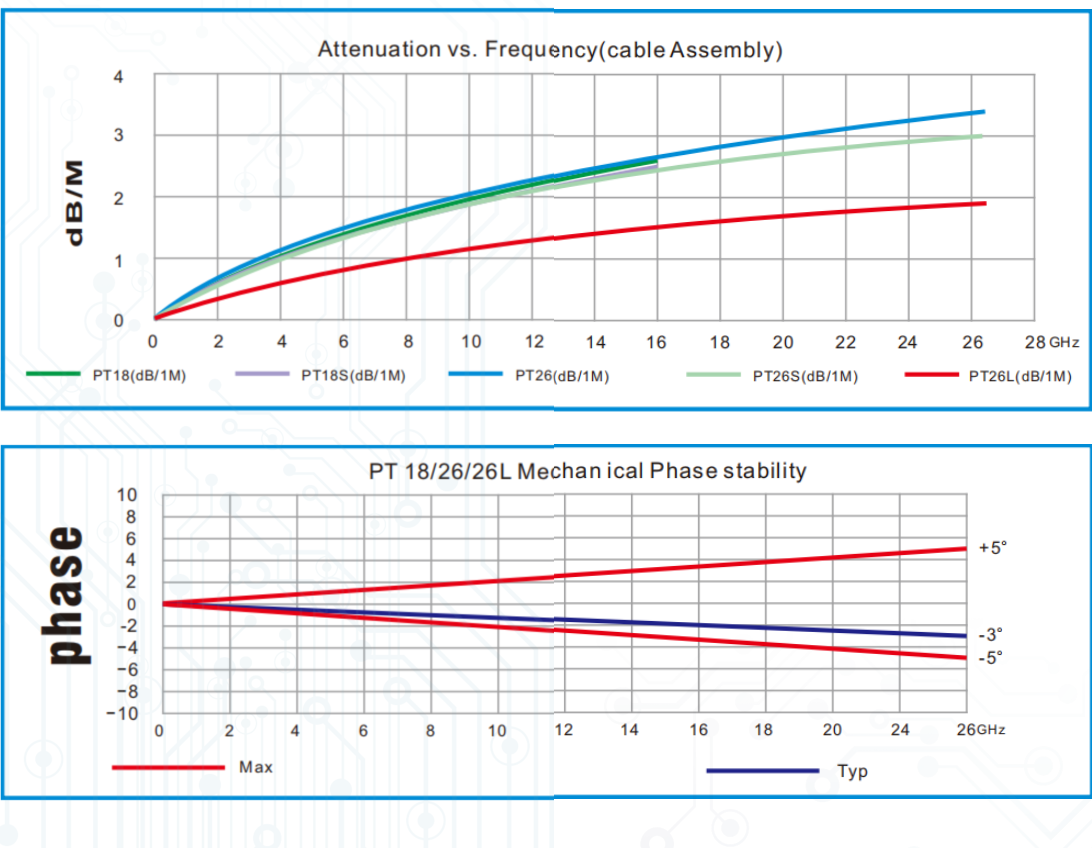

  1. PT18 to PT26L attenuation and mechanical phase plots

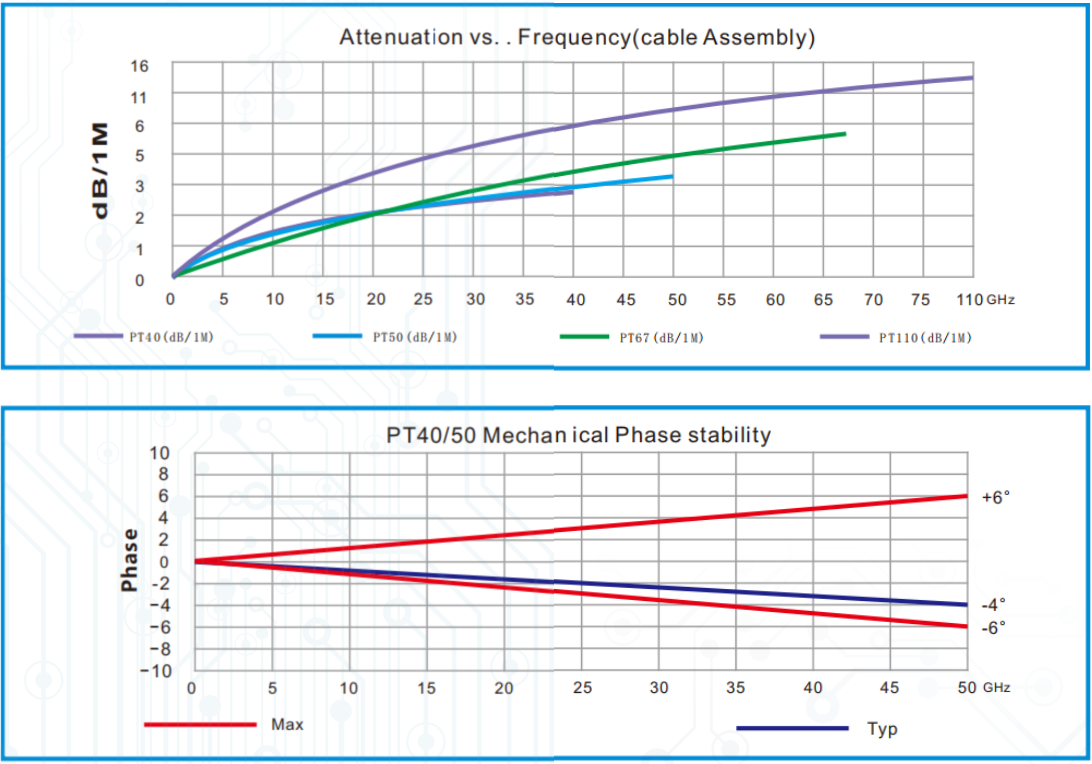

  2. PT Series attenuation and mechanical phase plots: higher-frequency models

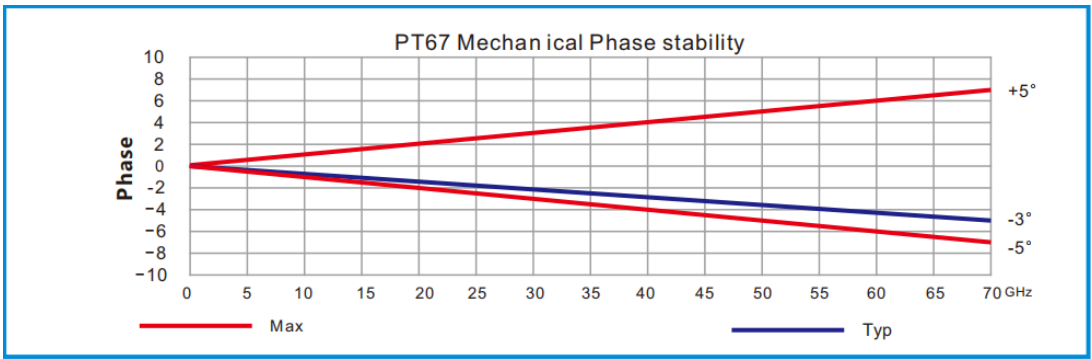

  3. PT Series mechanical phase-stability plot

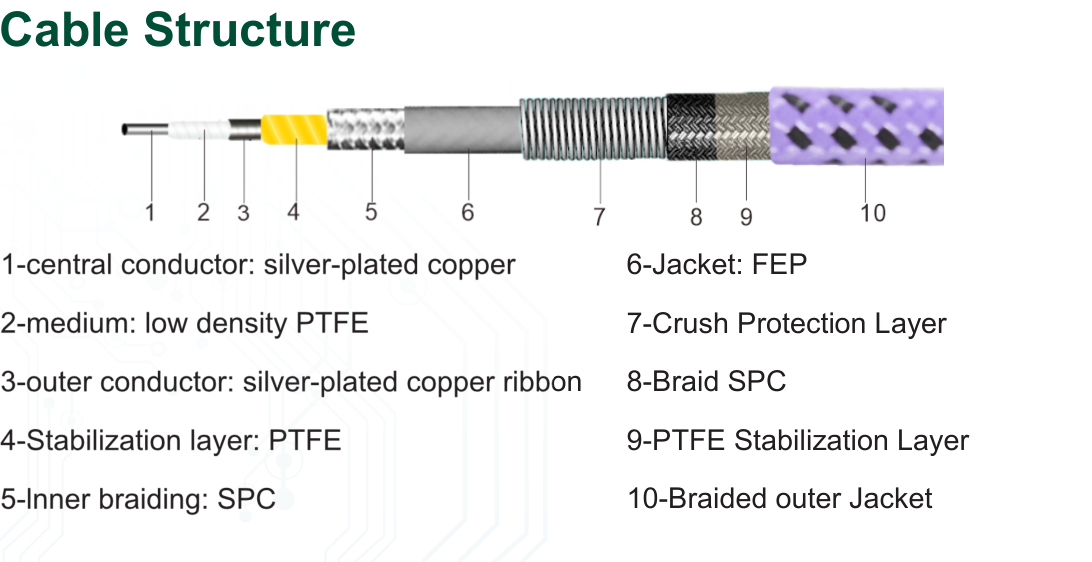

  4. PT Series cable-construction diagram

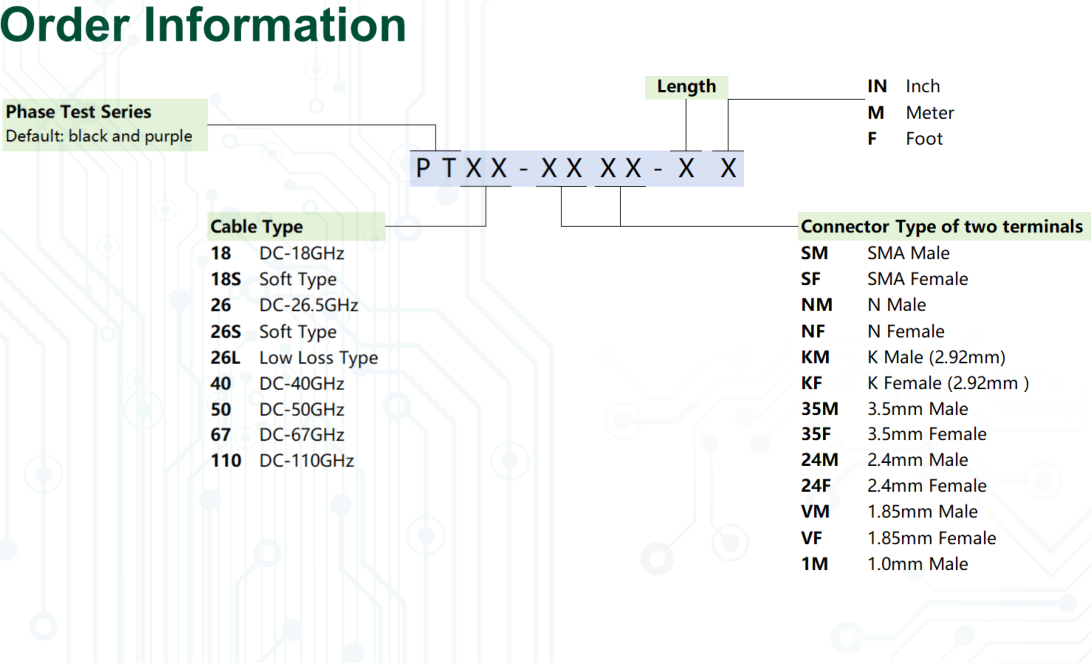

  5. PT Series ordering-code diagram

1 / 5
Additional product details

The PT Series test cable, covering DC to 110 GHz by configuration, is a high-performance interconnect solution specifically engineered for precision measurement.

Designed for durability, the cable offers superior crush and torque resistance, maintaining performance integrity through rigorous bending cycles.

Key Capabilities & Applications

Select the frequency configuration

Cable types include PT18, PT18S, PT26, PT26S, PT26L, PT40, PT50, PT67 and PT110. The assembled frequency range depends on cable and connector choices.

Compare performance by model

PT40 and PT50 have maximum VSWR of 1.3; PT67 is 1.4 and PT110 is 1.45. Cable loss and phase/amplitude stability must be read against the same model column.

Match connectors and handling

Connector families include SMA, N, 3.5 mm, 2.92 mm, 2.4 mm, 1.85 mm and 1.0 mm. Minimum bend radius and mechanical endurance are model-specific.

Common applications

  • mmWave component verification up to 110 GHz
  • VNA calibration
  • R&D laboratory testing
  • Field testing

Technical Specifications

ParameterSpecification
Frequency rangeDC to 110 GHzBy configuration
Structure10-Layer Armor
Cable typesPT40, PT50, PT67 and PT110 for 40, 50, 67 and 110 GHz
Connector optionsSMA, N, K 2.92 mm, 3.5 mm, 2.4 mm, 1.85 mm and 1.0 mm families
VSWR1.3 max at 40 and 50 GHz; 1.4 at 67 GHz; 1.45 at 110 GHz
Cable loss2.9 dB/m at 40 GHz; 3.3 dB/m at 50 GHz; 5.93 dB/m at 67 GHz; 14.3 dB/m at 110 GHz
Phase stability3° / 5° / 8° for PT40 / PT50 / PT67; PT110 consult factory
Amplitude stability0.03 dB at 40 GHz; 0.05 dB at 50 GHz; 0.1 dB at 67 GHz
View all 9 specifications
ParameterSpecification
Shielding efficiencyBetter than 100 dB for PT40/PT50/PT67; better than 90 dB for PT110
Detailed performance and interface tables (1)
Per-model comparison: VSWR, cable loss, amplitude and phase stability, shielding
Parameter40 GHz50 GHz67 GHz110 GHz
VSWR (Max)1.31.31.41.45
Cable loss (dB/m)2.93.35.9314.3
Amp. stability (dB)0.030.050.1Consult Factory
Phase stability (deg)358Consult Factory
Shielding effectivenessBetter than 100 dBBetter than 100 dBBetter than 100 dBBetter than 90 dB

Specifications are subject to change without notice.

Models, Configuration & Compatibility

PT

Model comparison (2)
PT18 to PT26L electrical and mechanical specifications
ParameterPT18PT18SPT26PT26SPT26L
Frequency (GHz)181826.526.526.5
VSWR (Max)1.21.21.21.21.2
Cable loss (dB/m)2.161.922.812.351.25
Amplitude stability (dB)0.020.030.020.030.03
Phase stability (°)22222
Velocity of propagation (%)7076707683
Shielding efficiency (dB)< -90< -90< -90< -90< -90
Time delay (ns)4.764.34.764.34
Overall diameter (mm)7.76.57.76.57.9
Cable weight (g/m)110105110105110
Minimum bend radius (mm)7765776579
Bending cycles> 2,000,000> 2,000,000> 2,000,000> 2,000,000> 2,000,000
Temperature range (°C)-55 to +150-55 to +150-55 to +150-55 to +150-55 to +150
PT40 to PT110 mechanical and environmental specifications
ParameterPT40PT50PT67PT110
Velocity of propagation (%)76767670
Time delay (ns)4.34.34.34.5
Overall diameter (mm)6.56.555
Cable weight (g/m)10510590Consult Factory
Minimum bend radius (mm)659510545
Bending cycles> 2,000,000> 2,000,000> 2,000,000> 10,000
Temperature range (°C)-55 to +125-55 to +125-55 to +125-55 to +125
Crush resistance (kg/cm)300300300300
Model selection details

The PT Series datasheet defines the PT ordering code as PT plus cable type, two terminal connector codes, and length/unit. Listed cable type codes include 18, 18S, 26, 26S, 26L, 40, 50, 67, and 110.

Technical Resources

Download Datasheet

PDF technical specifications

Get a Quote

Pre-filled product inquiry

Selection guidance

Format: Armored RF / mmWave test cable

Coverage: DC to 110 GHz by configuration; 10-layer armor; better than 100 dB shielding through PT67 and better than 90 dB for PT110

Best for: R&D, calibration, and field measurement interconnects extending to 110 GHz.

Compare products in the RF Accessories category
Information for your quotation

Confirm the final PT cable length, length unit, connector pair, and assembled part number during ordering.
